-22%

Raymarine AXIOM + 7RV USED BY EXPOSURE 7 "eco / GPS

  • Code: E70635
€ 989,00 € 1.274,90 -22%
CHOOSE THE TRANSDUCER
you chose:

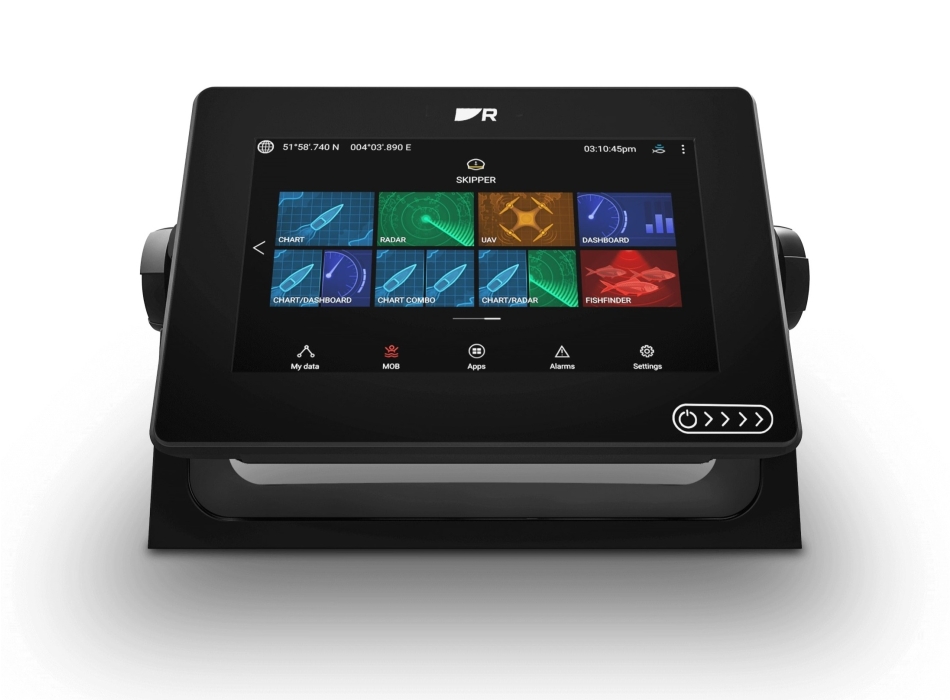

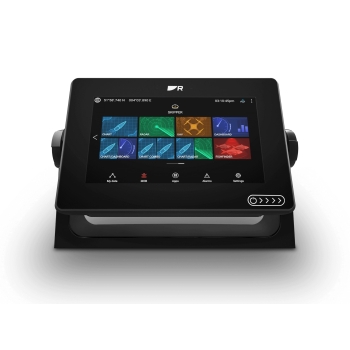

Raymarine AXIOM + 7RV USED FOR EXHIBITION
New GPS version with depth sounder

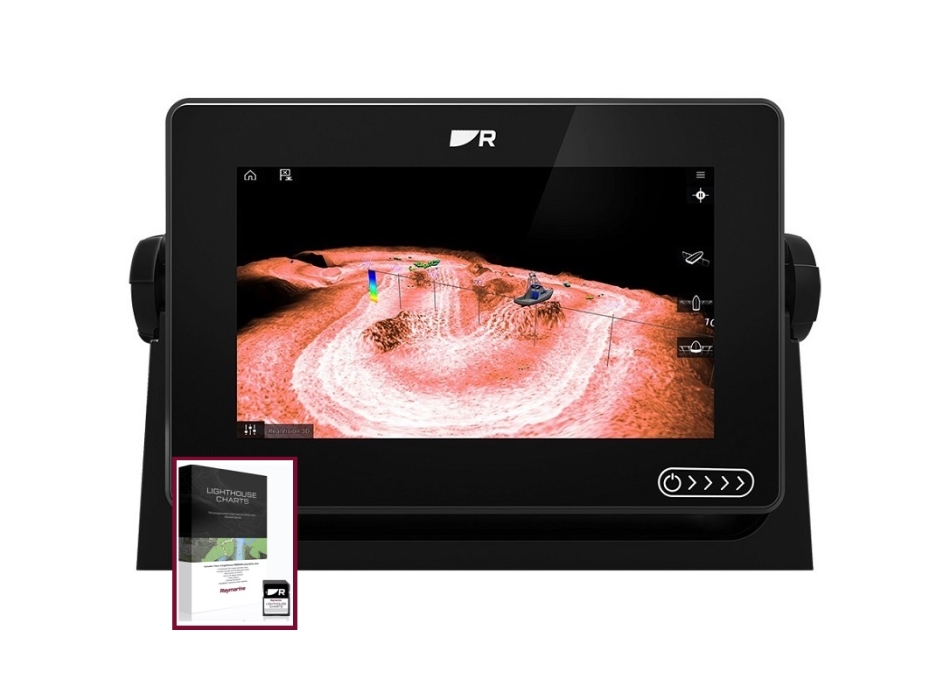

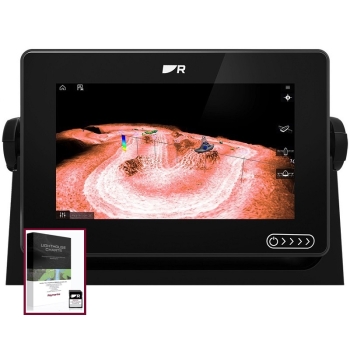

Designed for the highest performance, Axiom® + is the NEXT generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features an industry-leading powerful quad-core processor for responsiveness and processing capability, giving you the ability to redraw maps, navigate augmented reality, and experience RealVision sonar. ™ 3D seamless.

The new high-resolution IPS display guarantees 25% more brightness and the new day / night color tables offer greater visibility in all lighting conditions. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.

OPTIMIZED FOR HIGH PERFORMANCE

Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more built-in memory for personal data and apps.
Smart and intuitive, the LightHouse 3 operating system makes navigation easy.

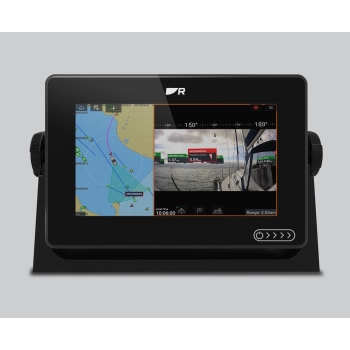

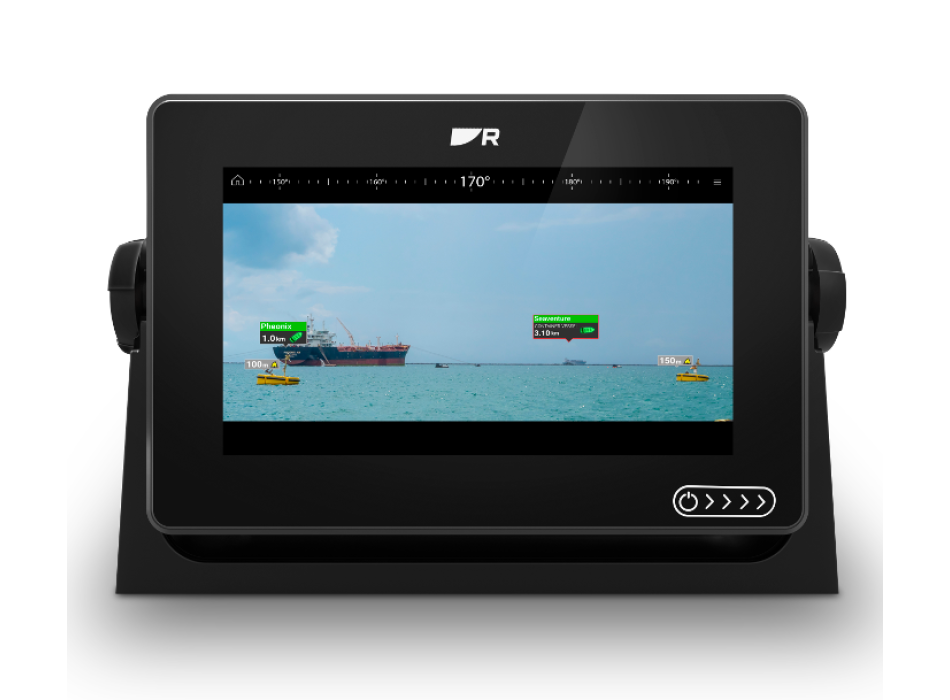

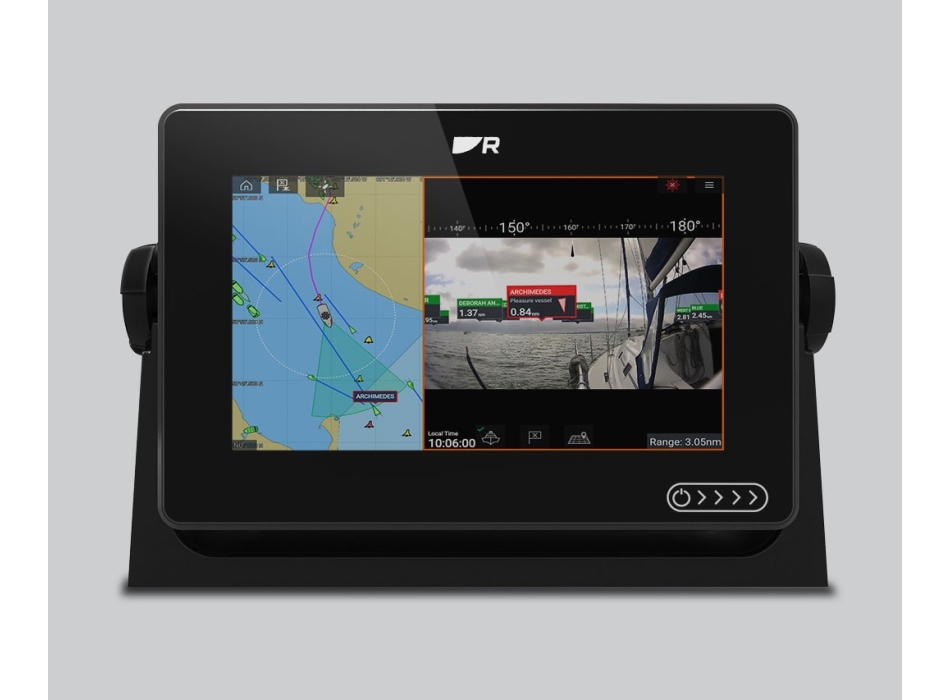

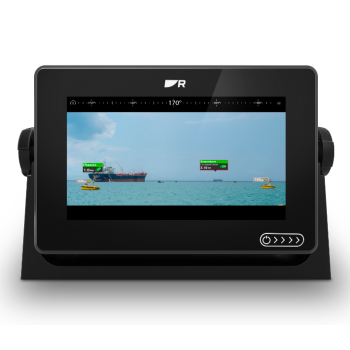

ClearCruise ™ Augmented Reality helps you make smarter navigation decisions.



HYDROTOUGH ™ DISPLAY
The glass screen is coated with nanotechnology materials, resists shocks and repels water, oil and smudges for better viewing and accurate touch controls.

BRIGHTER
The 7, 9, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).




SHARER
IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
AXIOM + SPECIFICATIONS 7
7.0 "IPS High Density Screen Size
Display resolution 1024 x 600 (WSVGA)
Screen type Multitouch with hydrophobic HydroTough ™ coating
Brightness 1,500 nits
Viewing angles 85 ° from top, bottom, right, left
Dimensions
W x H x D 210 x 142 x 77mm
IPX6 / IPX7 waterproof

DEPTH SOUNDER
Sonar Depth High CHIRP Sonar Sonar = 274 m (900 ft) | DownVision ™ = 183 m (600 feet) | SideVision ™ = 91 m (300 feet) | RealVision ™ 3D = 91 m (300 feet)
Note: the indications of the maximum depth may vary according to the characteristics and salinity of the water

CONNECTIVITY
Ethernet 1 x 10/100 Mbit / s network port (RayNet)
NMEA0183 No.
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a / b / g / n
BlueTooth Bluetooth v4.0

NAVIGATION
Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints / Routes / Tracks (Wpts / Rts / Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpt max / 16 tracks - Max 10,000 trk pts
