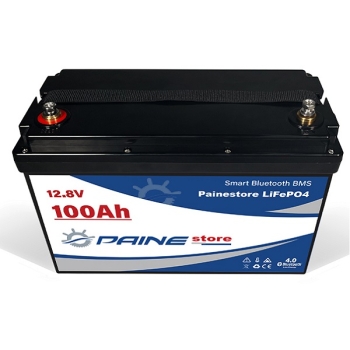

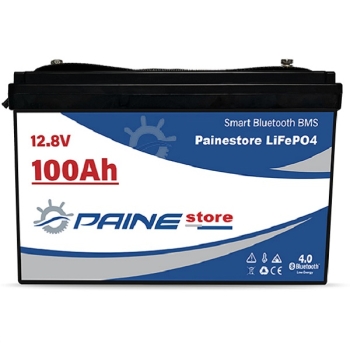

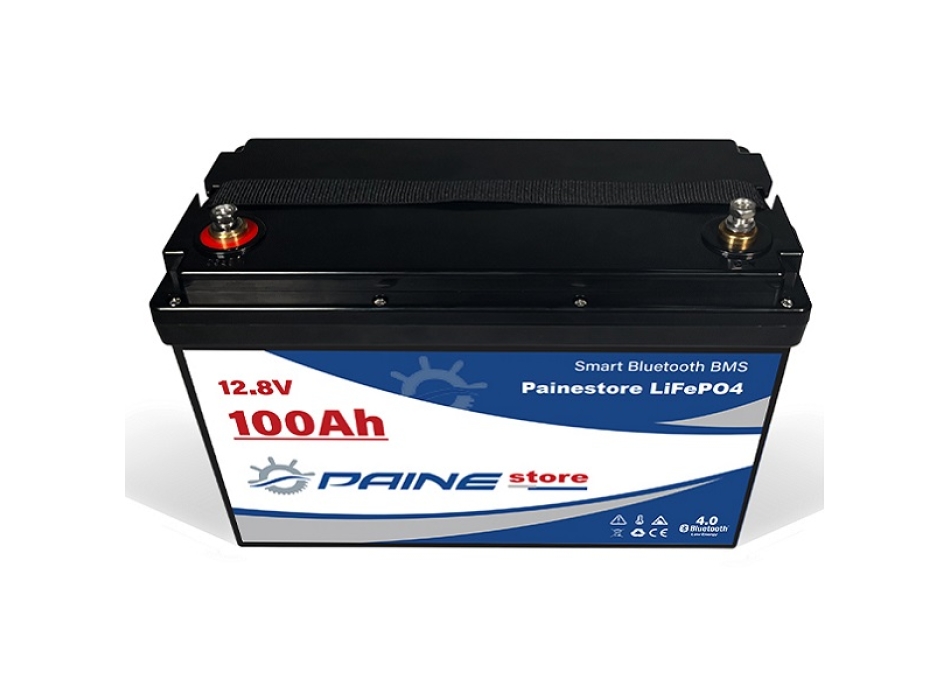

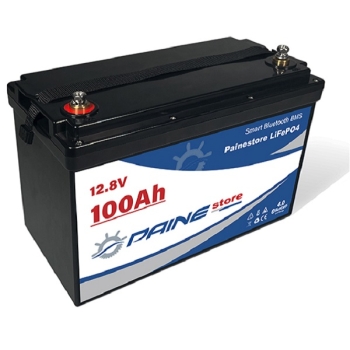

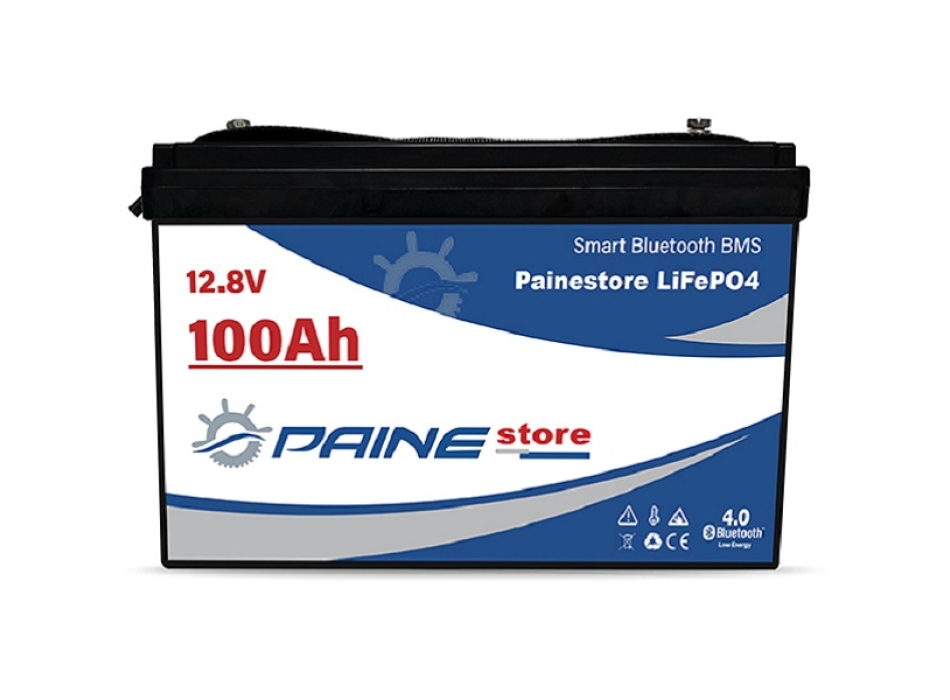

12.8V 100Ah LiFePO4 Smart BMS Lithium Battery with Bluetooth

(0)
Our Lithium Batteries with 5-Year Warranty and Bluetooth App
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 639,00 € 780,00 -18%
12.8V 100Ah LiFePO4 Smart BMS Lithium Battery with Bluetooth


Our lithium iron phosphate (LiFePO4) batteries offer numerous advantages over traditional batteries:
– 5-year manufacturer's warranty
– The safest technology, without risk of fire or explosion
– A significant lifespan
– Constant improvement of storage capacity
– Great stability even under extreme loads
– No memory effect, no need for complete charge and discharge cycles
– High performance even in extreme conditions
– Deep and smooth flushing and flushing efficiency
– Small size and light weight

The integrated battery management system (BMS)
To allow the control and charging of the various elements of a storage battery and to protect it from overcharging, overvoltage and overheating.

Built-in Bluetooth 4.0 monitoring
You have all the important battery data at your fingertips, right on your smartphone or tablet. The app displays the data in real time.
Download our app now in the Documents section
Technical data sheet

Nominal voltage 12.8 V
Estimated capacity 100Ah
Capacity @ 20A 300 minutes
Energy 1280Wh
Resistance ≤15 mΩ at 50% SOC
Self-discharge <3%/month
Number of cyclesNumber of cycles >6000 at 80% DoD
Recommended charging current 30A
Maximum charging current 50A
Recommended charging voltage 14.6 V
Load cut-off voltage 14.6 V (2000 ms)
Reconnection voltage ≤13.8 V
Equilibrium voltage >12.8 V
Maximum continuous discharge current 150A
Peak discharge interrupt current 450A (200~500ms)
Discharge cut-off voltage 10 V (2000 ms)
Reconnection voltage >11.2 V
Short circuit protection 1000-2000A ±400A（200~800μs）
Dimensions (W x D x H) 330 x 172 x 215 mm
Weight 11.5 kg
M8 connecting screw
Torque terminals 80 ~ 100 in-lbs (9 ~ 11 Nm)
Abdominal Materials Box
International protection code IP65
Bluetooth 4.0 with smartphone app
UN Classification of Shipping 3480, CLASS 9
CE UN38.3 UL1642 and IEC62133 certifications
D Salve il caricabatterie e disponibile
R 05-12-24 Buon pomeriggio, sì disponibile il caricabatterie Victron al prezzo di 199,00 euro. Purtroppo non lo trova sul sito perchè dobbiamo ancora metterli online. Cordiali saluti. Luigi Bianchi
D Salve volevo sapere se è una batteria x Minn kota
R 04-12-24 Buon pomeriggio, se il Minnkota ha alimentazione a 12volt, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
