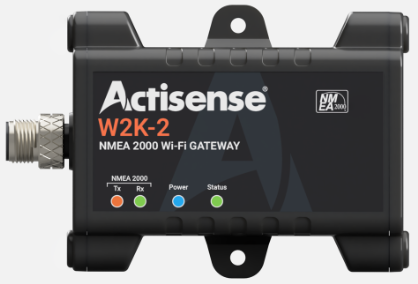

Transfer data from an NMEA 2000 backbone network to any device (such as a laptop, tablet, or smartphone) connected to the W2K-2 via Wi-Fi and convert this data to NMEA 0183 format using Actisense's renowned conversion engine. Actisense-i is a suite of diagnostic and health check tools for your network.
Fully compatible with the most popular apps in the industry.
Fully NMEA 2000 certified
The W2K-2 features built-in conversion of NMEA 2000 messages to NMEA 0183 sentences, allowing a wide variety of vessel data (e.g. position, speed, course, wind speed, depth, engine data, AIS messages, etc.) to be shared with NMEA 0183-compatible software applications running on connected devices.
All received data (or a selected subset) can be recorded to an internal micro SD card for later download and use to analyze the trip. This is very useful for analyzing race data, generating logbooks, diagnosing problems, or even sharing trip details. Data can be stored on any micro SD card (up to 128 GB), providing weeks or more of storage space for all onboard NMEA data.
The W2K-2 adopts the latest WPA3 standard for password protection. While most wireless gateways still use WPA2, WPA3 adds an extra layer of security.
Actisense-i is included as standard. Take advantage of our comprehensive suite of diagnostic tools to check and diagnose potential problems with a boat's electronic network, including voltage issues and the operating status of all devices connected to the network. Actisense-i is designed to save installers and boaters time and, ultimately, money, providing them with maximum security for their onboard electronics.
The W2K-2 features the legendary Actisense “Built-in Reliability” technology, helpful diagnostic LEDs, an internal antenna, enhanced password security, full certification and all housed in a rugged IP67 rated enclosure.
Characteristics
Converts NMEA 2000 data to/from NMEA 0183 (streamed over Wi-Fi).
It supports both TCP and UDP and transmits data using up to three separate data servers.
Trip data recording (install an SD card up to 128 GB)
Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi status
It functions simultaneously as an access point and a client.
Remote firmware update
Low power consumption - 2 LEN (100 mA)
Supports 802.11 b/g/h (up to 150 Mbps)
Automatically measures and reports NMEA 2000 bus voltage
User manual integrated into the device, easily accessible via browser.
Each device has a unique default SSID and password for added security.
Actisense-i Diagnostic Tools
Benefits
NMEA 2000-Wi-Fi gateway and data logger in one
It allows the use of mobile devices and laptops without the need for a physical connection.
Enables compatibility with a wide range of NMEA 2000 and NMEA 0183 applications
Rugged IP67 rated enclosure, suitable for humid and harsh environments.
It works right out of the box, with no additional setup required: just install your chosen SD card to record data.
The built-in antenna is less likely to suffer physical damage
Quick and easy installation
