We know that certain frequencies are particularly effective at detecting certain fish species: bluefin tuna at 60 kHz, squid at 133 kHz, and cod at 175 kHz.
The TM265LH transducer includes all of these frequencies, plus all other frequencies in the high and low frequency bands.
This powerful instrument offers excellent resolution, bottom discrimination and separation between baitfish and predator fish at all depths.

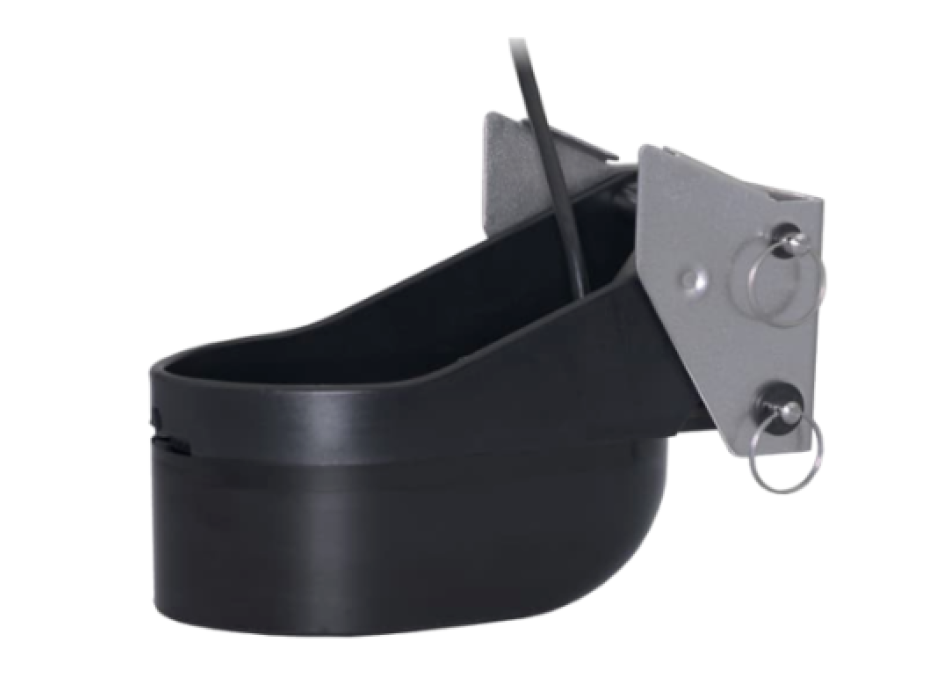

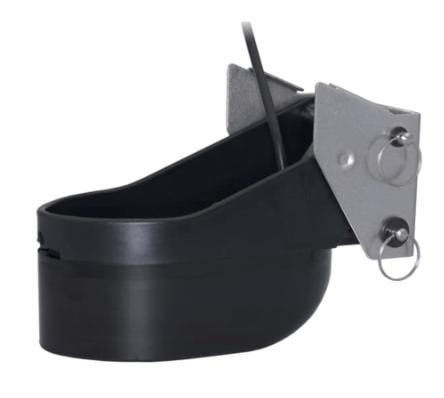

The Airmar TM265LH features a seven-element low-frequency array that operates between 42 and 65 kHz for excellent deepwater performance.
The high-frequency ceramic element operates between 130 and 210 kHz with a narrow 10° to 6° beam, perfect for pinpointing structure and locating fish hiding between obstacles.
- Depth and water temperature detection with rapid response
- 1 kW of power for excellent performance in deep water
- Low frequency: 42 to 65 kHz; beamwidth 25° to 16°; maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz; beamwidth 10° to 6°; maximum depth of 304 m (1000').
- 103 kHz total bandwidth from a single transducer
- It covers the most popular fishing frequencies of 50 and 200 kHz, as well as everything else in the band.
- Bronze housing with high performance fairing for optimum high speed performance.
