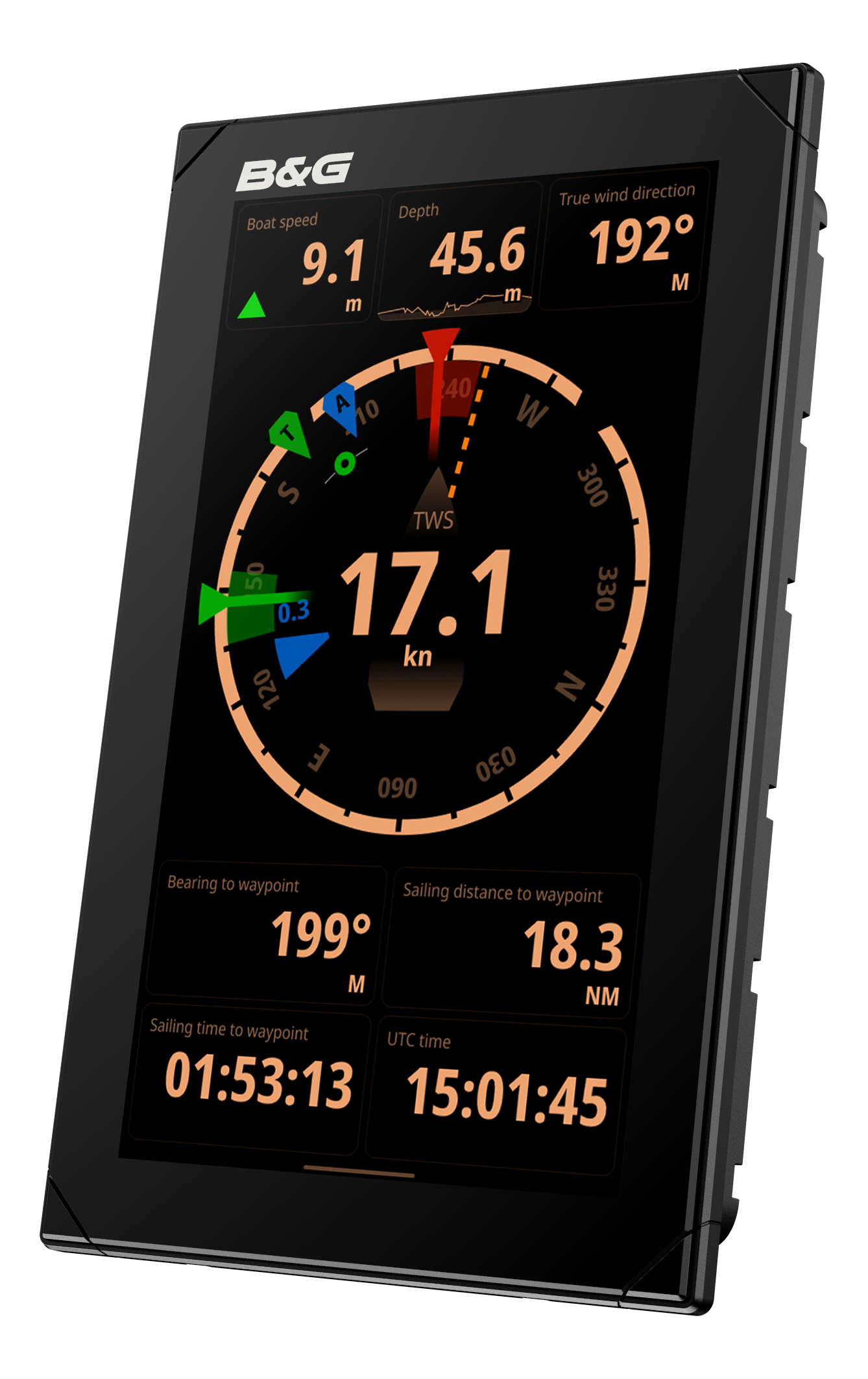

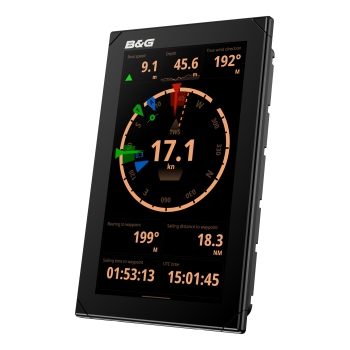

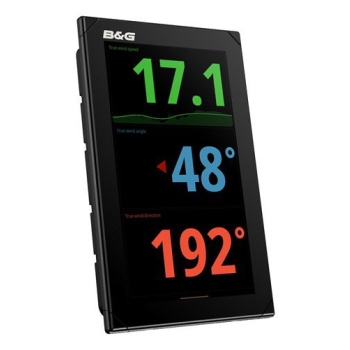

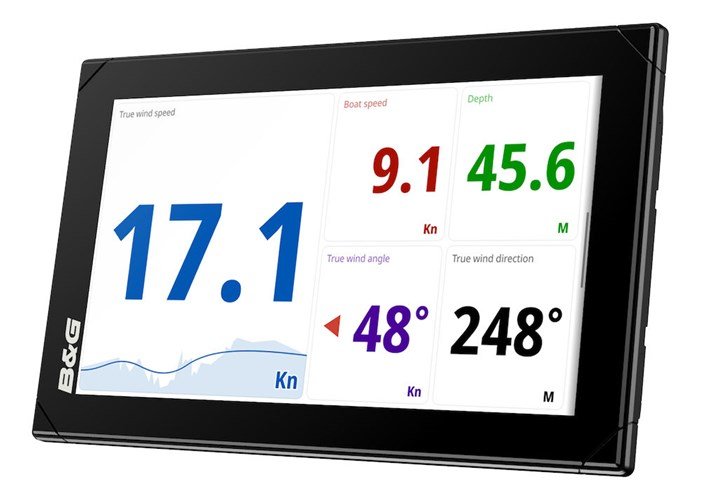

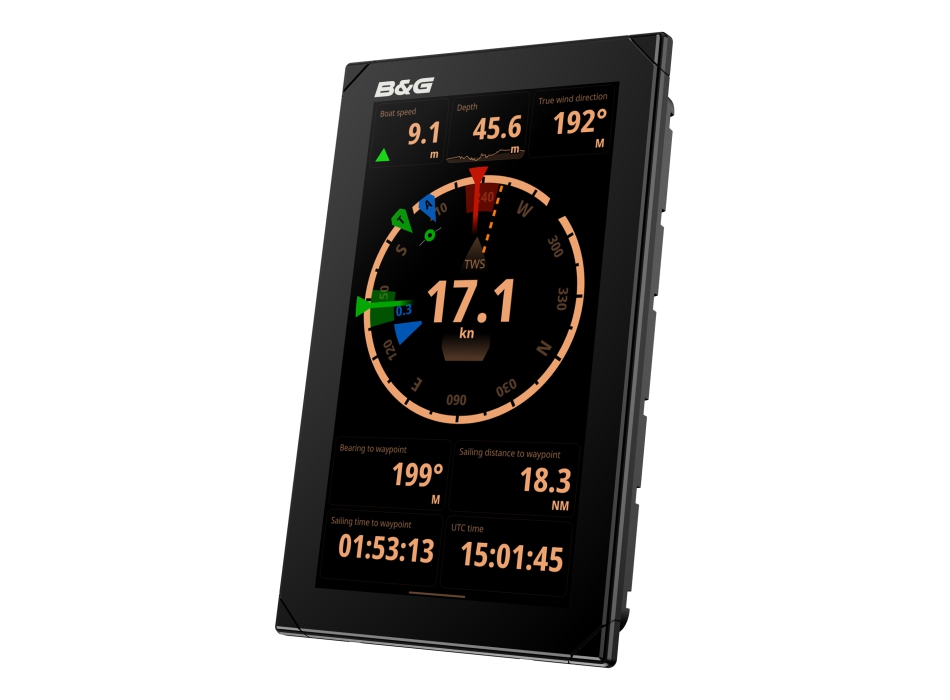

B&G Nemesis Display 9

  • Code: 000-15611-001
B&G
(0)
€ 2.069,00 € 2.438,78 -15%
add to favorites

Main functions

  • Preset dashboards or easy-to-use drag-and-drop editors for complete customization
  • Wide choice of digital data views, including graphical gauges, SailSteer ™, tank levels, IP camera views, histograms and images

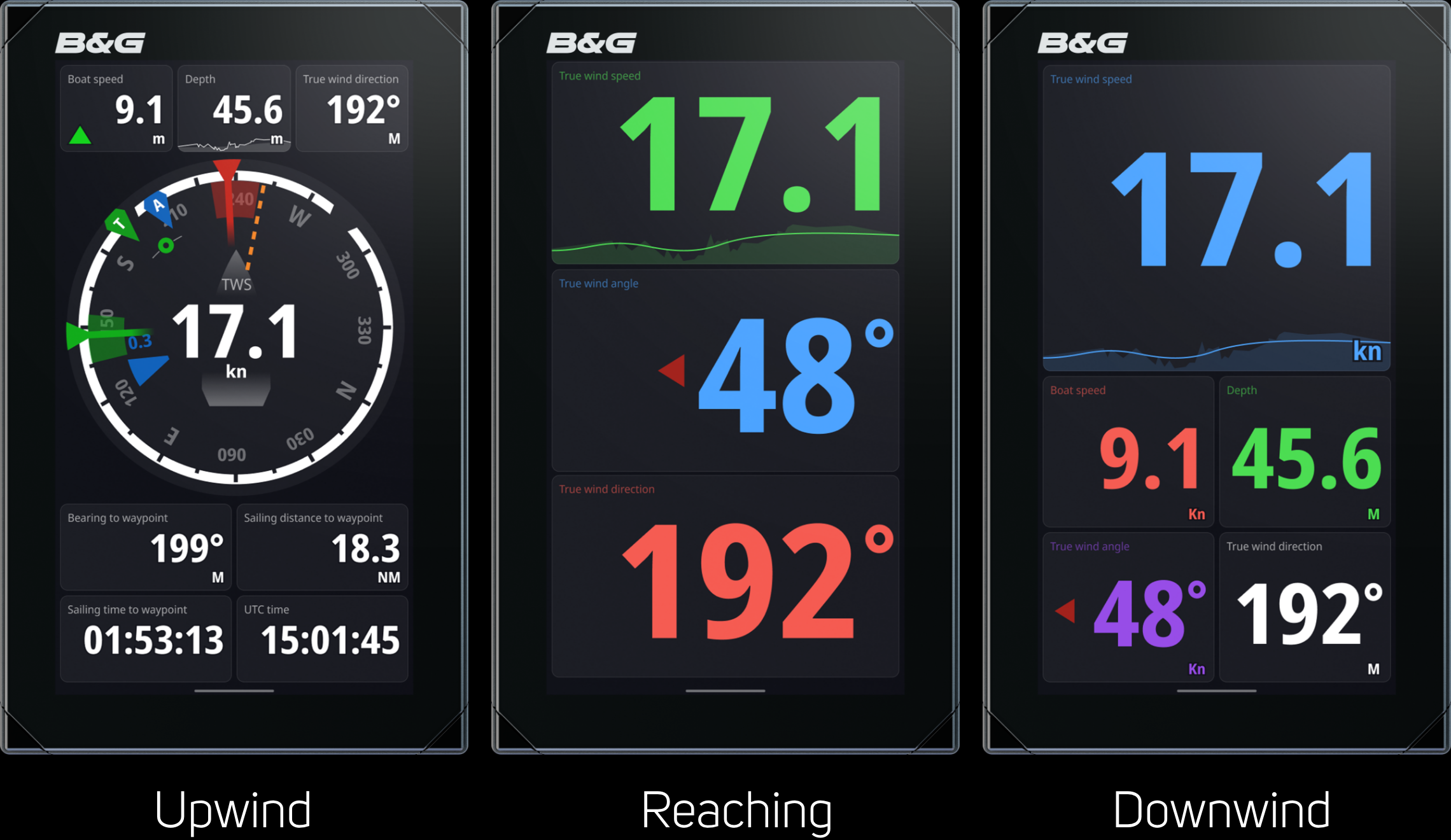

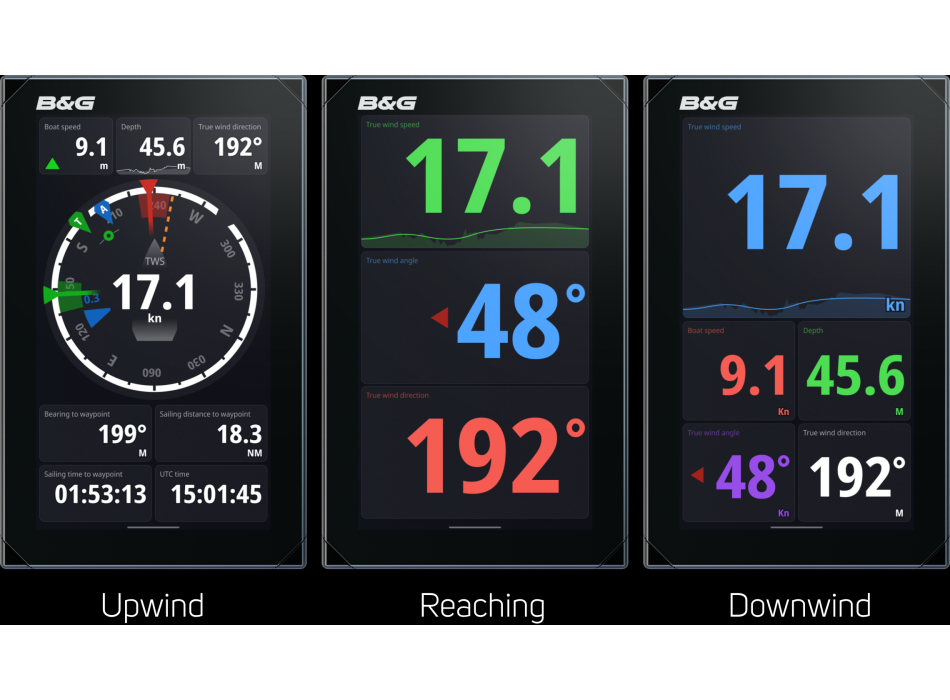

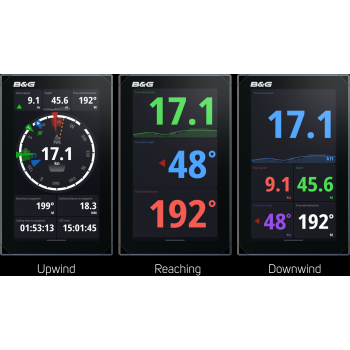

  • Contextual modes: upwind, sliding, leeward, pre-start, engine
  • Bright touch screen with extremely wide viewing angles
  • Adjustable palettes and backlighting for optimal viewing in all conditions

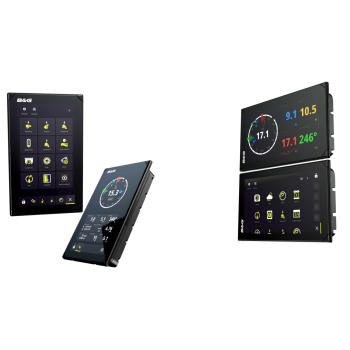

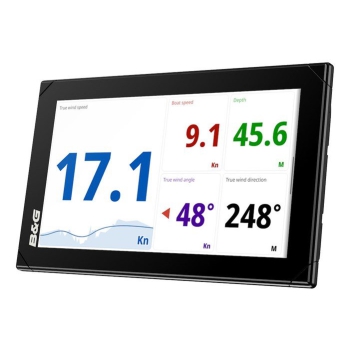

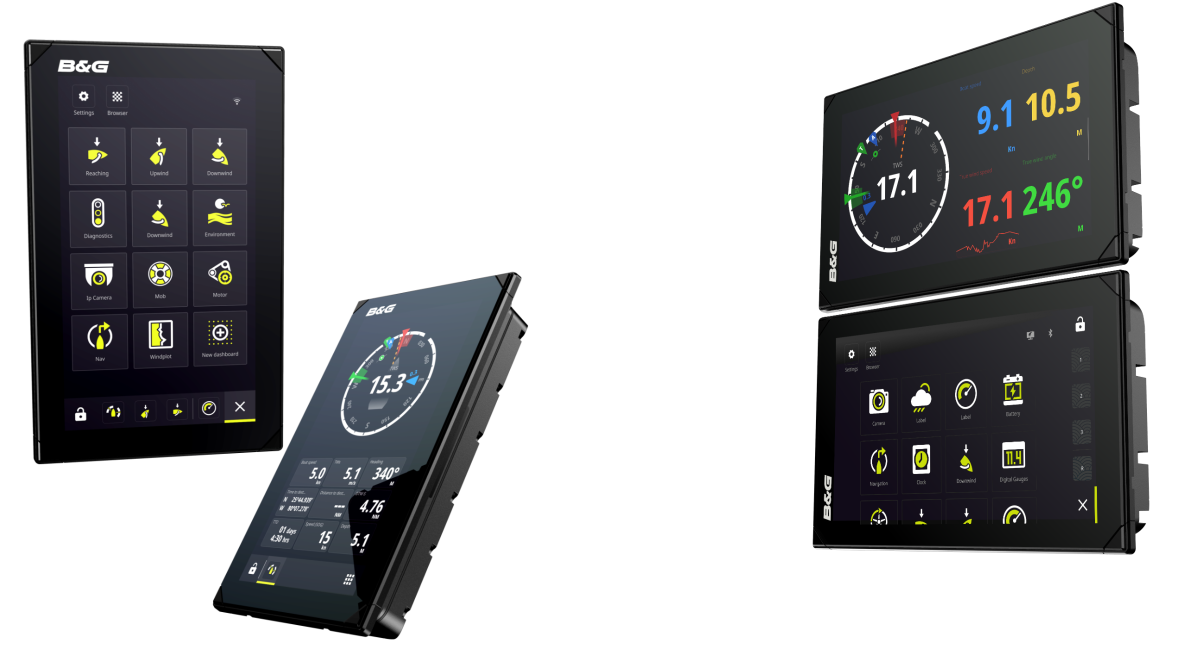

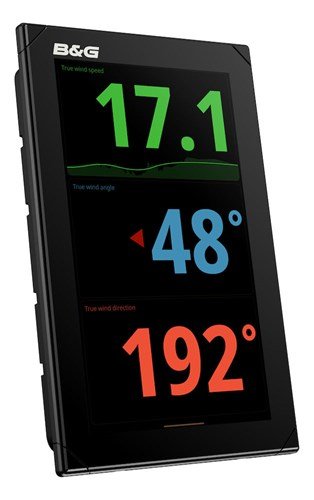

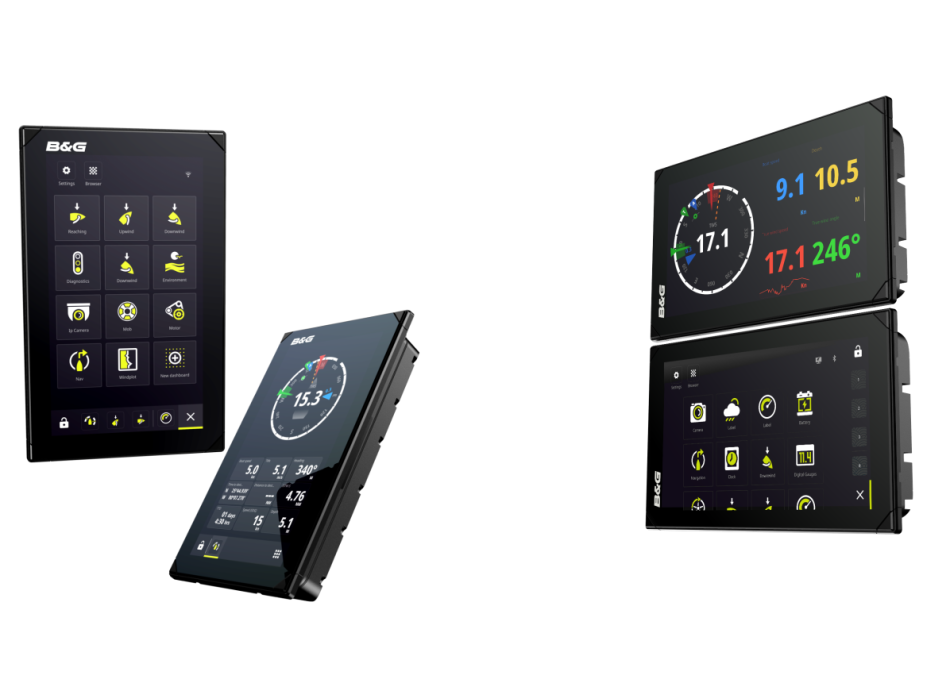

  • Horizontal and vertical mounting
  • Connecting multiple displays via Nemesis hub
  • Ethernet and / or NMEA2000

Specifications

Display resolution
1280 x 720
Screen brightness
1300 nits
Waterproof level
IP67
Ethernet ports
1 x 100 Mbit
NMEA 2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
Supply voltage
10 - 32 V DC
Maximum energy consumption
13W
Operating temperature range
-15ºC to + 55ºC (-5ºF to 131ºF)
Recommended fuse rating
2 Amp
Warranty period
2 years
Storage temperature range
-20ºC to + 60ºC (-4ºF to 140ºF)
Dimensions (height x width x depth)
239 x 149 x 69mm (9.4 x 5.6 x 2.7 ")
Compass safety
300mm (12 ")
Viewing angles
80 top / bottom, + / 80 left / right
Wi-Fi connectivity element
802.11 b / g
Languages
Chinese [simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish
Mounting type
Flush, Panel
Interface
Touch screen
Specifications

Display resolution
480 x 272
Waterproof level
IPX7
Weight
0.45 kg (1 lbs)
NMEA 2000 connectivity
1 x NMEA2000 Micro-C port, 4 LEN
Typical energy consumption
1.9W
Operating temperature range
-10 to + 55ºC (+14 to 131ºF)
Supply voltage
12V DC (10-16V DC)
Dimensions (height x width x depth)
172 x 114 x 40mm (6.8 x 4.5 x 1.6 ")
Warranty period
2 Years
Maximum energy consumption
2.4W
Compass safety
300mm (1.0 ')
Recommended fuse rating
5A
Languages
English, German, Spanish, French, Italian
Mounting type
Flush
Compliance with approvals
IEC / EN 60945
Interface
keypad
NMEA 0183 sentences supported
N / A
PC connectivity
No
Wi-Fi connectivity element
No
Bluetooth
No
Backlight color
Red, White, Green, Blue
