Clarion XC2110 200W Amplifier

(0)
  • Code: 010-03222-00
  • Brand : Clarion
€ 152,00 € 190,00 -20%

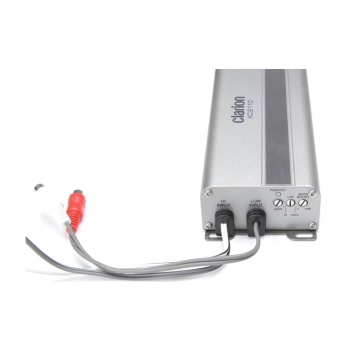

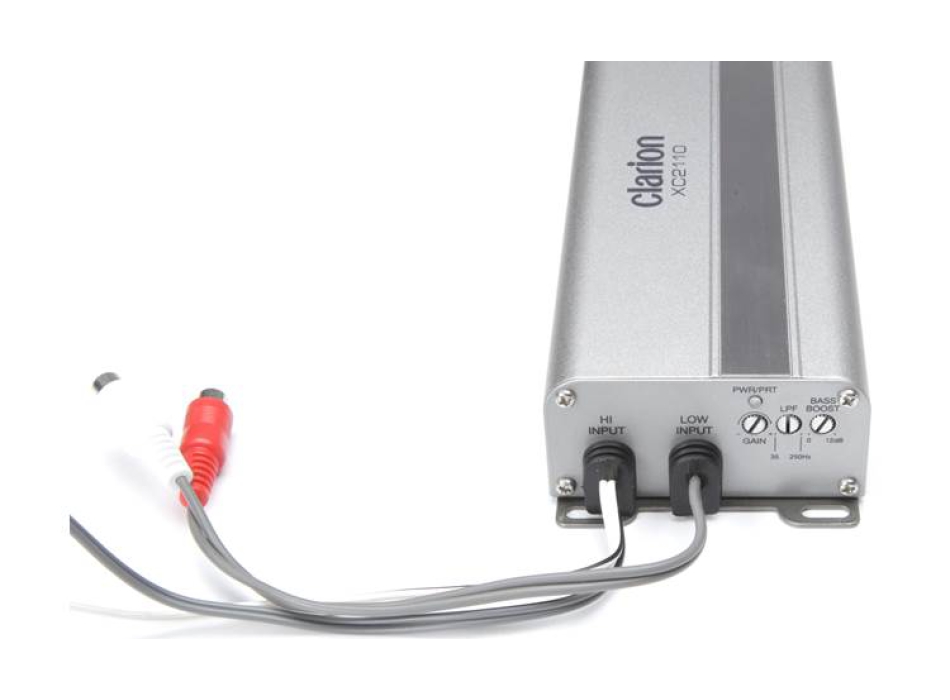

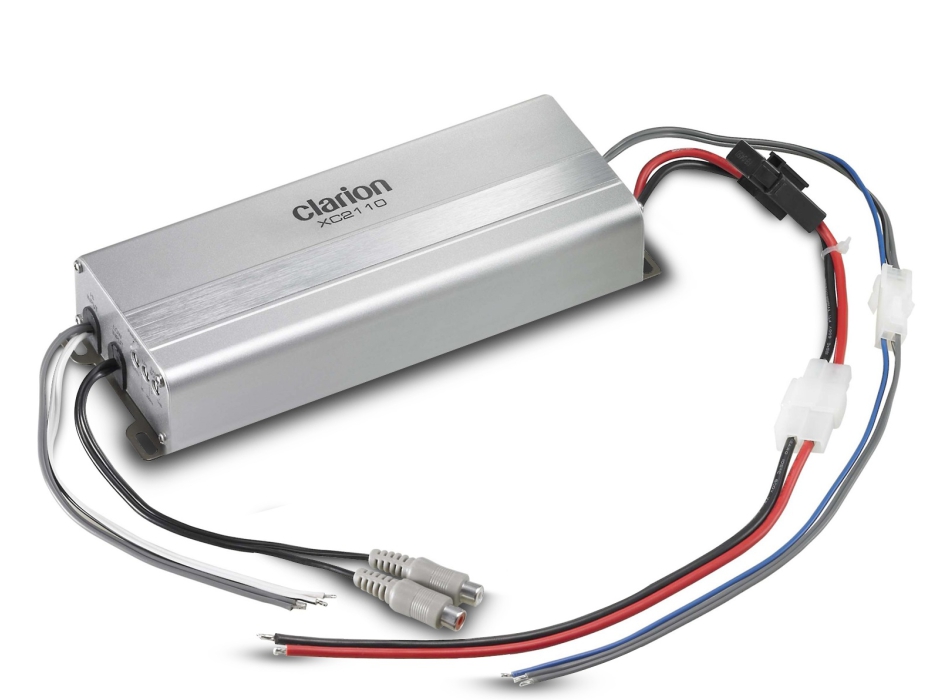

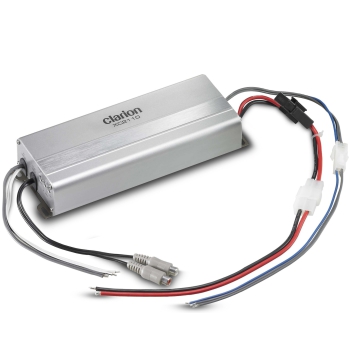

Clarion Amplifier XC2110 200W - 1 Channel
Clarion XC2110 small single-channel Class D amplifier, maximum power 200W, dedicated to marine applications

PCB assembly with marine grade coating
MOS-FET power supply
12dB/oct. Electronic low-pass crossover. Variable 35 - 250Hz
Variable gain control
Muting circuit with on/off switch (Soft Mute)
Ground loop isolated input circuit
Corrosion-resistant RCA, power, and speaker connections
RCA inputs and high-level speakers

Clarion amplifiers feature uncompromising resistance to magnetic noise, thus minimizing distortion, as well as high-quality terminals for low electrical and contact resistance. You can easily configure your subwoofer system with the built-in low-pass filters. The result is high-quality sound you can enjoy in a variety of systems.

Corrosion-resistant RCA and connectors on all XC Series amplifiers
Utilizing corrosion-resistant RCA and connectors, XC Series amplifiers offer increased durability and reliability in harsh environments. XC Series amplifiers are true marine amplifiers with efficient aluminum heat sinks and locking power terminals for harsh marine conditions.

MOS-FET power amplifier
There's only one way for Clarion headunits to deliver unmatched power output and linearity: MOS-FET amplification, or metal-oxide-semiconductor (MOSFET) field-effect transistor (FET) amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplifier circuit delivers power with lower distortion and zero on/off switching noise. This means you can crank the volume up or set it to easy listening. Either way, your sound will be crystal clear.
TECHNICAL SPECIFICATIONS

Rated power (1% THD+N, 14.4V): 200W x 1 at 4 ohms
Frequency response 15-250Hz
Signal-to-noise ratio ≥ 70 dB 35-250Hz
Variable 12dB/Oct
Low-pass filter (chap. 5)
Variable bass boost 0-12dB @ 50Hz
2-channel RCA low-level inputs
2-channel high-level inputs Double-layer PCB, coated for corrosion protection
Dimensions: 1.54 x 7.85 x 3.23 inches (39x199x82mm)
