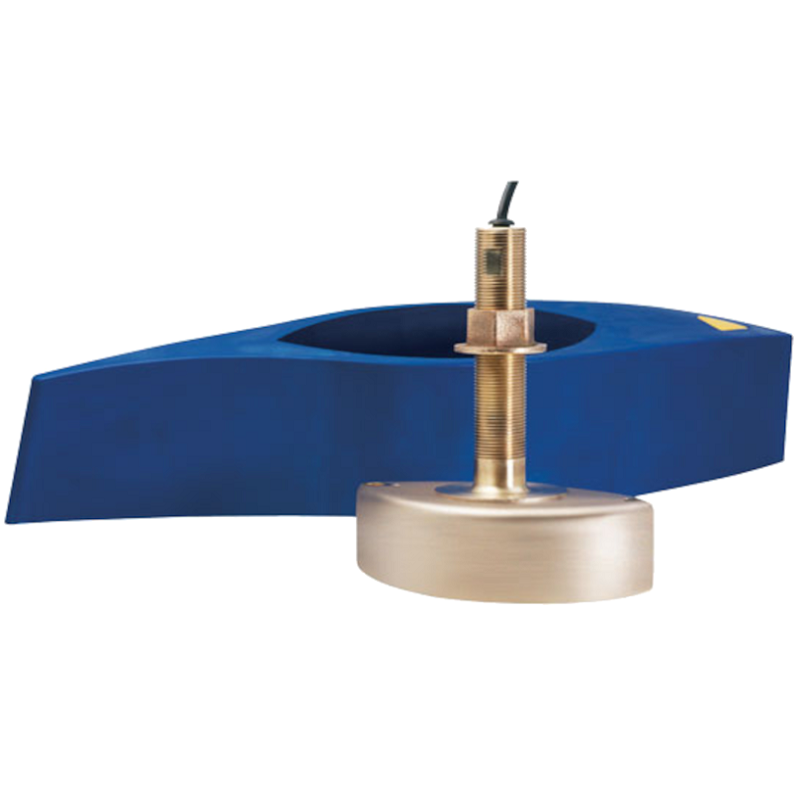

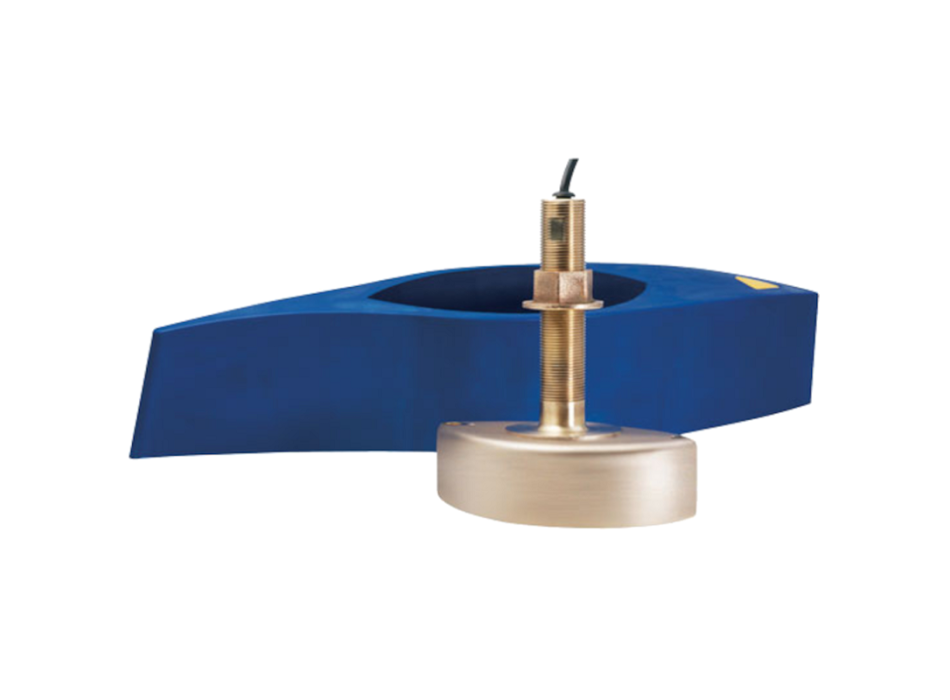

Furuno Transducer B285M
PASSANTE BRONZE Chirp 1KW with Fairing block
The B285M's mid-frequency transducer offers the right combination of under-boat coverage, extended depth range, and the ability to produce clean, accurate target and structure returns in medium to deep water. The mid-frequency transducer also provides excellent shallow to mid-depth performance, bottom detail, and fish target separation. Operating at a frequency range of 85 to 135 kHz, this transducer detects fish at medium depths up to 1,500 feet (457 m) and provides ultra-sharp target resolution.
This model is also ideal for single-channel sonar applications where operating in Chirp mode offers a greater ability to see what's in the water column. Simply create presets for 85 and 135 kHz and switch between wide and narrow beams to scan an area and locate structure.

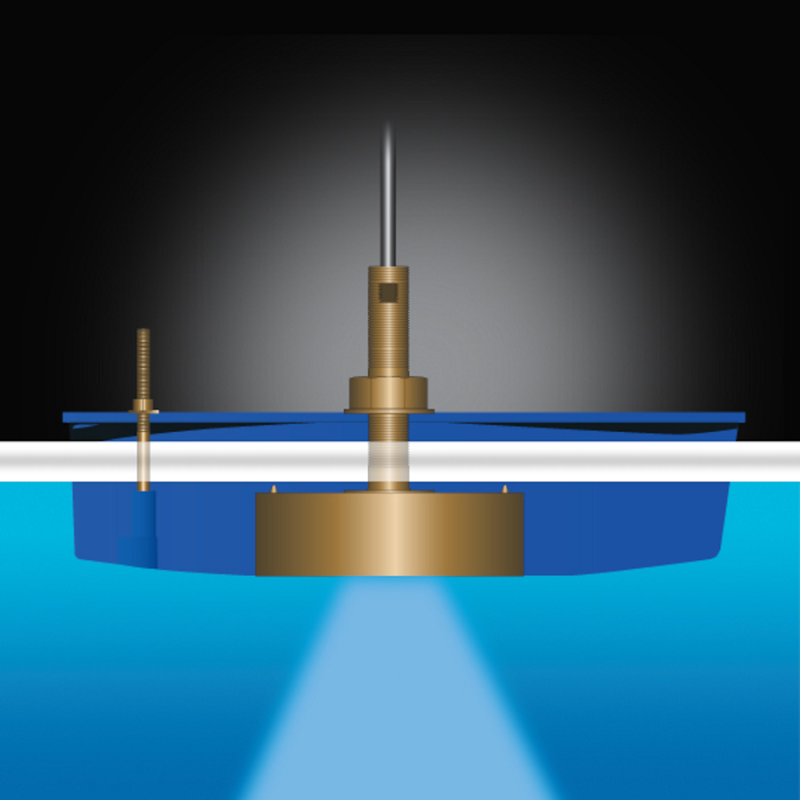

The included high-performance fairing improves broadband performance at speeds above 30 knots.
CHARACTERISTICS
Fast-response water depth and temperature sensing
1 kW of power with a maximum depth of 457 m (1500')
Average frequency: 85 to 135 kHz
Beam width from 16° to 11°
50 kHz total bandwidth
Covers the most popular fishing frequencies of 88 and 107 kHz plus all the rest of the bandwidth
Bronze housing for use on fiberglass or wooden hulls
Recommended for planing or displacement hulls
High-performance fairing for optimum performance at higher speeds
Also available with transom mount (TM185M)
Patented Xducer I technology
