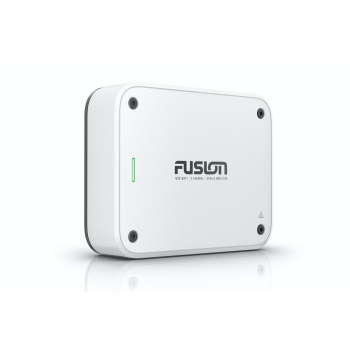

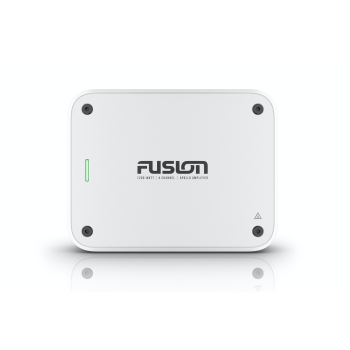

Fusion Apollo MS-AP61800 6-Channel Class D Amplifier

(0)
  • Code: 010-02284-65
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 719,00 € 799,00 -10%
FUSION MS-AP61800 6-channel 1800W amplifier


It is the difference between listening to music and hearing it.

Compatible with apollo series stereos only , designed specifically for use with your Fusion® DSP-equipped marine stereo and Fusion speakers .

This powerful and efficient 6-channel amplifier makes the difference between listening to music and hearing it. With an impressive 150 watts RMS per channel (at 4 ohms), this amplifier can power up to six pairs of speakers or four pairs of speakers and a subwoofer. The Easy Tune feature automatically adjusts sound settings for the best sound quality without manual adjustments (requires setup via the Fusion-Link ™ app on a compatible smartphone).
Features:
Impressive power: 150 watts RMS per channel (into 4 ohms), capable of powering up to six pairs of speakers or four pairs of speakers and a subwoofer.
Efficient Class D Design: Uses less power, so you can listen to music for longer at higher volumes, with less battery consumption.
Easy Tune function: Automatically adjusts sound settings for the best possible sound quality without the need for manual adjustments (requires setup via the Fusion-Link app on a compatible smartphone).

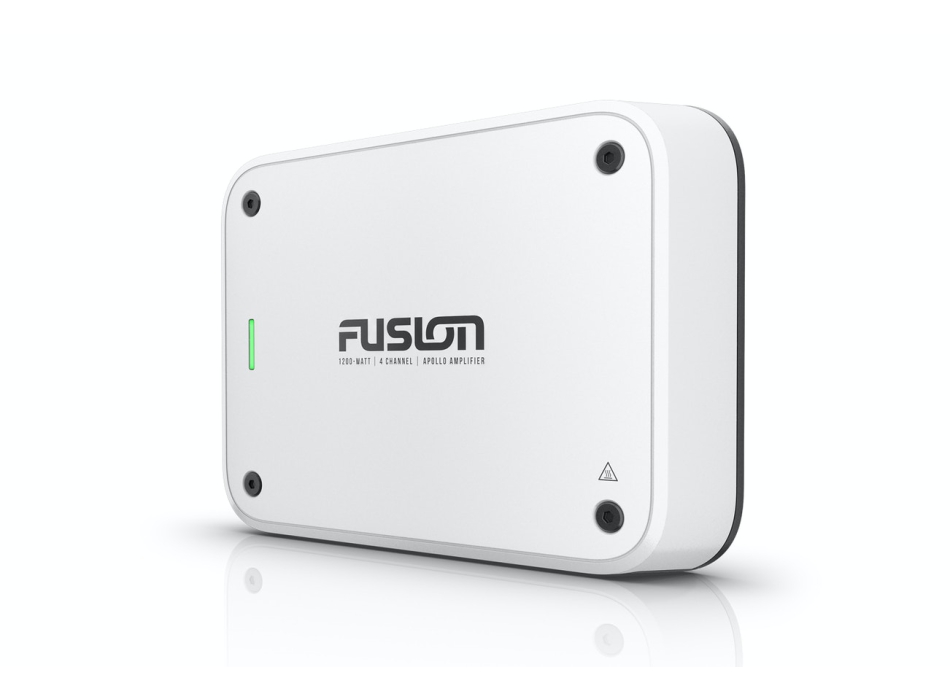

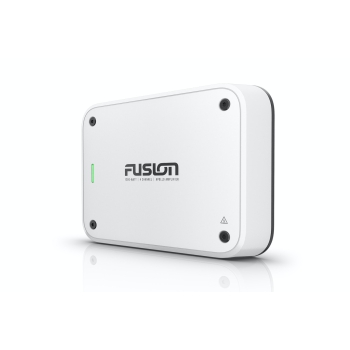

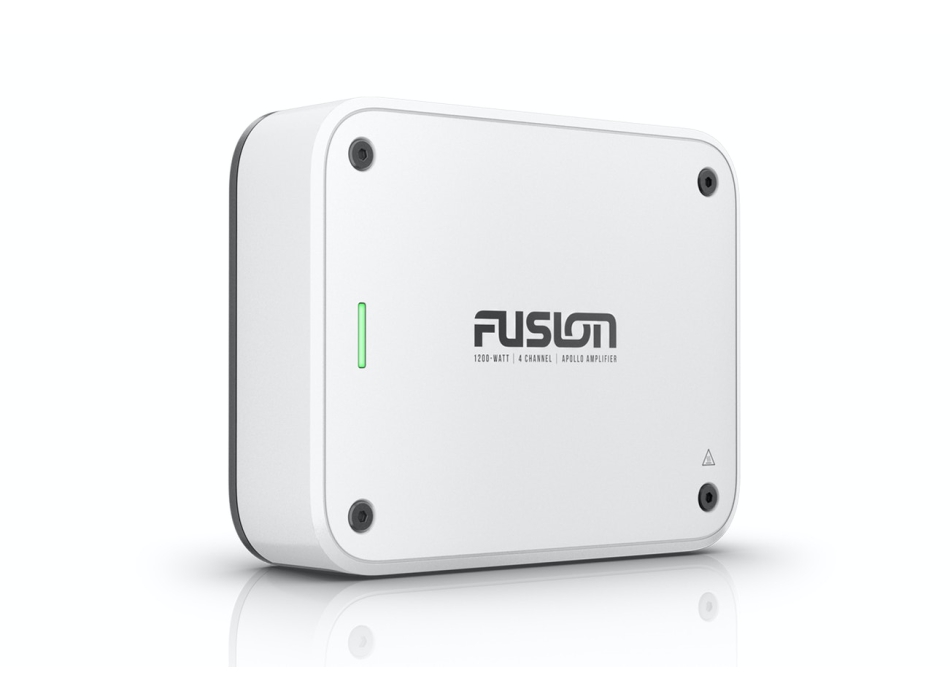

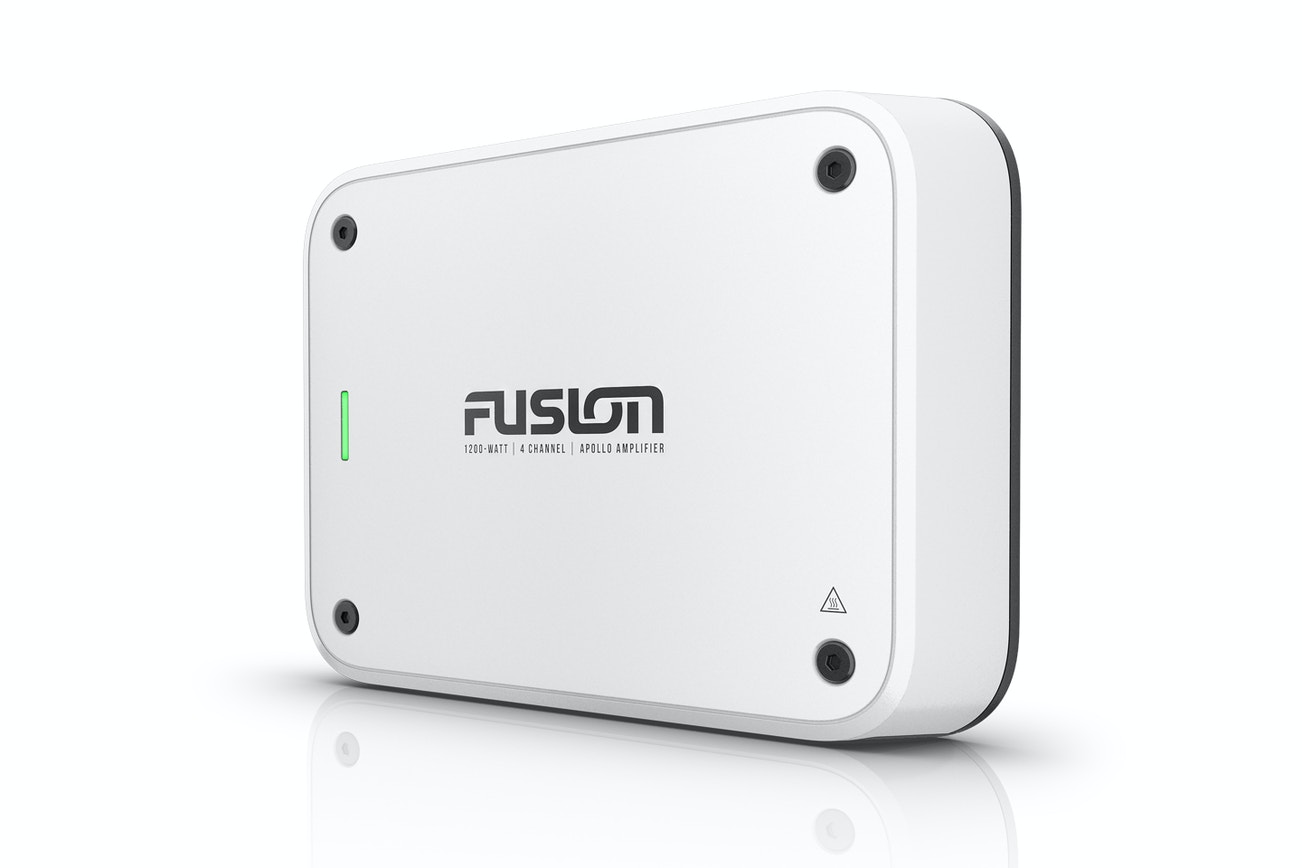

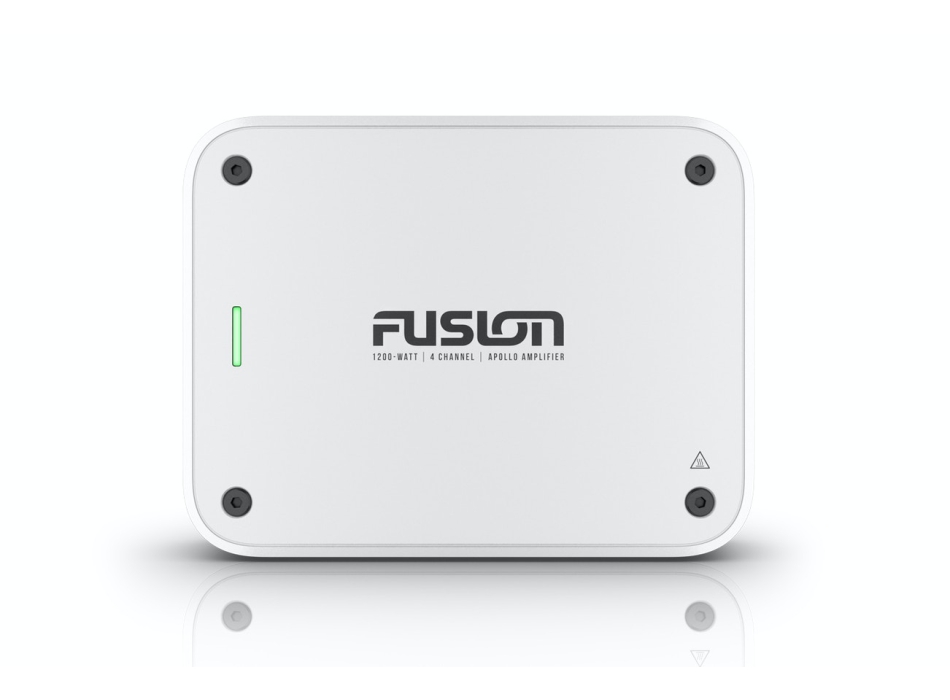

LED Indicator: Shows problems with electrical currents and short circuits, as well as the temperature.
Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better audio quality.
Ignition Protection : Intelligent electronic fuse prevents damage from over / under current, temperature, output short circuit and other failures.
Conformal coated PCB: The amplifier circuit has been specially coated to provide advanced protection from the marine elements.
Powder Coated Aluminum Finish: Salt spray, temperature, vibration and UV test with a modern aesthetic design to add style to your boat.

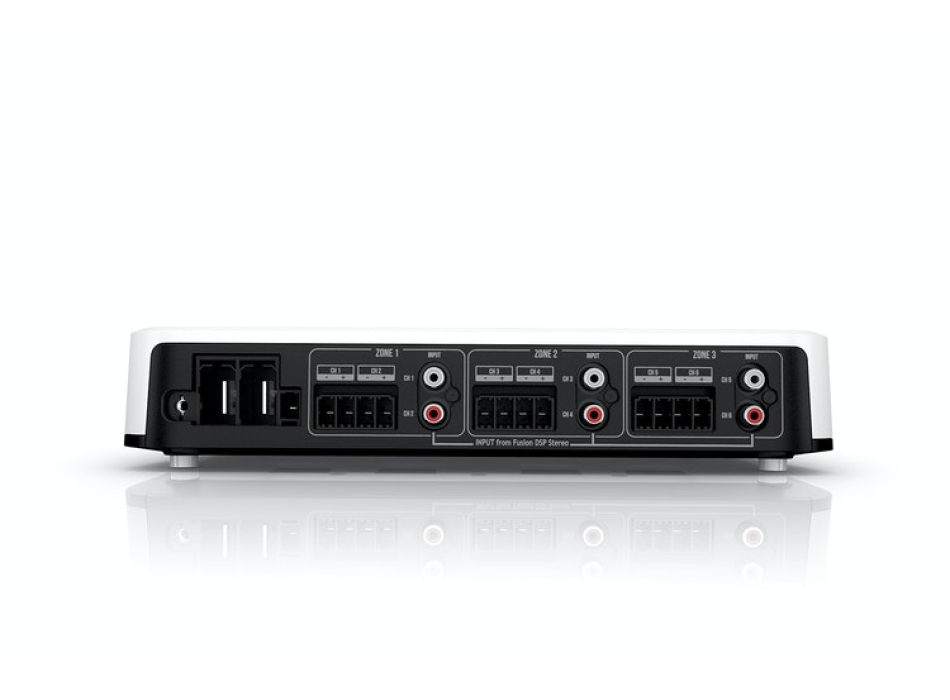

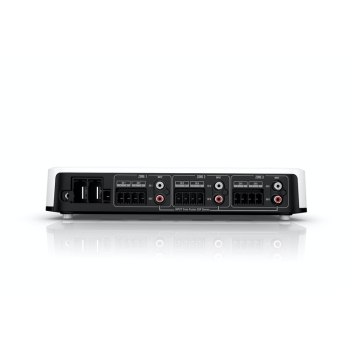

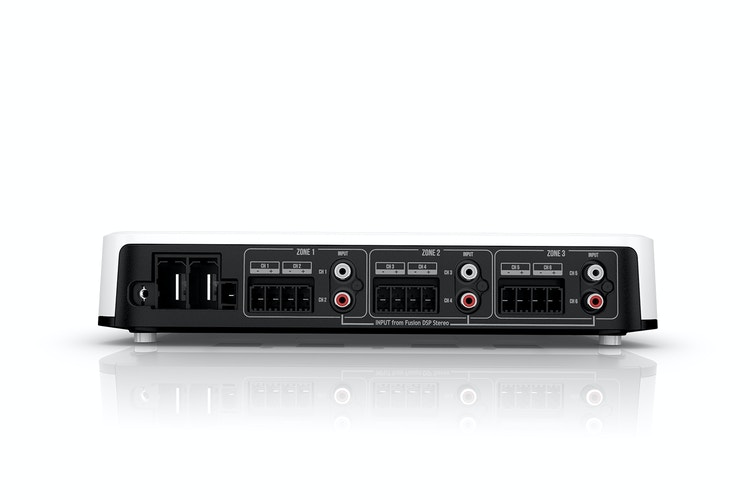

Easy installation: Proprietary cable connectors and a mounting bracket are included in the package. The cable connectors allow you to pre-wire your speakers / subwoofer, while the mounting bracket allows you to simply snap the amplifier into place for a clean finish.
High Power Mode: High power mode adapters are included in the box, designed to simplify the way you connect two channels in high power mode, increasing the output power.
True-Marine ™ Design: Designed to withstand the harshest marine environments season after season and comes with a 3 year warranty.
TECHNICAL SPECIFICATIONS
  • Physical dimensions without bracket (WxHxD) 11.69 x 7.06 x 1.75 inches (297 x 180 x 45 mm)
  • Physical Dimensions with Bracket (WxHxD) 11.69 x 7.06 x 2.13 inches (297 x 180 x 50 mm
  • The weight 5.95 lbs (2.7 kg)
  • Water rating IPX2 Amplifier class Class-D Rated power CEA-2006 150 watts RMS x 6 @ 14.4V input - 4 ohms <1% THD
  • Total Rated Output Power - 2 ohms (watts) 290 watts RMS x 6 @ 14.4V input - 2 ohms <1% THD
  • Total Rated Output Power - 4 ohms bridged (watts) 580 watts RMS x 3 @ 14.4 V input - 4 ohms bridged <1% THD
  • Peak power (watts) 1800 watts Input sensitivity 1.3V rms Input impedance 22k ohm Operating voltage 10.8V - 16V DC
  • Current consumption (StandBy) <5 mA @ 14.4 V input
  • Current consumption (idle) <1.32A @ 14.4V input
  • Current consumption (maximum) 78 A
  • Fuse Electronic fuse 125 A (no replacement necessary)
  • Ignition protection (SAE J1171)
  • Protection circuits Reverse voltage, under / over voltage in input, over temperature, short circuit in output
  • Operating temperature range 32 ° to 122 ° F (0 ° to 50 ° C)
  • 3 years warranty
D L'amplificatore è 12v? Gli altri che ho visto sono tutti 24v
R 05-01-25 Buonasera, confermo alimentazione a 12volt, le faccio presente al contrario di quanto mi ha indicato, che tutti gli Ampli sono a 12 Volt, l'unico a 24v è il seguente: https://www.painestore.it/fusion_amplificatore_sg-24da61500_6_canali_classe_d Cordiali saluti. Luigi Bianchi
