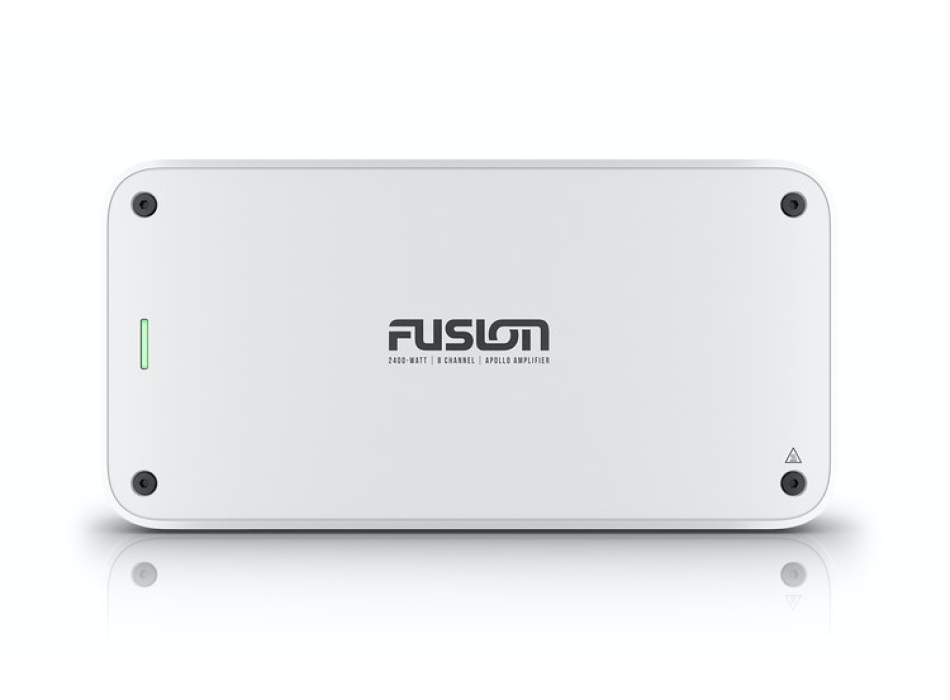

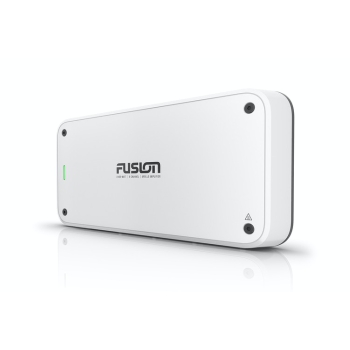

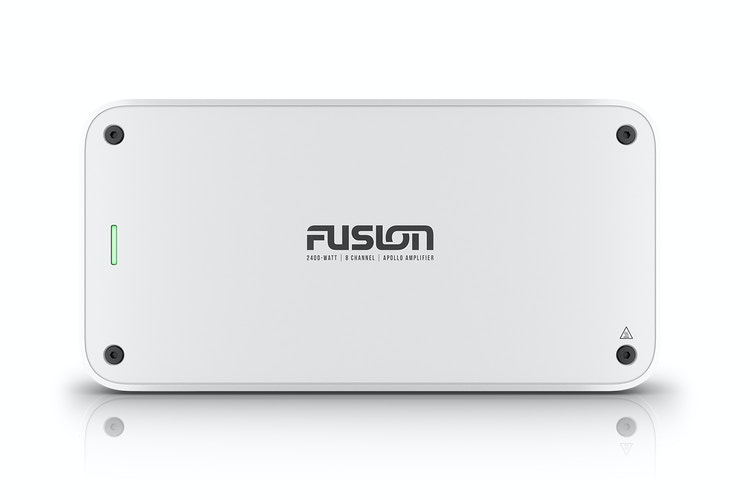

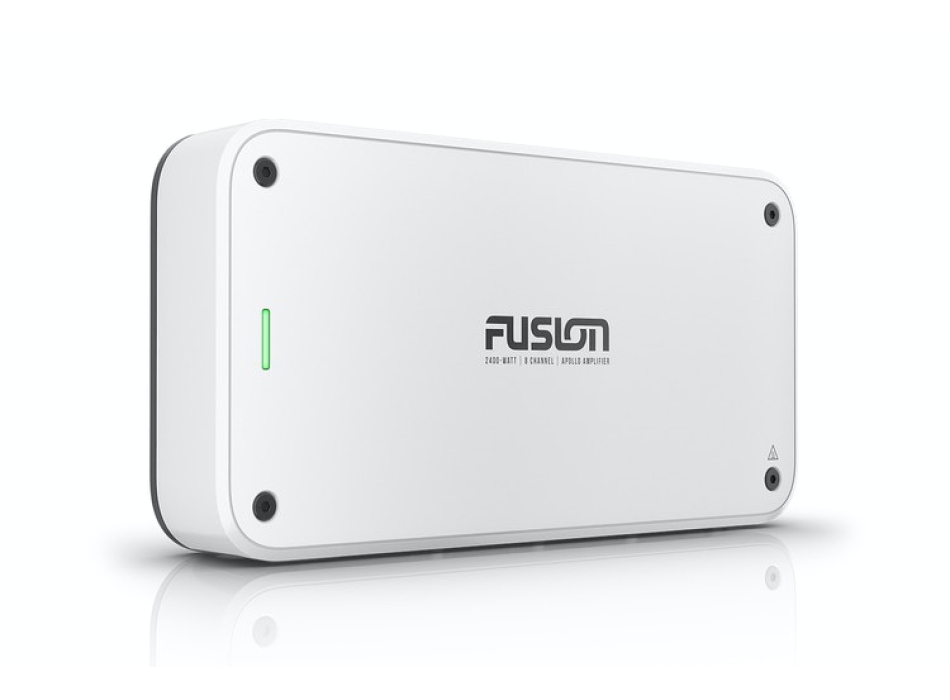

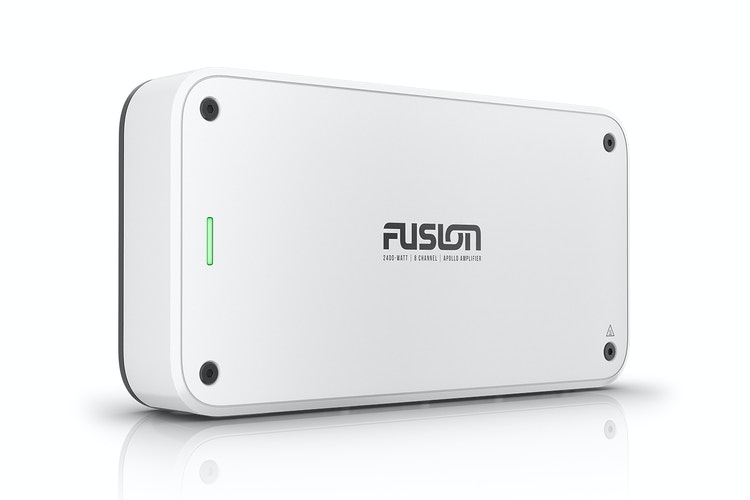

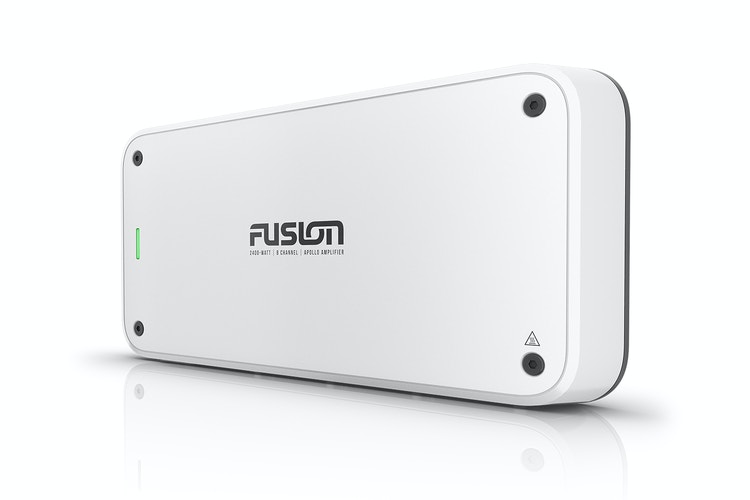

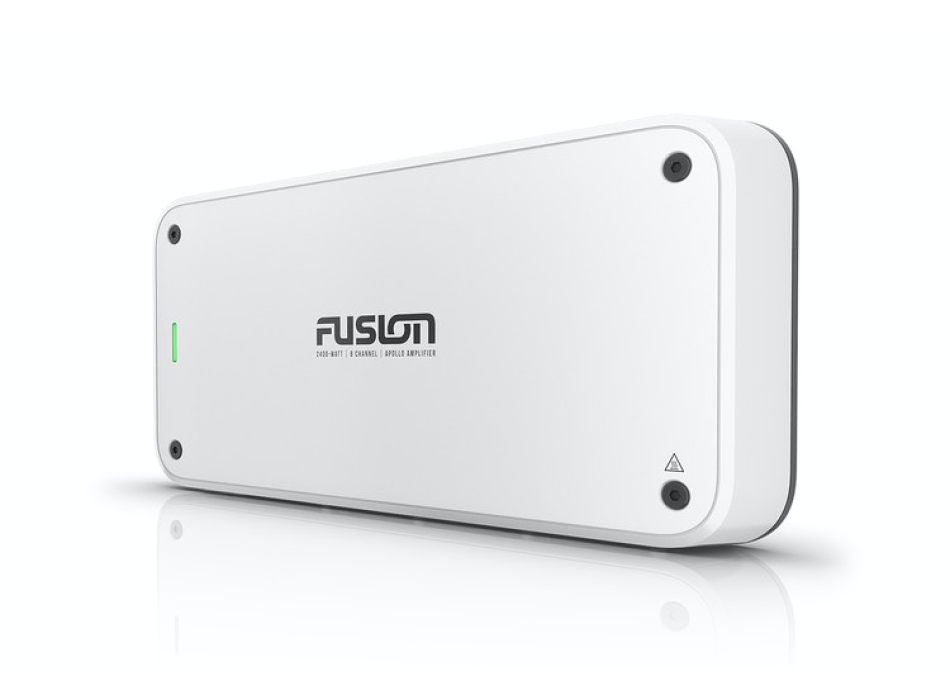

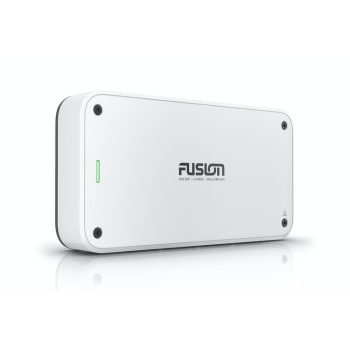

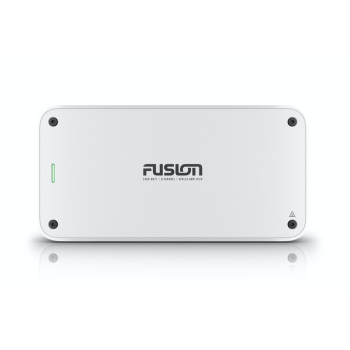

Fusion Apollo MS-AP82400 8-Channel Class D Amplifier

(0)
  • Code: 010-02284-85
  • Brand : Fusion
€ 852,00 € 949,00 -10%
FUSION MS-AP82400 8-channel 2400W amplifier


It is the difference between listening to music and hearing it.

Compatible with apollo series stereos only , designed specifically for use with your Fusion® DSP-equipped marine stereo and Fusion speakers .

Amplify the moment with an Apollo ™ marine amplifier, designed specifically for use with your Fusion® DSP-equipped marine stereo and Fusion speakers .

This powerful and efficient 8-channel amplifier makes the difference between listening to music and hearing it. With an impressive 150 watts RMS per channel (at 4 ohms), this amplifier can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. The Easy Tune feature automatically adjusts sound settings for the best sound quality without manual adjustments (requires setup via the Fusion-Link ™ app on a compatible smartphone).
Features:
Impressive power: 150 watts RMS per channel (at 4 ohms), capable of powering up to eight pairs of speakers or four pairs of speakers and two subwoofers.
Efficient Class D design: consumes less power, so you can listen to music longer at higher volumes, with less battery consumption.
Easy Tune function: Automatically adjusts sound settings for the best possible sound quality without the need for manual adjustments (requires setup via the Fusion-Link app on a compatible smartphone).
LED Indicator: Shows problems with electrical currents and short circuits, as well as the temperature.
Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better audio quality.
Ignition Protection : Intelligent electronic fuse prevents damage from over / under current, temperature, output short circuit and other failures.
Conformal coated PCB: The amplifier circuit has been specially coated to provide advanced protection from the marine elements.
Powder Coated Aluminum Finish: Salt spray, temperature, vibration and UV test with a modern aesthetic design to add style to your boat.

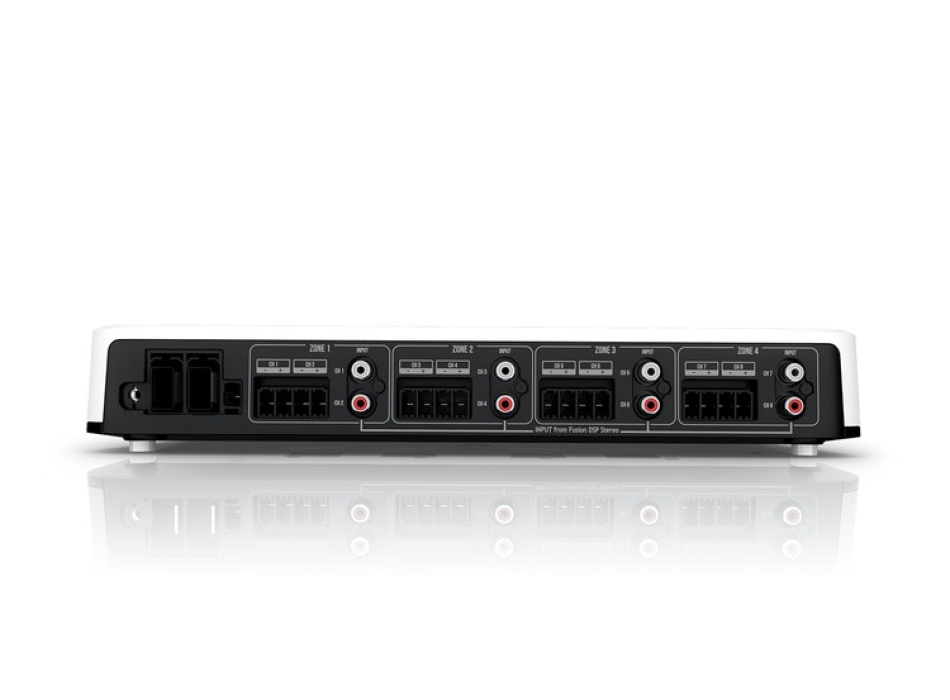

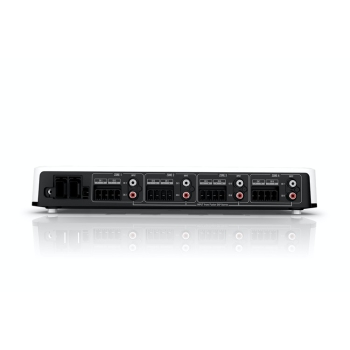

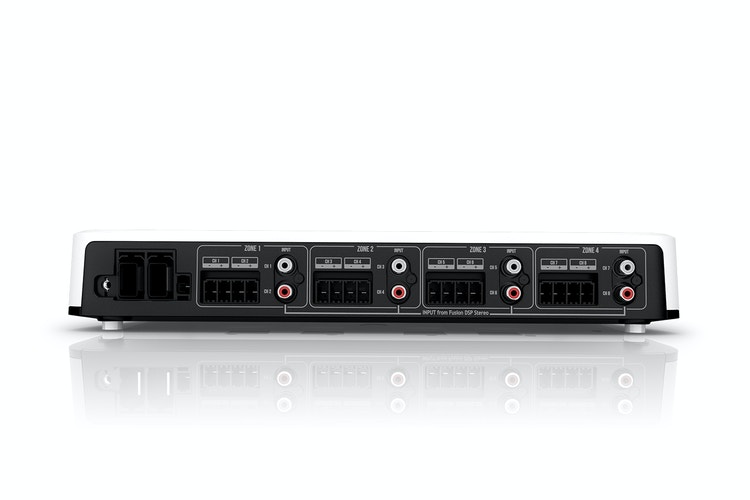

Easy installation: Proprietary cable connectors and a mounting bracket are included in the package. The cable connectors allow you to pre-wire your speakers / subwoofer, while the mounting bracket allows you to simply snap the amplifier into place for a clean finish.
High Power Mode: High power mode adapters are included in the box, designed to simplify the way you connect two channels in high power mode, increasing the output power.
True-Marine ™ Design: Designed to withstand the harshest marine environments season after season and to come
TECHNICAL SPECIFICATIONS
  • Physical Dimensions without Bracket (WxHxD) 14.13 "x 7.06" x 1.75 "(359 x 180 x 45mm)
  • Physical Dimensions with Bracket (WxHxD) 14.13 "x 7.06" x 2.13 "(359 x 180 x 50mm)
  • Weight6.94 lbs (3.15 kg)
  • Water evaluation IPX2
  • Amplifier Class D-Class
  • CEA-2006 rated power 150 watts RMS x 8 @ 14.4V - 4 ohm input <1% THD
  • Total Rated Output Power - 2 ohms (watts) 290 watts RMS x 8 @ 14.4V input - 2 ohms <1% THD
  • Total Rated Output Power - 4 ohms bridged (watts) 580 watts RMS x 4 @ 14.4V input - 4 ohms at pont <1% THD
  • Peak Power (Watts) 2400 Watts Input Sensitivity 1.3V effective
  • Input impedance 22k ohm
  • Operating voltage 10.8V - 16V DC
  • Current consumption (StandBy) <5 mA @ 14.4 V input
  • Current consumption (idle) <1.60A @ 14.4V input
  • Current consumption (maximum) 104 A
  • Electronic fuse 125 A (no replacement necessary)
  • Ignition safety (SAE J1171)
  • Protection circuits Reverse voltage, under / over voltage input, over temperature, short circuit output
  • Operating temperature range 32 ° to 122 ° F (0 ° to 50 ° C)
  • Warranty 3 years
Amplifiers
Products that may be of interest to you
Fusion APOLLO MS-RA770 Radio / Stereo Marine BT Painestore
- 22%
Outlet
Fusion APOLLO MS-RA770 Radio / Stereo Marine Wi-Fi
€ 619,00 € 797,00
Fusion APOLLO SRX400 Radio / Stereo Marine Wi-Fi Painestore
- 10%
Fusion APOLLO SRX400 Radio / Stereo Marine Wi-Fi
€ 429,00 € 479,00

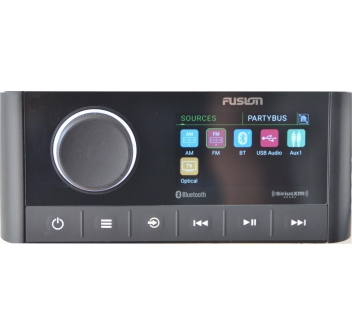

Fusion APOLLO MS-RA670 Radio / Marine Stereo Painestore
- 10%
Fusion APOLLO MS-RA670 Radio / Marine Stereo
€ 539,00 € 599,00

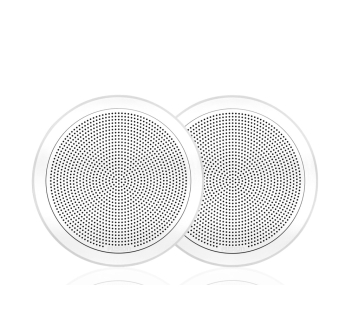

Fusion FM-F65RW Pair of 6.5 '' FM speakers with round grill Painestore
- 16%
Fusion FM-F65R Pair of 6.5 '' FM speakers with round grill
€ 159,00 € 189,00

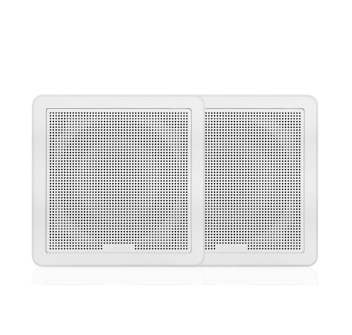

Fusion FM-F65SW Pair of 6.5 '' FM speakers with square grid Painestore
- 21%
Fusion FM-F65S Pair of 6.5 '' FM speakers with square grille
€ 149,00 € 189,00

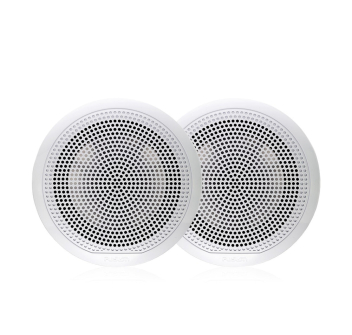

Fusion EL-F651W Pair of 6 '' low profile speakers Painestore
- 10%
Fusion EL-F651 6.5 '' speaker pair
starting from € 90,00 € 100,00

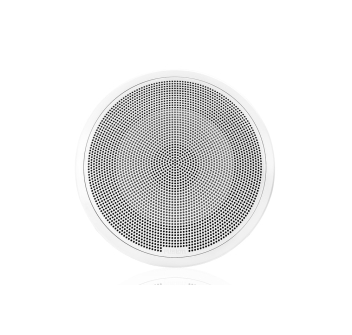

Fusion FM-S10RW Subwoofer 10 "round grille Painestore
