Fusion DAB+ module with DAB100A antenna

(0)
  • Code: 010-01953-10
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 127,00 € 150,00 -15%

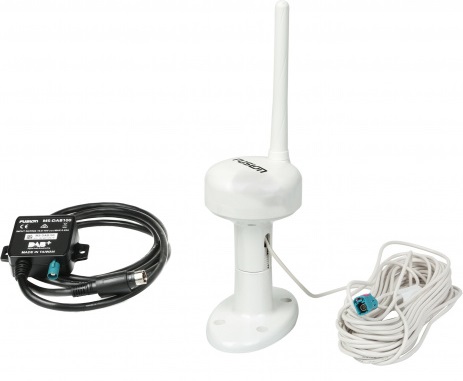

FUSION DAB Module 100A

Fusion introduces support for the latest digital radio broadcasts, DAB and DAB+, on the 750, 755 and 650 Series entertainment systems. Support for DAB is growing globally with more countries adopting the protocol and more stations becoming available regularly.

The MS-DAB module provides access to digital radio when connected to an antenna. Simply connect to a supported stereo with an antenna and enjoy your newly created DAB source with Fusion's superior audio quality.

Digital radio doesn't suffer from the annoying effects of electrical interference or interference caused by adverse weather conditions, which can ruin analog broadcasts. With digital radio, because of the way it's transmitted, there's no hiss, crackling, fading, or overlap—just great radio all the time if you're within the coverage area.

With digital radio technology, broadcasters can broadcast more stations than ever before. From rock to easy listening, from current hits to books and comedy, the average digital radio listener will have twice the choice of stations compared to FM (depending on their location).

Characteristics:
On-Screen Station Information: The connected Fusion stereo displays station name, ensemble, program type, category, and Dynamic Label Segment (DLS) information for easy recognition and search of available digital radio stations.

Multi-region support: Many regions support digital radio, including the EU, Norway, Switzerland, and Australia.

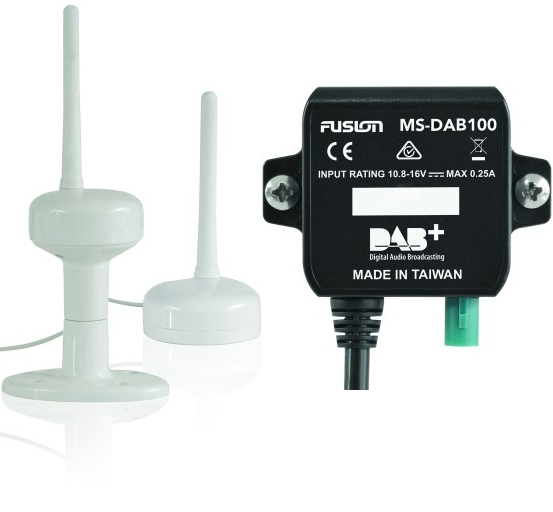

Antenna Mounting Options - The antenna features two mounting options for easy installation on any vessel.
Technical specifications:
Module input current Maximum 250mA
Module operating temperature range 0 to 50°C (32 to 122°F)
Module storage temperature range -20 to 70°C (-4 to 158°F)
DAB, DAB+ module compatibility
Stereo Compatibility MS-UD755, MS-AV755, MS-UD750, MS-AV750, MS-UD650, MS-AV650, MS-RA70, MS-RA70N, MS-BB100, MS-RA205
Supported regions: EU, Norway, Switzerland, and Australia
Module sensitivity -97 dBm
Module input voltage 10.8 to 16 V DC
Antenna output voltage 8 to 15 V DC
IPx3 water resistance module mounted with connectors facing down
IPx7 antenna water resistance
FAKRA Z-Type Water Blue Male Antenna Connector Type
Cable Length 1.5M (4.9Ft) Stereo Connection Cable
FAKRA Z-Type Water Blue Female Antenna Connector Type
Antenna impedance 50 Ohm
Antenna gain 22 dB typical
Antenna input current 13 mA
Antenna input voltage 6 to 16 V DC
Antenna cable length 10M (32.8Ft)
Module dimensions 58 mm H x 64 mm W x 21 mm D (2.28 x 2.52 x 0.83 inches)
Maximum antenna dimensions 248 mm H x 110 mm W (9.76 x 4.33 inches)
D HO un Boss Marine MGR450B posso istallarcelo ??
R 11/10/2025 Buongiorno, spiacente purtroppo non compatibile. Cordiali saluti. Luigi Bianchi
D Buon giorno, con questa antenna (Modulo DAB con antenna DAB100) posso ricevere "anche" le normali stazioni radio fm, oppure dovrò installare una seconda antenna fm per radio-stereo. grazie e saluti
R 10-01-2021 Buonasera, necessaria anche una seconda antenna, sufficiente anche quella a filo: https://www.painestore.it/fusion_antenna_a_filo_ms-sa1_8 Cordiali saluti. Luigi Bianchi
D Salve, vorrei acquistare un "Fusion Modulo DAB con antenna DAB100". Non conoscendo le caratteristiche del segnale DAB, vorrei chiedere riguardo l'antenna se è possibile il sio funzionamento se montata in dinette o devo necessariamente montarla all'esterno? Se solo all'esterno, l'antenna è stagna? Vedo 2 foto, una con una base tonda più grande e una senza: E' predisposta al montaggio in entrambe le configurazioni? Grazie per le risposte Davide.
R Buongiorno, l'antenna è predisposta per l'installazione in entrambi i modi, penso che possa anche provare ad installarla internamente, adatta per installazione in esterno. Cordiali saluti. Luigi Bianchi
