Fusion MS-RA60 Radio / Stereo Marine BT

  • Code: 010-02405-00
€ 254,00 € 300,00 -15%

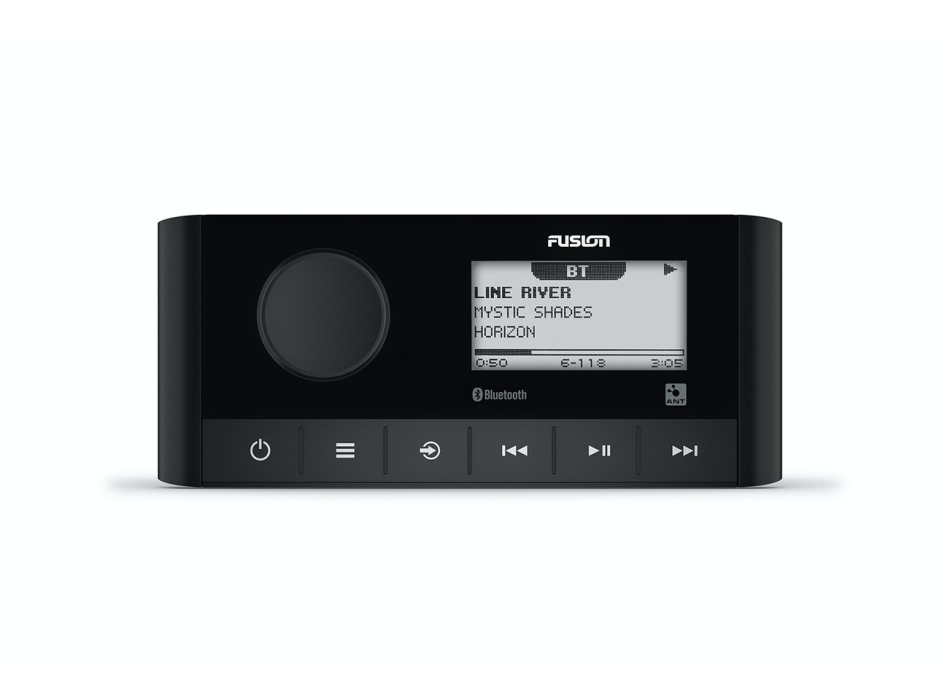

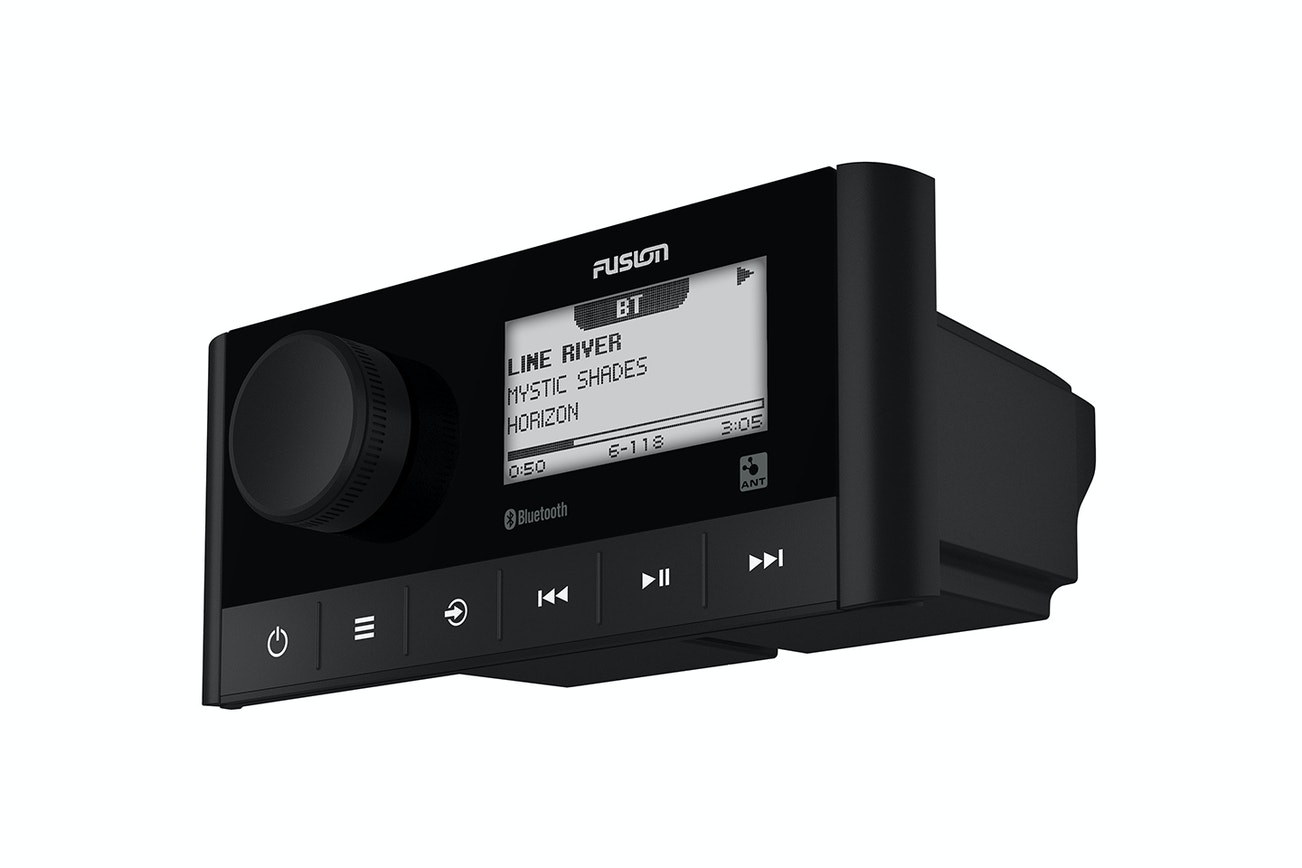

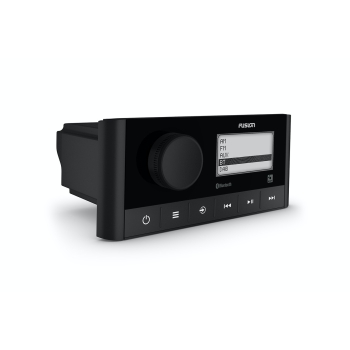

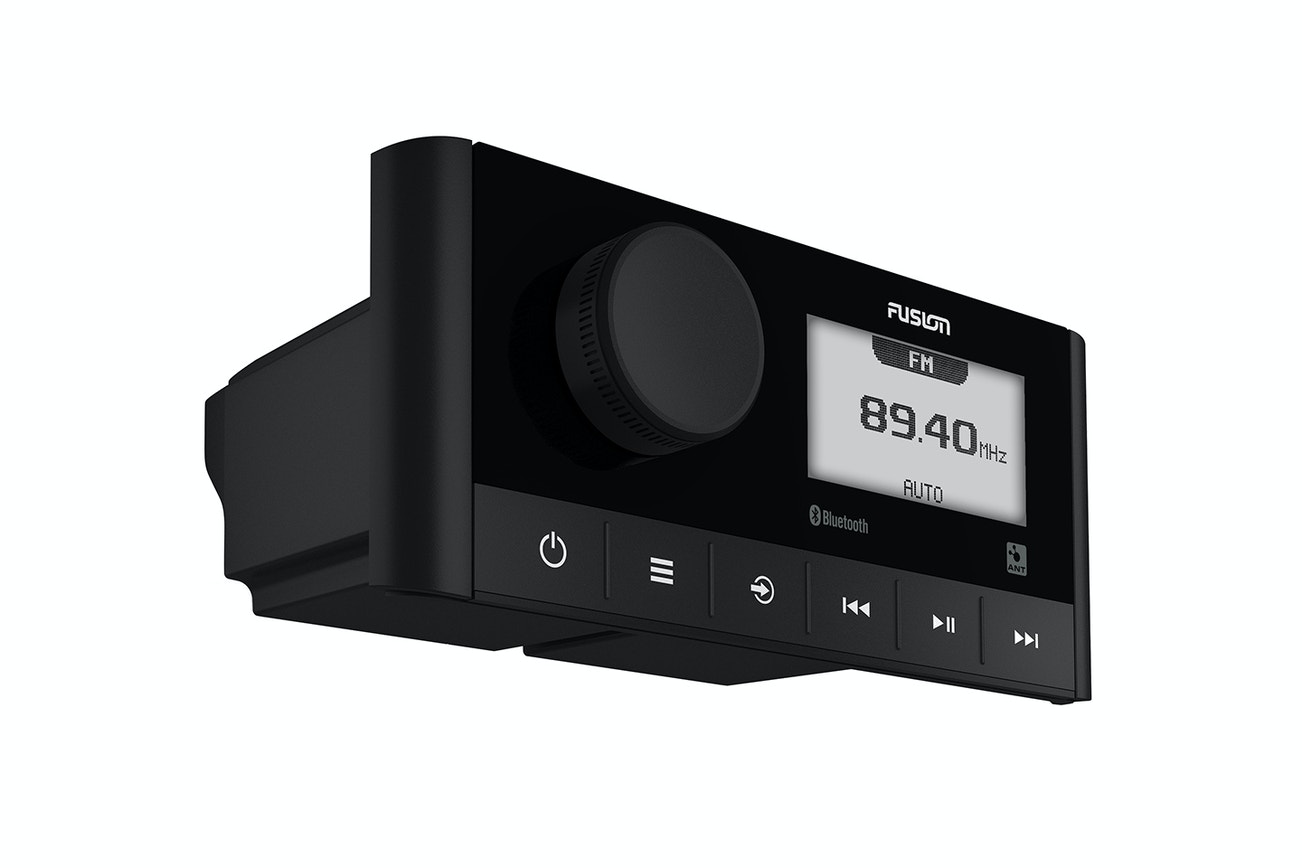

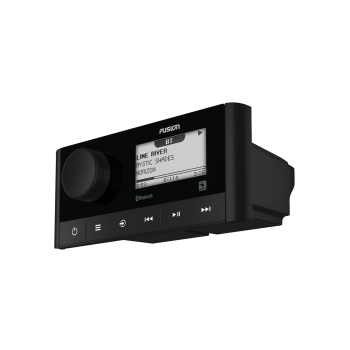

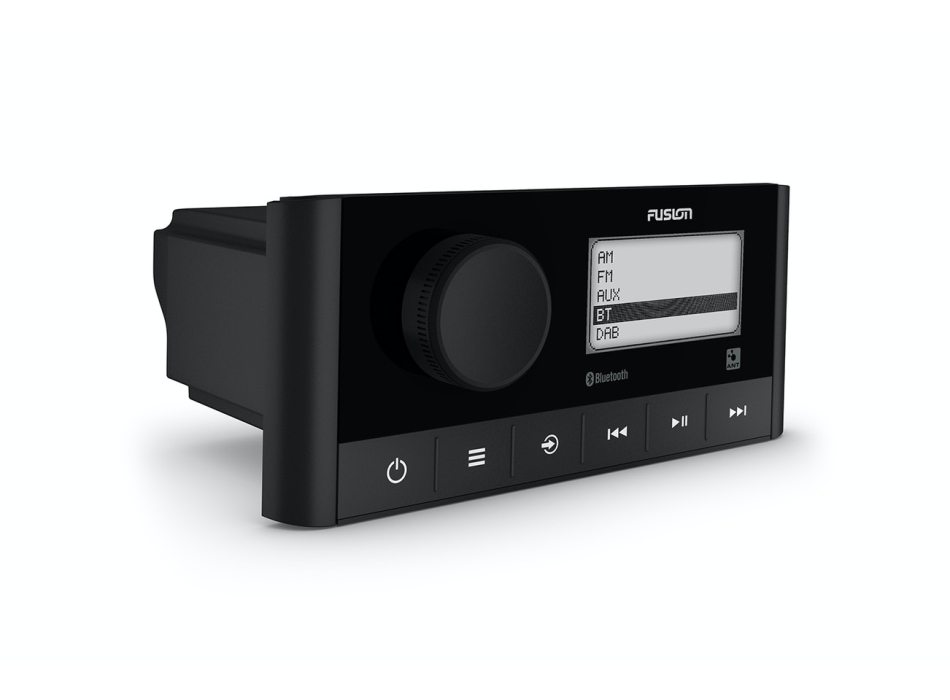

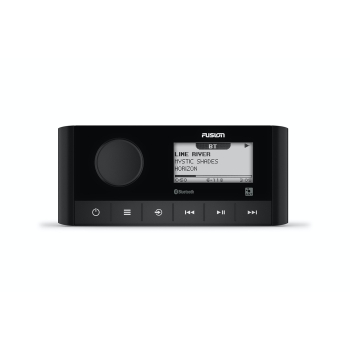

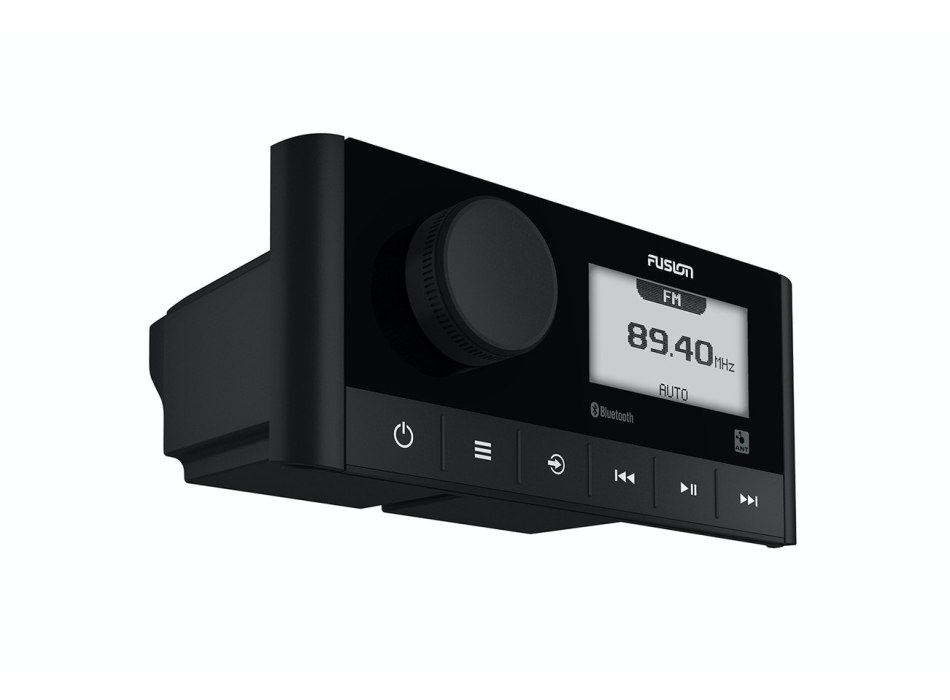

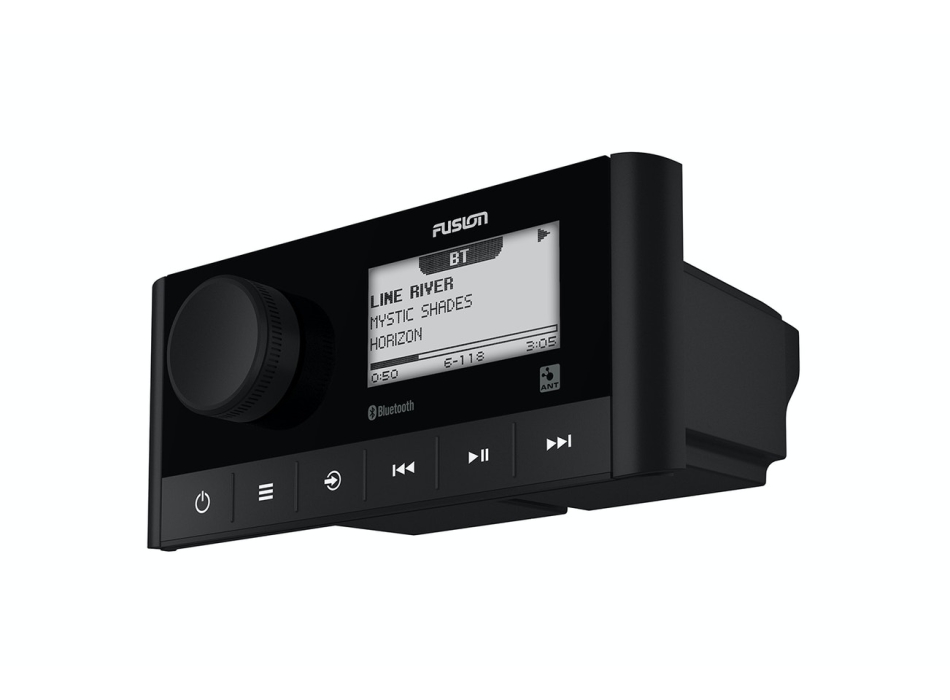

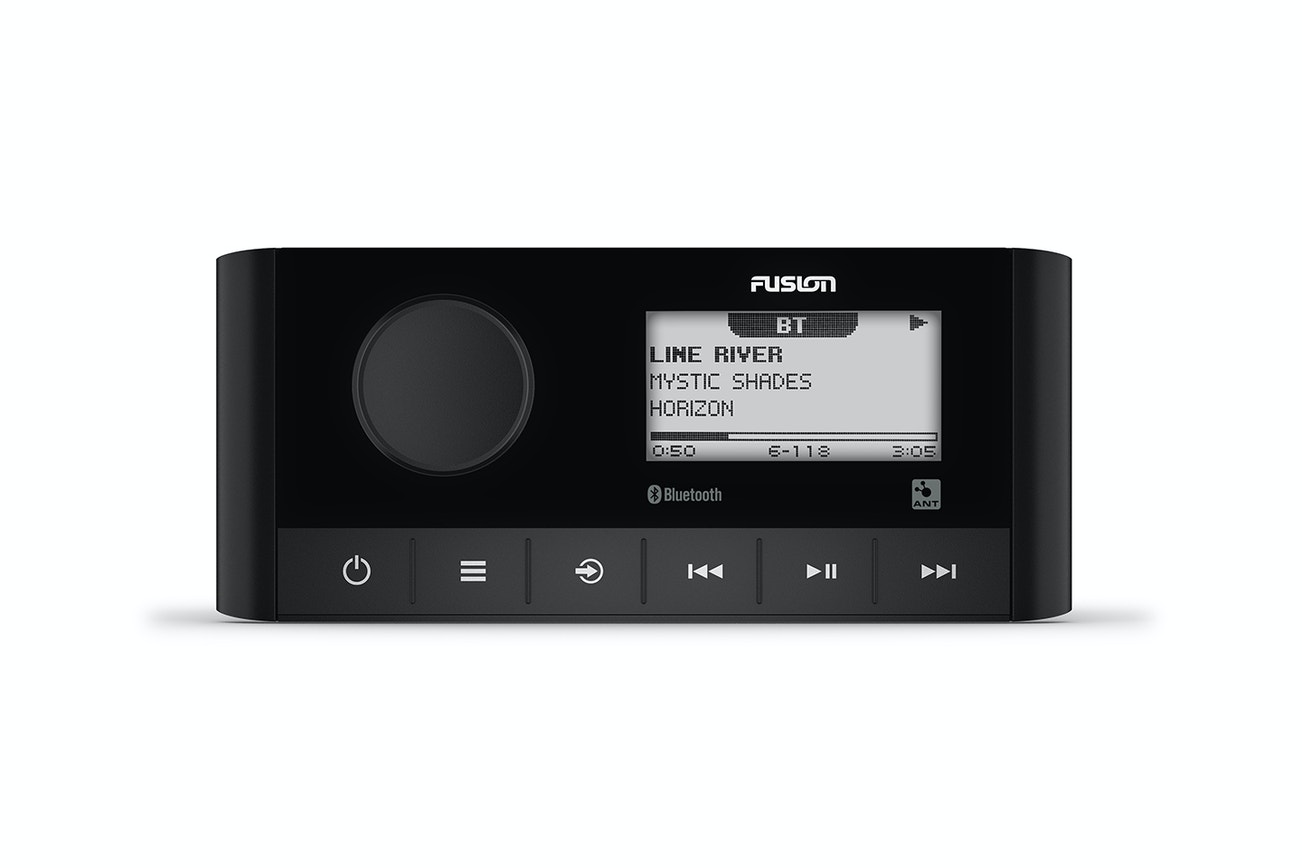

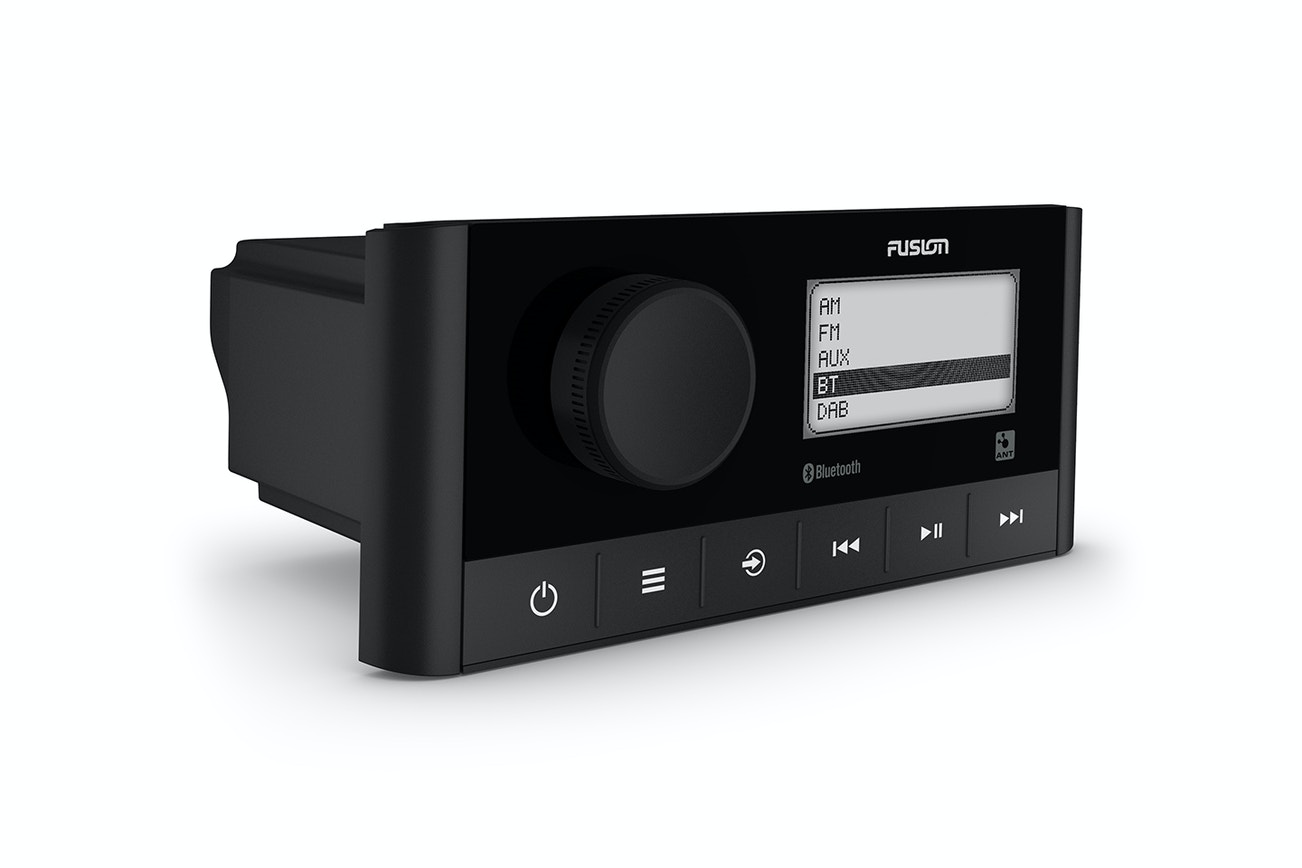

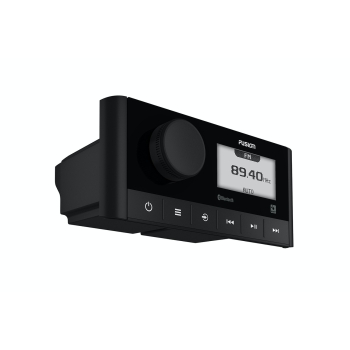

FUSION MS-RA60 Radio / stereo with Bluetooth
Fusion's modern, compact and affordable marine stereo ever.
Sources: AM / FM / Bluetooth / AUX / DAB +

The MS-RA60 is our most affordable marine stereo ever, featuring modern aesthetics, two-zone Multi-Zone ™ technology and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, an anti-fog perimeter LCD is integrated into the IPX6 and IPX7 water resistant black front, making the MS-RA60 an attractive addition to your helm.

Features:

Multi-Zone Technology: Up to two independent audio zones are available for a personalized listening experience throughout the vessel, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.

IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international standards IPX6 and IPX7 Water Ingress Protection, ensuring that the product will perform and last in the harsh marine / outdoor environment when installed correctly (refer to installation instructions for details specific).

Retrofit: MS-RA60 is designed to fit the MS-RA55 mounting profile, eliminating the need to modify the existing cutout, reducing complexity when upgrading the stereo system.
Class D Amplifier Design: The integrated Class D amplifier provides more power while drawing less current than a standard Class AB amplifier. The amplifier design offers greater efficiency and power, allowing you to enjoy your music at higher volumes for longer.

Wireless Software Updates: Over-the-air software updates are now available from your compatible device via BLUETOOTH® with the free Fusion-Link ™ app, making it easy to update the MS-RA60.

Fusion-Link (Wireless) Control via BLUETOOTH and ANT®: Download the free Fusion-Link remote control app for BLUETOOTH from the Apple App Store® or Google Play ™ and enjoy the freedom of wireless control from your compatible device. Download the free Fusion-Link Lite app from the Connect IQ ™ app to enable wireless control via ANT technology from your compatible Garmin watch.

2.3 "Bonded Monochrome LCD: The monochrome LCD screen is perimeter fixed to improve durability and protection against condensation and fogging and is optimized for daylight viewing.

Modern Design Aesthetics: The monochrome LCD display is embedded in a black front for greater visibility and better style. The black front blends seamlessly with your dashboard, integrating other electronics and MFDs for a tidy, smooth and elegant installation.

Built-in DAB Module: The built-in DAB module supports the latest DAB and DAB + broadcasts, allowing you to enjoy high quality digital radio streaming wherever DAB and DAB + are supported
TECHNICAL SPECIFICATIONS:
  • Physical Dimensions (WxHxD) 156.9 x 68 x 103.2 mm (6.18 x 2.68 x 4.06 inches)
  • Weight 11.1 ounces (316 g)
  • IPX6 and IPX7 water rating (front panel only, if installed correctly)
  • Power input 10.8-16V DC
  • Operating temperature range 32 ° to 122 ° F (0 ° to 50 ° C)
  • Current (maximum) 15 A
  • BLUETOOTH® wireless range Up to 30 feet (10m)
  • ANT® wireless range Up to 3m (10ft)
  • Wireless frequencies / protocols BLUETOOTH 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal
  • Safe distance from compass 5.9 "(150 mm)
  • 2.3 "perimeter monochrome dot matrix LCD screen
  • Integrated Class D amplifier (minimum impedance 4 ohms)
  • 180 W peak power
  • Rated output power (4 ohms) 22W rms x 4 @ 14.4V input, 4 ohms, 10% THD
  • Fusion-Link Control Yes (with compatible Apple® and Android devices)
  • Fusion-Link Lite Control Yes (with compatible Garmin watch)
  • 2-zone multizone technology
  • BLUETOOTH wireless technology yes
  • ANT wireless technology yes
  • DAB + Yes (built-in DAB tuner)
  • Multilingual Dutch / English / French / German / Italian / Spanish interface
  • Software updates Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
  • AM / FM / BLUETOOTH / AUX x1 / DAB + sources (only available in Europe and Australia)
  • Auxiliary input One RCA (AUX) input
  • AM / FM radio One port for the Motorola antenna connector
  • Speaker 4 x speaker connections (2 powered zones)
  • RCA pre-out (left, right and subwoofer) 1 zone (requires external amplification)
  • Zone 1 Line Out: L + R (requires external amplification)
  • Zone 1 subwoofer output (requires external amplification)
D. Buongiorno, che antenna nautica bisogna acquistare per far funzionare la radio sia in FM che in DAB+ ? Cordiali Saluti. Mauro
R. 05-05-23 Buongiorno, consiglio una fra queste antenne, vista la funzione DAB integrata. https://www.painestore.it/cerca?keywords=am+fm Anche se Fusion indica come compatibile anche quella a filo, ritengo però che sia più limitata nelle prestazioni: https://www.painestore.it/fusion_antenna_a_filo_ms-sa1_8 Cordiali saluti. Luigi Bianchi
D. Buonasera, vorrei acquistare il modello Fusion MS-RA60 da installare sulla mia barca a vela, per sostituire quella presente. Quali altoparlanti potrei abbinare con questo modello? Tenga presente che me ne basterebbe solo una coppia da inserire in dinette. Inoltre i cavi elettrici per i collegamenti, sono presenti nella confezione? Grazie, Andrea.
R. 07-10-22 Buonasera, consiglio eventualmente il kit con altoparlanti: https://www.painestore.it/fusion_ms-ra60_pack_con_casse_el_classic Sono inclusi nella confezione gli spezzoni di cavo con connettore lunghi ca 15cm, per il collegamento della Radio con i 12 volt e le casse, e due spezzoni da 6mt di cavi degli altoparlanti. Cordiali saluti. Luigi Bianchi
D. Salve, devo sostituire vecchio impianto hifi sulla mia barca. HO 4 casse dal diametro di 14/15mm. ma penso di sostituire solo la coppia di casse esterne. Non essendo per nulla esperto vorrei chiedere quale abbinamento fare. Pensavo ad una radio tra la MS -RA60 e la MS-RA70n considerando che voglio montare casse potenti tipo F77cwb da 280W. Qual'è il migliore abbinamento possibile? Grazie in anticipo per il supporto! Saluti
R. 29-03-22 Buonasera, mi scuso per il ritardo, ho visto che ha già acquistato e ringrazio. Ha fatto bene ad acquistare la RA70 con quel modello di casse perchè ha 50w x 4 di potenza piuttosto che la RA60 che ne ha 22x4 W. Cordiali saluti. Luigi Bianchi
D. Salve per quanto riguarda l'audio quale è più buono/potente tra Fusion MS-RA60 e Fusion MS-RA55? devo utilizzarlo sulla moto e qualità/potenza fa la differenza grazie
R. 09-02-22 Buon pomeriggio, in base alle schede tecniche, la RA55 ha 45W x 4 con Ampli in classe AB, contro i 22W x 4 con Ampli in Classe D della RA60, però in più la RA60 ha il DAB incorporato. Quindi direi che sull'ascolto a volume medio, la RA60 sia leggermente superiore. Cordiali saluti. Luigi Bianchi
D. Buongiorno. Lo stereo ha bisogno di un amplificatore o bastano le sole casse per avere un suono adatto alla barca? Eventualmente che potenza devono avere casse? Grazie
R. 13-01-22 Buon pomeriggio, lo stereo in oggetto ha già un amplificatore interno da 22w x 4, basta collegare direttamente le casse, potenza almeno da 50watt. Cordiali saluti. Luigi Bianchi
D. È compatibile con nmea per essere gestito in un display multifunzione Raymarine?
R. 05-07-2021 Buongiorno, purtroppo no, dovrà acquistare una RA70N: https://www.painestore.it/fusion_ms-ra70n_radio/stereo_marino_bt Cordiali saluti. Luigi Bianchi
