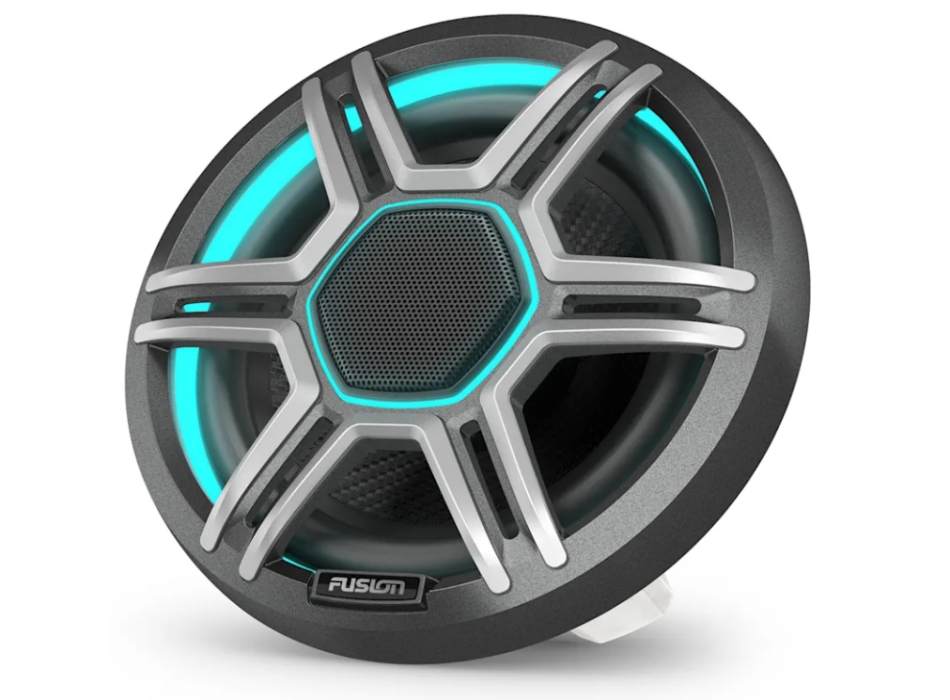

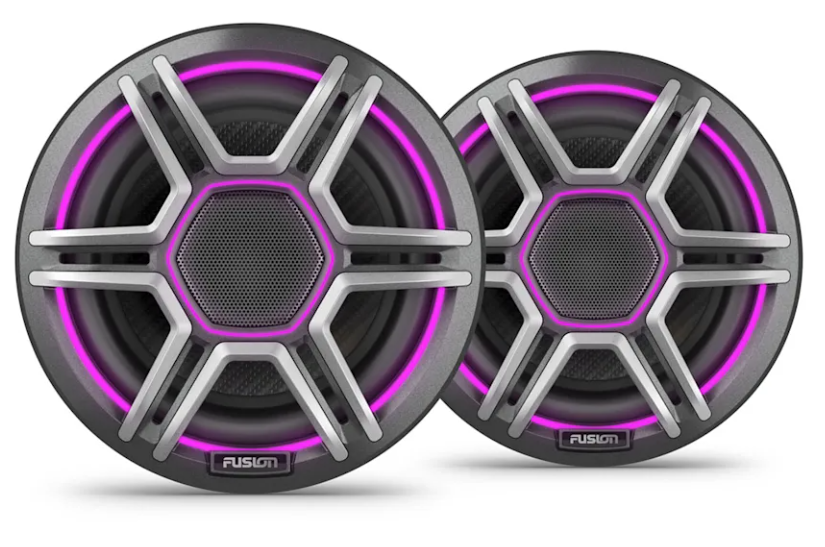

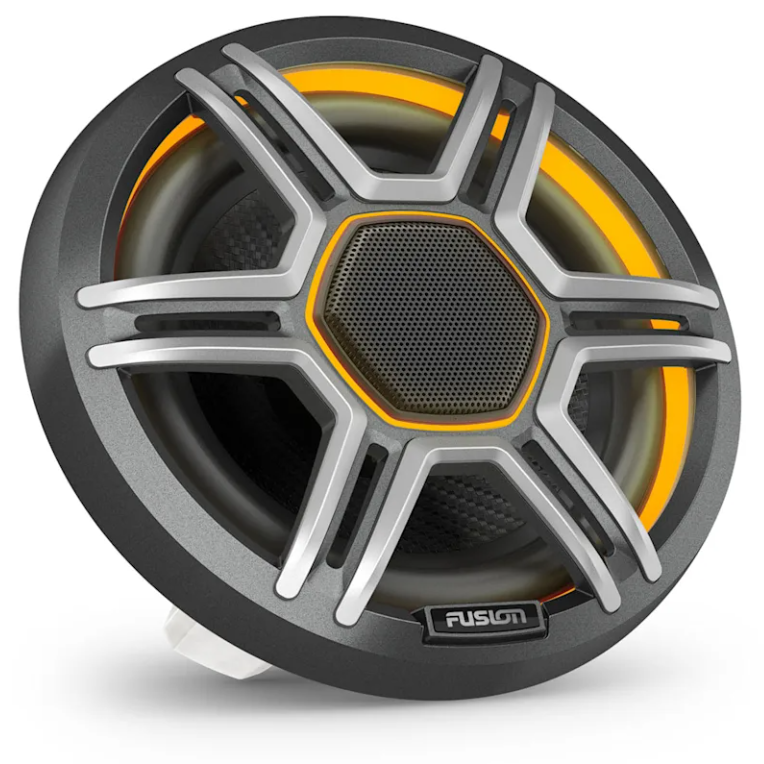

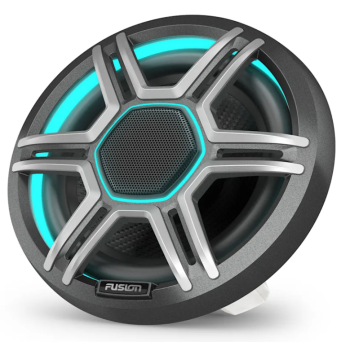

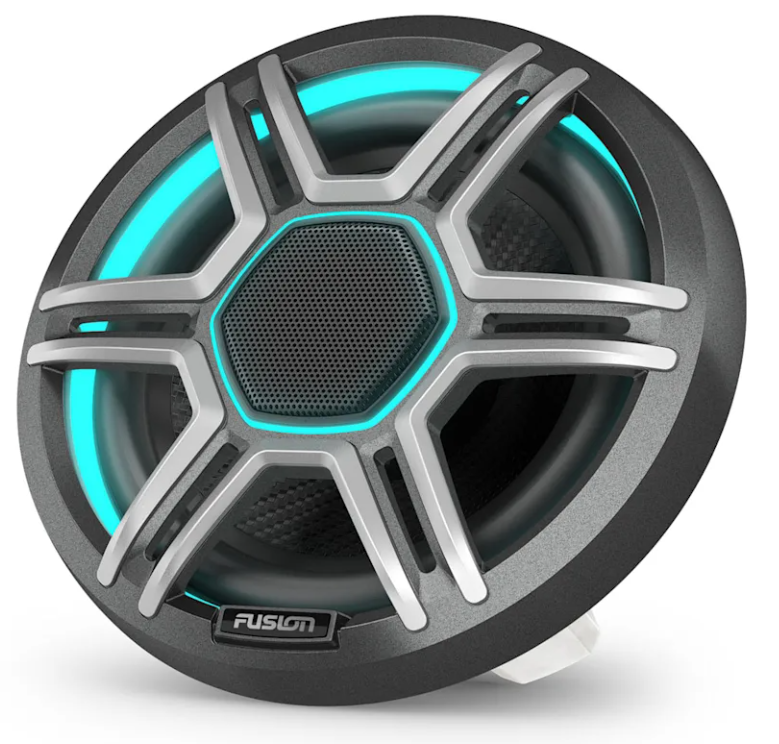

Fusion AP-FL88SPG 8.8" Apollo LED Speaker Pair, Grey, Sports

(0)
New APOLLO line, Garmin Fusion marine speakers, for an excellent audio experience.
  • Code: 010-02918-23
  • Brand : Fusion
€ 585,00 € 650,00 -10%
Fusion AP-FL88SPG 8.8" Apollo LED Speaker Pair, Grey, Sports

LET YOURSELF BE CAPTIVATED BY THE SOUND

Fusion Apollo Series speakers deliver unparalleled audio quality and are designed to withstand the harshest marine conditions.


CRYSTAL CLEAR SOUND QUALITY

INTERCHANGEABLE WHITE OR GREY SPORTY DESIGN GRILLES INCLUDED

ALWAYS CREATE THE PERFECT ATMOSPHERE THANKS TO LED LIGHTING

AVAILABLE IN 6.5″, 7.7″ AND 8.8″

SPECIALLY DESIGNED MARINE DESIGN



WHAT YOU WILL LIKE

EXCELLENT AUDIO
Enjoy immersive sound even at maximum volume thanks to the updated design that reduces distortion for an excellent audio experience.

LED LIGHTS
Always look stylish with LED lighting that offers a unique look thanks to the hexagonal tweeters. Choose from a wide range of colors to match the mood or music.

INTERCHANGEABLE GRIDS
Configure your speakers with the included interchangeable white or gray grilles. For added protection, purchase the Sport Plus grille (also available in gray or white).


Made for life at sea


INTEGRATION

FUSION AUDIO SYSTEM
Control your in-car entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

SYSTEM INTEGRATION
Pair the speakers with Fusion head units and amplifiers (sold separately) for an optimal listening experience with minimal distortion.

MARINE CONNECTORS
Integrated water-resistant connectors simplify the design and make installation easy. They also meet ABYC requirements.

LIVE THE RHYTHM
Pair the speakers with the Fusion Apollo subwoofer to boost the quality of your music.


FUNCTIONAL

SPEAKER GRILLES
All speaker grilles highlight the anodized coating of the hexagonal tweeter and integrate seamlessly with the dual-tone LED lighting.

Easy to install
The grilles are simple to install without the need for tools, and the concealed mounting holes ensure a clean, elegant finish.

SUITABLE FOR ANY CONDITION
Fusion Apollo speakers offer superior durability and are built to withstand use in harsh marine environments (compliant with IP66/IP67 ratings and ISO 12216 standards).
Packaging:
  • Pair of speakers with white or gray sports grilles (based on customer selection)
  • Pair of audio cables with two-way waterproof connectors
  • Pair of LED cables with six-way waterproof connectors
  • Mounting screws
  • Documentation
General
Dimensions
6.5″/7.7″/8.8″
Colors
White Sport or Grey Sport
Physical dimensions (diameter)
6.5″: 176 mm (6.93″)
7.7″: 196 mm (7.72″)
8.8″: 224 mm (8.82″)
Physical Dimensions (Depth)
6.5″: 103.1 mm (4.06″)
7.7 (″)
8.8 (″)
Weight
6.5 kg (″ lbs)
7.7 kg (″ lbs)
8.8 kg (″ lbs)
Waterproof and dustproof rating
IP66/IP67
Speaker type
Coaxial
Continuous power management (RMS)
6.5″: 75 W
100 W
8.8″: 130 W
Sensitivity (SPL at 1 W/1 m)
6.5″: 90 dB
7.7″/8.8″: 91 dB
Frequency response (+/- 3 dB)
6.5″: 70 Hz-22 kHz
7.7″: 60 Hz-22 kHz
8.8″: 50 Hz-20 kHz
Nominal impedance
4 Ω
Recommended amplifier power (RMS)
6.5″: 25-150 W/Channel
7.7″: 30-200 W/Channel
8.8″: 40-260 W/Channel
LED lighting
Yes - CRGBW (5 colors)
LED supply voltage
10.8-16 VDC
LED load current at 14.4V DC (max)
6.5″: 130 mA per color, per speaker
7.7″: 140 mA per color, per speaker
8.8″: 180 mA per color, per speaker
Operating temperature
0 to 50°C (32 to 122°F)
Cone material
CURV® cone technology with rubber coating
Tweeter type
Silk Dome
Tweeter dimensions
25 mm (16.5)
25 mm (17.7)
8.8″: 32 mm (1.25″)
Warranty
3 years
Electrical characteristics
Safe distance from the compass
6.5″: 280 cm (9.19 ft)
7.7″: 300 cm (9.84 ft)
8.8″: 315 cm (10.33 ft)
Connections
Speaker connections
2-way (2-pin, audio positive and negative), waterproof, 150mm (5.9") connector or 6.3mm (0.25") positive and 4.8mm (0.19") negative male spade connectors
LED connection
150mm (5.9") 6-Way Waterproof Connector (6-Pin, CRGBW & Ground)
Mounting dimensions
Assembly template
6.5″: 136 mm (5.35″)
7.7″: 156 mm (6.14″)
8.8″: 180 mm (7.09″)
Mounting depth
6.5″: 77 mm (3.03″)
7.7″: 86 mm (3.39″)
8.8″: 105 mm (4.13″)
Front grille protrusion
6.5″: 30 mm (1.18″)
7.7″: 32 mm (1.26″)
8.8″: 33 mm (1.30″)
