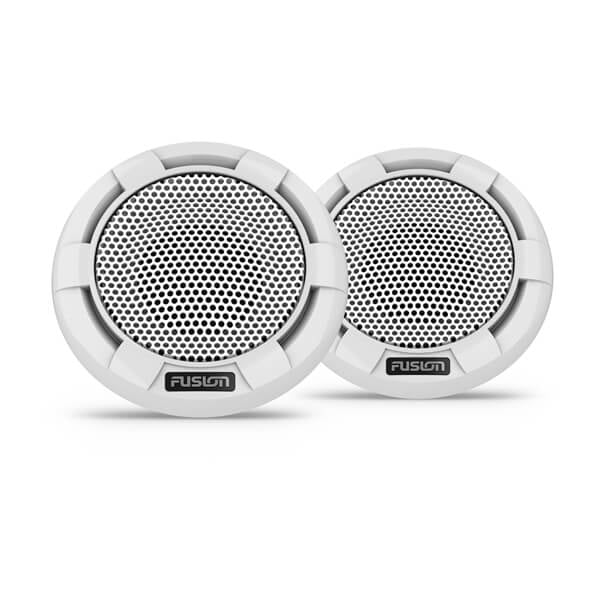

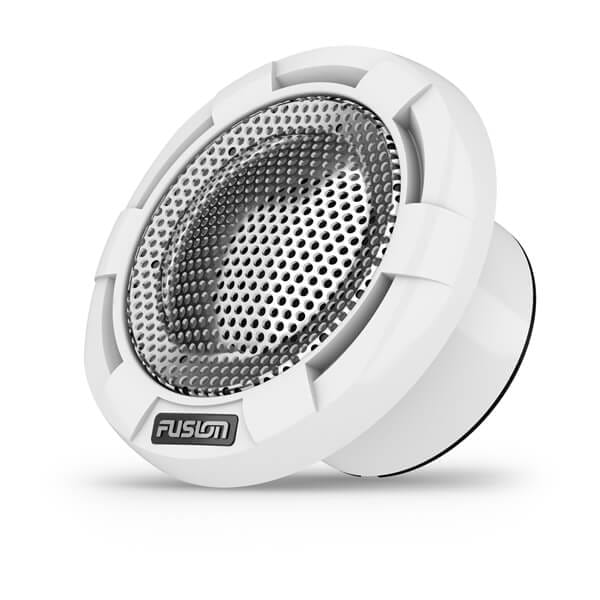

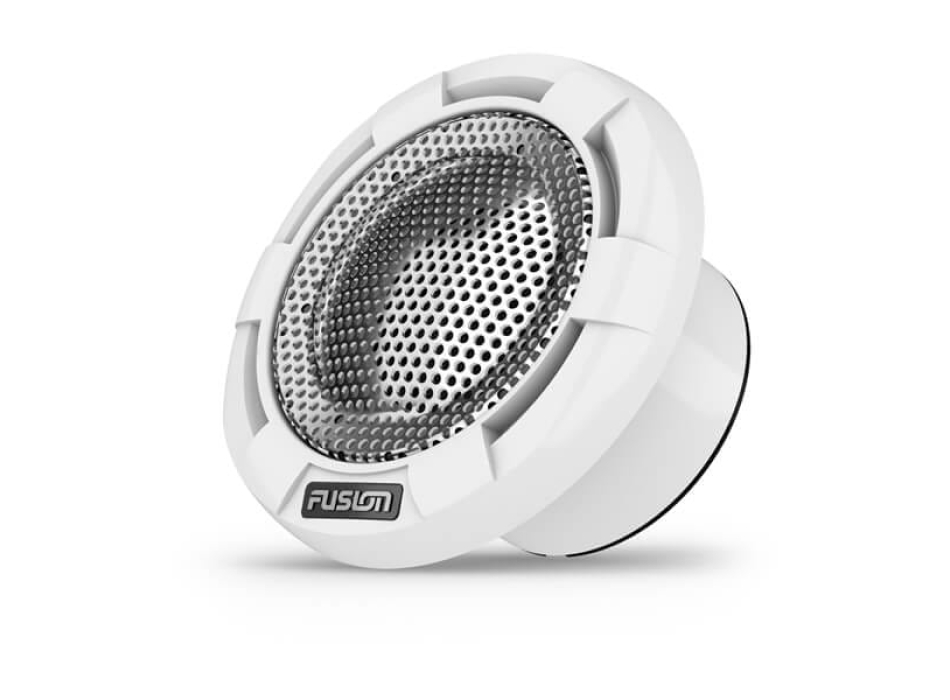

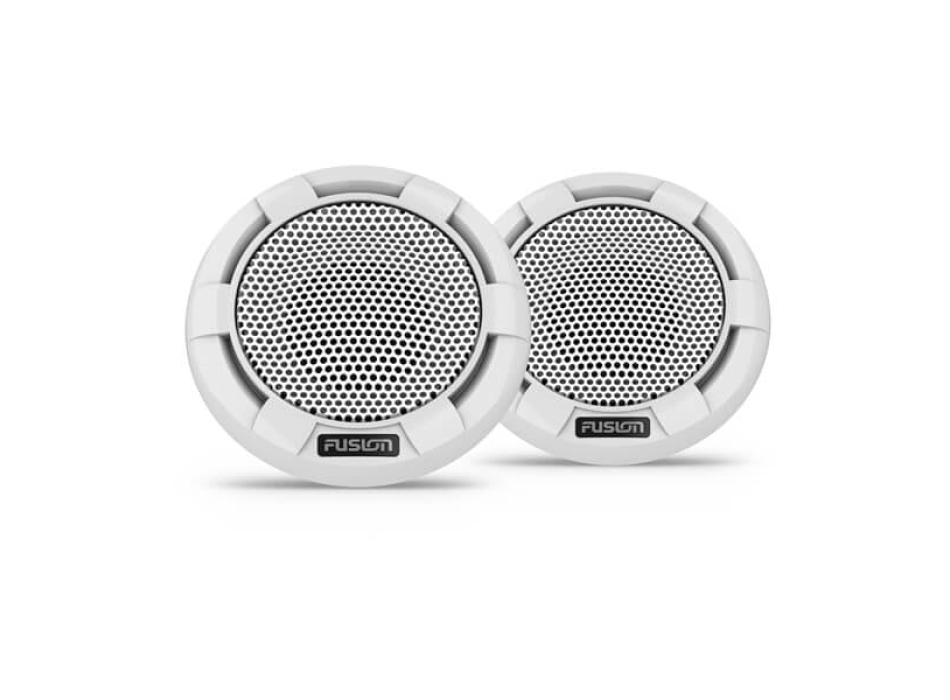

Fusion Tweeters SG-TW101SPW Signature 3i

(0)
  • Code: 010-02796-20
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 109,00 € 129,00 -16%
FUSION NEW SIGNATURE SERIES 3i TWEETERS SG-TW101SPW

Add another dimension to your music with a new component tweeter.

Gone are the days when onboard audio was compromised by limited speaker placement options and engine noise! Finding optimal speaker placement is often difficult, resulting in installations where speakers are mounted low, near deck height, limiting the amount of high-frequency audio that can be heard while standing.

Choose the Signature 3i Series compact tweeters to restore high frequencies for an audible improvement in onboard sound quality. Install the compact tweeters in higher locations such as the helm station, dashboard, or windshield/window support frames to enjoy improved onboard sound quality.
Enhance your listening experience on the go with these marine tweeters. Designed to be flush-mounted in a raised position to boost high frequencies, you'll hear audio clearly even over engine, wind, and wave noise. Key features include a compact design and low-profile mounting solutions, an IP65 weather rating, and Fusion True-Marine™ design with a 3-year warranty. With plug-and-play, weather-resistant connectors as standard, you can enjoy simplified installation and enhanced weather protection.

Product specifications

Physical dimensions (diameter x depth) 2.91″ x 1.64″ (74 x 41.6 mm)
IP65 waterproof and dustproof rating
Tweeter size 1″
Peak power (watts) 330 W
RMS power (watts) 60 W
Sensitivity (1 W/1 m) 91 dB
Frequency response 3 kHz - 20 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 25 - 140 W/Ch
Operating Temperature 32° to 122° F (0° to 50° C)
Voice coil diameter 1″
Material: Aluminum dome
Tweeter Connection 2-way waterproof connector cable, 5.9″ (150 mm)
Compass safety distance 43.3″ (110 cm)
3 year warranty
Mounting dimensions
Mounting diameter footprint 2.01″ (51 mm)
Mounting depth footprint 1.22″ (31 mm)
D I tweeter hanno il crossover incluso o in qualche modo sono già tagliati per gli alti?
R 10/05/2026 Buongiorno, sì certo confermo, sono indicati per essere installati in parallelo su una coppia di casse sempre serie Signature. Cordiali saluti. Luigi Bianchi
