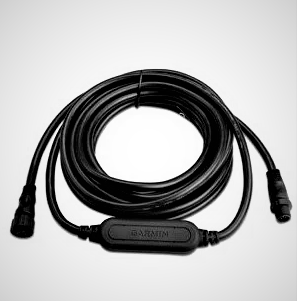

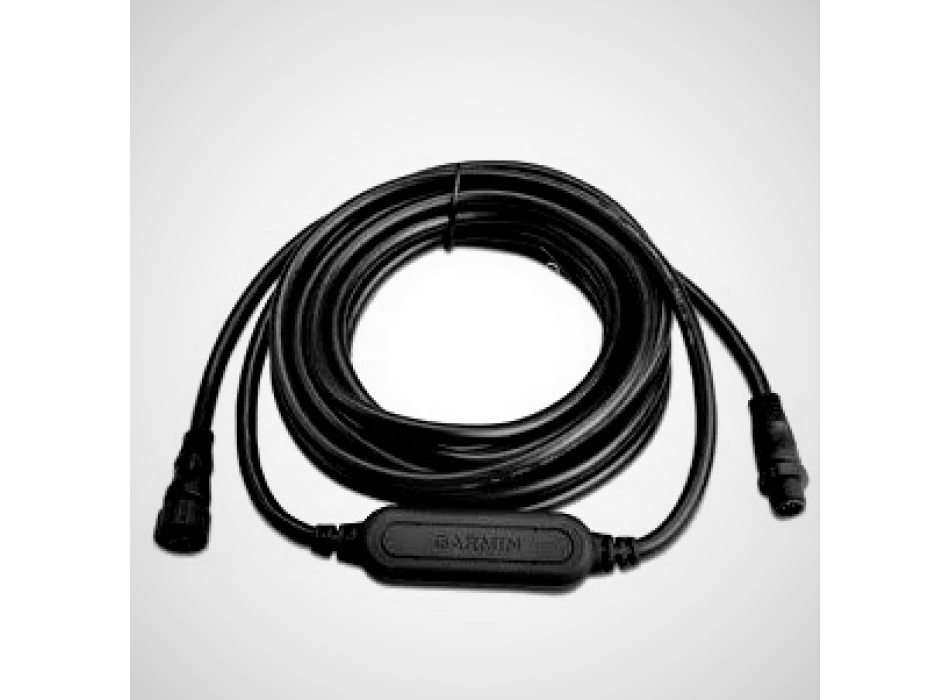

Garmin GST 10 Speed/Temp Adapter

GTS 10 Speed/Temperature Adapter

With the Garmin NMEA 2000 Water Speed and Temperature Analog Adapter on your boat, you can upgrade your old gauges by making the transition from analog to digital. The easy-to-install adapter takes data from traditional analog gauges and converts it to a NMEA 2000 signal, allowing you to create or expand your network without replacing all your equipment.

Network connection

With the Garmin GST 10 adapter, you can convert analog information provided by a compatible water speed sensor and water temperature sensor, or a combined water speed/temperature sensor (not included) on your boat to your NMEA 2000 network. The GST 10 allows you to view water speed and water temperature information on compatible Garmin display devices connected to your NMEA 2000 network.

Easy update

Garmin's line of NMEA 2000 analog adapters are easy to add to any existing marine network. Once installed, data from the adapters can be viewed on the Garmin GMD 10 digital navigation display and other compatible Garmin devices. The simple setup will bring your old instrument panel into the digital age.

Unit dimensions, W x H x D: 24.7 x 17 x 78.6 mm (31/32 x 43/64 x 3 3/32 in.)

Weight: 380g (13.33oz)

Total cable length: 4.9 m (16 ft)

Temperature range: -15°C to 70°C (5°F to 158°F)

Safe distance from compass: 5 cm (2 inches)

Input power: 9 - 16 V DC from NMEA 2000 bus

NMEA 2000 Power Consumption: 0.9 W max.

NMEA 2000 Load Equivalency Number (LEN): 1 (50 mA)

• USER MANUAL ITA. (714,02 KB)
