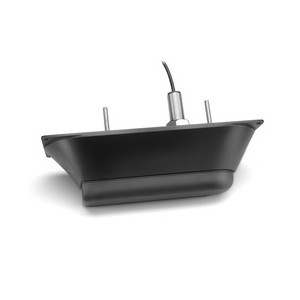

Garmin GT50M-TH Pass. 80/160 Clear and SDV steel

(0)
  • Code: 010-01965-10
  • Brand : Garmin
€ 755,00 € 839,00 -10%
Full Chirp transducer aft GT50-TH 80 / 160khz, Clear and SideVù
Through Steel

This thru-hull transducer provides ultra-sharp scan images of objects, structures and fish found under the vessel. This traditional CHIRP sonar and CHIRP DownVü / SideVü transducer offer optimized performance in deep water and harsh conditions.

The CHIRP DownVü / SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. Traditional CHIRP sonar has a power rating of 300W and operating frequencies of 80-160kHz. Includes a built-in fast response temperature sensor. For hull lean angles of less than 25 degrees.

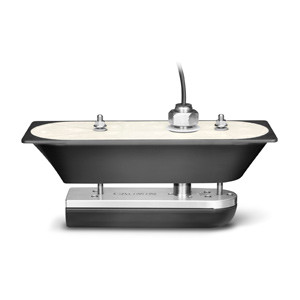

The GT50M-TH includes a 12-pin stainless steel shaft transducer, fairing block, isolation plate and bushings, mounting components, and installation instructions. Follow the instructions carefully to avoid damage to the boat.




Technical features

Mid-band CHIRP FREQUENCY (80-160 kHz); ClearVü / SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
ENERGY CHIRP Traditional 300 W; ClearVü / SideVü 500 W
BEAMWIDTH Traditional: 26 ° -15 °
ClearVü / SideVü: 1.1 ° x53 ° @ 455 kHz and 0.7 ° x30 ° @ 800 kHz
MAXIMUM DEPTH Traditional: 1,500 ft .; ClearVü: 750 ft .; SideVü: 500 ft.
DEPTH / SPEED / TEMPERATURE Depth and Temperature
NUMBER OF PIN 12-pin
CABLE LENGTH 5 ft. + 30 ft. extension cable
SUPPORTED TILT / STERN ANGLES Up to 5 ° deadrise
