Garmin GT8HW-TM Chirp 150/240 transducer

(0)
  • Code: 010-12401-00
  • Brand : Garmin
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 152,00 € 169,00 -10%

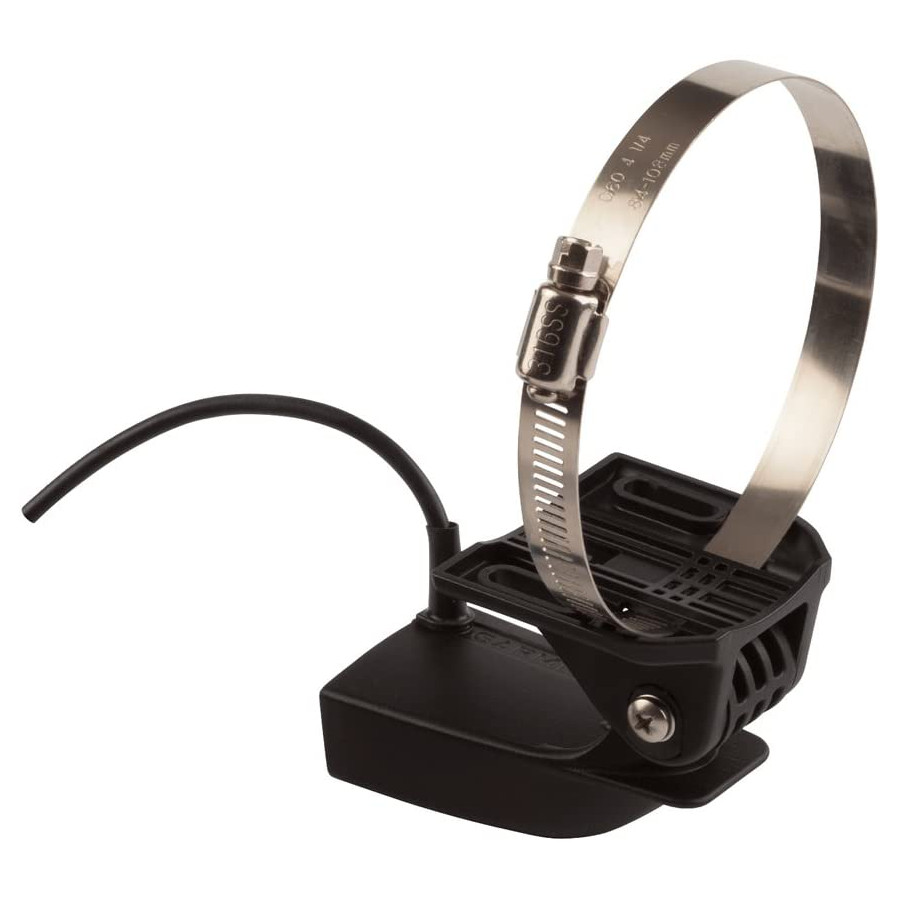

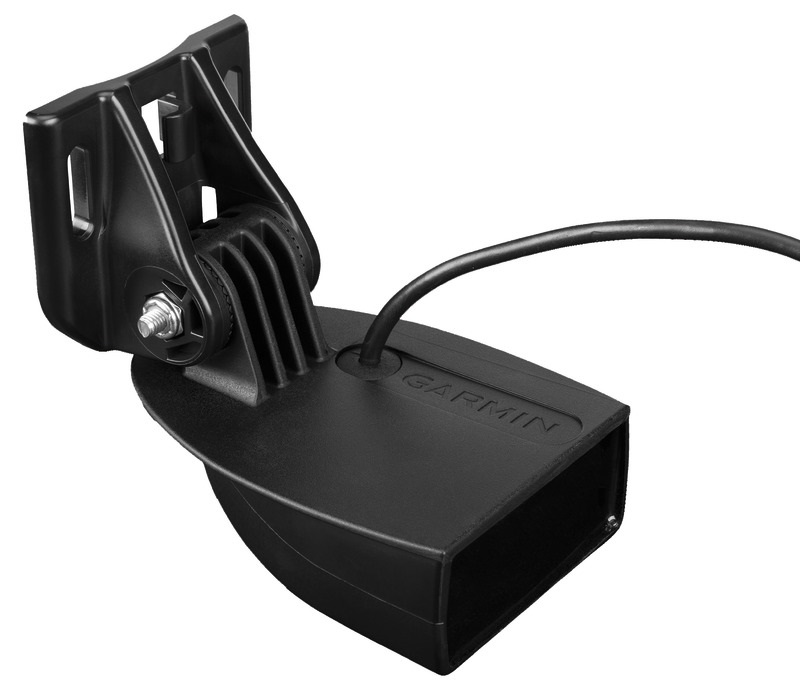

Garmin Transducer GT8HW-TM Chirp stern
Freq. Chirp 150 / 240khz

The GT8HW-TM transducer is perfect for shallow water fishing, for those who want clear bottom definition and crisp, clear, wide fish arches with excellent target separation. The increased beam range, with up to 24 degrees angle width, provides a larger coverage area in the water.

The 8-pin transducer includes a traditional broadband CHIRP sonar (150-240kHz) and a power rating of 250W. It can be installed on the stern or on the trolling motor. Follow the installation instructions carefully to avoid damage to your boat.
General
CHIRP FREQUENCY High Wide (145-230 kHz)
ENERGY 250 W
WIDTH OF THE TRANSDUCER BEAM 24 ° -16 °
MAXIMUM DEPTH 800 ft. Fresh water
CABLE LENGTH 20 ft.
DEPTH / SPEED / TEMPERATURE Depth and Temperature
NUMBER OF PIN 8-pin
SUPPORTED TILT / STERN ANGLES 0 ° -70 ° degree transom
D Mi serviva sapere se c'è un trasduttore chirp hw x Garmin striker 7 cv e se ci vuole il cavo adattatore da considerare che io pesco tra i 10 MT e i 150 MT, grazie
R 05/07/2026 Buongiorno, sì certo confermo, il trasduttore in oggetto è indicato per pesca fino ai circa 100mt, servirà questo cavo adattatore: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D Buonasera volevo sapere se questo trasduttore lo posso abbinare al mio gpsmap 922 xs e sfruttare del tutto le frequenze 150/240,grazie.
R 06-01-24 Buongiorno, certamente sì, confermo. Cordiali saluti. Luigi Bianchi
