Garmin Spy Pole Mount

  • Code: 010-03012-00
  • Brand : Garmin
starting from € 1.799,00 € 1.999,99 -10%
Garmin Spy Pole Mount

DON'T MISS ANYTHING THAT'S HAPPENING UNDER YOUR BOAT

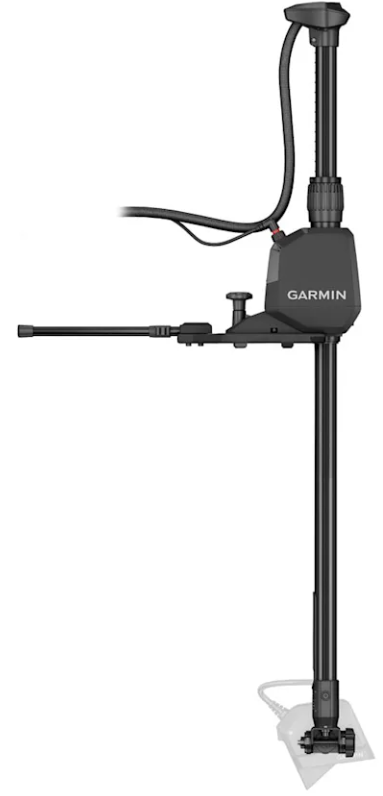

Mount transducers on Spy Pole, the revolutionary motorized sonar control, for precise, wireless control of LiveScope and GT360UHD transducers.


CONTROL THE FISHFINDER INDEPENDENTLY WITH THE WIRELESS REMOTE OR FOOT CONTROL

MOUNT IT ON YOUR TROLLING MOTOR OR ON YOUR GUARD

INTEGRATES WITH CHARTPLOTTER AND SELECTED FORCE TROLLING MOTORS

DESIGNED FOR LIVESCOPE AND 360 TRANSDUCERS

ALLOWS YOU TO LAUNCH MULTIPLE LIVESCOPE CONTROL MODES IN WIRELESS MODE


WHAT YOU WILL LIKE

INTUITIVE POSITIONING
Stop your boat wherever you want and get complete control of your LiveScope sonar with SpyLock spot-lock technology, SpyScan search mode and SpyLink control mode.

Multiple mounting options

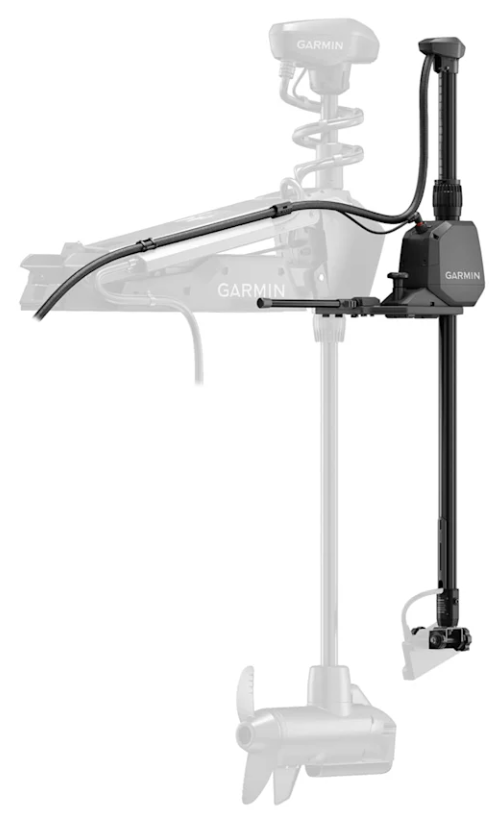

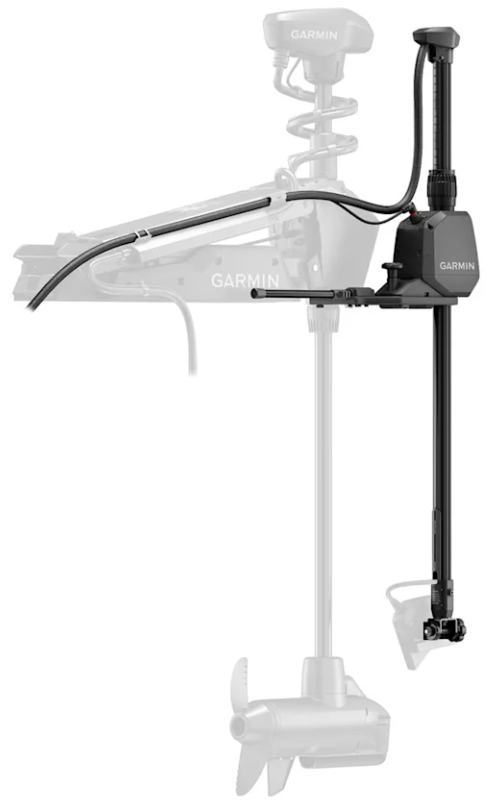

Easily mount the Spy Pole to your Force or Force Pro trolling motor or directly to the deck of your boat. And if needed, it's easy to remove thanks to the quick-release system.

CONTROL AT YOUR FINGERTIPS

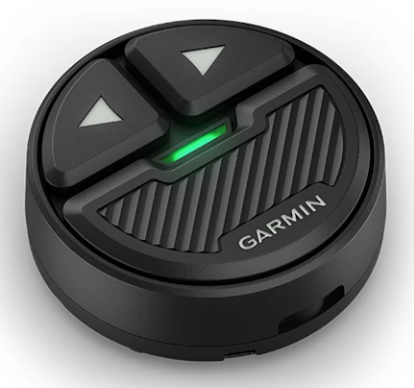

Attach the included remote control to the pole or use it as a handheld device to maneuver the Spy Pole stand with a simple twist of your wrist or the push of a button.

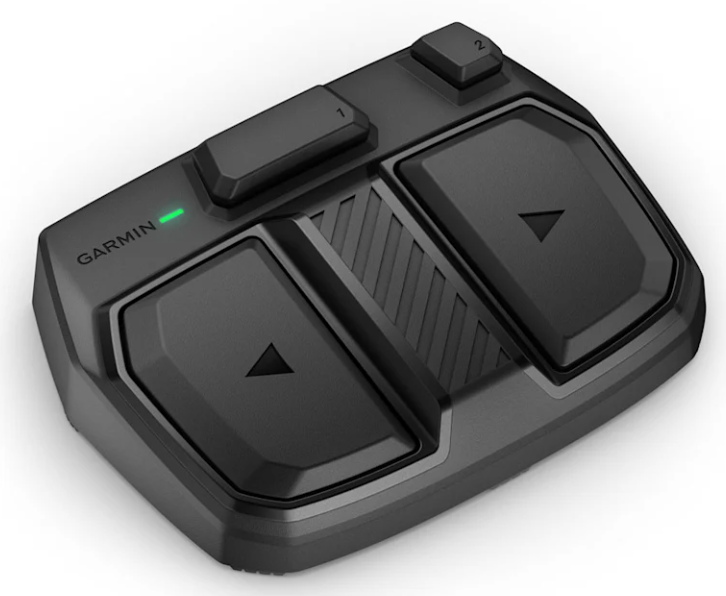

PEDAL CONTROL
Use the included, low-profile, easy-to-use foot control to steer the Spy Pole, keeping your hands free for fishing.

CHARTPLOTTER INTEGRATION
Set up and control the Spy Pole mount with your compatible Garmin chartplotter.

ONEVÜ FISHFINDER
Install the GT360UHD transducer to see OneVü sonar with True Motion technology. Add LiveScope to unlock an additional real-time 3D overlay.

GET EVEN MORE DETAILS

TRUE MOTION
With True Motion technology and GT360UHD, scans remain true to position as the vessel moves.

SPYLOCK
Lock LiveScope sonar onto any point of interest, such as a bush, rock or anything else.

SPYSCAN
Automatically slide Spy Pole back and forth in any direction to make it easier to find fish and structure.

SPYLINK
Sync with the speed and direction of your Force or Force Pro trolling motor, then control the Spy Pole mount with the Force foot pedal while in the anchor lock position.

General

Warranty 3 years
Usage Freshwater, brackish water and salt water
Mounting style Quick release, reversible
Voltage 10V-45V
Electric guide
Stem length (from head to end of stem) 42″ or 49″
Adjustable stem depth
Waterproof rating (components ABOVE WATER) IPX7
Installation position Force, Force Pro (included); bridge and wall
Bridge stabilizer Yes (included)
Wall support Compatible, required with 2 or more transducers (not included)

Electrical characteristics

POWER INPUT Wired, 2m (6.5) cable
Energy consumption 18 W typical; 70 W maximum
Fuse 8 A

Transducer support

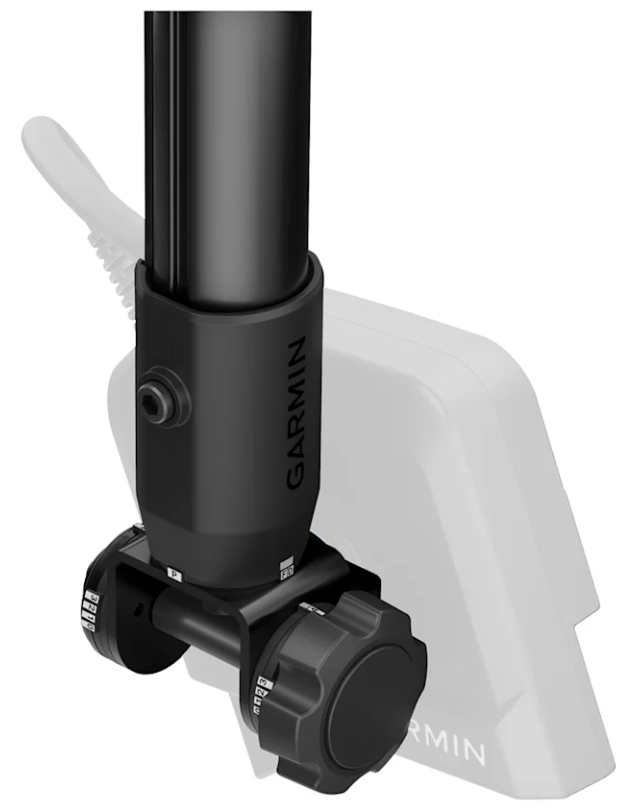

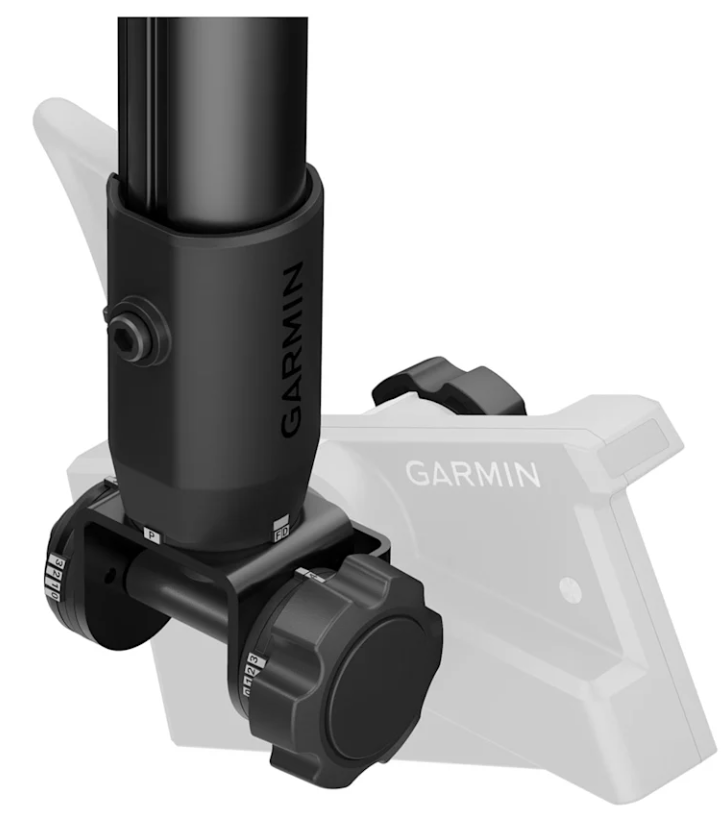

Adjustable LiveScope perspective support Included: Forward, Down and Perspective at 0°, 7.5°, 15°, 22.5°
Supported LiveScope Transducers LVS32, LVS34, LVS62 (max one with internal cable routing)
OneVü scanning transducer support
Internal cable routing
Quick release cable kit

Connections

COMPATIBLE CHARTPLOTTERS Wireless
Compatible with Force trolling motors Wireless;
Control accessories Wireless
Maximum number of connections 5 gesture remote controls
1 foot control
1 direction sensor
1 trolling motor
1 chartplotter network

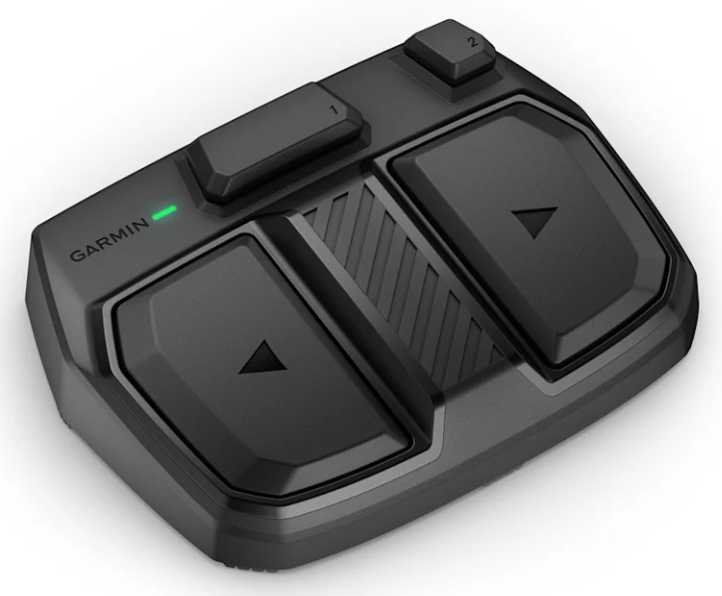

Foot control

Dimensions 7.8″ x 5.8″ x 1.8″
Wireless communication
Diet 2 AA batteries (not included)
Battery life (typical use) A season
Waterproof rating IPX7
Programmable buttons Yes (2)
Status indication LED lights
Quick release mount

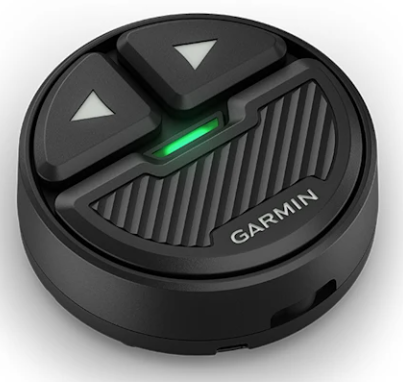

Pointer remote control

Dimensions 1.25″ (diameter) x 0.5″ (thickness)
Wireless communication
Diet CR2032 battery (included)
Battery life (typical use) A season
Waterproof rating IPX7
Programmable buttons Yes (3)
Status indication LED lights
Quick release mounting options 2 poles, hat, portable device with lanyard
Floating Yes (only with portable device)
Turn Yes (rotation and torsion)

Direction sensor

Dimensions 3.5″ x 2″ x 1″
Wireless communication
Voltage 10V-45V
POWER INPUT Wired, 2m (6.5) cable
Energy consumption 0.1 W typical; 1 W max
Fuse 1 A
Waterproof rating IPX7
Status indication LED lights
