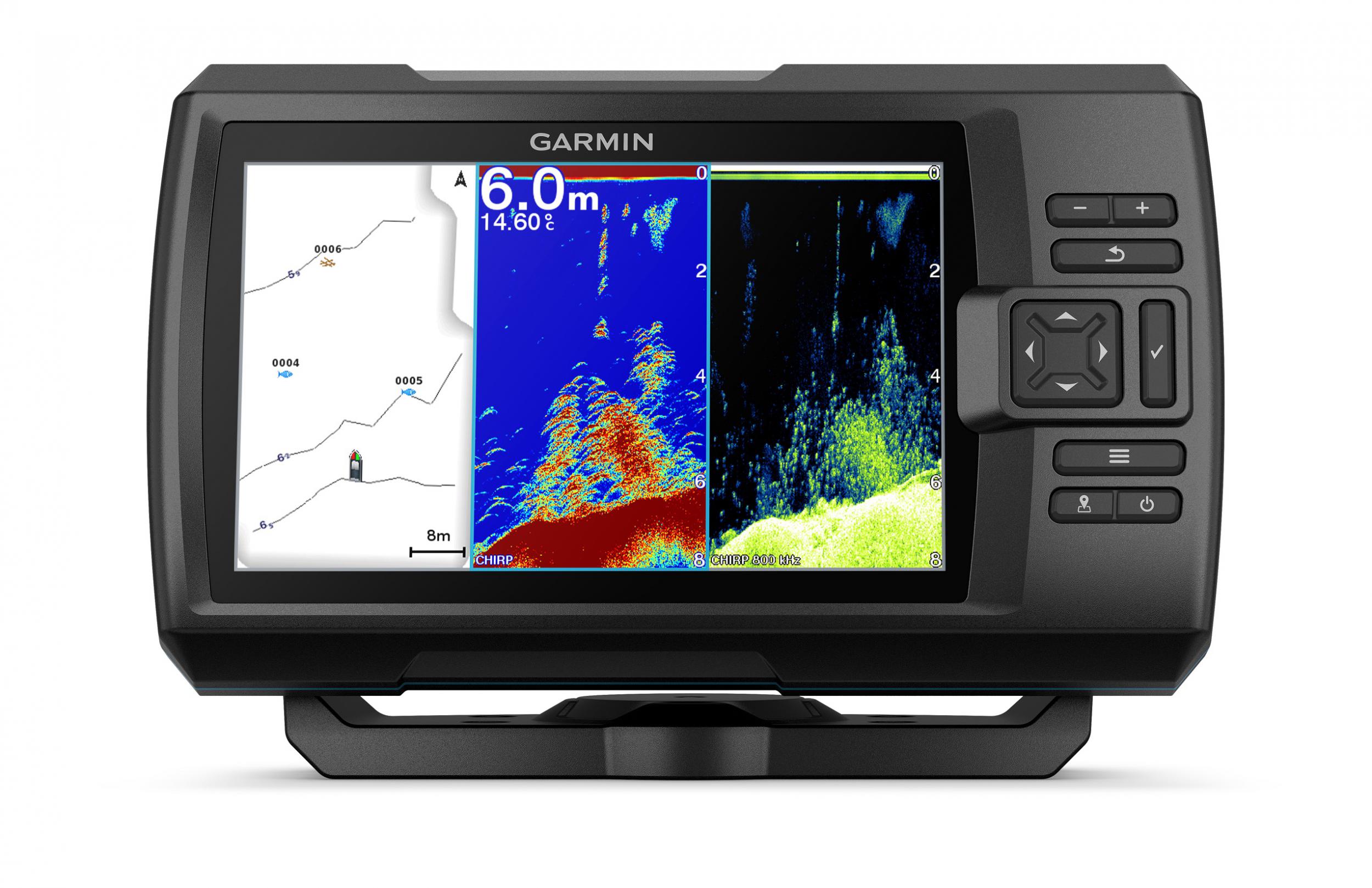

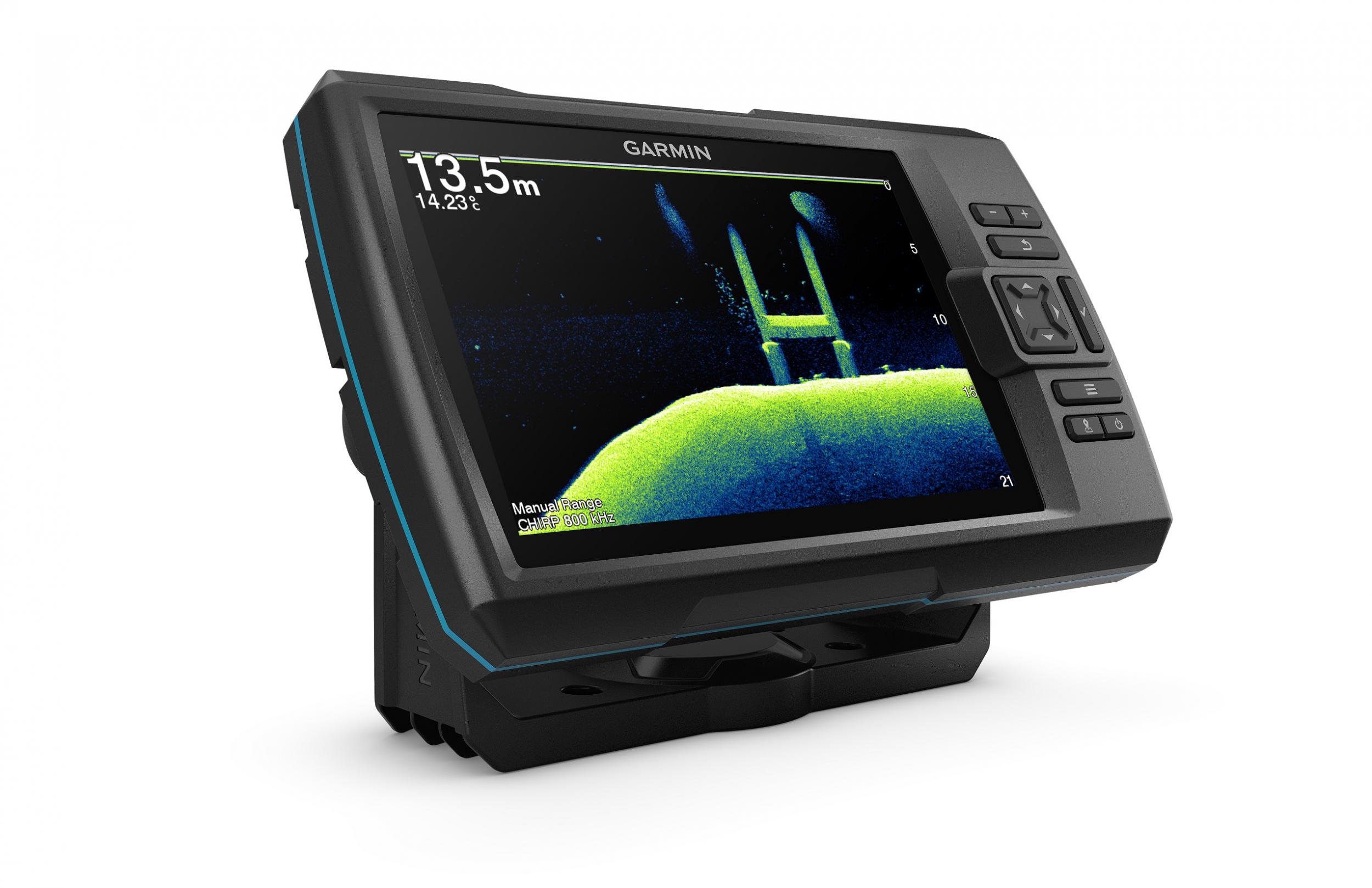

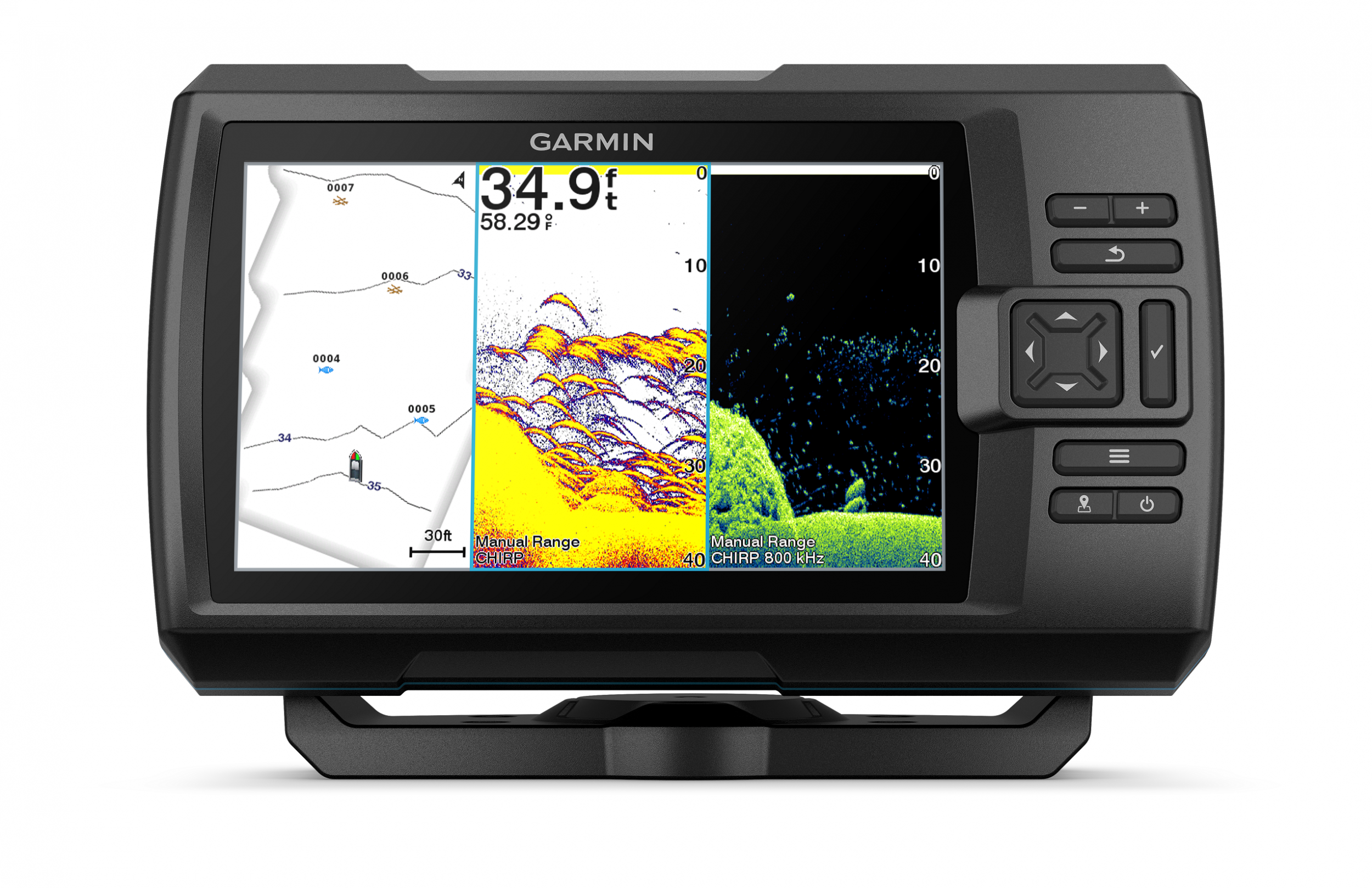

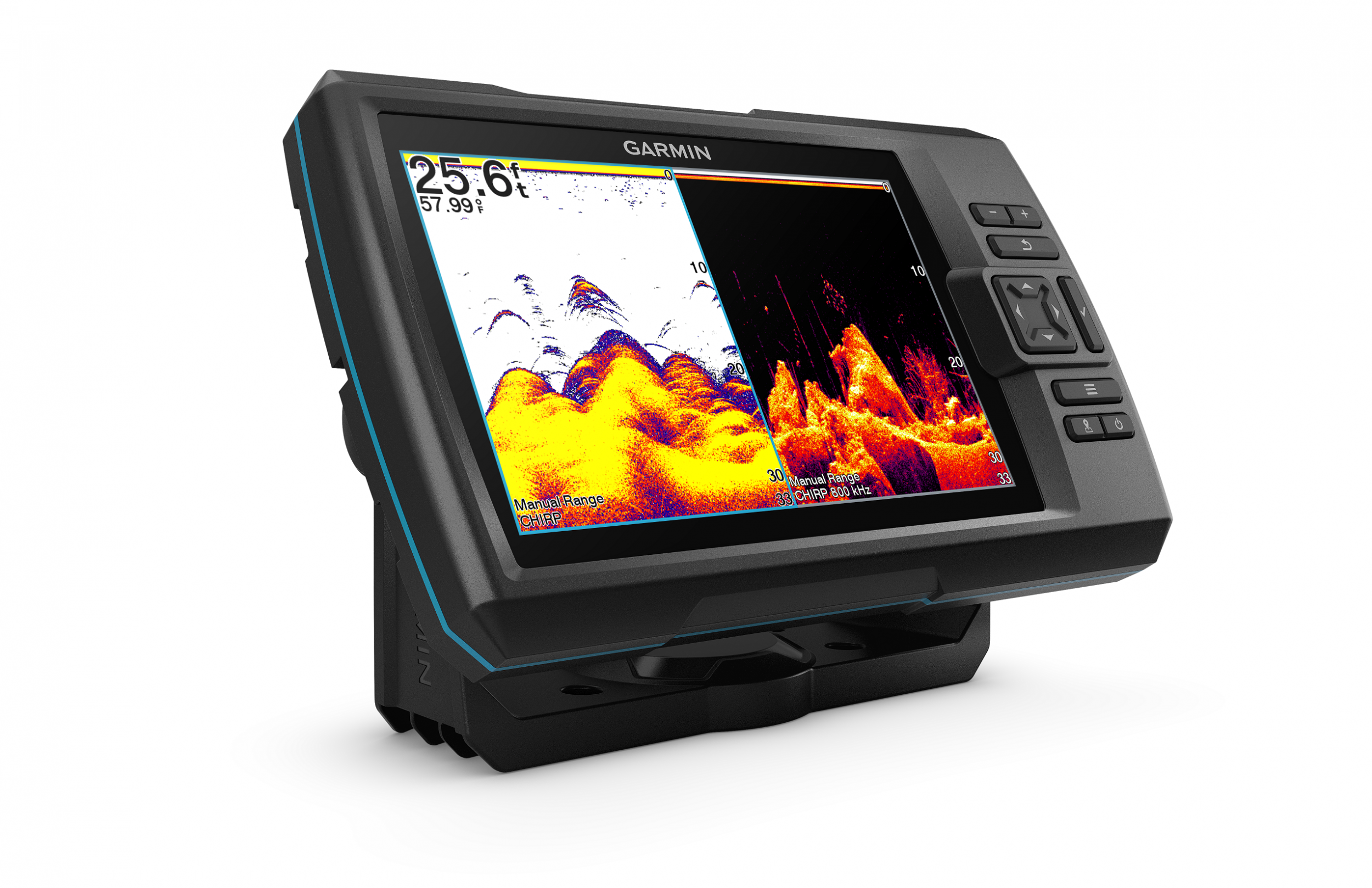

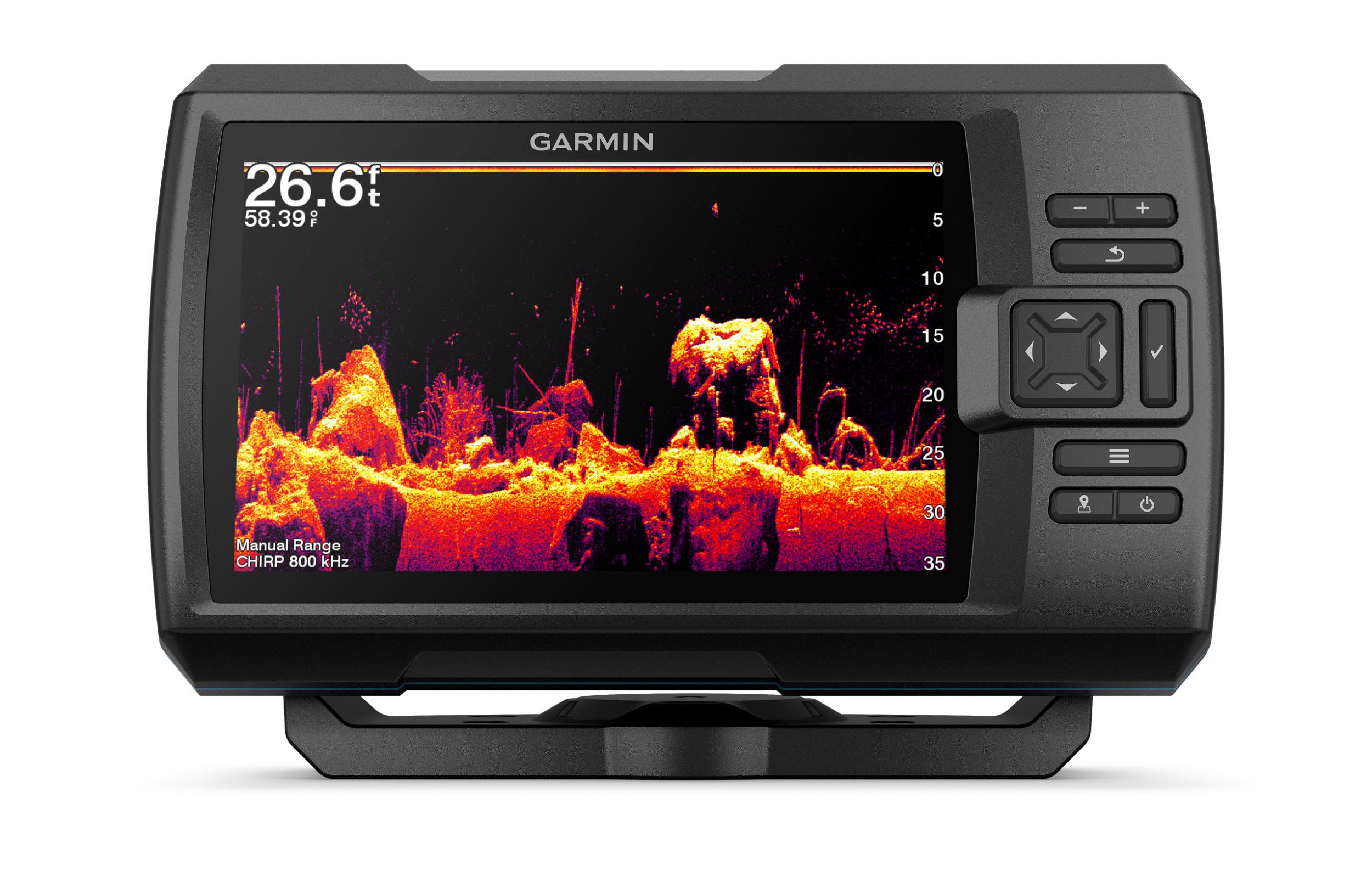

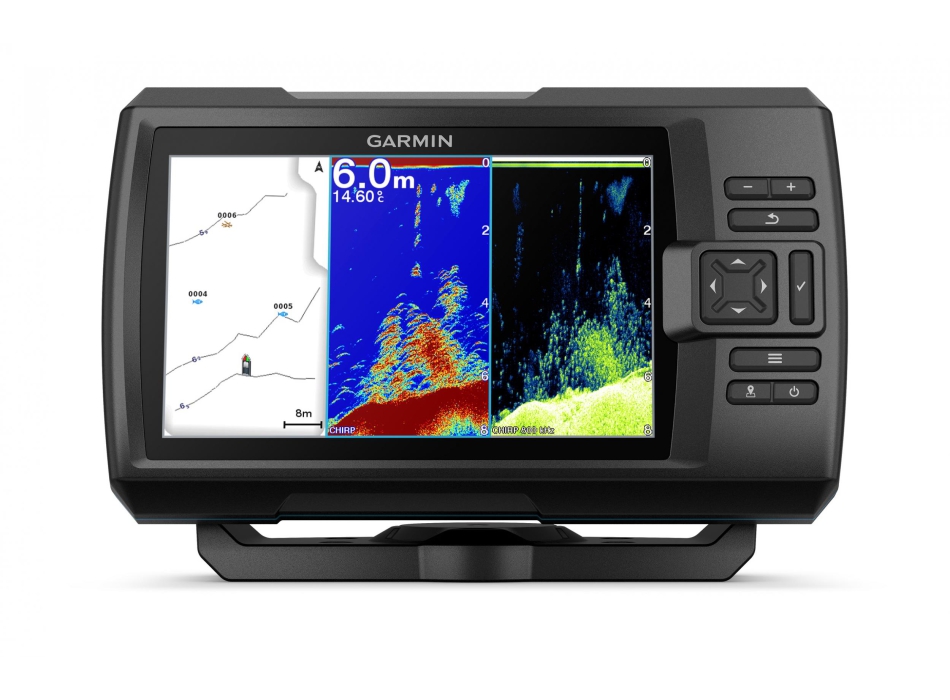

See fish and structure in great detail when you choose the display color, your position and your sonar for your day on the water with the STRIKER Vivid 7cv fishfinder with transducer.
The sonar color you choose says a lot about your fishing style. Luckily there are 7 new vivid options.
What a view. Use the included transducer to get traditional and ClearVü CHIRP sonars.
Never miss a hot spot again. Use waypoint marking to find your way back
What's under the water's surface looks pretty good as 1-inch side dishes, just to say.
WiFi connectivity, with the ActiveCaptain ® app
General | |
DIMENSIONS | 23.5 x 14.0 x 5.8 cm (9.3 "x 5.5" x 2.3 ") |
---|---|
SCREEN RESOLUTION, LXH | 800 x 480 pixels |
TYPE OF SCREEN | WVGA color |
WEIGHT | 1.7 lbs (0.8 kg) |
WATERPROOF CLASSIFICATION | IPX7 |
TRANSMISSION POWER | 500 W (RMS) |
Echosounder features and specifications | |
DOUBLE FREQUENCY | |
---|---|
DOUBLE CONE | |
SUPPORTED FREQUENCIES | Traditional: 50/77/200 kHz CHIRP (medium and high) ClearVü 260/455/800 kHz |
ZOOM | |
DATA AND WATER TEMPERATURE GRAPH |
Fishfinder functions | |
SPLIT SCREEN ZOOM | |
---|---|
ULTRASCROLL® (ALLOWS TO VIEW FISH TARGETS WHEN THE BOAT TRAVELS AT HIGH SPEED) | |
FISH SYMBOL ID (ALLOWS TO IDENTIFY FISH TARGETS) | |
AUTOMATIC GAIN TECHNOLOGY (ALLOWS TO REDUCE SURFACE NOISE AND ENLARGE TARGETS) | |
ADJUSTABLE DEPTH LINE (ALLOWS TO MEASURE THE DEPTH OF OBJECTS IN THE WATER) | |
A-SCOPE (ALLOWS THE PRESENCE OF FISH UNDER THE TRANSDUCER BEAM TO BE VIEWED IN REAL TIME) | |
WATER TEMPERATURE SENSOR INCLUDED |
Additional features | |
ADDITIONAL FEATURES |
|
---|
