Humminbird Helix 5 DI Sonar G2

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 339,00 € 410,00 -17%
Helix 5 DI G2 5" Sonar Fishfinder

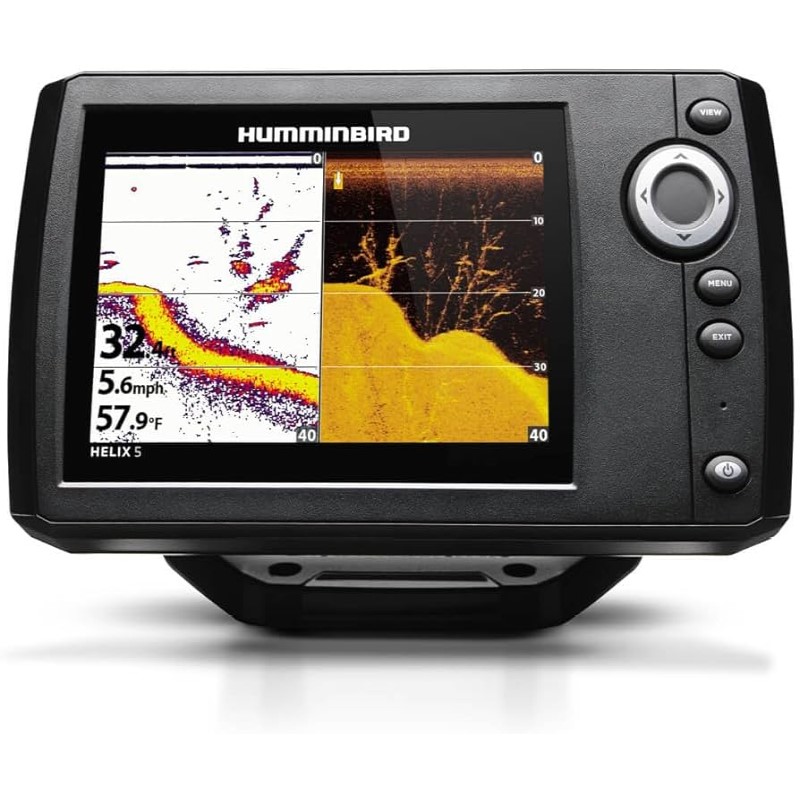

Helix 5 DI G2 offers the angler Humminbird sonar technologies, such as Down Imaging and Dual Beam Plus with a beautiful 5” display, super bright and with a high resolution (800 x 480 pixels) , so you don't miss any detail and any prey.

The transducers of the Helix models are designed and manufactured by Humminbird itself to create a perfect match between the fishfinder and the transducer, thus optimizing the performance of both and obtaining an unbeatable quality/price ratio.

Dual Beam PLUS Sonar offers a choice of two beam widths. Use the narrow beam to see more detail on bottom structure, bottom contours and fish. Or use the wider beam to scan a wider area (bottom coverage will have a diameter similar to depth). You can display the echoes from both beams one at a time in full screen or even simultaneously in half screen.

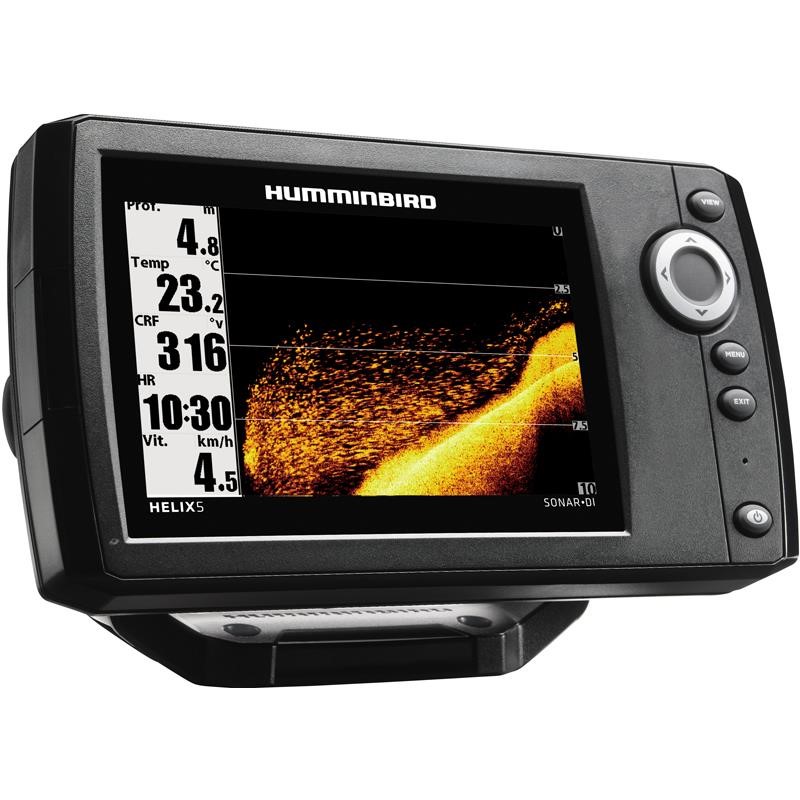

Down Imaging technology provides an extremely detailed view of what is beneath the vessel through an extremely thin cone, virtually a razor blade that scans the bottom, structure and fish.

    • 5″ display (800 x 480 pixels)
    • Keyboard Control
    • Sonar: Dual Beam Plus, Down Imaging
    • Standard Transducer (Stern): XNT 9 DI T
Technical Features
Brand

Humminbird
Series

Display Size

5"
Resolution

800×480
Touch screen

No
RMS Power (W)

500
2D Technology

2D Meters

120
Down Imaging Tech

FROM
Down Imaging Meters

100
Side Imaging Tech

–
Side Imaging Meters

–
Transducer

XNT9DIT
Networking

No
Internal GPS

No
Live Auto Chart

No
Veg. & Hardness

No
SD / Micro card

–
Notes

*with optional XD transducer. Warning: The maximum depth data is indicative as it depends on various factors (in particular the density of the water and the type of seabed).
D buonasera, vorrei conoscere la differenza tra il modello 410200 - 1 e il 410190 - 1 e se sono entrambi disponibili. grazie
R 02-05-25 Buongiorno, la versione cod. 410200, in più ha la funzione eco Down Imaging, vista in alta definizione del fondale. Cordiali saluti. Luigi Bianchi
