-16%

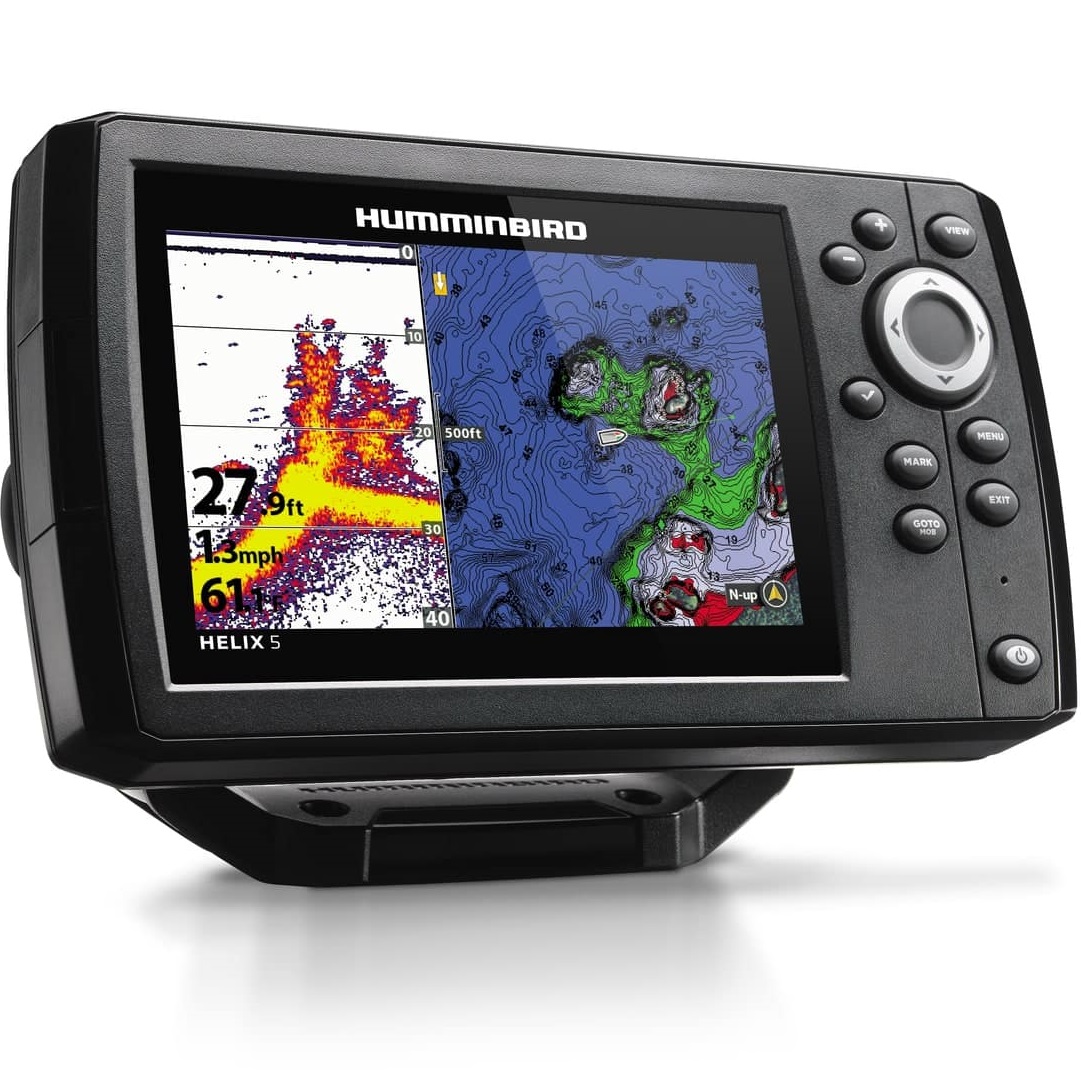

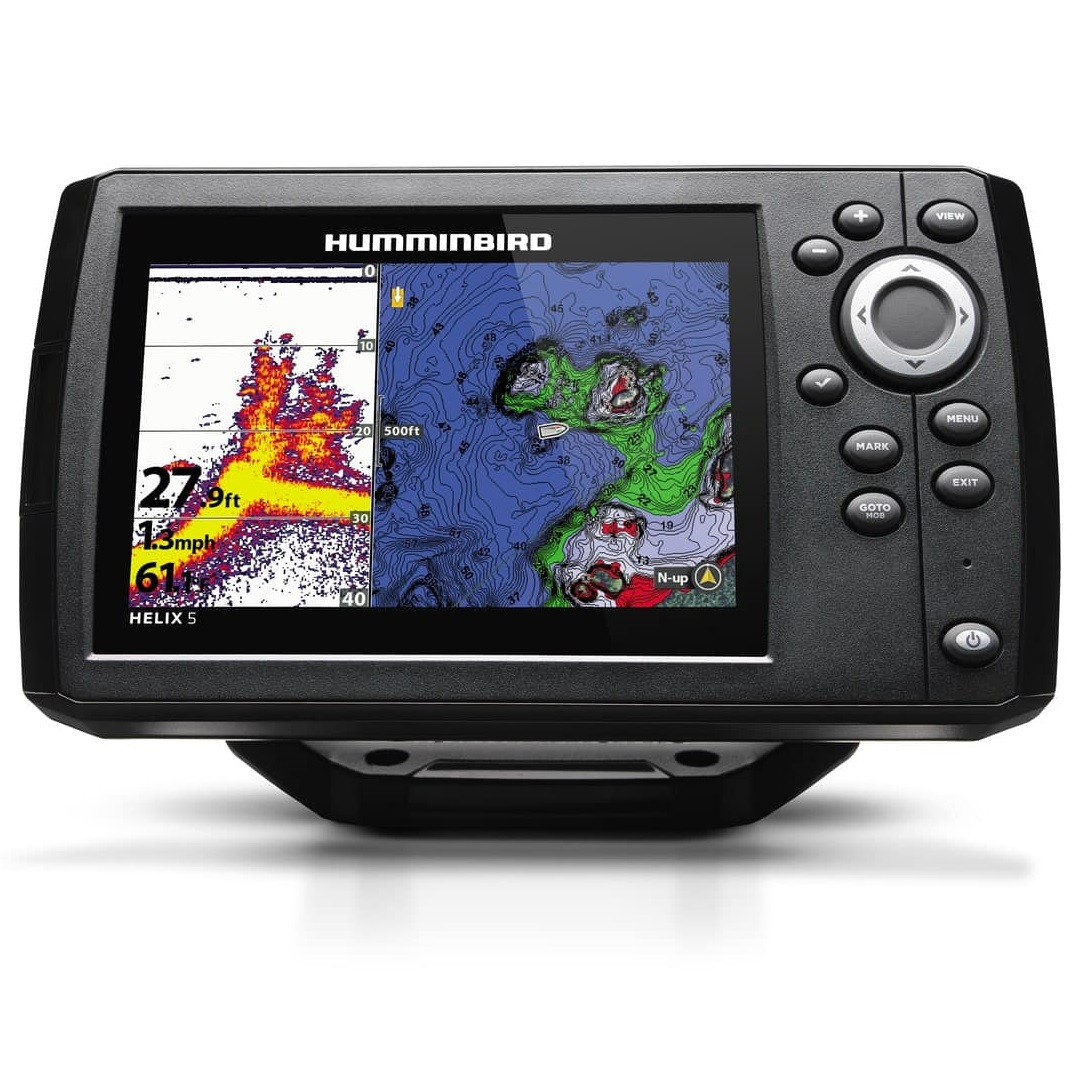

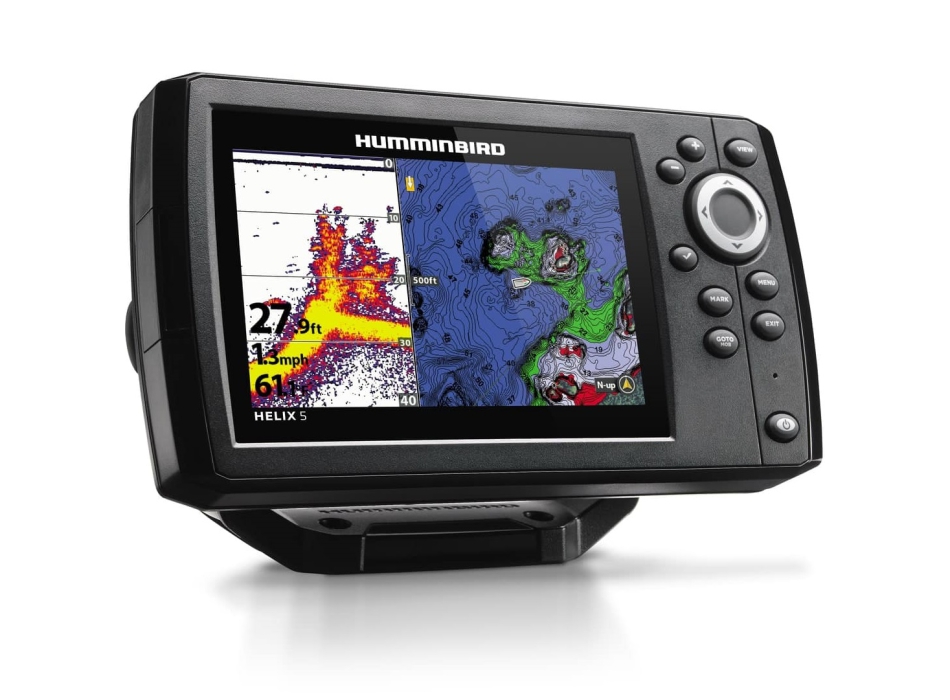

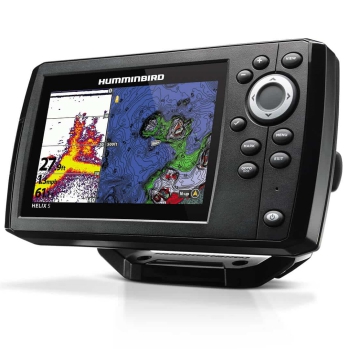

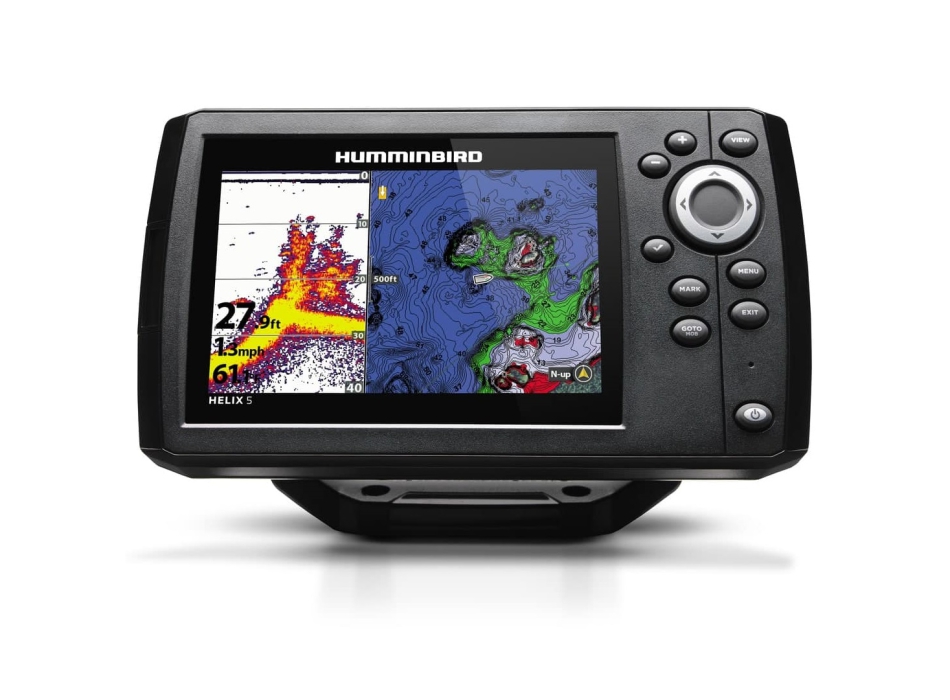

Humminbird Helix 5 G3 CHIRP Sonar Gps

INCLUDES DUAL SPECTRUM AFT TRANSDUCER
  • Code: 411660-1
€ 419,00 € 499,00 -16%

Helix 5 CHIRP Sonar Gps G3
With dual spectrum transom mount transducer

Helix 5 CHIRP DI G3 offers the angler Humminbird sonar technologies, such as CHIRP Down Imaging , the accuracy of a state-of-the-art built-in GPS, Navionics' basic and maximum detail cartography (optional), innovative features such as AutoChart Live and much more. All this in a beautiful 5 "display, super bright and with a high resolution (800 x 480 pixels), so as not to lose any detail and no prey.

The transducers of the Helix models are designed and manufactured by Humminbird itself to create a perfect match between the sonar and the transducer, thus optimizing the performance of both and obtaining an unbeatable quality / price ratio.

Humminbird's Dual Spectrum CHIRP Sona r , standard in this model, provides classic 2D viewing up to over 300 meters *, with exceptional fish response (arches) and excellent target separation.

CHIRP Down Imaging technology offers an extremely detailed view of what is beneath the boat thanks to an extremely thin cone, practically a razor blade that scans the bottom, structures and fish.

All Helix G2 models with GPS include the AutoChart Live function, to create your own live bottom maps. By simply activating the function, it is possible to admire the depths and the definition of the structure of the bottom that materialize on the display.

  • 5 ″ display (800 x 480 pixels)
  • Keyboard control
  • Sonar: CHIRP Dual Spectrum
  • Standard transducer (from stern): XNT 9 HW DI T
  • Internal GPS and optional external GPS antenna
  • Navionics compatibility
  • AutoChart Live
TECHNICAL SPECIFICATIONS
  • Humminbird brand
  • Helix series
  • Display Size 5 "
  • Resolution 800 × 480
  • Touchscreen No.
  • RMS power (W) 500
  • 2D Chirp DS technology
  • 2D 360/700 meters
  • Down Imaging Tech
  • Chirp DI
  • Down Imaging Meters 100
  • Side Imaging Tech -
  • Side Imaging Meters -
  • XNT9HWT transducer
  • Networking No
  • Internal GPS Yes
  • Live auto-chart Yes
  • Veg. & Hardness No
  • SD card / Micro card 1M
  • NMEA2000 No.
  • WiFi No
D. buona sera,è possibile acquistare helix 5 senza la sonda,grazie
R. 21-07-02 Buon pomeriggio, purtroppo non riusciamo mi spiace. Cordiali saluti. Luigi Bianchi
D. buongiorno, vorrei sapere la profondità massima di lettura? se è dotato di mappa generale con indicazioni delle principali batimetriche se al prezzo indicato va sottratto lo sconto di accesso 7% grazie
R. 27-05-22 Buongiorno, indicativamente come massima profondità siamo intorno ai ca 150mt. Confermo Coupon extra 7% applicabile su questo articolo. Cordiali saluti. Luigi Bianchi
D. Salve, è sufficiente la schedina di upgrade a sonar chart o bisogna acquistate la cartografia completa? Zona: tutta italia + grecia Grazie x l'attenzione Saluti Gianni
R. 14-04-22 Buongiorno, si deve acquistare necessariamente la cartografia completa: https://www.painestore.it/raymarine_navionics_carta_gold_43_xg_micro-sd_card Cordiali saluti. Luigi Bianchi
