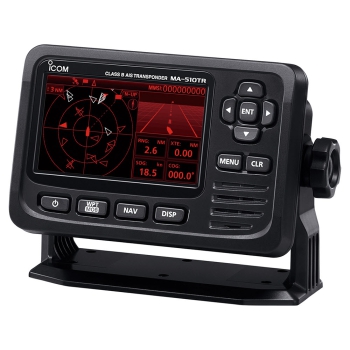

Icom MA-510TR Class B AIS Transceiver
NMEA 0183
AIS (Automatic Identification System) is a system that operates in the VHF band and allows the exchange of information between vessels and coastal centers, as well as traffic monitoring.
The MA-510TR is a Class B AIS transponder that allows you to transmit
automatically share your data with other AIS-equipped vessels and receive
information from vessels equipped with AIS transponders.
The device is intended for commercial and pleasure boats not subject to the
SOLAS regulations. It is characterized by a large 4.3" TFT color LCD display.
high brightness which allows clear reading of characters and icons
defined. Thanks to the IPS (In-Plane Switching) technology with which it was
The viewing angle is 180°. In addition, the “Night mode” function offers a
optimal and comfortable vision even in the dark.
Designed for safety and high performance, the MA-510TR can monitor both Class A and Class B AIS transmissions.
Featuring an intuitive user interface, the MA-510TR is simple and straightforward to use.
The combined use of the navigation keys and the function keys ensures quick access to all the functions provided.
Among the many features we highlight: The navigation function that guides you to a specified waypoint or AIS target.
This function is started simply by selecting a waypoint or AIS target on the display.
You can store up to 100 waypoints, each of which can contain up to 15 characters.
MOB (Man Over Board) function. By pressing the [WPT/MOB] key, the MA-510TR automatically marks a waypoint at the vessel's current position and activates the MOB navigation function to the location where the event occurred.
The MA-510TR also features a Silent Mode function that allows you to disable AIS transmission.
