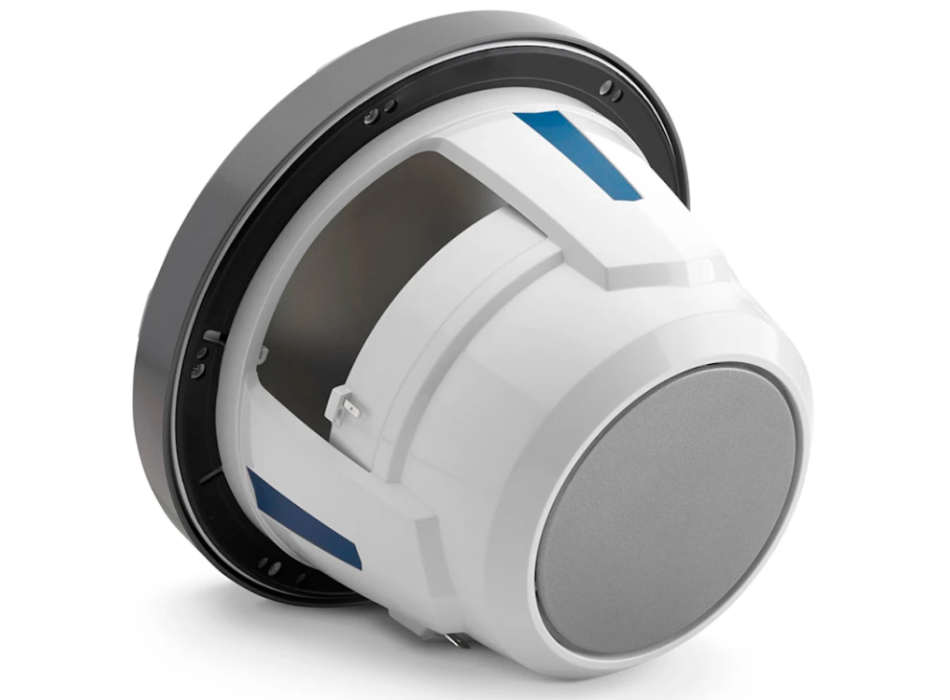

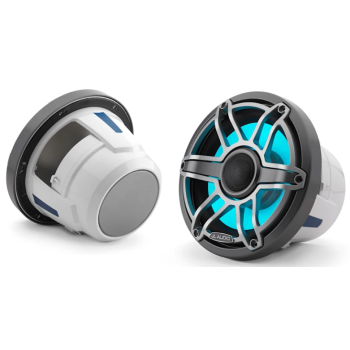

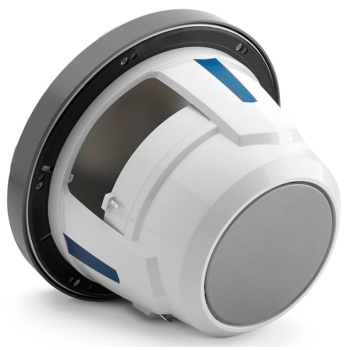

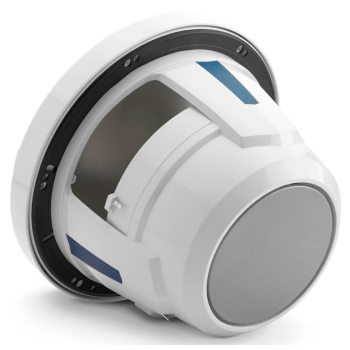

JL Audio 8.8" M6 SPORT Marine Speakers with LED

(0)
starting from € 799,00 € 949,99 -16%

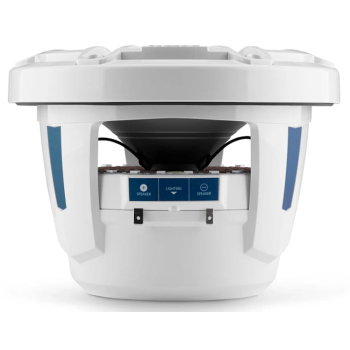

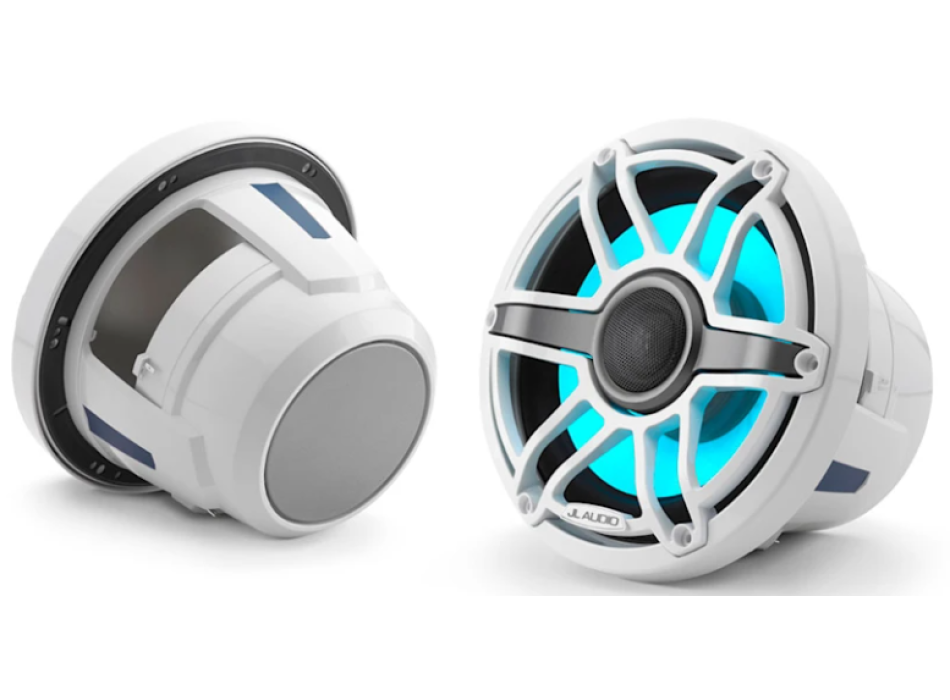

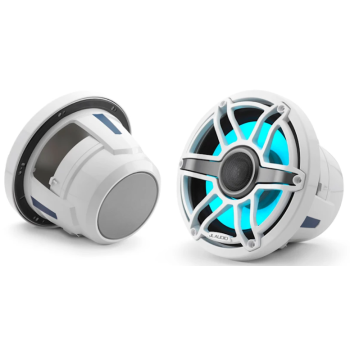

JL Audio M6 SPORT 8.8" Marine Speakers with LED

MAXIMUM PERFORMANCE

Featuring a long-throw woofer paired with a suspended tweeter, the M6 series speakers are designed to deliver the ultimate audio performance, delivering crystal-clear, high-fidelity sound.

HIGH FIDELITY AND MAXIMUM DETAIL AT ALL VOLUME LEVELS

AVAILABLE IN 3 SIZES AND WITH 7 DIFFERENT LOOKS, TO BEST SUIT YOUR STYLE

EASILY REMOVABLE GRILLE AND TRIM FOR EASY PAINTING AND CUSTOMIZATION

INTEGRATED LED LIGHTING ON CERTAIN MODELS

DESIGNED AND STUDIED FOR LIFE AT SEA

2 YEAR WARRANTY



WHAT YOU WILL LIKE

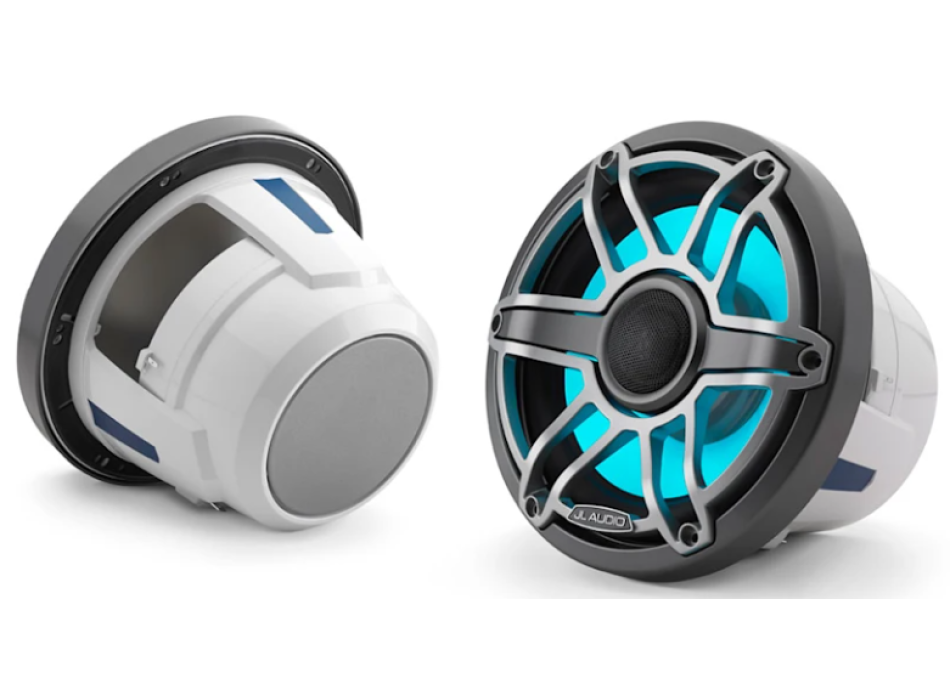

TRANSFLECTIVE RGB LED LIGHTING
On sports models, choose a patented system that guarantees uniform LED lighting without glare.

DMA-OPTIMIZED WOOFERS
Proprietary driver, suspension, and cone-shaping technology minimizes distortion, improves performance, and delivers stellar bass.

MATCHING SILK TWEETERS
The precisely tuned tweeters, specifically designed for the diameter of each woofer, deliver crystal-clear detail and excellent off-axis response, ensuring balanced coverage across the entire listening area.

ADVANCED FILTERING NETWORKS
The structure of each woofer houses a true 2-way crossover, optimized for the specific size of the speaker, along with an electronic protection circuit for the tweeter, designed to minimize the risk of failure.

MAXIMUM EFFICIENCY
The M6 marine speakers are designed to take advantage of quality amplification.

PERFECT FOR THE MARINE ENVIRONMENT
All models are specifically designed to withstand salt water, ensuring long-lasting, trouble-free operation.

General
Warranty 3 years
Dimensions 6.5"/7.7"/8.8"
Colors classic glossy white, sporty glossy white, sporty titanium, luxe black or luxe white
Physical dimensions (diameter) 6.5" (Classic/Sport): 175mm (6.90")
6.5" (Luxe): 212 mm (8.34")
7.7" (Classic/Sport): 196mm (7.70")
7.7" (Luxe): 232 mm (9.13")
8.8" (Classic/Sport): 224mm (8.80")
8.8" (Luxe): 260 mm (10.25")
Physical Dimensions (Depth) 6.5" (Classic): 100mm (3.94")
6.5" (Sport): 102 mm (4.02")
6.5" (Luxe): 102 mm (4.02")
7.7" (Classic): 110mm (4.35")
7.7" (Sport): 112 mm (4.4")
7.7" (Luxe): 112 mm (4.4")
8.8" (Classic): 162mm (6.37")
8.8" (Sport): 164 mm (6.45")
Speaker type Coaxial
Continuous power management (RMS) 6.5": 75 W
7.7": 100 W
8.8": 125 W
Sensitivity (SPL at 1 W/1 m) 6.5": 89.5 dB
7.7": 91 dB
8.8": 90.5 dB
Frequency response (+/- 3 dB) 6.5": 55 Hz-25 kHz
7.7": 45 Hz-25 kHz
8.8": 38 Hz-20 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 6.5": 25-150 W/Channel
7.7": 40-200 W/Channel
8.8": 50-250 W/Channel
LED lighting Yes - Transflective™ (select Sport models only)
LED supply voltage 10-14.4 VDC
LED load current at 14.4V DC (max) 6.5"/7.7": 324 mA
8.8": 486 mA
Cone material Injection-molded polypropylene, mica-filled
Tweeter type Silk Dome
Tweeter dimensions 6.5": 20 mm (0.8")
7.7": 25 mm (1")
8.8": 32 mm (1.25")

Connections

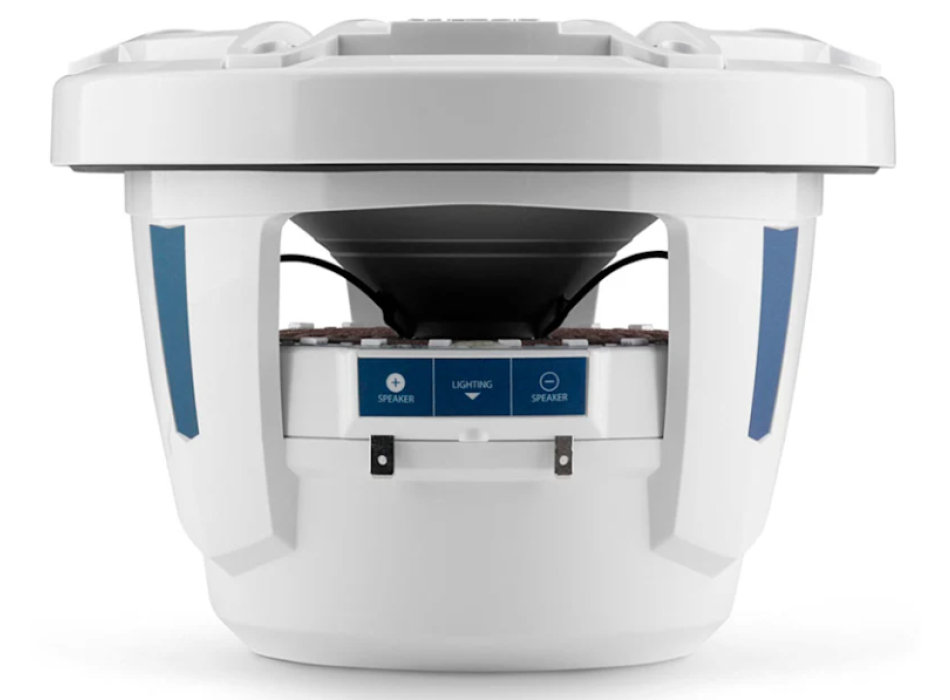

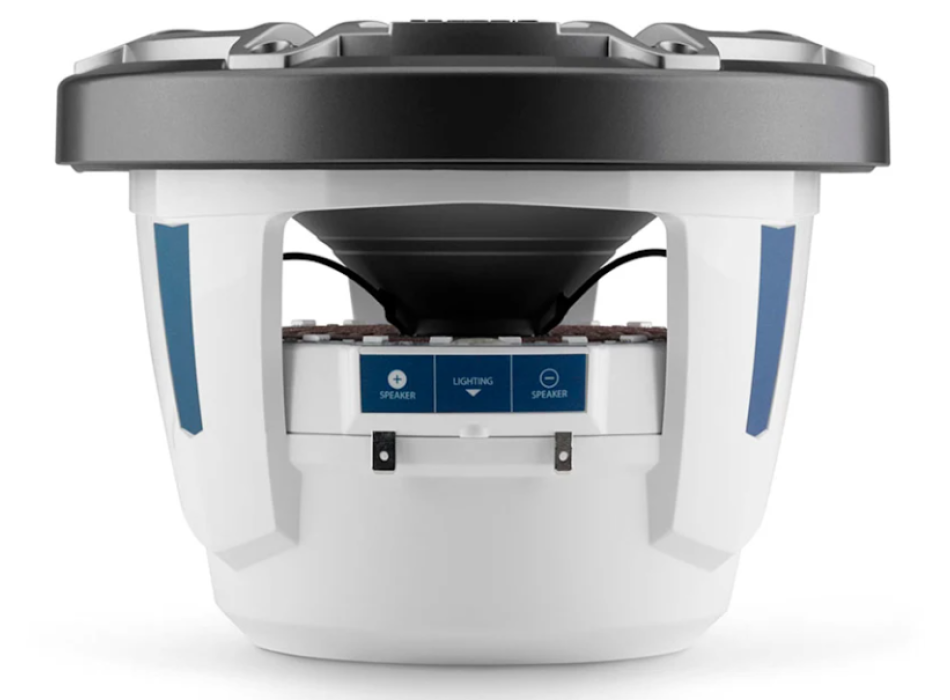

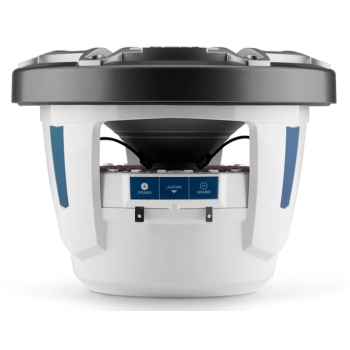

Speaker connections Fork connectors
LED connection Flying lead with 20 AWG 4-conductor wire (select Sport models only)

Mounting dimensions
Mounting depth 6.5" (Classic/Sport): 76mm (3")
6.5" (Luxe): 98 mm (3.87")
7.7" (Classic/Sport): 84mm (3.32")
7.7" (Luxe): 108 mm (4.26")
8.8" (Classic/Sport): 127mm (5")
8.8" (Luxe): 160 mm (6.30")
Front grille protrusion 6.5": 24 mm (0.94")
6.5" (Sport): 26 mm (1.02")
6.5" (Luxe): 9 mm (0.37")
7.7": 26 mm (1.03")
7.7" (Sport): 27 mm (1.08")
7.7" (Luxe): 10 mm (0.38")
7.7" (Sport): 27 mm (1.08")
7.7" (Luxe): 10 mm (0.38")
8.8": 35 mm (1.37")
8.8" (Sport): 37 mm (1.45")
8.8" (Luxe): 12 mm (0.48")
Mounting hole 6.5" (Classic/Sport): 127-133 mm (5"-5.25")
6.5" (Luxe): 172 mm (6.75")
7.7" (Classic/Sport): 159mm (6.25")
7.7" (Luxe): 191 mm (7.50")
8.8" (Classic/Sport): 187mm (7.375")
8.8" (Luxe): 219 mm (8.625")
Bolt hole circle 6.5" (Classic/Sport): 156mm (6.13")
6.5" (Luxe): 188 mm (7.39")
7.7" (Classic/Sport): 176mm (6.92")
7.7" (Luxe): 208 mm (8.18")
8.8" (Classic/Sport): 202mm (7.97")
8.8" (Luxe): 235 mm (9.27")

Additional Features
Additional Features The enclosure recommendations above are external dimensions assuming 19mm (0.75") thick material. If using 16mm (0.625") thick material, subtract 6.5mm (0.25") from each measurement. Do not use material thinner than 16mm (0.625"), as this may compromise enclosure rigidity. All enclosure volumes above are net internal volumes. To find the final gross internal volume, add the driver, light, and binding post offset. All enclosure dimensions above already account for this. When mounting multiple units in a single shared enclosure, you will need to recalculate the enclosure and port dimensions. For assistance, contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend use in a bi-amped system using high-quality satellites and a premium amplifier. However, we do not recommend using this device with a passive crossover (voice coil), as this type of device may negatively affect performance.
