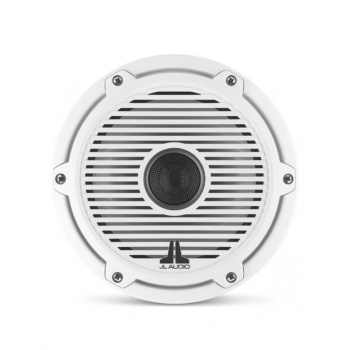

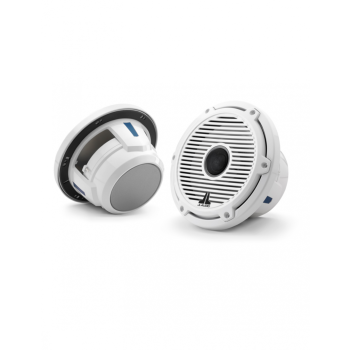

JL AUDIO Speaker M3-770X-C-Gw

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 374,00
JL Audio M3-770X-C-Gw 6.5 inch (60 W, 4 Ω)

7.7-inch (196mm) Marine Coaxial Speakers, Classic Gloss White Grilles

M3 7.7-inch Marine Coaxial Speakers (70W, 4Ω) - Classic Gloss White Grille

Purpose-built and engineered for true marine service, M3 coaxial systems deliver excellent performance at a more affordable price than our top-performing M6 models.
The M3-770X's oversized 7.7-inch design translates into greater efficiency (more power for a given amount of wattage). This gives them the ability to play louder and cleaner at higher volumes than smaller speakers.
The woofer design is optimized to operate with a large volume of air behind it (at least 2 cubic feet / 57 L). Running this coaxial system in less space will compromise its low-frequency performance.
A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles high-frequency duties. Silk was chosen for its light weight, excellent damping properties, and smooth response characteristics.
While the M3-770X coaxial systems can be operated with as little as 20W per channel, for best audio performance we recommend amplifiers capable of delivering between 75 and 100W of continuous power per channel.
This model is produced at the JL Audio facility in Miramar, Florida, using global materials and components.
Sold as a pair.

For any other needs regarding JL Audio material, please consult the catalogue attached here.


Request information by sending an email to [email protected] or call our customer service at 0541 1648658

Speaker Features:
Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 20 - 120 W / Ch.
System Efficiency 89.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 55 Hz - 25 KHz ± 3 dB


Dimensions:
Frame Outer Diameter (A) 6.90 in / 175 mm
Bolt Hole Circle Diameter (B) 6.125 in / 156 mm
Frontal Grille Protrusion* (C) 0.97 in / 25 mm
Mounting Hole Diameter (D) 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (E) 2.78 in / 71 m
*Frontal grille protrusion measured from mounting surface
D Buongiorno, a me ne servirebbe una sola in quanto si è bruciata è possibile averla? grazie
R 18-06-25 Buon pomeriggio, purtroppo vengono vendute solo a coppia, mi spiace. Nell'eventualità posso proporle al prezzo di 350,00 euro. Cordiali saluti. Luigi Bianchi
