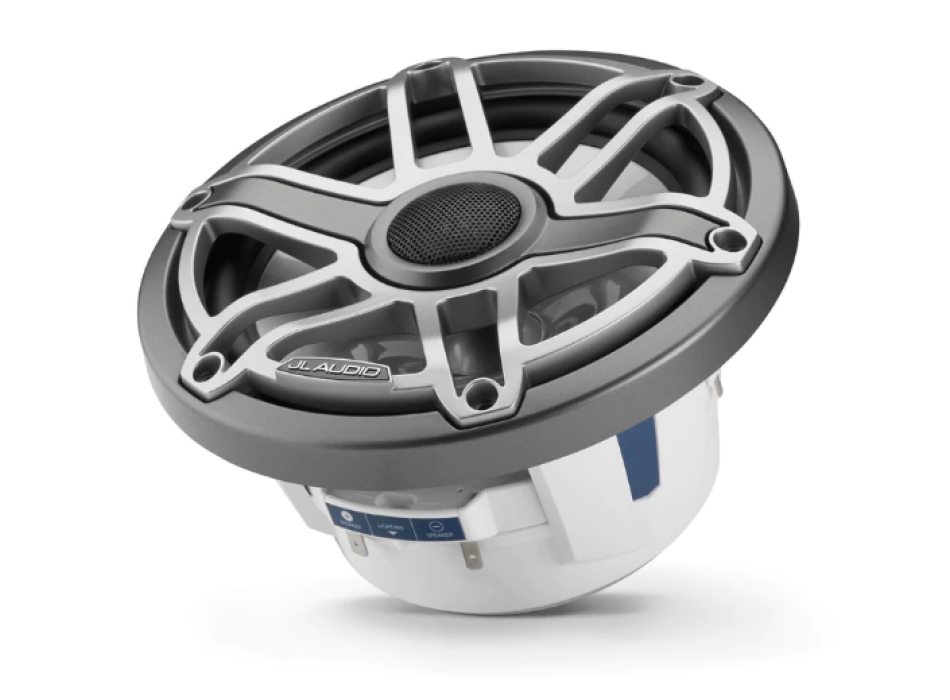

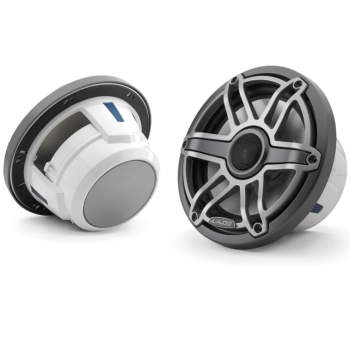

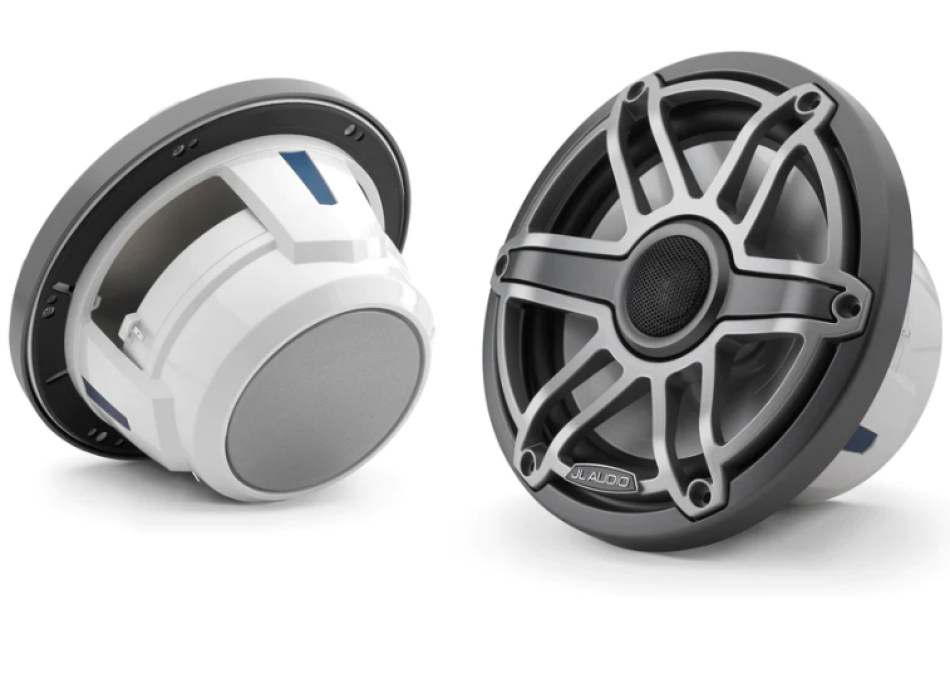

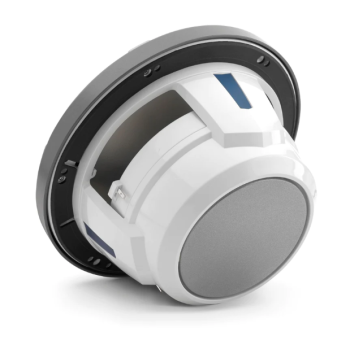

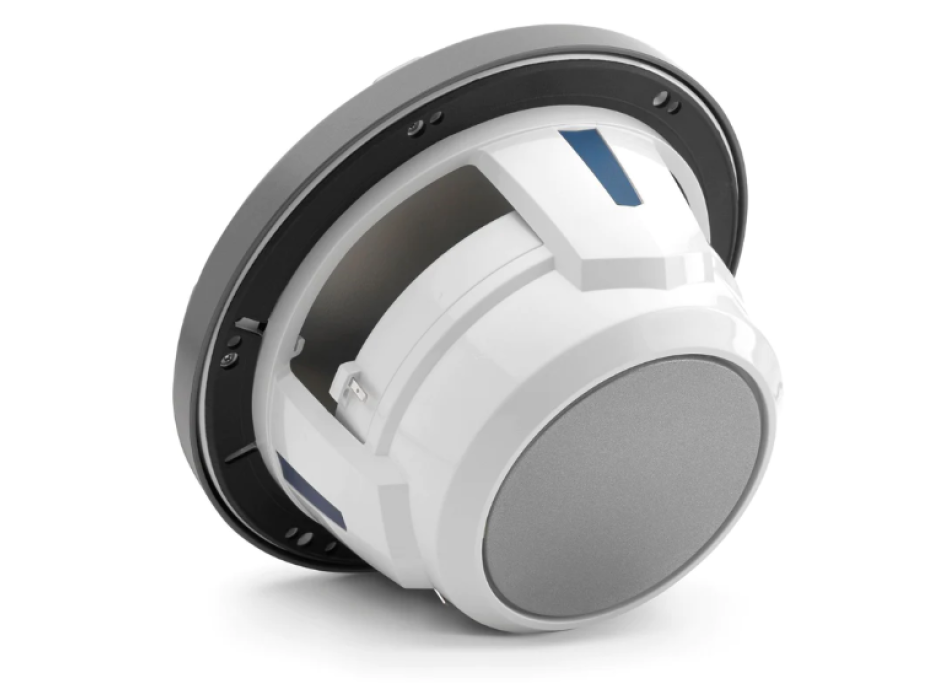

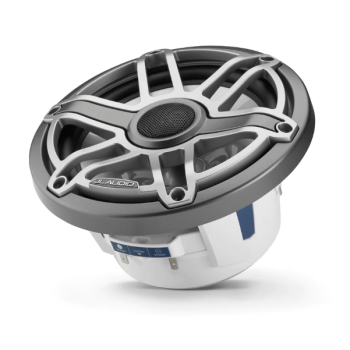

JL AUDIO Speaker M6-770X-S-GMTi

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 699,00
JL Audio M6-770X-S-GmTi inch (100 W, 4 Ω)
7.7-inch (196mm) marine coaxial speakers, metallic gray trim ring, titanium sport grille.

M6 7.7" Marine Coaxial Speakers for Infinite Baffle Use (100W, 4Ω) - Gray Metallic Trim Ring, Titanium Sport Grille

Purpose-built and engineered for true marine service, M6 coaxial systems deliver maximum audio performance in any outdoor navigation environment.
The M6-770X coaxial's oversized 7.7-inch design translates to greater efficiency (more power for a given amount of power). Combine this advantage with long excursion and excellent power handling, and you have a speaker system truly capable of playing loud and clear on a high-speed powerboat.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles high-frequency duties. You'll appreciate the M6 dome tweeter's clean, articulate high-frequency response, especially at higher volume levels.
A true 2-way multi-order passive crossover is hidden within the woofer chassis, protected from vibration and corrosion. An automatic solid-state tweeter protection circuit is also included to minimize the possibility of tweeter failure.
While the M6-770X coaxial systems can be operated with as little as 40W per channel, for best audio performance we recommend amplifiers capable of delivering between 40W and 200W of continuous power per channel.
All M6 loudspeakers are manufactured at JL Audio’s Miramar, Florida facility using global components and materials.
Sold as a pair.



For any other needs regarding JL Audio material, please consult the catalogue attached here.


Request information by sending an email to [email protected] or call our customer service at 0541 1648658

Speaker Features:
Continuous Power Handling (RMS) 100 W
Recommended Amplifier Power (RMS) 40 - 200 W / Ch.
System Efficiency 91.0dB @ 1W / 1m
System Nominal Impedance 4 Ω
System Frequency Response 45 Hz - 25 KHz ± 3 dB


Dimensions:
Frame Outer Diameter (A) 7.70 in / 196 mm
Bolt Hole Circle Diameter (B) 6.92 in / 176 mm
Frontal Grille Protrusion* (C) 1.08 in / 27 mm
Mounting Hole Diameter (D) 6.25 in / 159 mm
Mounting Depth (E) 3.32 in / 84 m
*Frontal grille protrusion measured from mounting surface
D Desideravo sapere se fossero quelle con i led.
R Buon pomeriggio, le casse in oggetto non sono al Led, possiamo offrire la stessa versione al LED ovvero la M6-770X-S-GmTi-i M6, Speaker coassiali da 7,7 pollici con illuminazione LED transflettente, trim ring grigio metallico, griglia sportiva titanio, al prezzo di 739,00 euro. Cordiali saluti. Luigi Bianchi
D Salve sarei interessato alle jl m6 da 770. Sono il modello con Led rgb integrato?
R 16-01-24 Buon pomeriggio, certo, confermo. Cordiali saluti. Luigi Bianchi
