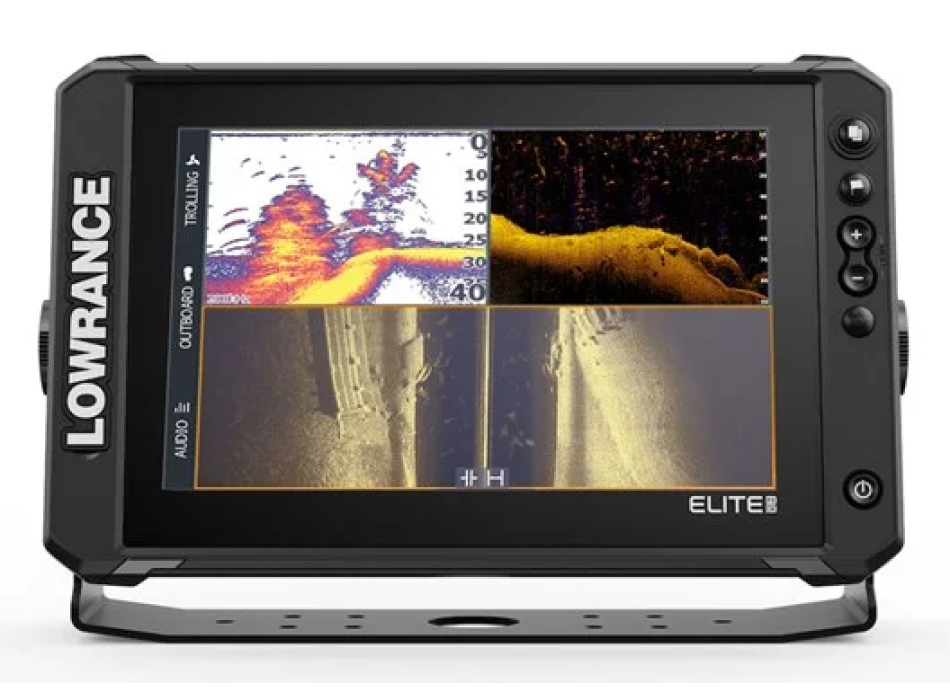

Lowrance Elite 10FS eco/GPS TouchScreen

Elite FS 10
The new Fishing System (FS) Elite gives you access to the full range of Lowrance fishfinding tools, including ActiveTarget live sonar, Active Imaging and compatibility with a wide range of mapping options, to make the most of your time on the water.

The Elite Fishing System (FS) combines the power of proven Lowrance fish-finding tools with a more accessible display that's easier to use and install. From ActiveTarget live sonar and ultra-high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging, to compatibility with a wide range of mapping options, Elite FS gives you all the tools you need to find and catch more fish.

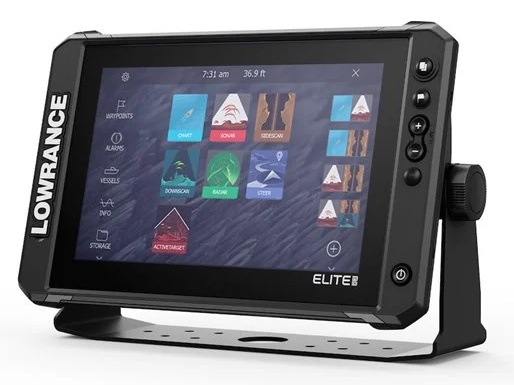

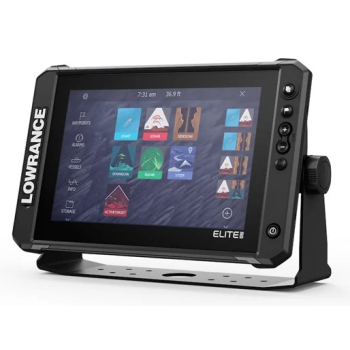

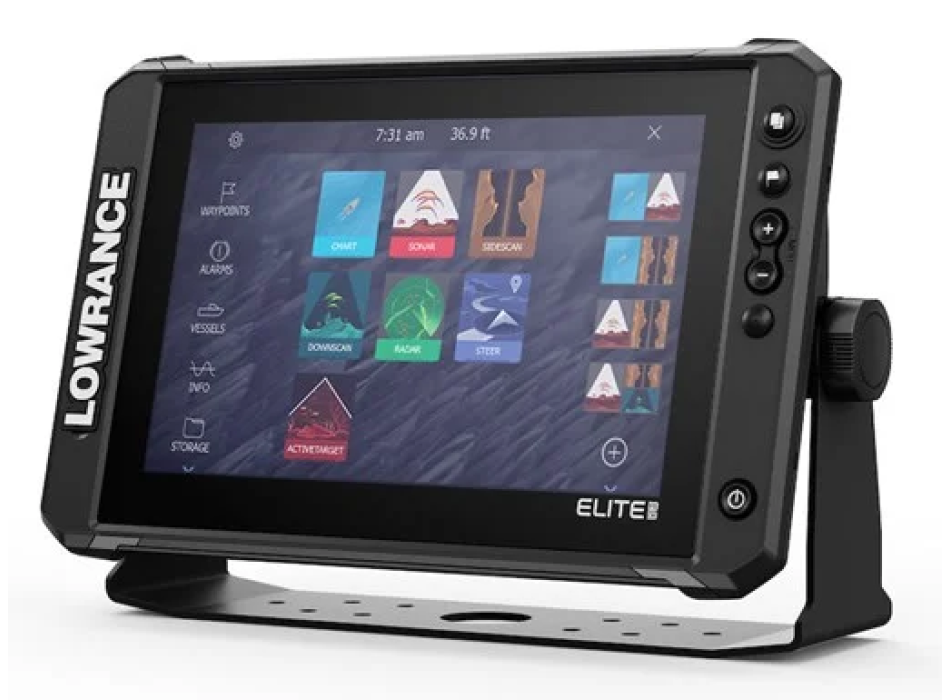

High-resolution multi-touch screen
The best display in our Elite series, a multi-touch flat glass display with anti-reflective coating, offers excellent visibility in all lighting conditions. A single user-programmable button allows you to quickly select vital and frequently used interactions.
Fish big with proven Lowrance sonar

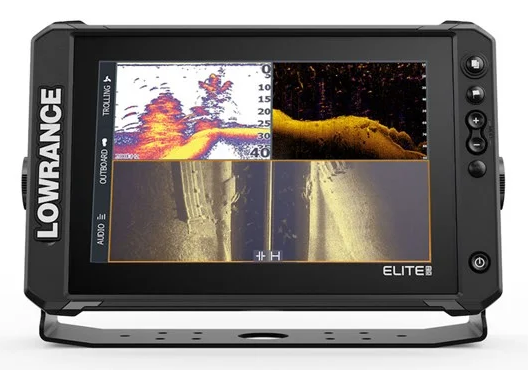

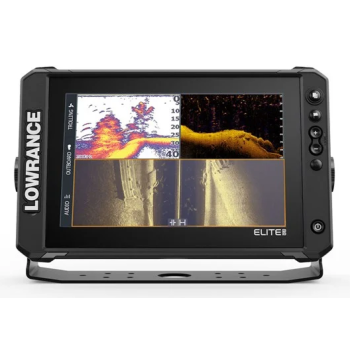

With Active Imaging 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal, anglers can see structure and cover in a new level of detail, at a range never before achieved with other structure imaging technologies. Get the best of CHIRP sonar and DownScan Imaging on a single screen with exclusive FishReveal intelligent target display, which lets you clearly distinguish fish from structure and cover on highly detailed DownScan images.

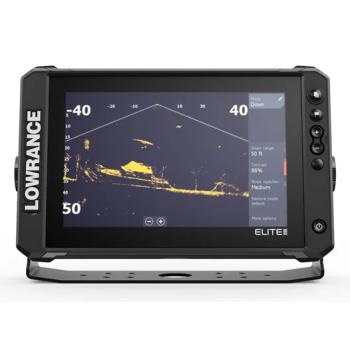

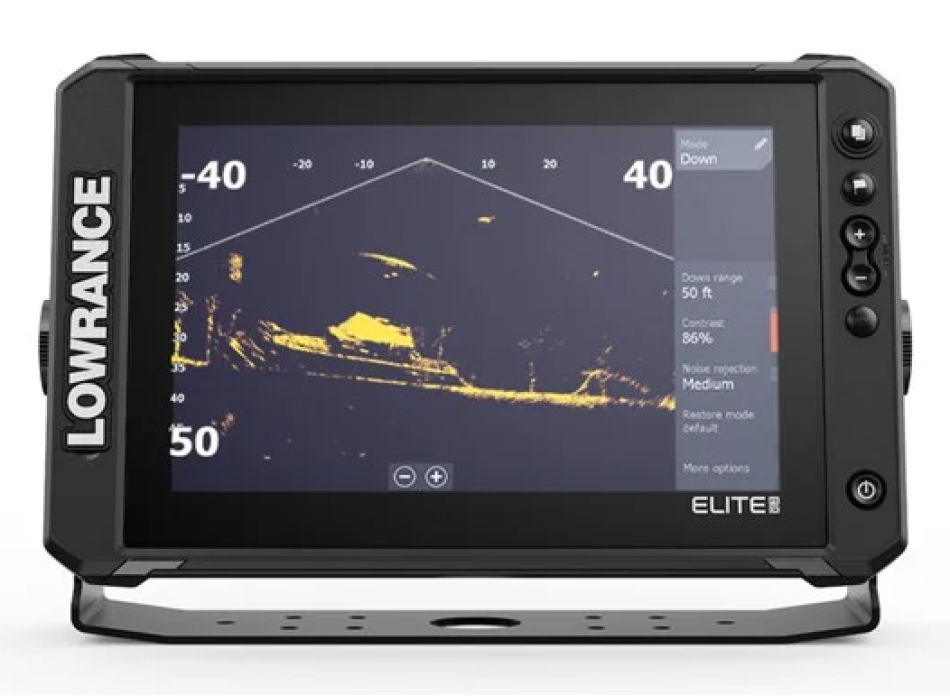

Locate fish in real time with new ActiveTarget Live sonar.
Fishing is more targeted when you know exactly what fish are doing—in real time—with ActiveTarget Live sonar. Watch fish movements in high resolution, pinpointing them as they swim in and around structure. See their reaction to your bait in real time, and you'll know if your current technique is right or if it's time to adjust.

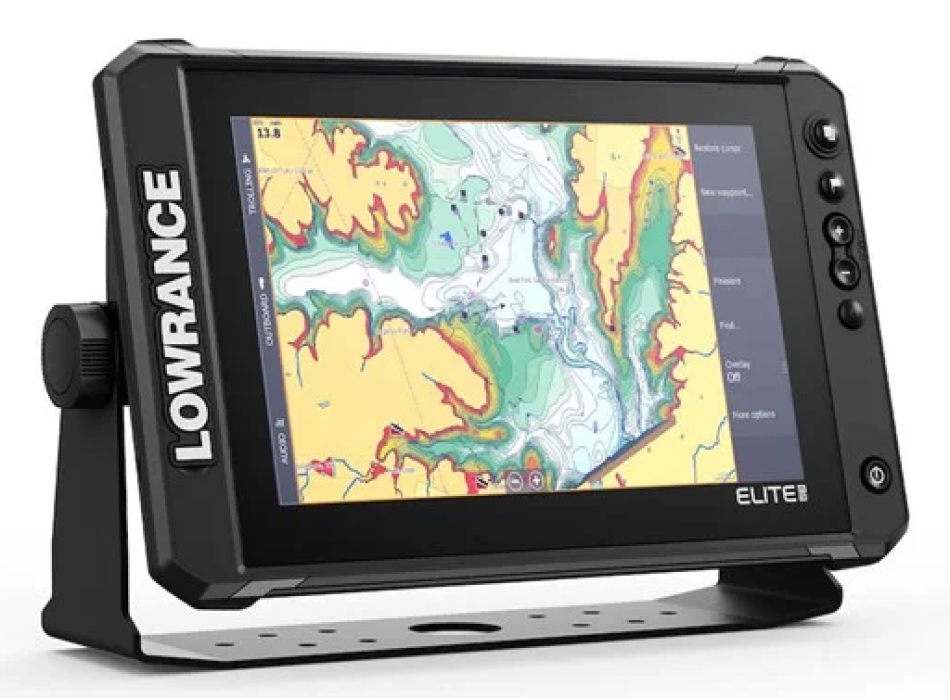

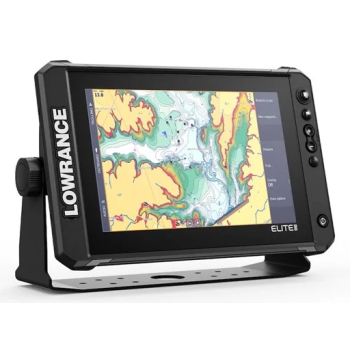

Multiple map options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of cartography options, including C-MAP, Navionics and more. Upgrade your included worldwide basemap with a wide range of C-MAP® charts, increasing your time to catch fish and reducing your time to find them. Plus, you can activate Genesis® Live for real-time mapping. Also compatible with Navionics® and other chart providers.

C-MAP DISCOVER®
C-MAP® DISCOVER™ offers you a wide range of coverage and all the essential features to help you get the most out of your time on the water. DISCOVER™ gives you the best of C-MAP high-resolution bathymetry with integrated Genesis® data, plus comprehensive vector charts, custom depth shading, tides and currents, and free Easy Routing™ subscription.*

Genesis® Live
With the ability to create 6-inch contour maps of your regular fishing area or unfamiliar waters in real time, Genesis Live gives you all the detail you need to discover and reach the best fishing spots faster.

C-MAP® REVEAL® Charts
Equipped with a shaded relief system, they offer features such as bottom imagery detection, aerial photography, satellite imagery and the introduction of dynamic raster charts, which add to the key C-MAP features already available in DISCOVER™, such as full vector charts, custom depth shading, tides and currents and free Easy Routing™ subscription.*

Main functions
ActiveTarget Live sonar ready
3-in-1 Active Imaging Ready
FishReveal
Includes a worldwide basemap, plus a wide range of cartography options, including C-MAP, Navionics and more
C-MAP Easy Routing, Navionics Autorouting features
C-MAP Genesis Live on-screen cartography
High-resolution multi-touch touchscreen
Built-in wireless, NMEA 2000 and Ethernet connectivity
Full touchscreen control of Power-Pole anchors and Ghost electric motor

Screen
Screen size 10" IPS
Screen resolution 1280x800
Screen brightness >1200 nits
Touch screen
Multitouch
Keyboard
Pages, waypoint, zoom, power, (1) user programmable quick access keys
Viewing angles 85° top/bottom, 85° left/right

Sonar
Sonar compatibility
Integrated:
CHIRP, Broadband, Active Imaging™ HD DownScan*, Active Imaging™ HD SideScan*, Active Imaging™ DownScan, Active Imaging™ SideScan
*requires S3100 module
Compatible with:
ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)

Sonar frequencies
CHIRP
High CHIRP
Medium CHIRP
Low CHIRP (depending on transducer)
Broadband 50 kHz - 83 kHz - 200 kHz (depending on Broadband transducer)
Active Imaging 800 kHz - 455 kHz
Active Imaging HD (Via additional S3100 module)
DownScan: 700 kHz CHIRP - 1200 kHz CHIRP
SideScan: 455kHz CHIRP - 1075kHz CHIRP

Multifunction screen
AIS chart overlay.
Target vessel details.
Autopilot
Outboard Pilot
Ghost® Trolling Motor
Recon Trolling motor (software dependent)
MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)

Cartography included
World basemap

Supported mapping
C-MAP® REVEAL™
C-MAP® DISCOVER™
C-MAP® Genesis
Navionics (Gold, NAV+ Platinum+)
Lowrance Regional Mapping Partners

GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

Multimedia
SonicHub
SonicHub2
FusionLink products
Any NMEA 2000 compliant marine audio products
Compass safety 2.1 ft (0.65 m)

Waypoints, routes, tracks
3000 Waypoints, 100 Routes 100 Trails with up to 10,000 points per trail

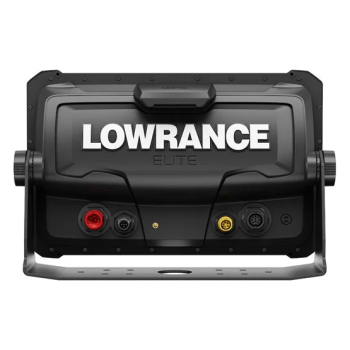

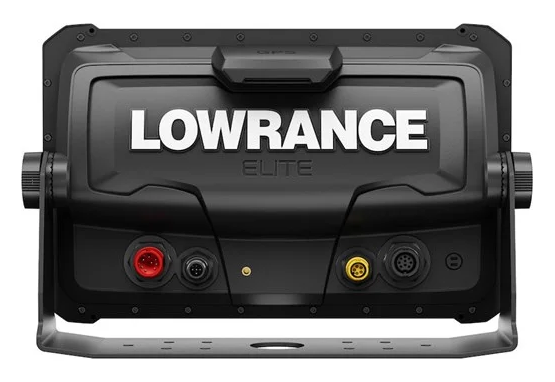

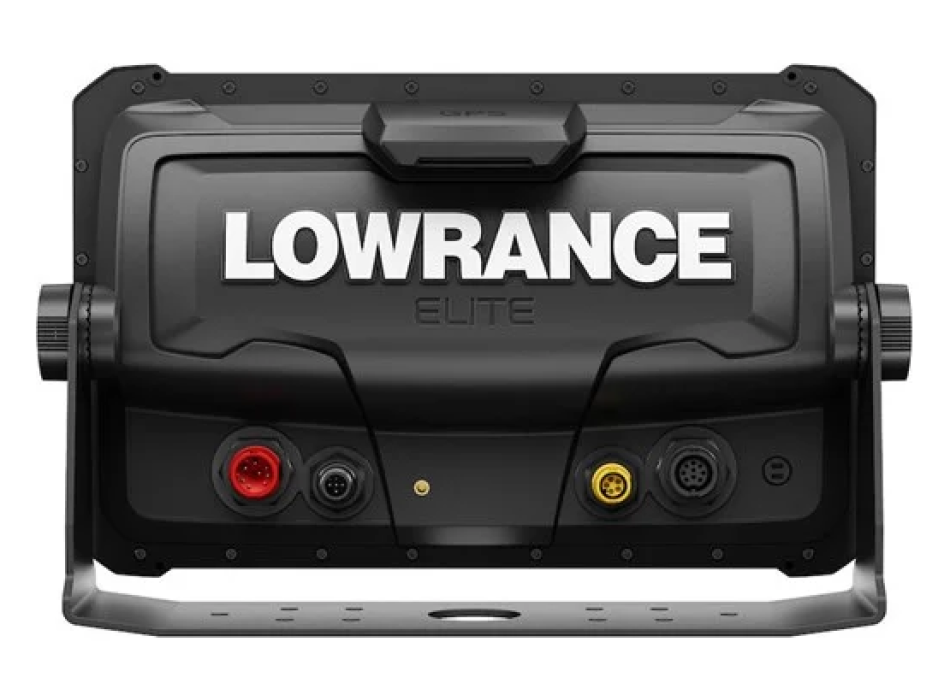

Interface and connectivity
NMEA 2000® 1x Micro-C
1 x 100Mbit Ethernet ports
Card reader 1 micro SD card up to 32GB
Wi-Fi® Internal 802.11b/g/n
Bluetooth® Bluetooth® 4.0 with support for Bluetooth® classic

Electrical
Supply voltage 12 V DC (10.8 - 17 V DC)
Maximum power consumption 2.5A @ 13.8VDC with backlight on full
Recommended fuse rating 3A

Physicist
Weight 1.66 kg (3.66 lbs)
Mounting Type Gimbal Bracket or Dash Flush Mount

Environment
Operating temperature range -15°C to 55°C (5°F to 131°F)
Storage temperature range -20°C to 60°C (4°F to 140°F)
IPX7 waterproof level with card door closed
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Vibration shock 100,000 cycles of 20 G
