Lowrance ActiveImaging™ HD 3-in-1 Transducer (High/Wide)

(0)
€ 589,00 € 717,36 -18%
Lowrance Active Imaging HD 3-IN-1 Fishrev H/W

Our clearest sonar ever, Active Imaging HD, delivers ultra-high-definition images featuring Lowrance CHIRP, SideScan and DownScan Imaging technologies.
Experience a new level of clarity and improved target separation with extremely detailed images of fish and their host structure, such as rock piles, logs, weed beds, ditches, drop-offs and more.
FishReveal Full Views

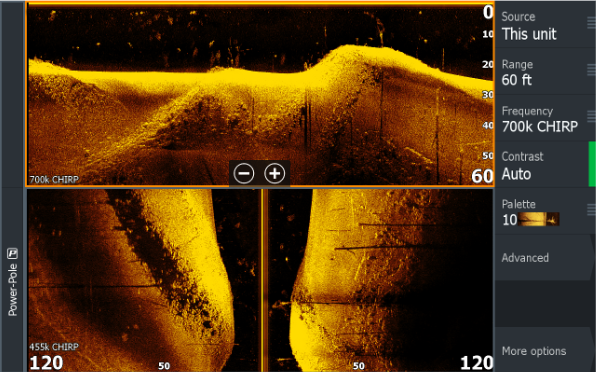

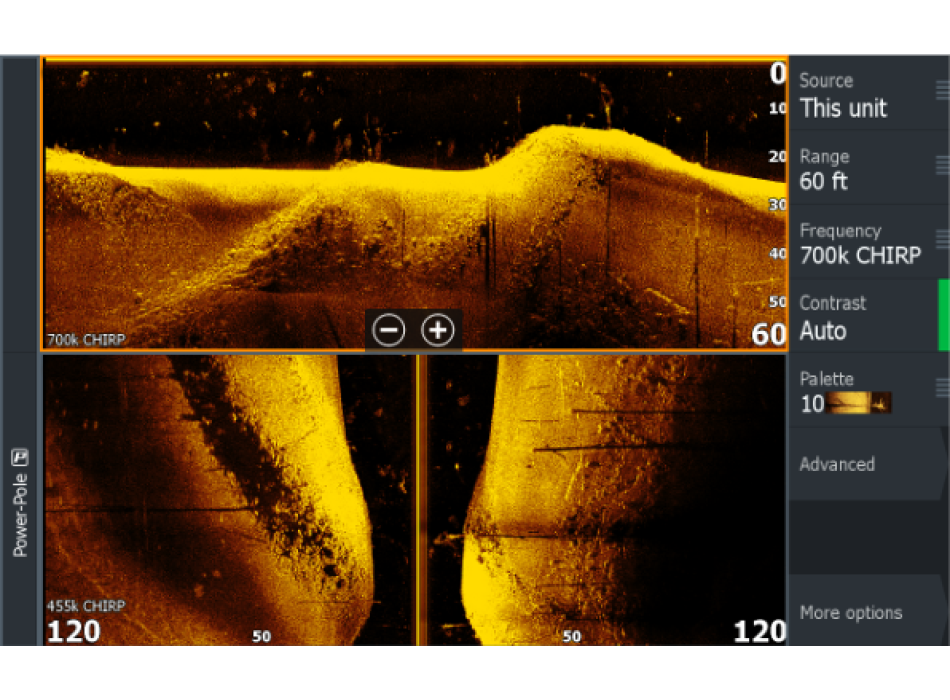

Get the best of CHIRP sonar and sonar imaging on a single display with FishReveal. Initially introduced with DownScan Imaging, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets, along with clear images of structure on both sides of your boat.
*FishReveal SideScan view requires an optional S3100 sonar module.
Designed for clarity

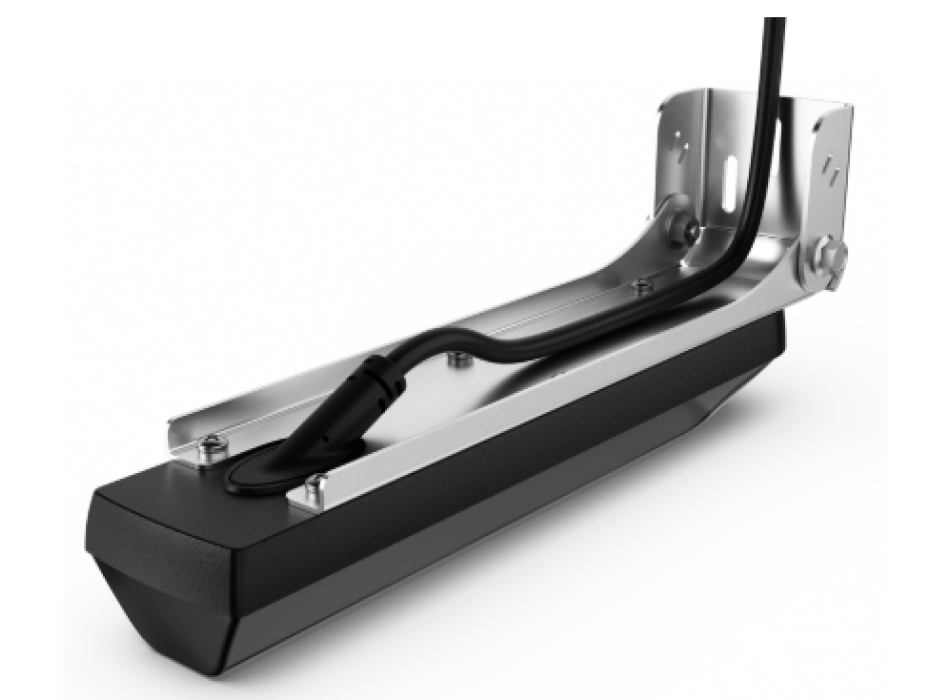

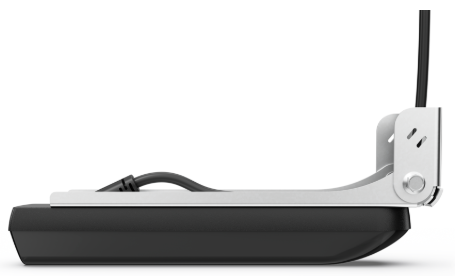

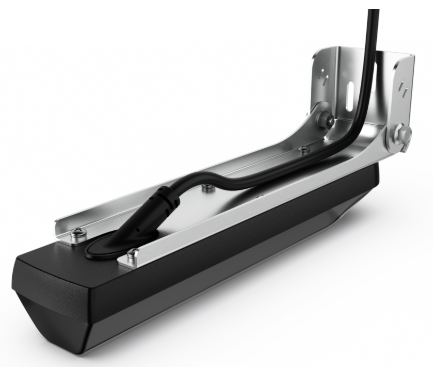

The Active Imaging™ HD transducer not only offers three key sonar technologies – Lowrance CHIRP, SideScan and DownScan Imaging – in one convenient device, but also features a new design that improves signal clarity.
  • High-definition SideScan and DownScan imaging technologies (up to 1.2MHz) provide razor-sharp images of fish and structure.
  • CHIRP High/Wide technology delivers exceptional clarity and target separation across a wider coverage area.
  • FishReveal with new SideScan* and DownScan views
  • Supports high/wide band CHIRP (200 kHz) + 700/1200 kHz and 455/1075 kHz frequencies
  • Intelligent transducer design improves signal clarity.
  • Compatible with Lowrance HDS PRO and Simrad NSS 4 or with an S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSS evo3S, NSS evo3 and series displays (Simrad website only)
Electric
Humidity
60°C, 95% relative humidity (RH) for 18 hours
Environment
Operating temperature range
5°F to 131°F (-15°C to 55°C)
Shocks and vibrations
100,000 cycles of 20 G
Storage temperature range
-22°F to 158°F (-30°C to 70°C)
Waterproof rating
IP67
Physicist
Dimensions (W x H x D)
#NAME?
Mounting type
Transducer: Bracket Mount
Weight
Transducer: 2.67 lbs (1.21 kg)
Radar
Frequencies
CHIRP: High CHIRP Medium CHIRP Wideband: 83 kHz 200 kHz HD Active Imaging: SideScan: Low CHIRP: 455 kHz (445 kHz - 495 kHz) High CHIRP: 1075 kHz (1065 kHz - 1115 kHz) DownScan: Low CHIRP: 700 kHz (690 kHz - 740 kHz) High CHIRP: 1200kHz (1190kHz - 1240kHz)
Maximum depth
2D Sonar: Broadband/CHIRP: 200 kHz/High CHIRP - 500' (152.4 m) 83 kHz/Medium CHIRP - 1000' (304.8 m) SideScan: High Frequency: 150' (45.72 m) Low Frequency: 300' (91.44 m) DownScan: High Frequency: 150' (45.72 m) Low Frequency: 300' (91.44 m)
Other
Warranty period
1 year + 4 additional years of upgrade options, for a total of 5 years.
Interface
Direct connection to: HDS Pro S3100 Ethernet to: * HDS Live * Elite FS * Requires S3100 module
