NMEA 2000 female connector

(0)
  • Code: RS877-1101
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 19,00

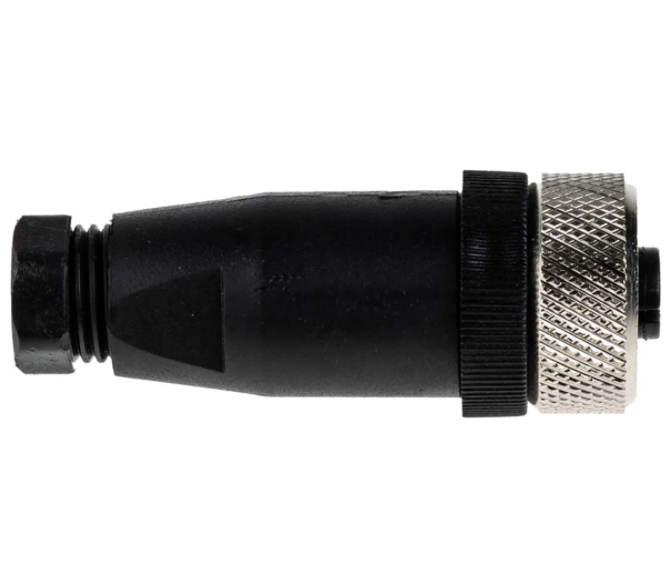

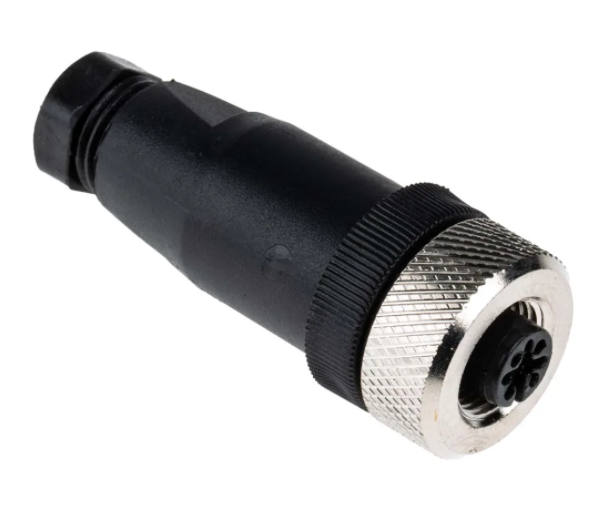

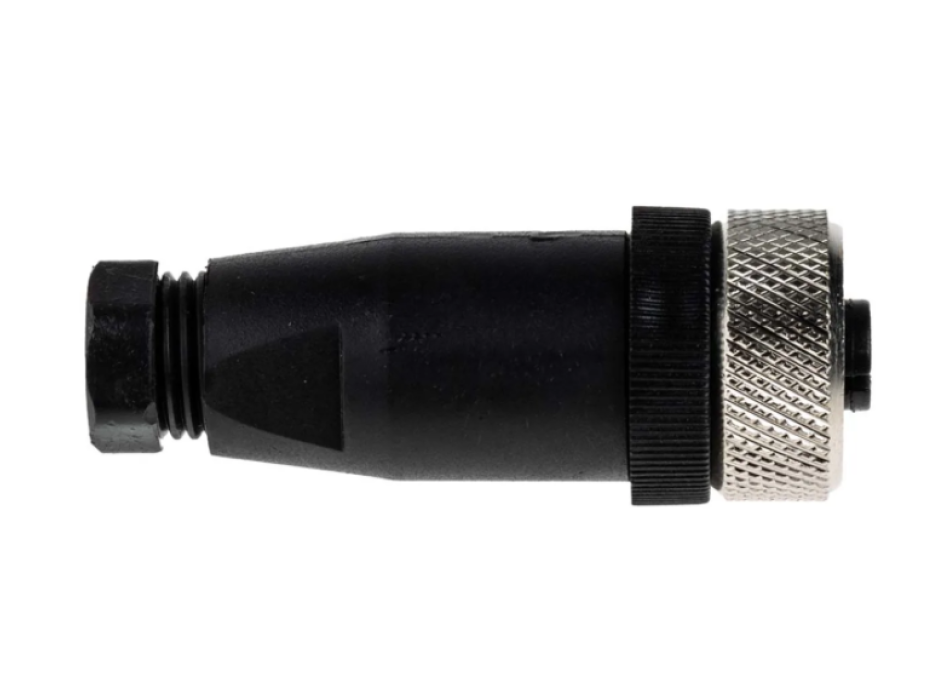

NMEA 2000 Female Connector

Designed for cable mounting with a convenient strain relief and featuring an O-ring connector, these cable assemblies offer a robust and reliable M12 connection where uninterrupted data transmission is essential.


Features and Benefits:
• Insulation resistance> = 100 MΩ
• Nickel-plated brass coupling nut
• PG7 cable gland
• Neoprene O-ring
Specifications

Value attribute
Number of contacts 5
Mounting type Cable mount
Connector size M12
Plug / Socket Female connector
Screw termination
IP protection IP67
Contact type Female
Rated current 4.0A
Nominal voltage 60 V
Straight orientation
Housing material Nylon
Gold contact plating
Maximum operating temperature + 75 ° C
Contact material Copper
Minimum operating temperature -25 ° C
D Va bene per connettere ad un Ray marine C70 ? Dovrei connettere il VHF con dsc. ( Eventualmente anche un Ais)
R 05-02-23 Buongiorno, purtroppo non compatibile, il C70 aveva solo porta di comunicazione in NMEA 0183, non NMEA 2000. Non abbiamo più disponibilità dei cavi NMEA per C70. Cordiali saluti. Luigi Bianchi
