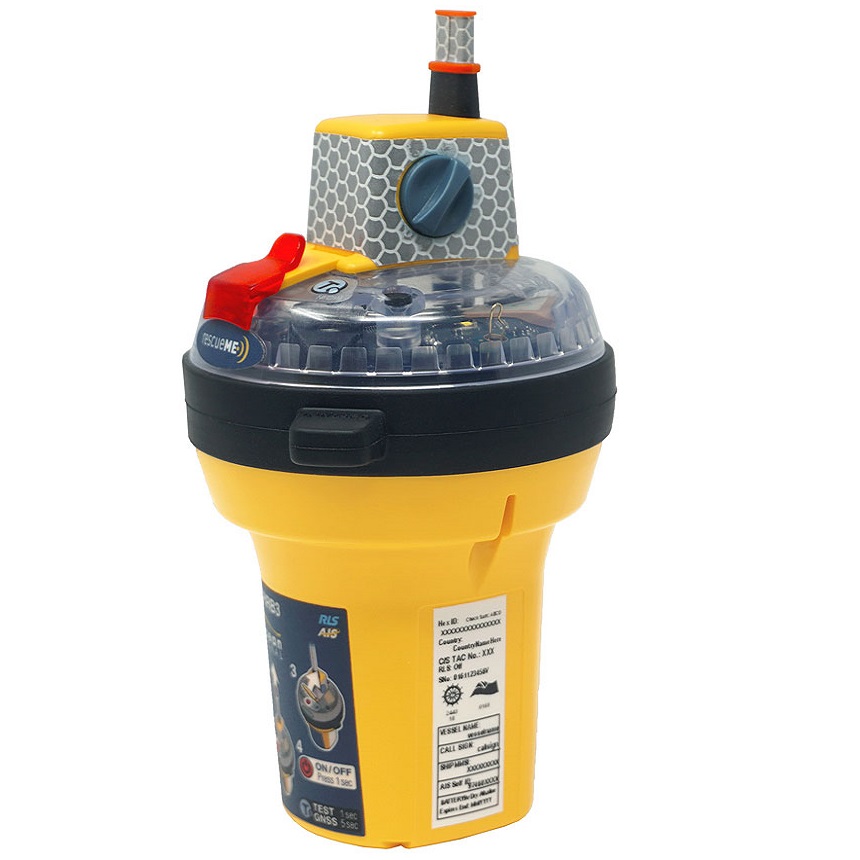

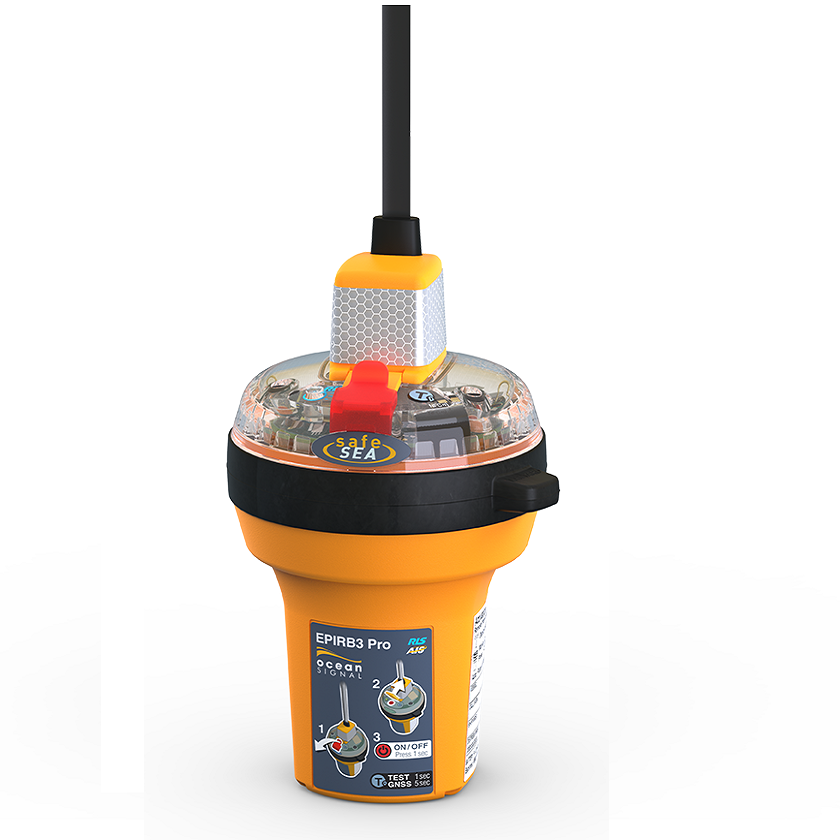

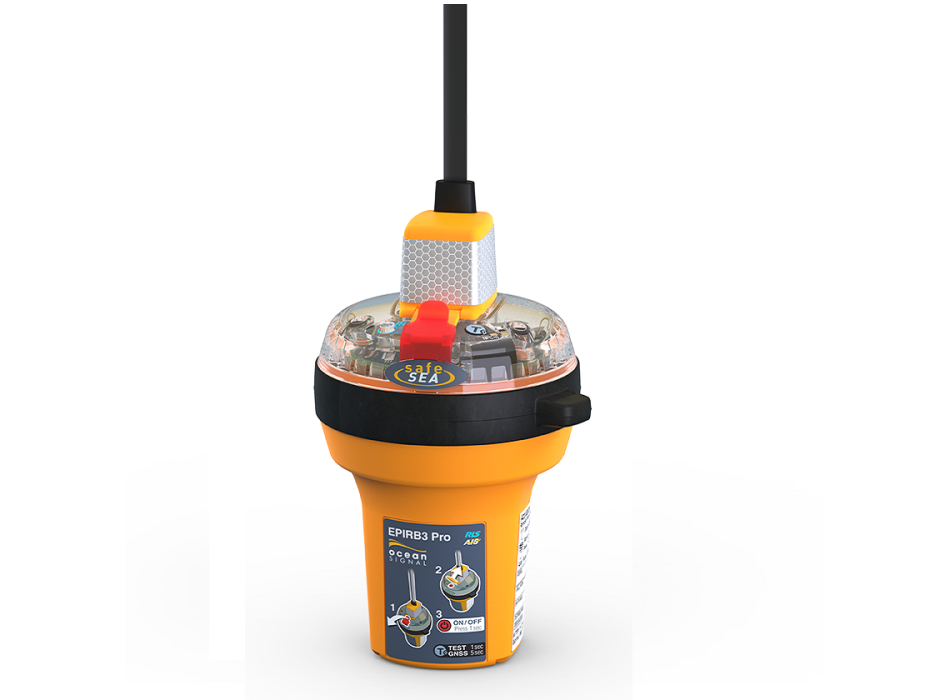

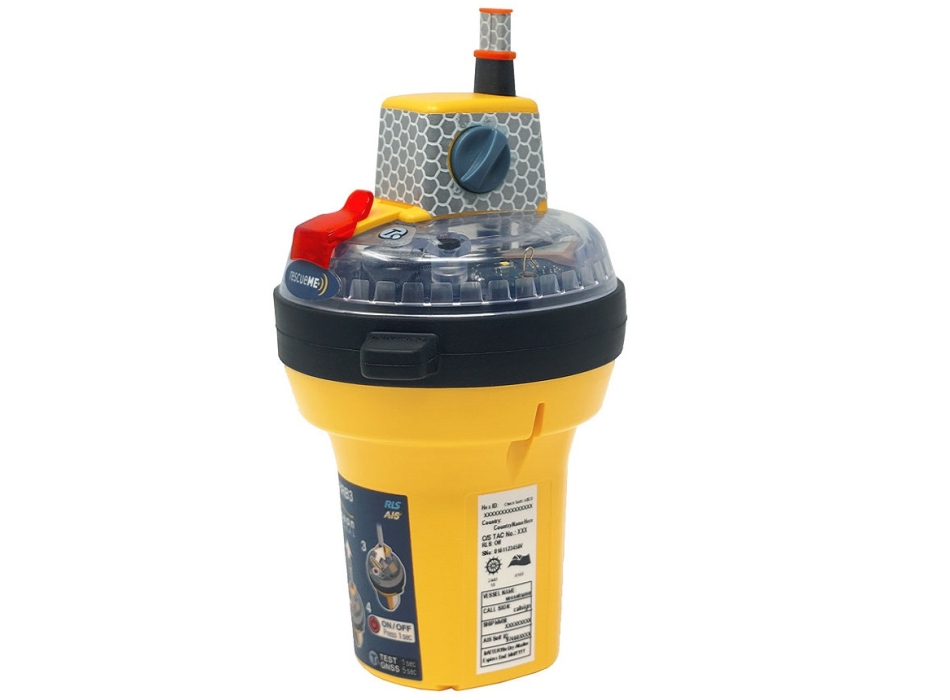

Ocean Signal Epirb3 with GPS and AIS CAT2 Manual

Ocean Signal increases security, thanks to the new Epirb3
which combines the characteristics of an Epirb with AIS functionality.
  • Code: OS-702S-03932
Ocean Signal
(0)
€ 889,00 € 1.012,60 -12%
add to favorites
Ocean Signal Epirb3 with AIS
Manual release, GPS included and AIS function
The new Ocean Signal EPIRB3 is a full-featured 406 MHz global lifebuoy that comes with a manual release bracket and packs a host of features into a modern, compact design that includes AIS EPIRB technology. AIS provides local rescuers with accurate and reliable information about the current location of the lighthouse, thus speeding up rescue operations. Additionally, the Return Link Service (RLS) comforts those who activate the beacon by confirming that their distress message has been received.


The in The inclusion of Near Field Communication (NFC) functionality allows the use of a smartphone app to monitor the EPIRB's battery and other functions and ensure they are functioning properly. With its slim design and advanced features, the EPIRB3 is ideal for a variety of sailors, whether they're cruising the Mediterranean, popping out through the straights for a ride, fishing or working.

Main features:
30% (typical) smaller
AIS distress alert
Return Link Service (RLS)
Mobile connectivity via Near Field Communication (NFC)
Free application (Apple and Android)
Battery life of 10 years
48+ hours of operational life
5 year guarantee
Fast and accurate positioning with 72-channel GPS
Retractable antenna
Quick release bracket
Secure lanyard
  •
SPECIFICATIONS

Transmit Power (EIRP) 12W
Frequency 406.031MHz ±1KHz
Modulation Phase ±1.1 Radians (16K0G1D)
Encoding Biphase L
Rates 400 bps
AIS Transmitter
Transmit Power (EIRP) 1Watt±3dB
Frequency 161.975/162.025MHz ±500Hz
Baud rate 9600baud
Synchronization UTC
Messages Message 1 (Position), Message 14 (Status)
Repetition interval 8 messages/minute - Message 14 sent twice every 4 minutes
121.5MHz Transmitter Transmit Power (PERP) 50mW±3dB
Frequency 121.5 MHz
Modulation Duty Cycle >35%
Modulation Factor 0.85 to 1.00
Frequency Stability ±50ppm
Duty Cycle >98%
Visible Strobe and Night Vision Lights
Light Type High Intensity LED & Infrared (IR)
Light Color White and IR
Average Intensity Visible >1 candle
Average Intensity Night Vision Light 15mW/sr
Flash Rate 24 per minute (nom.)
Battery Type Lithium Iron Disulphide (LiFeS2)
Operating Time >48Hours @ -20°C
Battery Replacement Period 10 years
GNSS Receiver Satellite Channels 72 acquisition
Sensitivity -167dBm
Cold Start / Re-acquisition -148dBm / -160dBm
GNSS Antenna Microstrip Patch
