Raymarine A80614 Auxiliary Alarm STNG

  • Code: A80614
Raymarine
(0)
€ 180,00 € 207,40 -13%
add to favorites

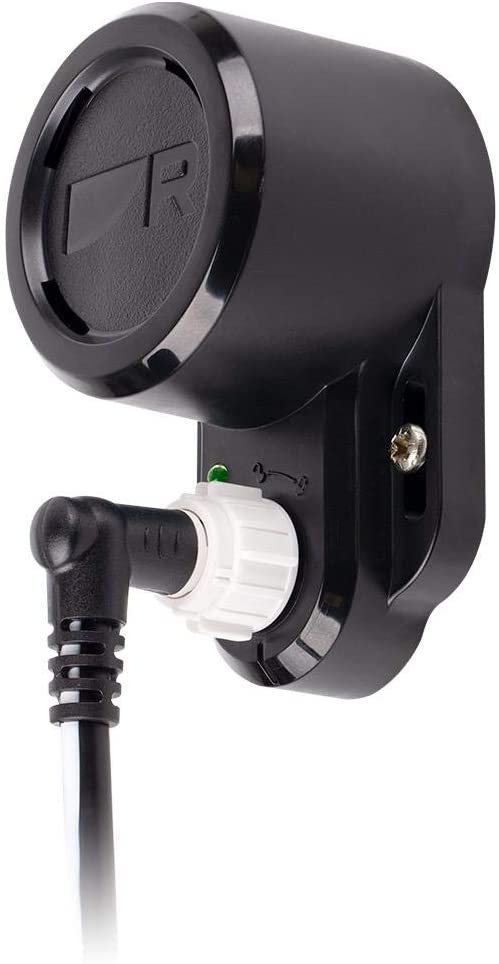

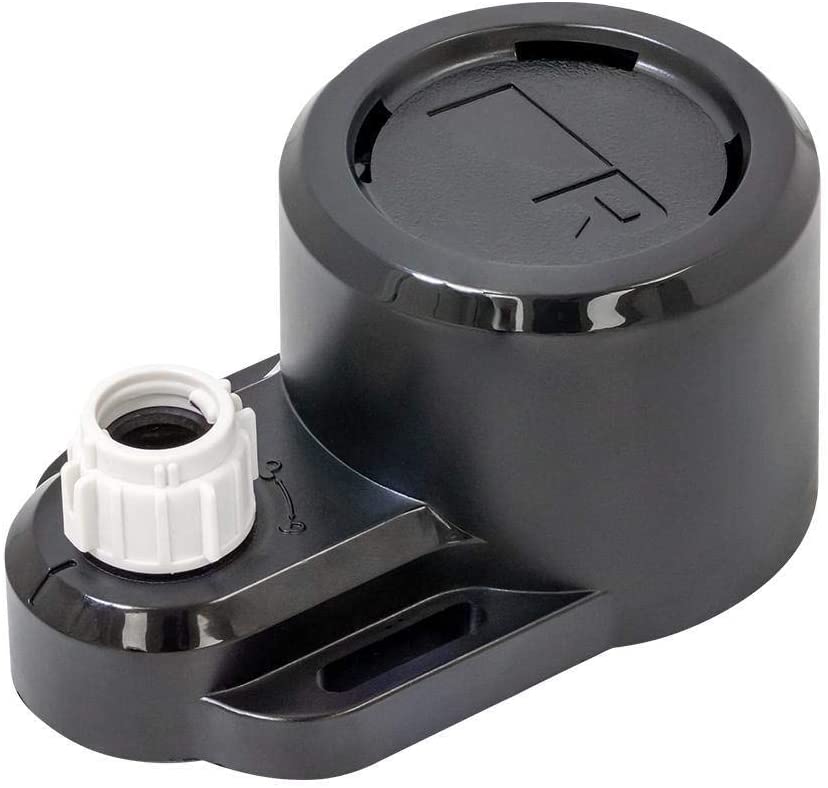

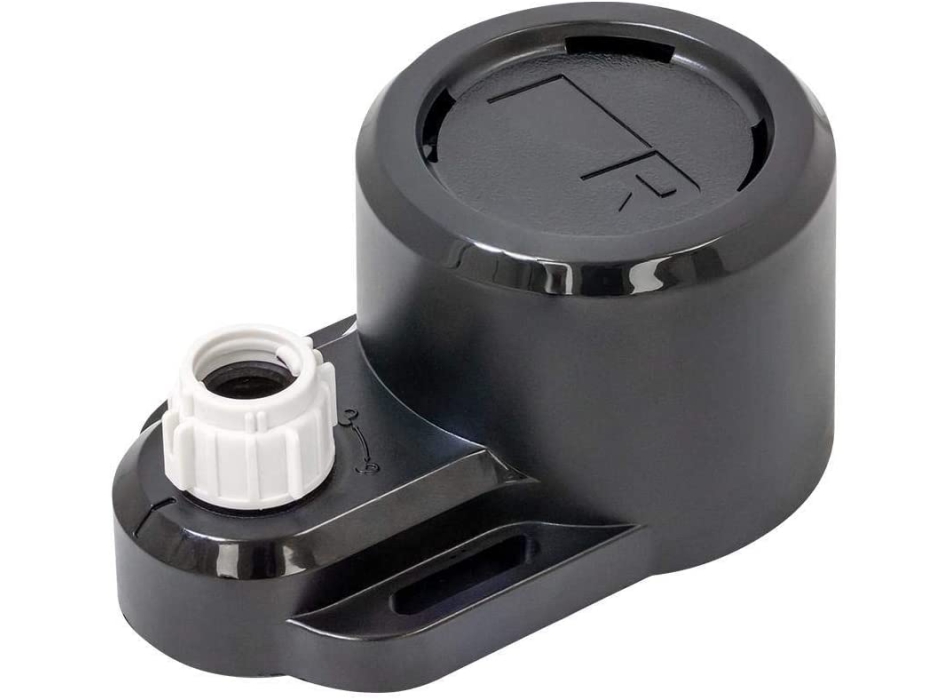

Raymarine A80614 Auxiliary alarm STNG with 1mt SPUR cable



New SeaTalk NG auxiliary alarm buzzer

Raymarine's SeaTalkng Auxiliary Alarm Buzzer is a network accessory that repeats alarm and warning tones from compatible networked devices, ensuring audible alarms are heard above and below deck.

Main features and benefits

Powerful 100 dBm alarm buzzer
Repeats alarms and notifications from SeaTalkng and NMEA2000 compatible instruments, AIS receivers, autopilot and engine systems.
The compact, waterproof module repeats network alarms to ensure they are heard by the noise of motors, wind, weather, entertainment and more.
Simple SeaTalkng network interface for power and connectivity. No installation required.
Waterproof to IPx6 and IPx7 standards and can be used above or below decks.
Multiple alarm modules can be installed to expand coverage on large ships if required.

Technical specifications:

Nominal supply voltage: 12 Vdc (supplied by SeaTalkng®)
Operating voltage range: 9VDC to 16VDC (protected up to 32VDC)
Power Consumption: 25mA at nominal supply voltage
Sound pressure level (SPL) of the acoustic alarm:> 85 dB (A) at a distance of 1 meter
Environmental: Operating temperature: 20 ° C to + 55 ° C (4 ° F to 131 ° F)
Storage temperature: 30 ° C to + 70 ° C (22 ° F to 158 ° F)
Relative humidity: max93%
Waterproof up to IPx6 and IPx7
Connection protocols supported: SeaTalkng® / NMEA2000 (via DeviceNet adapter)
LEN (see SeaTalkng® reference manual for more information): 1
D. Buongiorno, Ho un chartplotter axiom 9 e un radar quantum 2; come saprete il volume degli allarmi non si sente e non è regolabile. Questo allarme esterno è compatibile? Cioè, basta attaccare il cavo di rete e va? Grazie
R. 22-08-22 Buongiorno, sì confermo la compatibilità. Dovrà collegarlo sulla rete STNG esistente a bordo, dove è collegato anche l'Axiom. Se non ha una rete STNG allora dovrà prevedere anche lo Starterkit: https://www.painestore.it/raymarine_seatalk_ng_kit_conversione_nmea200 Cordiali saluti. Luigi Bianchi
