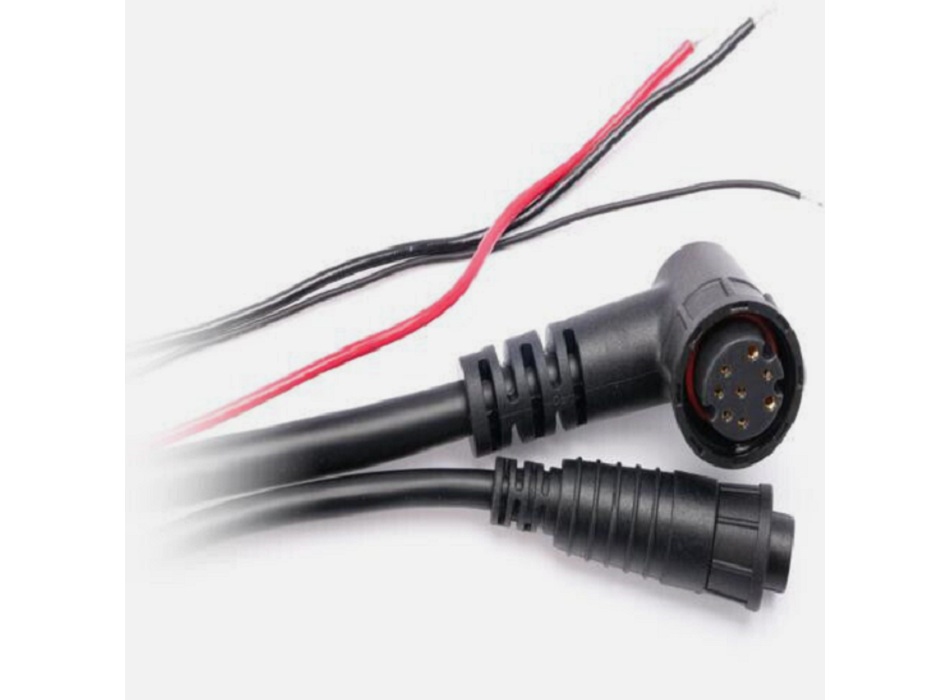

Raymarine Power Cable/Raynet Display ALPHA

(0)
Available in different lengths, selectable from the drop-down menu
starting from € 58,00 € 67,10 -14%

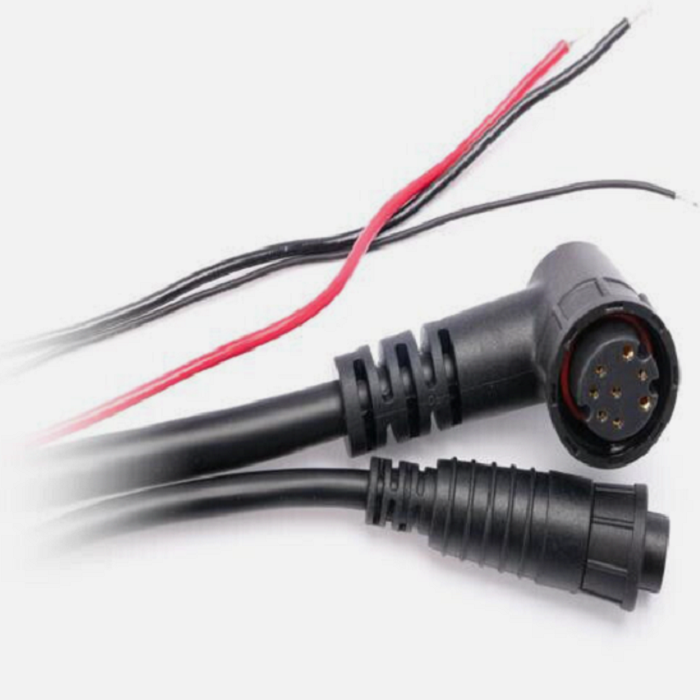

Raymarine Power/Data Cable for Alpha Displays

Select the Raynet power/data cable for the Alpha display that best suits your installation needs from the drop-down menu.
Available in different lengths: 1m, 3m, 5m and 10m.
Required for the operation of Alpha displays, as they are not included in the Display packages.
PHYSICAL CHARACTERISTICS
Alpha 7" Display Width - 120.1 mm (4.72 in)
Alpha 9" display - 148.9 mm (5.86 in)
Alpha 7" Display Height - 188.4 mm (7.42 in)
Alpha 9" display - 235.9 mm (9.29 in)
Alpha 7" Display Thickness - 32 mm (1.26 in)
Alpha 9" display - 34 mm (1.34 in)
Port separation distance 5.71 mm (0.22 in)
Weight Alpha 7" Display - 0.72 kg (1.59 lbs)
Alpha 9" display - 1.18 kg (2.60 lbs)

DIET
Nominal voltage 12/24 V dc
Operating supply voltage 10.8V to 32V DC
Alpha 7" Display Current - 0.84 A (nominal) @ 12 VDC / 0.43 A (nominal) @ 24 VDC
Alpha 9" Display - 1.02A (nominal) @ 12VDC / 0.52A (nominal) @ 24VDC
Power consumption Alpha 7" display - 10 W (maximum)
Alpha 9" display - 12 W (maximum)

NET
Axiom Alpha Performance displays require an Axiom chartplotter to operate.
Data Connection 1 x Daisy Chain Connector, 1 x RayNet Power / Ethernet Connector

ENVIRONMENTAL SPECIFICATIONS
Operating temperature range -25°C to +55°C (-13°F to +131°F)
Storage temperature -30°C to +70°C (-22°F to +158°F)
Relative humidity 93% max.
IPx6 and IPx7 waterproofing

DISPLAY
Display screen Alpha Display 7" - 7" IPS TFT LCD
Alpha 9" display - 9" IPS TFT LCD
Brightness 1500 nits / 1500 cd/m2
Viewing angles Vertical - 85 + / 85 +, Horizontal - 85 + / 85 +
Alpha 7" Display Resolution - 1024 (H) x 600 (V)
Alpha 9" display - 1280 (H) x 720 (V)
PPI (pixels per inch) Alpha 7" display - 170 PPI
Alpha 9" display - 163 PPI
Color 24-bit color (16.7 million colors)
Refresh rate 60 Hz
