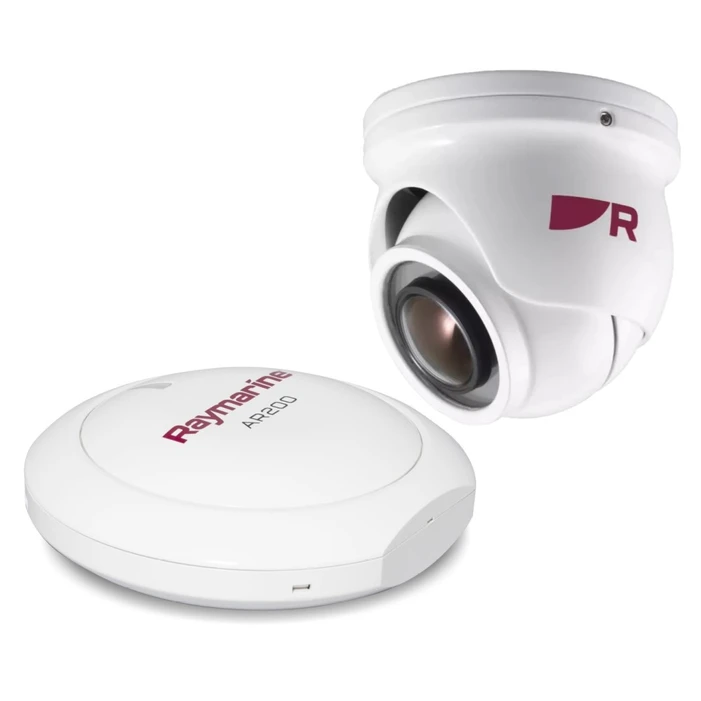

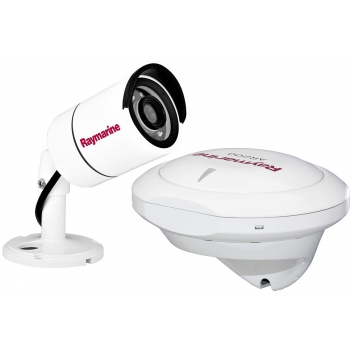

Raymarine Augmented Reality Package with CAM210 or CAM 300

(0)

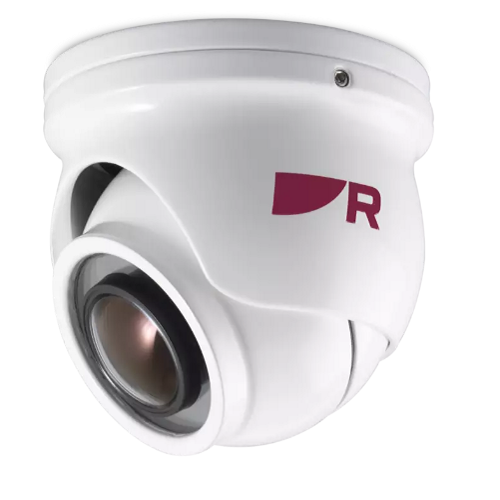

CCTV Eyeball CAM 300 or CAM 210 Day and Night Vision Camera
AR200 Camera Stabilization Module for Augmented Reality
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
starting from € 1.369,00 € 1.579,90 -13%

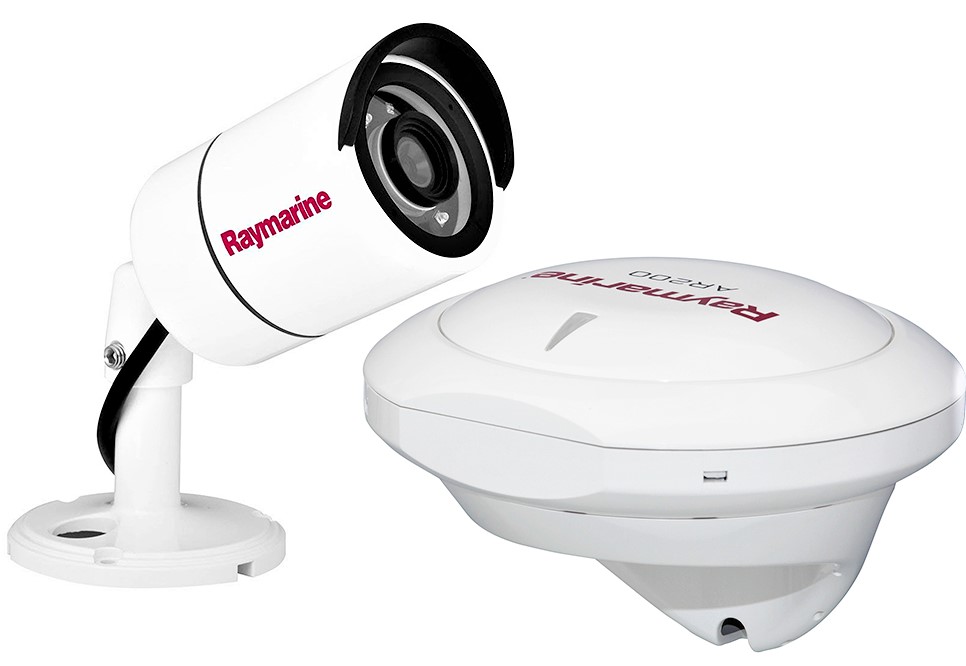

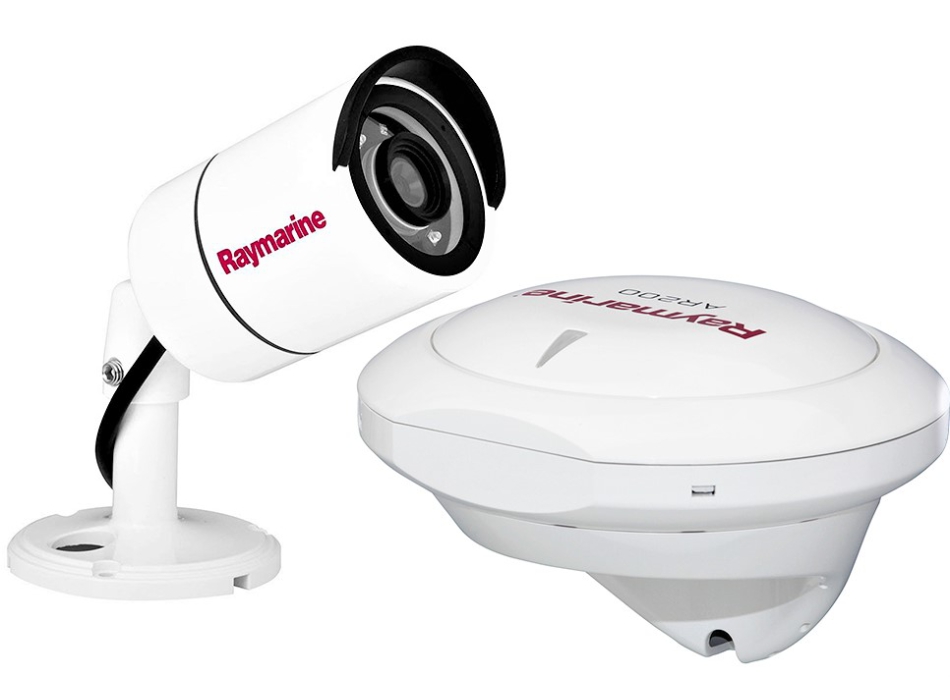

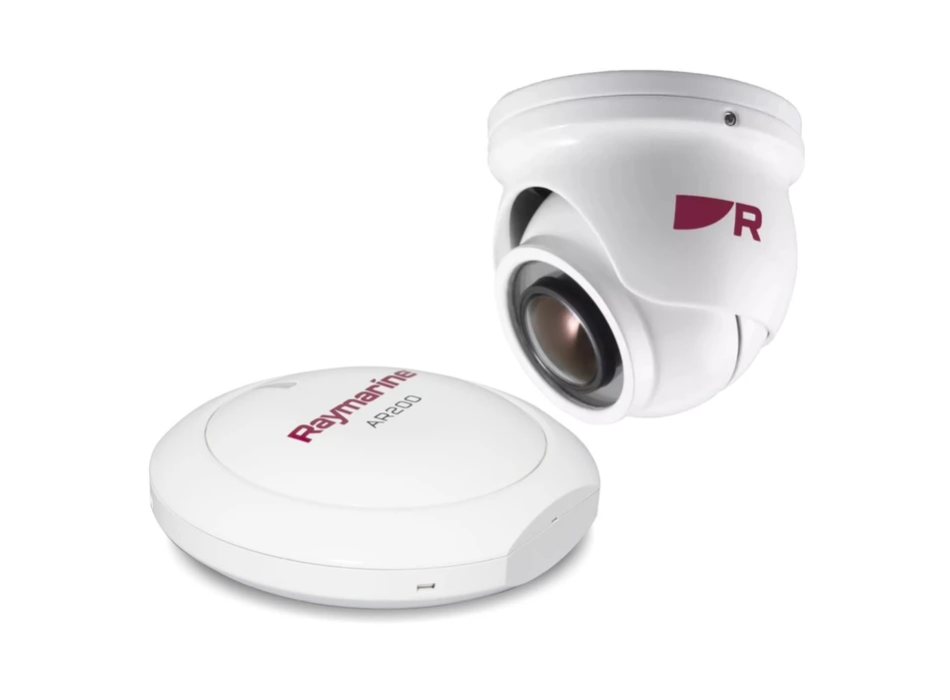

Raymarine Augmented Reality Package with CAM210 or CAM 300


ClearCruise AR brings even greater on-water awareness to Raymarine’s Axiom family of multifunction displays.
With ClearCruise AR, Raymarine Axiom users can make better decisions with navigation objects overlaid directly on Axiom’s high-definition video display.



MAKE SMARTER DECISIONS
View critical navigation objects overlaid on HD video. Surrounding AIS-equipped vessel traffic and chart navigation aids are clearly identified with graphics.
very rich on a real-time and dynamic video image.







RECOGNIZE AND RESPOND TO NEARBY MARITIME TRAFFIC
The multi-colored labels ensure immediate identification,
real-time AIS target status and risk assessment. ClearCruise AR provides identification of vessels equipped with
of AIS on the horizon.





UNDERSTANDING COMPLEX NAVIGATION SITUATIONS
The main cartographic objects are identified for the
immediate alert recognition. ClearCruise technology
AR visually shows the location of saved waypoints and landmarks.





VIEW YOUR WAYPOINTS IN THE REAL WORLD
Display nearby landmarks and waypoints for easier navigation. ClearCruise AR technology allows you to select marker buoys that define the edges of the safe channel on a hazy day.





A STABLE VISION

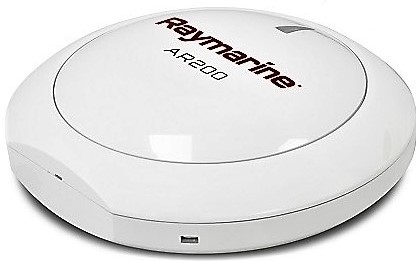

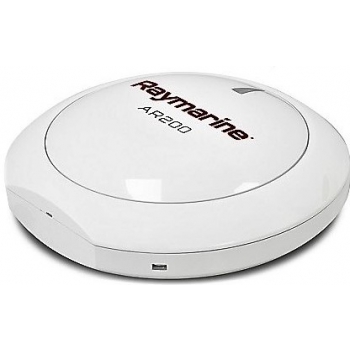

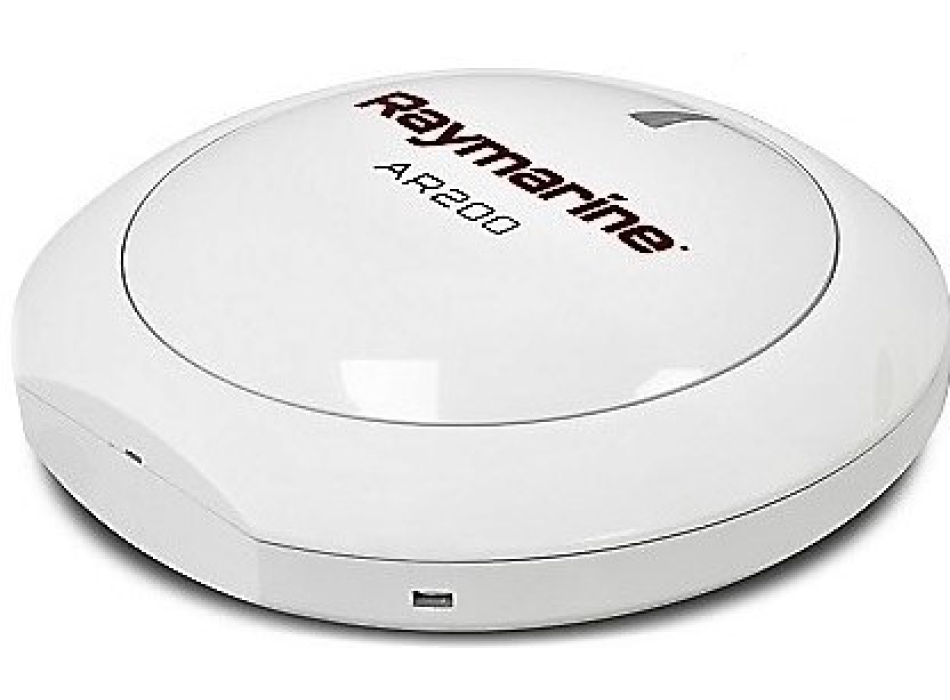

The AR200 Video Stabilization Module ensures accurate display of augmented reality data while navigating. The AR200 Video Stabilization Sensor works with Raymarine CAM210 and CAM220 IP cameras and Axiom multifunction displays.

IN THE PACKAGE
  • Eyball CAM 220 or CAM 210 (IP-connected) Day and Night Vision CCTV Camera
  • AR200 Camera Stabilization Module for Augmented Reality
  • Raynet cable (f) to RJ 45 (m) 10 m
  • 1m Backbone Cable
  • TNSTNG Connectors

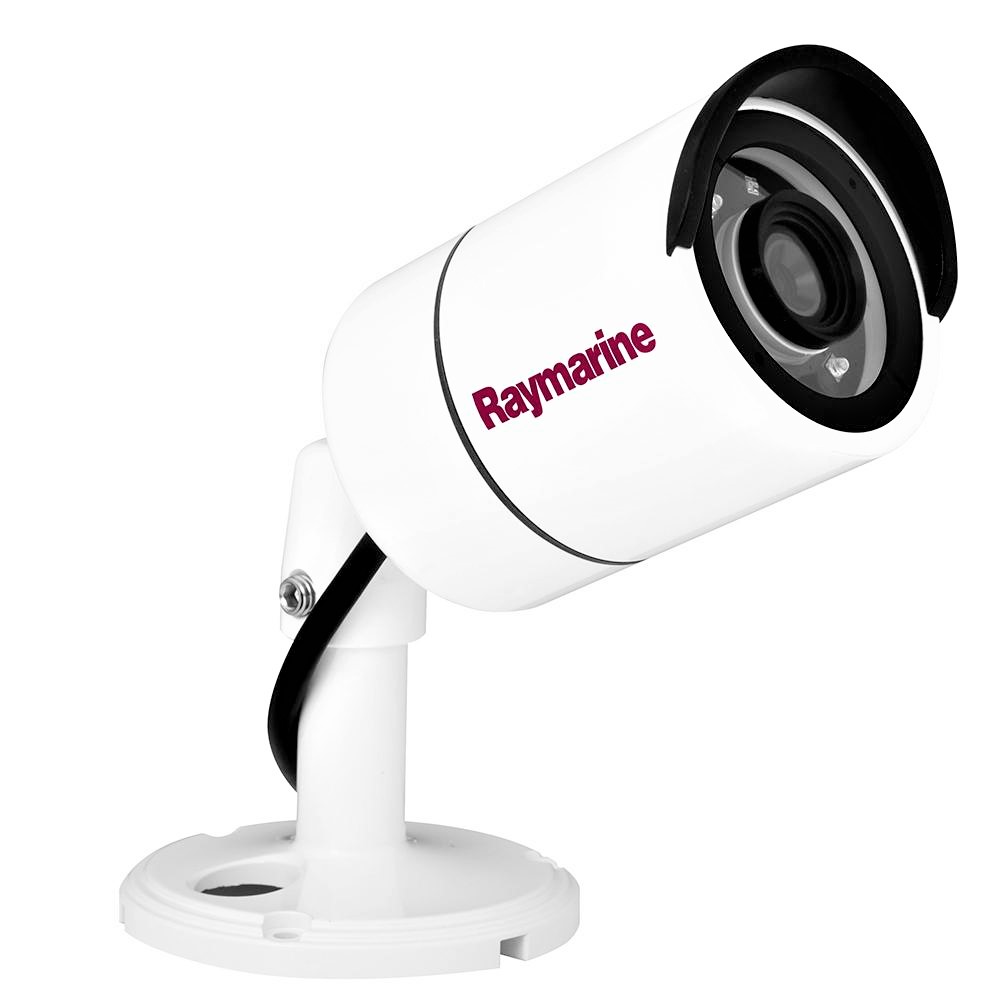

CAM 210 TECHNICAL SPECIFICATIONS
  • CPU ARM9 32-bit RISC CPU up to 432 MHz
  • Flash / SDRAM 128 MB / 128 MB
  • Camera
  • Image sensor 2.0 megapixel 1/2.8” progressive scan SONY, CMOS(Exmor)
  • Total pixels 1952(H) x 1116(V) 2.18 megapixels
  • Effective pixels 1944(H) x 1104(V) 2.15 megapixels
  • S/N Contrast More than 50 dB
  • Minimum illumination 0Lux (IR On)
  • IR distance 20m
  • Daytime and nighttime ICR
  • Lens 6.0mm megapixel lens
  • Diagonal Field of View = 63.6° +/- 3 degrees
  • Horizontal = 33.1° +/- 3°
  • Vertical = 53.3° +/- 3°
  • video
  • Video compression H.264 High Profile 4.0, MJPEG – Image quality: 3 steps
  • Resolution Up to 1920 x 1080 (Full HD)
  • H.264 frame rate up to 30 fps at 1920x1080 | MJPEG up to 30 fps at VGA resolution
  • Video Streaming Support multiple streaming with H.264, MJPEG
  • Adjustable frame rate
  • CVBR/CBR in H.264
  • Day and Night Image Settings
  • Automatic white balance
  • Auto Exposure
  • Privacy filter
  • Effects - Color, Sharpness, Mirror / V-Flip
  • System Integration
  • Security Protection, User Access Logs, HTTPS
  • Supported protocols HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
  • Intelligent Video Motion Detection up to 1920x1080 with 4x3 blocks
  • Physical characteristics
  • DC Power 12V/1.5A, PoE (Power over Ethernet): 802.3af
  • Consumption Max. 3.3 W, max. 5.3W with IR
  • Net weight 900 g
  • LED Power, network connection
  • Dimensions 83.8mm(Width) x 155mm(Height) x 178.1mm(Depth) including bracket
  • General operating temperature 0°C to 40°C (32ºF to 104ºF)
  • Storage Temperature -10°C to 50°C (14ºF to 122ºF)
CAM 300 TECHNICAL SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
Relative humidity Max. 85%
IP66 waterproof
Storage temperature -30°C to +70°C (-22°F to 158°F)
Operating temperature -20°C to +65°C (-4°F to 149°F)

VIDEO
True day and night operation with mechanical IR cut filter
Automatic gain control Supported/multiple levels
Scanning system Progressive scan
Horizontal and vertical mirroring
Video Processing H.264/Dual Stream Video Encoding
Bit rate control Limited bit rate/Variable bit rate
H.264 compression
Infrared illumination 6 x 850 nm - range 10 meters
Frame rate 25 fps
ONVIF Version Master Version 21.06
Sensor/DSP 1/4" CMOS sensor
Standard Field of View 1.8mm (125° HFOV x 70° VFOV)

PHYSICAL CHARACTERISTICS
Dimensions Base Diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight 0.420 kg (0.926 lb)
D Buonasera, è possibile collegare la videocamera CAM300, dotata di sola uscita RJ45, alla rete STNG? se si, come? altrimenti come la collego al mio AXIOM 12 (E70369) sul quale ho la porta raynet già occupata?
R 30/05/2026 Buongiorno, le telecamere si collegano solo tramite Raynet e non in STNG, pertanto è necessario aggiungere lo switch di rete RNS5 per aumentare le porte: https://www.painestore.it/raymarine_rns5_network_switch_raynet Cordiali saluti. Luigi Bianchi
D Buonasera volevo capire che differenza c'è, in termini di prestazioni, tra la CAM210 e la CAM300. Per il riconoscimento dei dati AIS c'è bisogno di qualche ulteriore apparecchiatura o l'AR200 li riconosce in maniera autonoma? Grazie Renato
R 28/02/2026 Buonasera, la CAM300, ha una tecnologia più recente con maggior risoluzione, ed angolo visivo leggermente superiore. Per avere anche l'AIS, necessario prevedere anche un dispositivo AIS almeno ricevente. Cordiali saluti. Luigi Bianchi.
D Vorrei installare la camera poco al di sopra dell’attacco strallo fiocco della mia barca a vela, il motivo e’ perché e’ l’unica posizione in cui la visuale non è coperta dalle vele in navigazione; per cui, e’ possibile posizionarla in quella posizione magari piccola con staffa a sbalzo considerato che siamo a circa 22 metri di altezza? In navigazione sbandata e/o con effetto pendolo dell’albero darà qualche problema? Grazie
R 01-03-25 Buongiorno, abbiamo già fatto questo tipo di installazione nei cantieri, hanno realizzato loro un'apposito supporto. Non posso nascondere il fatto che non sia una realizzazione semplice, dovrà prevedere anche un cavo idoneo, oltretutto si dovrà in qualche modo cercare di rendere stagna la giunzione che si andrà ad effettuare in testa d'albero fra cavo telecamera e cavo nell'albero. Cordiali saluti. Luigi Bianchi
