-13%

Raymarine AXIOM+ 7RV with RV-100

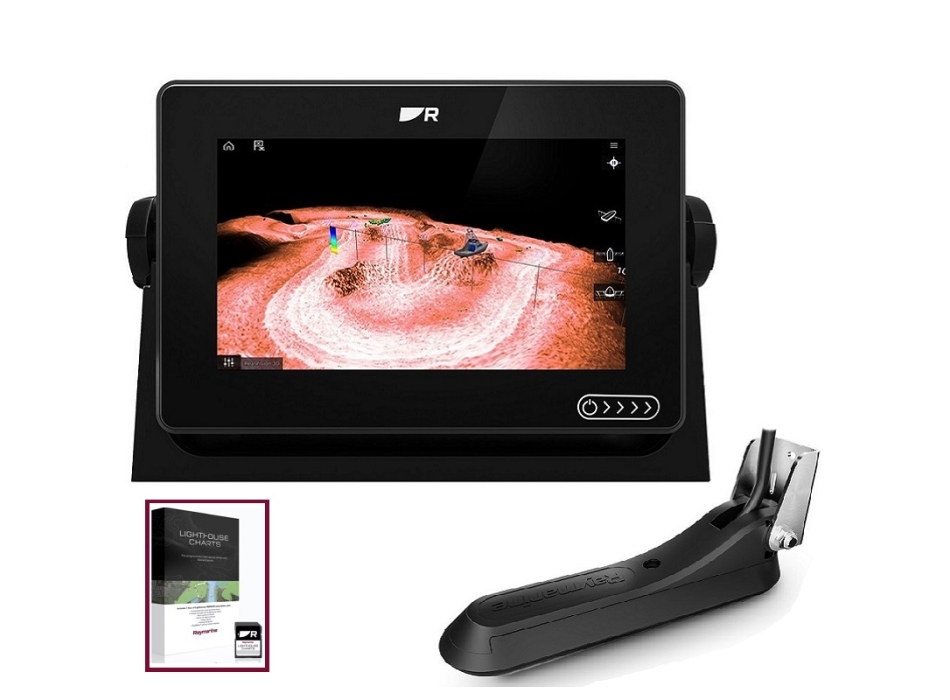

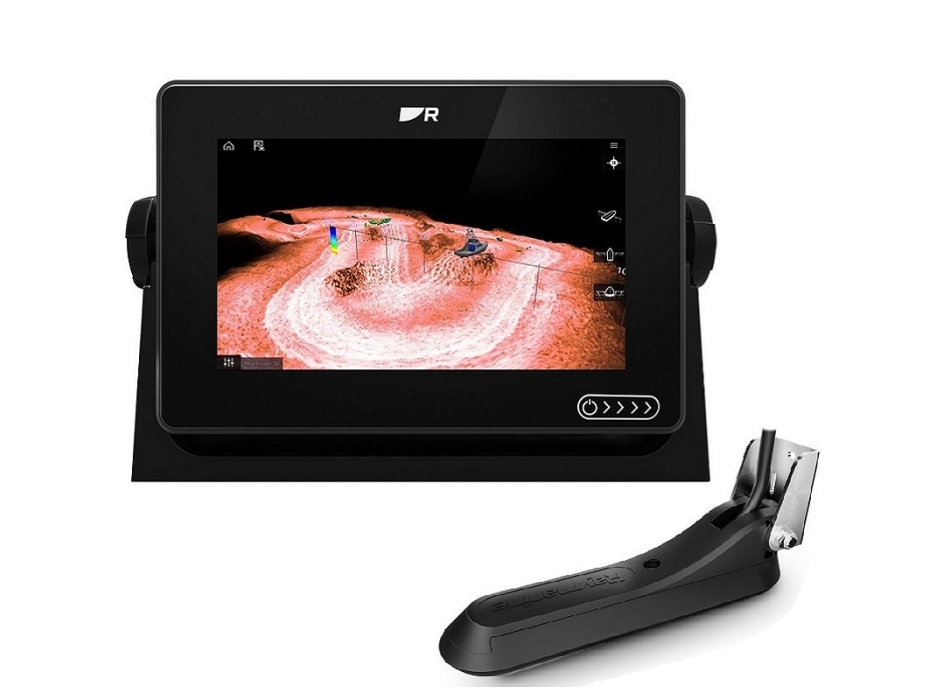

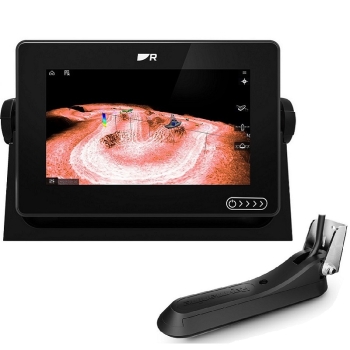

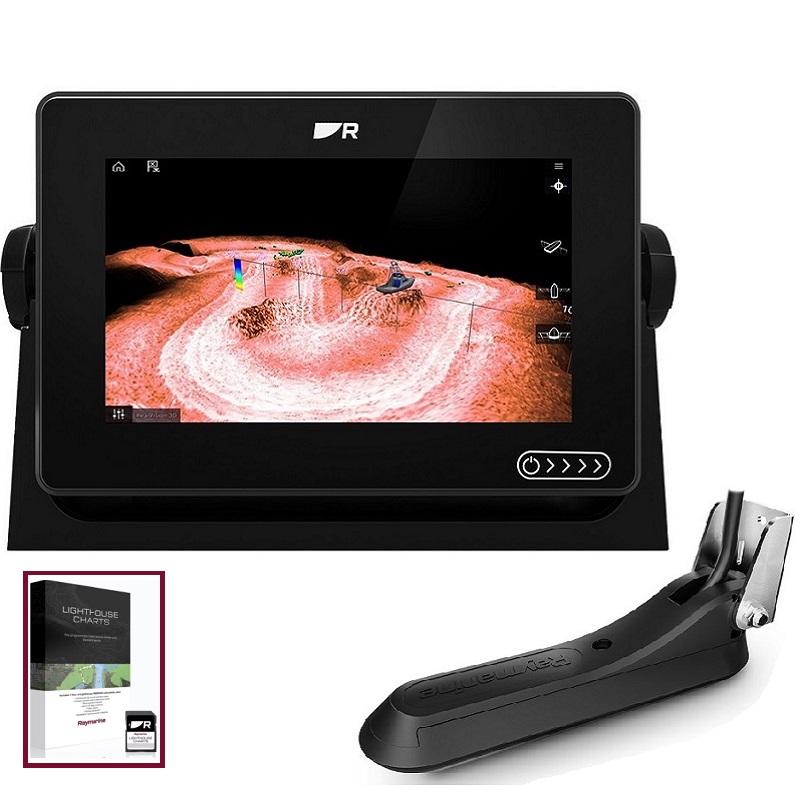

Includes RV-100 Realvision stern transducer
Select the option with or without cartography from the drop-down menu.
starting from € 1.479,00 € 1.701,90 -13%
Raymarine AXIOM+ 7RV eco/GPS
RV-100 Real Vision transom transducer included

Designed to ensure the highest performance, Axiom®+ is the NEW generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features a powerful, industry-leading quad-core processor for responsiveness and processing power, giving you the ability to redraw maps, navigate with augmented reality, and experience RealVision sonar ™ 3D seamless.

The new high-resolution IPS display provides 25% more brightness and the new day/night color tables offer greater visibility in any lighting condition. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.

OPTIMIZED FOR HIGH PERFORMANCE

Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more onboard memory for personal data and apps.

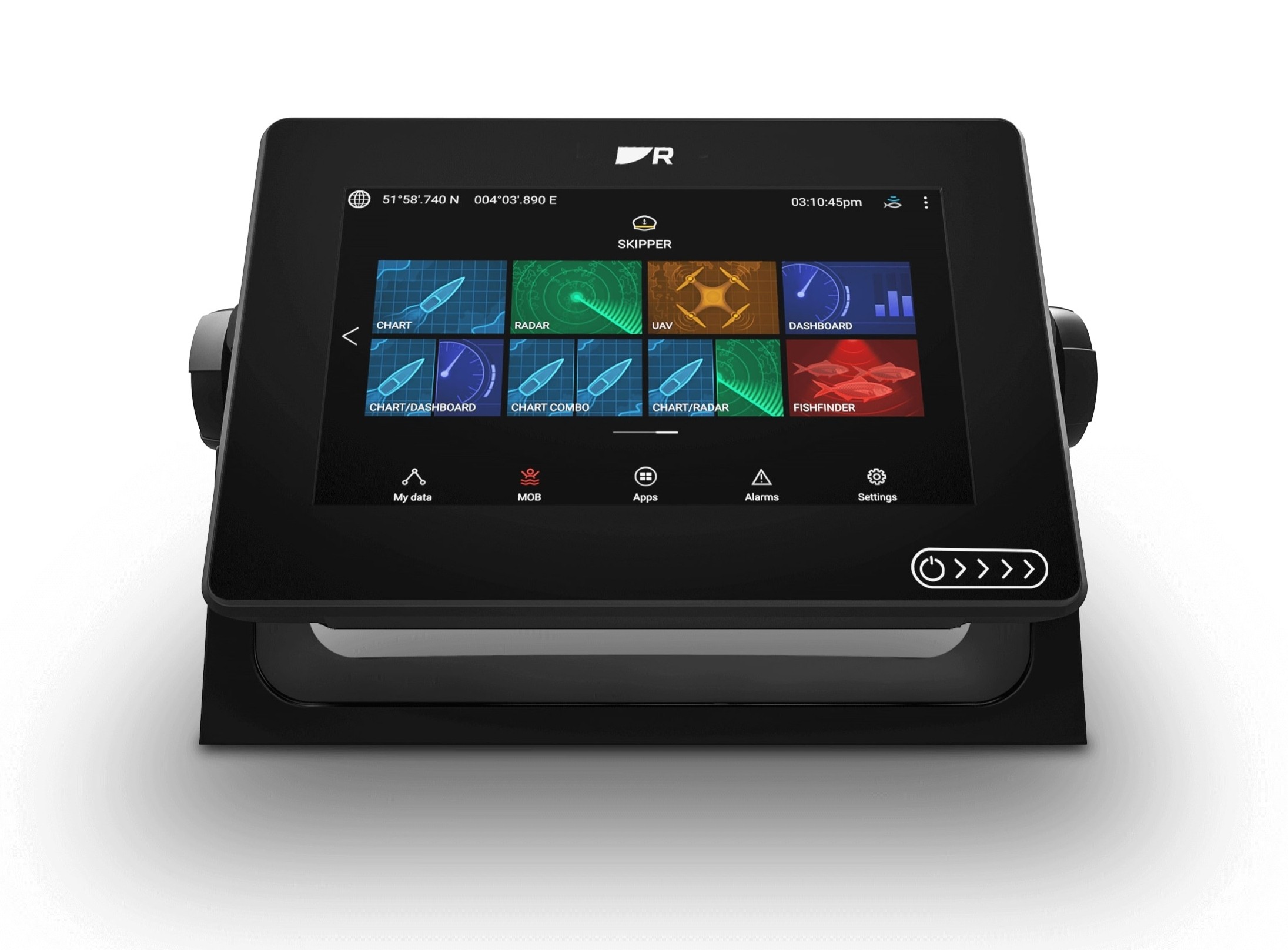

Smart and intuitive, the LightHouse 3 operating system makes navigation easy.

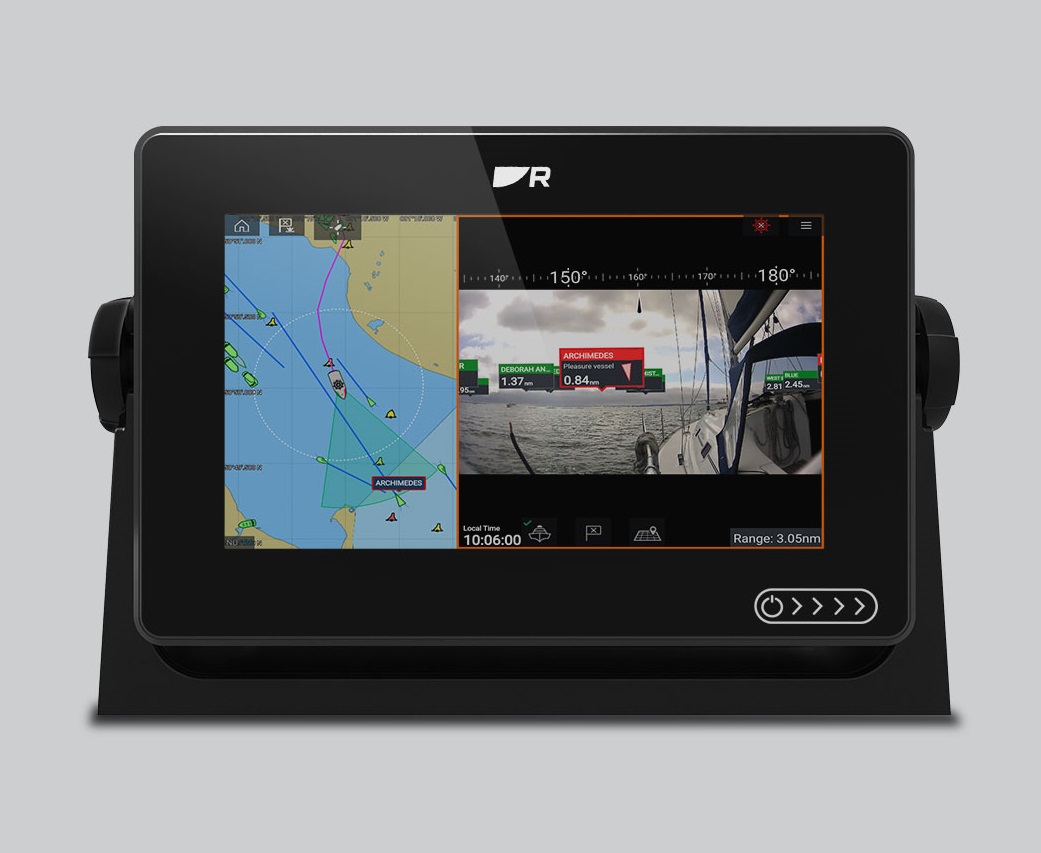

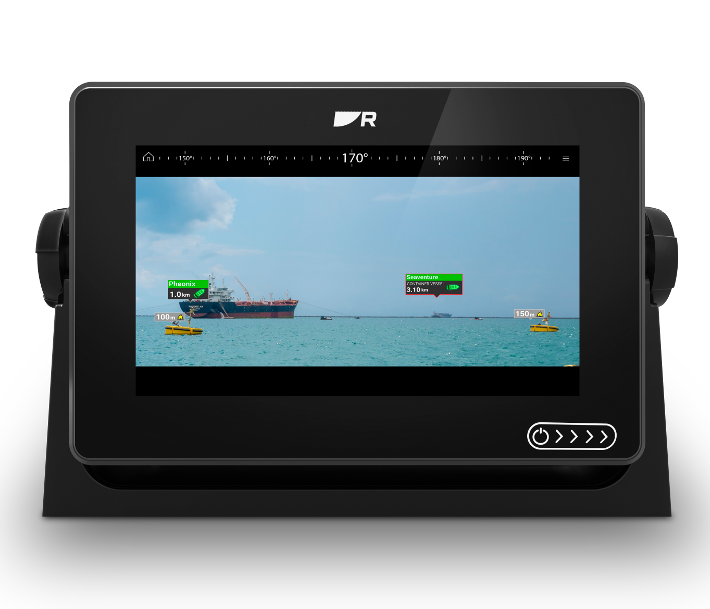

ClearCruise™ Augmented Reality helps you make smarter navigation decisions.



HYDROTOUGH™ DISPLAY
The glass screen is coated with nanotechnology materials, resists impacts and repels water, oil and smudges for better viewing and accurate touch controls.

BRIGHTER
The 7-, 9-, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).




CLEARER
IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
AXIOM+ 7 SPECIFICATIONS
Screen size 7.0" High Density IPS
Display resolution 1024 x 600 (WSVGA)
Multitouch screen type with hydrophobic HydroTough™ coating
Brightness 1,500 nits
Viewing angles 85° from top, bottom, right, left
Dimensions
W x H x D 210 x 142 x 77mm
IPX6 / IPX7 waterproof

ECHO SOUNDER
Sonar Depth High CHIRP Sonar Sonar = 274 m (900 ft) | DownVision™ = 183 m (600 ft) | SideVision™ = 91 m (300 ft) | RealVision™ 3D = 91 m (300 ft)
Note: the indications of the maximum depth may vary based on the characteristics and salinity of the water

CONNECTIVITY
Ethernet 1 x 10/100 Mbit/s network port (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0

NAVIGATION
Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpts max / 16 tracks - Max 10,000 trk pts
