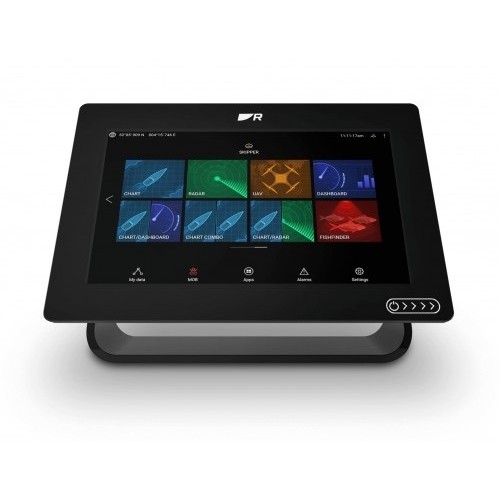

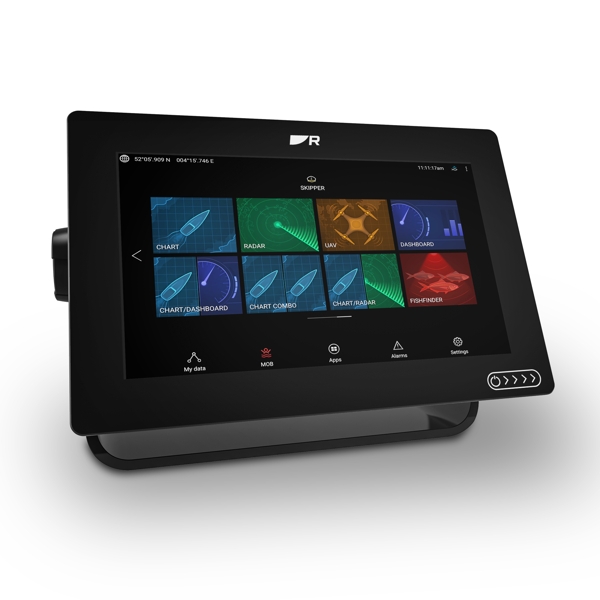

Raymarine AXIOM+ 9RV with RV-100

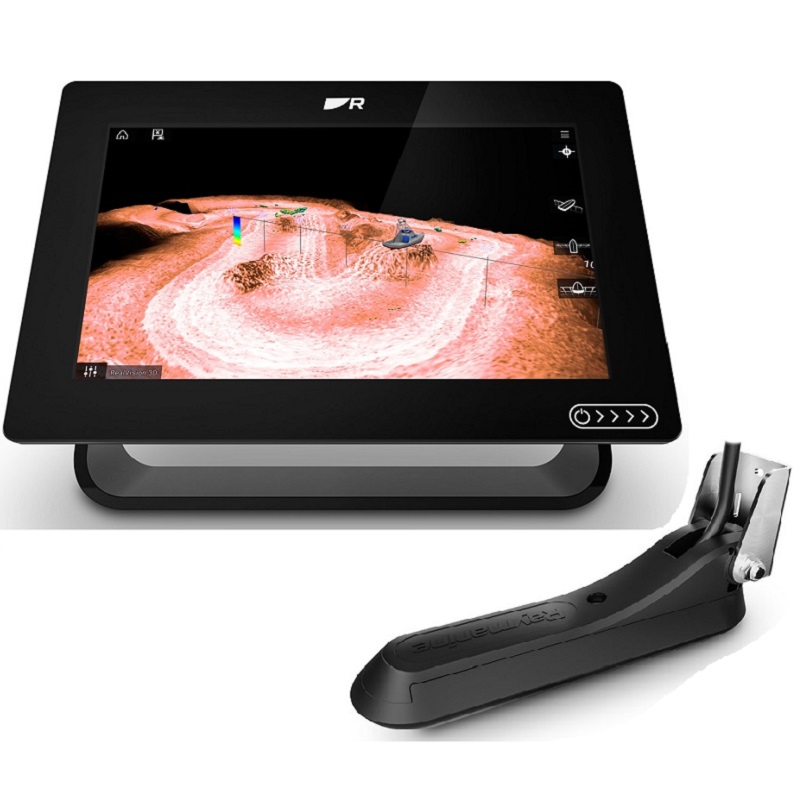

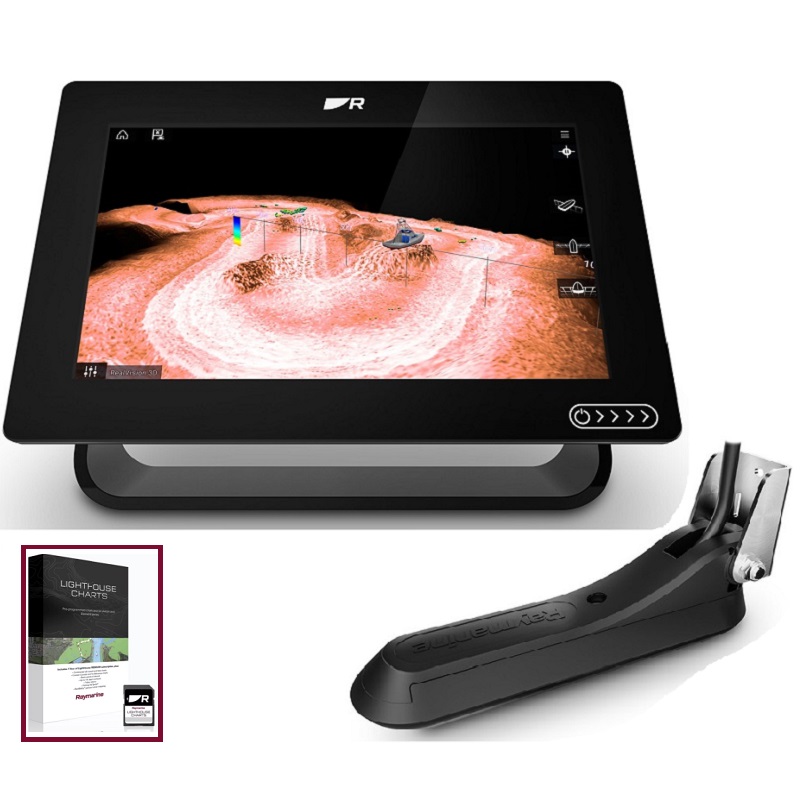

Includes RV-100 Realvision stern transducer
Select the option with or without cartography from the drop-down menu.
  • Code: E70637-03
€ 2.170,00 € 2.494,90 -13%
you chose:
Raymarine AXIOM+ 9RV eco/GPS 9"
RV-100 Real Vision transom transducer included

Designed to ensure the highest performance, Axiom®+ is the NEW generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features a powerful, industry-leading quad-core processor for responsiveness and processing power, giving you the ability to redraw maps, navigate with augmented reality, and experience RealVision sonar ™ 3D seamless.

The new high-resolution IPS display provides 25% more brightness and the new day/night color tables offer greater visibility in any lighting condition. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.


Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more onboard memory for personal data and apps.
Smart and intuitive, the LightHouse 3 operating system makes navigation easy.

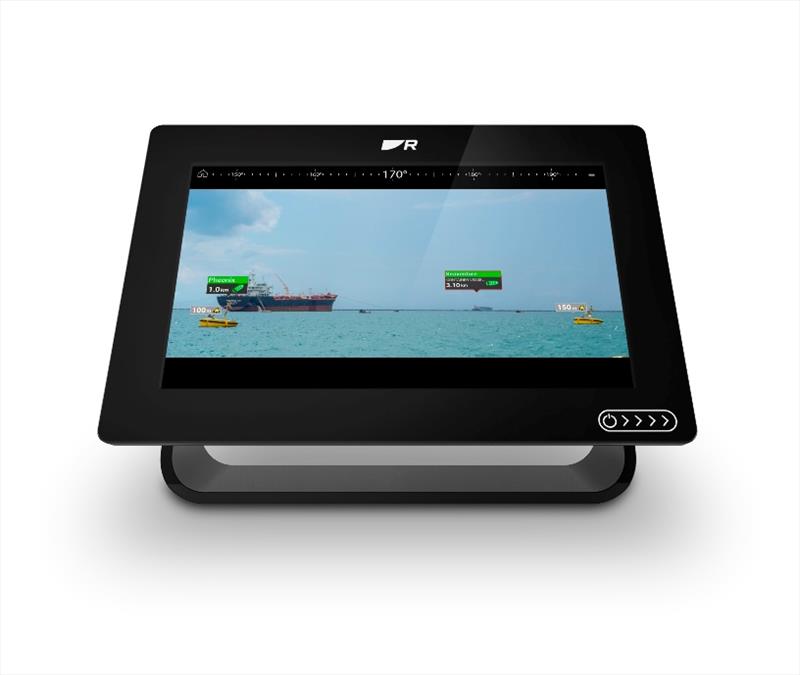

ClearCruise™ Augmented Reality helps you make smarter navigation decisions.

The glass screen is coated with nanotechnology materials, resists impacts and repels water, oil and smudges for better viewing and accurate touch controls.

The 7-, 9-, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).

IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
Screen size 9.0 IPS High Density
Display resolution 1280 x 720 (WXGA)
Multitouch screen type with hydrophobic HydroTough™ coating
Brightness 1,500 nits
Viewing angles 85° from top, bottom, right, left
W x H x D 244 x 158 x 77mm
IPX6 / IPX7 waterproof

Sonar Depth High CHIRP Sonar Sonar = 274 m (900 ft) | DownVision™ = 183 m (600 ft) | SideVision™ = 91 m (300 ft) | RealVision™ 3D = 91 m (300 ft)
Note: the indications of the maximum depth may vary based on the characteristics and salinity of the water

Ethernet 1 x 10/100 Mbit/s network port (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0

Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpts max / 16 tracks - Max 10,000 trk pts
