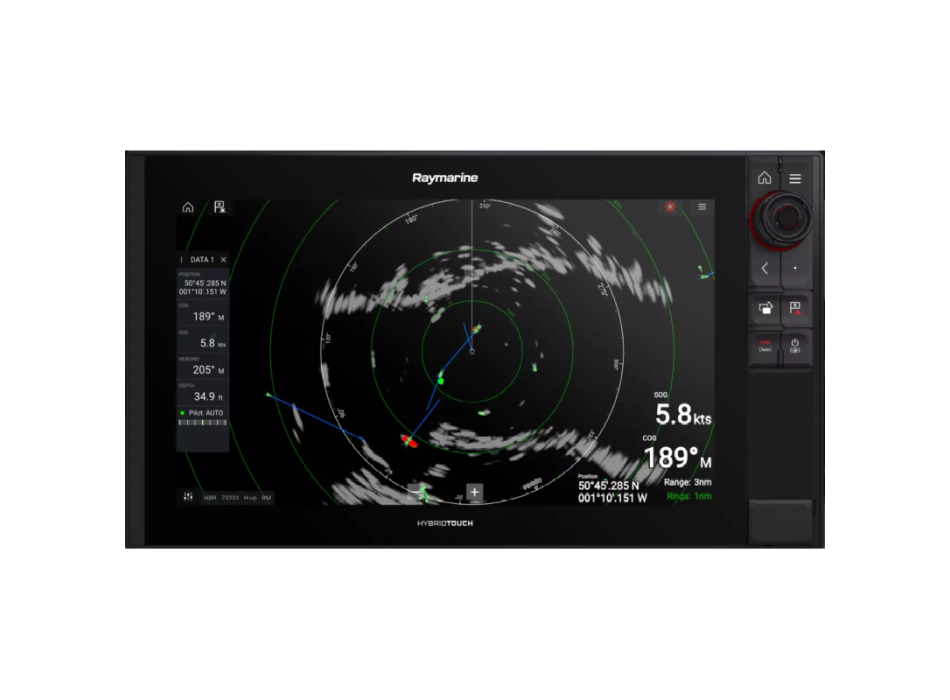

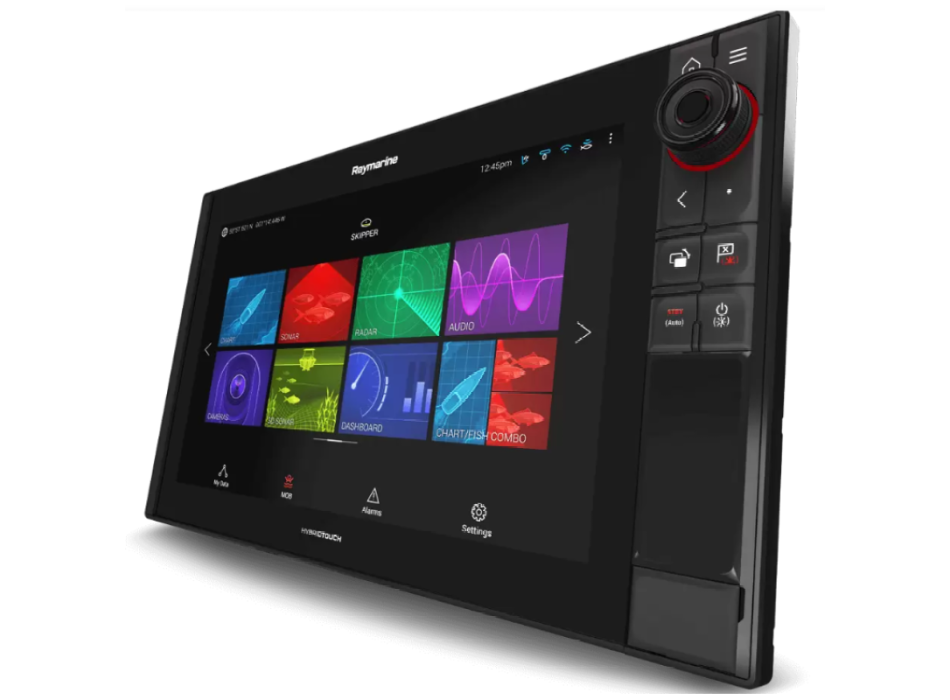

Raymarine AXIOM PRO 16 S Display 16"

(0)
Exclusive PAINESTORE promotion: a 16" display for the price of a 12", limited units available
New, 2-year warranty
€ 3.649,00 € 7.313,90 -50%
Raymarine AXIOM 16 PRO S
S version, compatible only with CPT-S transducers
FREE Lighthouse Cartography
Flush-mounted installation only, bracket mounting not permitted

Axiom Pro is designed for captains who want the ultimate in sonar. Available with standard-purpose sonar compatible only with CPT-S series transducers and Raymarine HybridTouch controls, Axiom Pro is the new standard for all-in-one displays. And with a blazing-fast quad-core processor, a super-bright IPS display, and the intelligent LightHouse operating system, Axiom Pro delivers a seamless and intuitive navigation experience. Axiom Pro is easily expandable into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.







CHIRP 1 kW nominal offshore fishfinder
Simply add a CP470 Sonar Box and compatible transducer and experience the stunning definition and clarity of dual-channel CHIRP sonar.


INTUITIVE CONTROL
HybridTouch™
You can choose between simple tablet-style touchscreen interaction or secure keyboard control in rough seas.

Custom key
Instantly access your favorite Axiom Pro function with the programmable button.

Lighthouse Operating System
Fast, fluid, and easy to learn. The Lighthouse 3 interface is uncluttered and easy to customize to your browsing style.




Physical characteristics

Dimensions (surface/flush mount)
Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Connecting accessories
USB Micro B

Ethernet connection
2 RayNet ports (10/100/1,000 Mbit/s)

NMEA 0183 connection
Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate

External memory
2 front-mounted MicroSDXC card slots

NMEA 2000 connection
DeviceNet connector

Analog video connections
BNC analog video input (power cable)

Wireless connection
Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n

Internal memory
16GB solid state

Transducer connection
25-pin RealVision type connector (requires adapter cable)

LCD
Resolution
Axiom 2 Pro 16: 1,920 x 1,080 FHD

Visual angle
Up 88°/Down 88°/Left 88°/Right 88°

Type
IPS (In-Plane Switching)

Echo sounder
Channels
CHIRP Conical Fishfinder

Depth range
From 0.6 m (2 ft) to 274 m (900 ft) depending on water conditions

Transducer connection
25-pin RealVision-style connector. Requires A80490 adapter cable for CPT-S-style transducers.
