Raymarine B60 Thru-Hull Transducer

(0)
€ 399,00 € 457,00 -13%

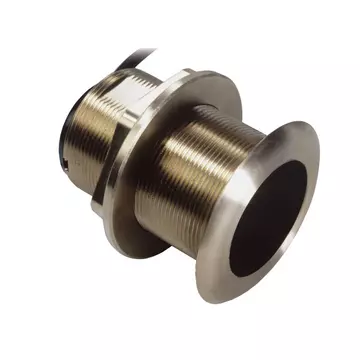

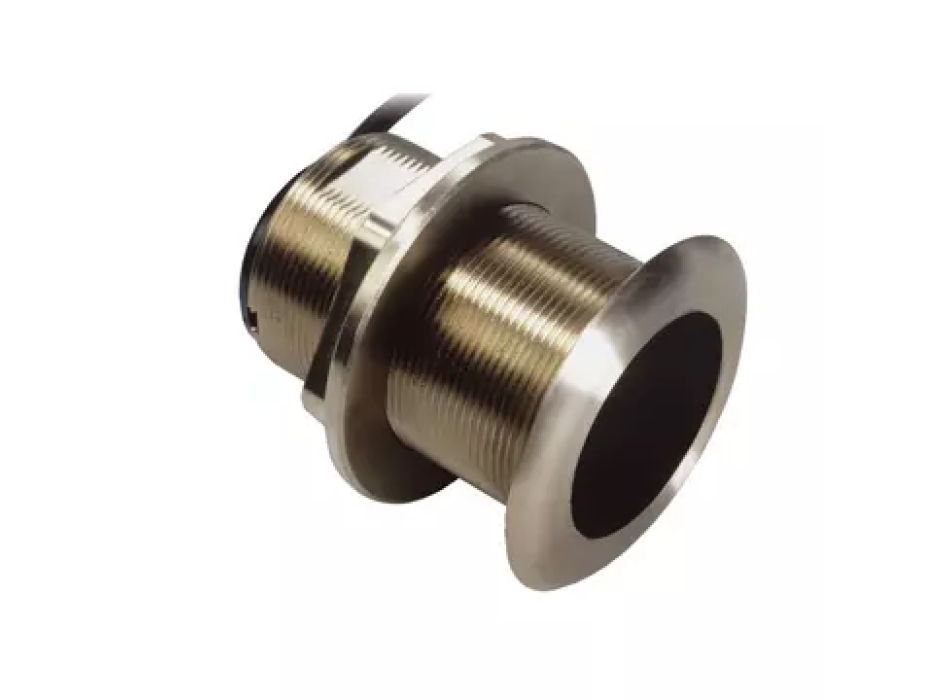

The B60 is a high-performance, dual-frequency (50/200 kHz) bronze thru-hull transducer with tilted element technology that compensates for the vessel's hull angle, eliminating the need for a fairing block.
The transducer mounts nearly flush with the vessel's hull, reducing drag and improving water flow.
Integrated hull angle compensation keeps the beam focused downward, producing strong echoes and accurate depth readings. The B60 also features a built-in water temperature sensor.
The B60 is ideal for inshore or shore fishing at shallow to medium depths.
The combination of frequencies and beams makes it ideal for slow trolling, structure fishing and drifting.
This is also an excellent choice for deep water lake fishing.
The bronze thru-hull fitting is ideal for wooden or fiberglass hulls.
The B60 features an 8-pin Raymarine "DSM" connector, directly compatible with the CP370 sonar module and the legacy CP300, DSM300, DSM30 and DSM250 modules.
The B60 can be adapted to work with other systems using optional transducer adapter cables, sold separately.
General specifications
Assembly

Thru-hull
Material

Bronze
Power (RMS)

600W
Prof. Max

1,200 ft / 365 m (L) / 700 ft / 213 m (H)
Frequency

50/200 kHz
Cone width

45° / 12°
Data collected

Depth/Temperature
Hull material

Fiberglass / Wood
Cable length

10 m / 33 feet
