Raymarine TY 3 Linear/Hydraulic Drive - 12/24v

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 4.329,00 € 4.995,90 -13%
Raymarine TY 3 Linear/Hydraulic Drive - 12v
Type 2 12 volts

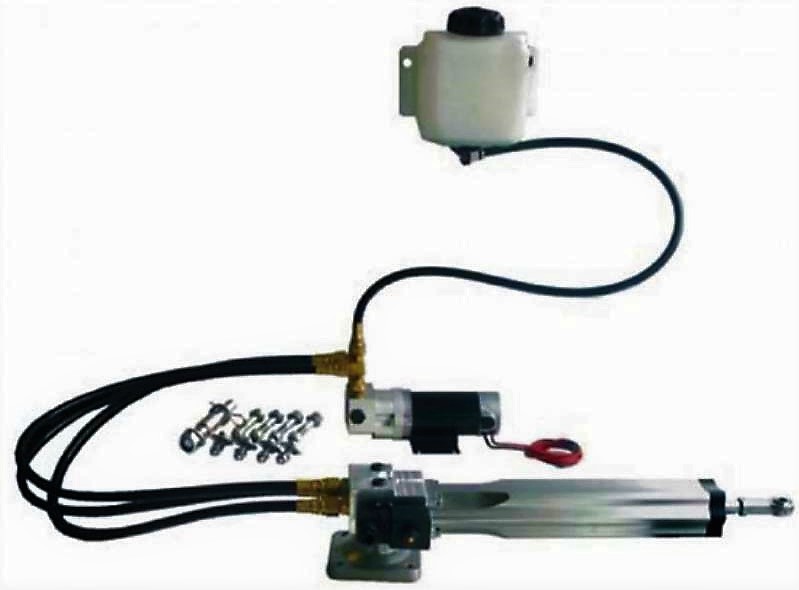

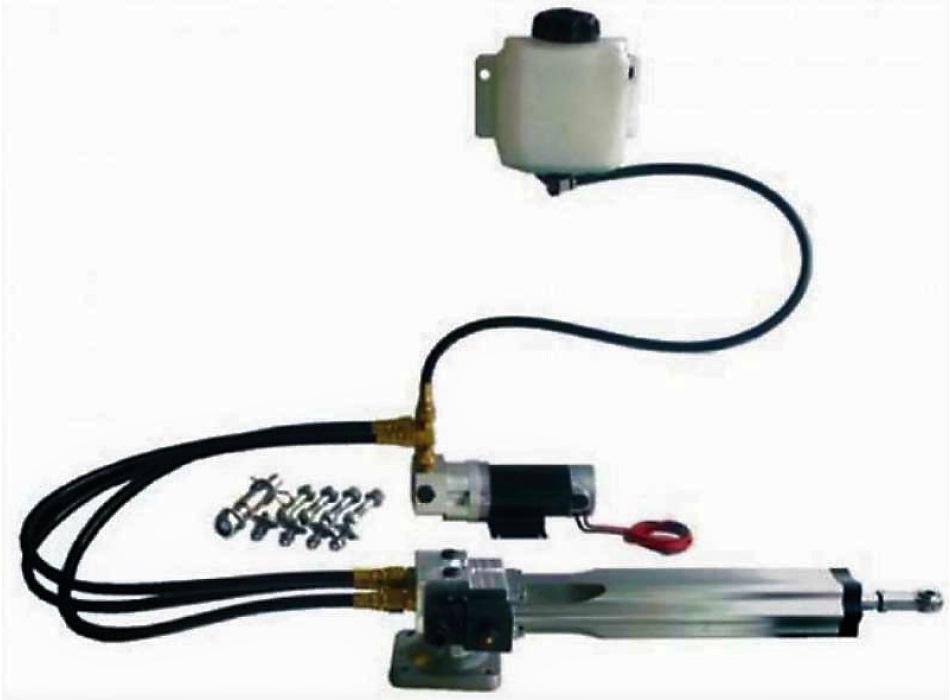

Raymarine Hydraulic Linear Actuators

Intended for large vessels with mechanical steering (over 20000kg), our actuators include a reversible pump, a tank and a
hydraulic cylinder.
The linear actuator connects to the rudder shaft via an independent arm. It may be necessary to request some accessories from the steering system manufacturer.
Installation. The steering system must be able to be back-operated by the rudder.


The linear actuator connects to the rudder shaft via an independent arm. You may need to request additional installation accessories from your steering system manufacturer.
Installation by Raymarine authorized personnel is recommended.
It is necessary that the steering system can be fed back from the rudder.

TECHNICAL SPECIFICATIONS
  • Maximum vessel displacement 35,000 kg
  • Maximum thrust 1200 kg
  • Maximum actuator length 300 mm
  • Band to band time 10 seconds
  • Maximum torque 3200 Nm
  • Corepack ACU-400
D mi potete inviare dimensioni pistone ,scheda tecnica ,grazie ,saluti
R Nella sezione "documenti" della pagina prodotto del nostro sito trova il manuale in Italiano Alla pagina 19 le dimensioni Troverà anche la sezione "Scheda tecnica" con Mi faccia sapere se quanto indicato le è sufficiente Cordiali saluti b/PAINE SNC
