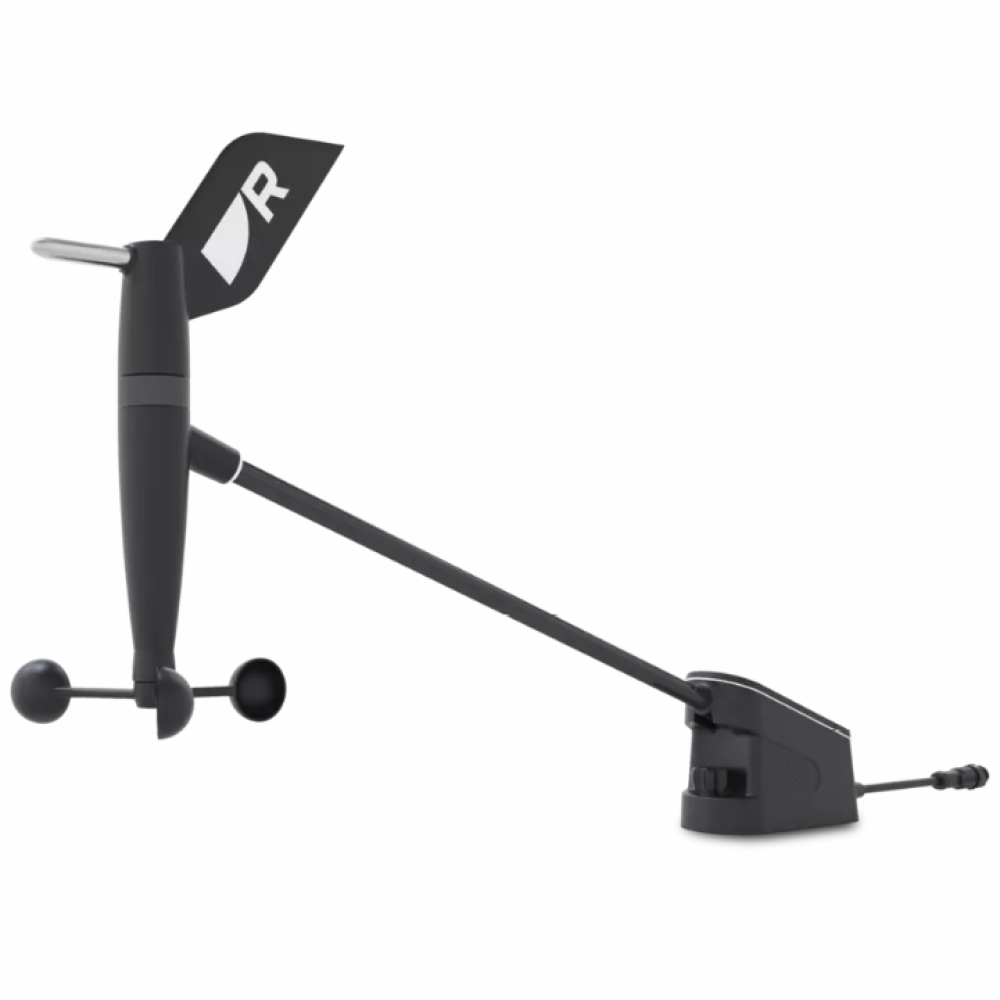

Raymarine RSW New Masthead Wind Transducer

Smart Wind - Professional level wind transducer for amateur sailors in NMEA 2000
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 839,00 € 969,80 -13%
Raymarine RSW New Masthead Wind Transducer

Smart Performance RSW Wind Transducer, short arm with 30m cable

The Raymarine RSW Wind Transducer is a professional-grade wind sensor designed for recreational sailors.
It is designed for simplicity and accuracy with an integrated 3D motion sensor and Raymarine Smart Wind™ technology, giving every boater a new level of intelligence while navigating.
It is self-calibrating and provides ultra-precise measurements of wind speed and direction.
Sailors can leverage the high-precision true wind, speed and polar data to make smarter racing and performance decisions when it matters most.


Characteristics
• Experience the highest level of accuracy without bulky processor modules or complicated calibration tables.
• The built-in 3D motion sensor (AHRS technology) takes into account the pitch and roll of the vessel, automatically providing improved accuracy in measuring true wind.
• Smart Wind technology provides optimal wind measurement by compensating for mast twist and curvature.
• Thanks to the 3D movement of the Sensor, the sensor compensates for the effects of airflow and upwash on the sails, ensuring a stable and reliable true wind direction.
• Compatibility with rotating shafts without additional sensors.
• Lightweight and durable carbon fiber tonearm for reliable performance
Technical Features
Physics
Length
Wind transducer (cable included): 657.762 MM (25.90 in)
Wind transducer (excluding cable): 540.712 MM (21.29 in)
Wired Gateway: 155.61 mm (6.13 in)

Length
Wind transducer: 46.96 MM (1.85 in)
Wired Gateway: 47.38MM (1.88in)

Height
Wind transducer: 305.86 MM (12.04 in)
Wired Gateway: 30.61MM (1.21in)

Diet
Nominal supply voltage 12 Vdc (via SeaTalk NG)
Operating voltage range From 9V to 16V DC
Consumption < 100 mW
Fuse amperage
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse.
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9V: 1

Environmental specifications
Operating temperature range -25°C to +55°C (-13°F to +131°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Relative Humidity Masthead: 100%
Below deck: up to 93% @ 40°C
Waterproof class TRANSDUCER Wind transducer: IPx6/IPx7
Wired Gateway: IPx3
Wind 115 km/h (185 mph)
Vibration EN 60945:2002 (exposed)
D che differenza c'è col t222 ? quale da prestazioni migliori? del t222 non c'è la versione cablata? grazie
R 19-03-25 Buonasera, sconsiglio l'acquisto di un T222, anche se si tratta di sensore verticale, il problema che ne deriva trattandosi di sensore wireless e non cablato come quello in oggetto, e che potrebbe avere dei leggeri ritardi nella lettura dei dati. Cordiali saluti. Luigi Bianchi
D Buongiorno, sulla mia imbarcazione ho una strumentazione raymarine un po' datata che inizia a darmi dei malfunzionamenti e immagino dipenda dai trasduttori. Attualmente ho installato un Raymarine St6000+ (smartpilot 2), oltre a tridata e vento delle serie st60+. Vorrei sostituire i trasduttori velocità e profondità con un unico DST810 GEN2 - che mi pare abbia le stesse dimensioni del vecchio trasduttore velocità airman - e installare il trasduttore del vento cablato RSW. Quindi avrei bisogno di capire se devo sostituire anche i vecchi display (tipo con la serie i70s/p70s) oppure posso collegare i nuovi trasduttori ai vecchi display installando la centralina ITC-5? Oppure posso gestire tutto con un semplice axiom +? La ringrazio molto e la saluto cordialmente. Lorenzo Ferretti
R 18-01-25 Buonasera, purtroppo dovrà valutare anche la sostituzione dei display ST60 perchè non sono compatibili con sensori in NMEA 2000, quindi necessari display serie i70S o Alpha. Cordiali saluti. Luigi Bianchi
