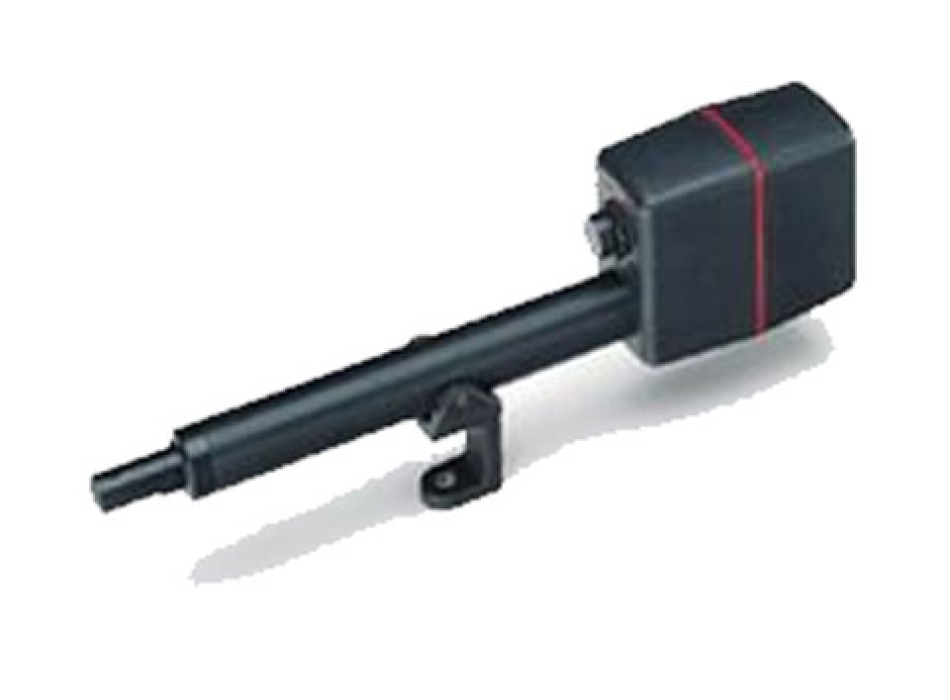

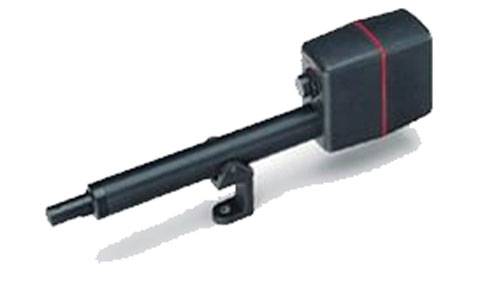

Raymarine stern drive actuator

  • Code: M81138
€ 1.099,00 € 1.396,90 -21%
Raymarine actuator for stern drives
Mechanical linear actuator Compatible with power assisted inboard / outboard engines.
Before installing an actuator, check its compatibility.
Compatible with Mercruiser power-assisted inboard / outboard engines, post 1997, and Volvo Penta.
Boats with 12V power supply only.
Includes Raymarine accessories code D165 and D166.

Given the complexity of the installation, installation by specialized personnel is recommended.

Technical features:
Item code: M81138
Actuator type: Electromechanical
Maximum thrust: 50 kg
Band-to-Band Time: 8.8 seconds
Actuator length: 214 mm
Corepack: ACU-200
D. Compatible con autopilots st 6002 ?
R. 22-07-22 Buon pomeriggio, la compatibilità o meno dell'attuatore in oggetto, non è data tanto dal modello di display, bensì dal tipo di timoneria della barca e dal modello di precessore che è installato a bordo. Quindi in ogni caso compatibile con la maggior parte delle box abbinate al display ST6002, ma da chiarire appunto il modello di timoneria e se nell'eventualità sia da sostituire un precedente attuatore analogo a quello in oggetto perchè guasto. Cordiali saluti. Luigi Bianchi
D. Buongiorno. È compatibile con Autohelm ST 7000 Grazie
R. 12-06-22 Buongiorno, il problema non è se sia compatibile o meno con ST7000, ma se sia idoneo per la barca dove dovrà essere installato. Si tratta di un attuatore da installare su imbarcazioni a motore con timonerie meccaniche con piedi poppieri. Cordiali saluti. Luigi Bianchi
D. Buongiorno,sarei interessato all'acquisto dell'attuatore m81138,vorrei sapere se,quando sara'disponibile. in attesa di vostre info cordialmente Ferdinando Russo
R. 30-06-2021 Buongiorno, sono in ordine dal 21 Aprile..... Non ho ancora date certe da Raymarine purtroppo, mi spiace. Cordiali saluti. Luigi Bianchi
