Raymarine Transducer B275LH-W 1kw Chirp

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 2.759,00 € 3.172,00 -13%

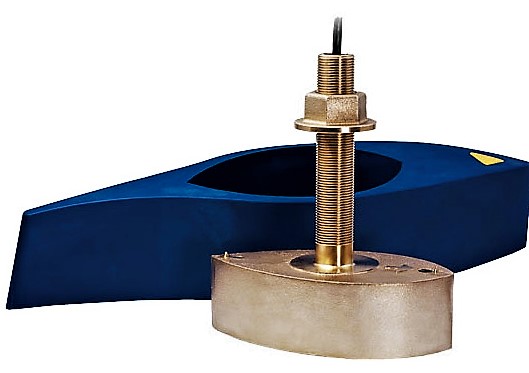

Raymarine 1KW Transducer Bronze Thru-Hull B275LH-W

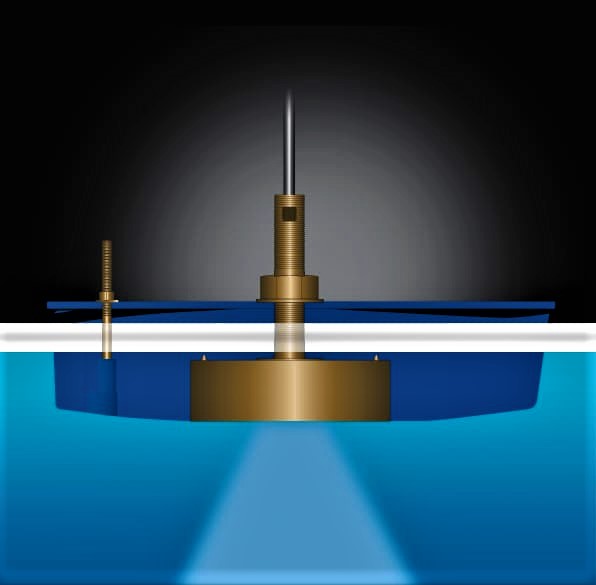

1 Kw transducer for cp470 module High performance bronze feedthrough with new ceramic broadband technology. Get more coverage under your boat with the unique wide beam, high frequency, and Chirp ready transducer. The high band operates in a frequency range from 150 to 250 kHz and has a fixed radius of 25 ° for all frequencies which results in a higher resolution. The consistently wide beam provides double coverage and excellent fish arches on the display compared to most narrow beam high frequency transducer options. The included high performance fairing improves broadband results even at higher speeds. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential up to 152m (500 '). The low frequency band and 1 kW of power also support great deep water performance. Get the best of both worlds with Chirp-ready dual frequency Airmar transducers with wide beam coverage. Get the OEM Part Numbers BrochureGet more coverage under your boat with Airmar's unique wide beam, high frequency, and Chirp ready transducer. The high band operates in a frequency range of 150 to 250 kHz and has a fixed radius of 25 ° for all frequencies. The high frequency band results in higher resolution. The consistently wide beam provides double coverage and excellent fish arches on the display compared to most narrow beam high frequency transducer options. The included high performance fairing improves broadband results at speeds above 30 knots (34 MPH). The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential up to 152m (500 '). The low frequency band and 1 kW of power also support great deep water performance. Get the best of both worlds with Chirp-ready dual frequency transducers with wide beam coverage.
TECHNICAL SPECIFICATIONS
  • Fast response 1 kW depth and water temperature sensor for great performance in low frequency deep water
  • Low frequency: 42 to 65 kHz
  • Beam width from 25 ° to 16 °
  • Maximum depth of 914 m (3,000 ')
  • High frequency: 150 to 250 kHz
  • Constant beam width of 25 °
  • Maximum depth of 152 m (500 ')
  • 123 kHz of total bandwidth from one transducer
  • It covers the popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • The high frequency offers superior performance in shallow water, bottom detail and fish-target separation

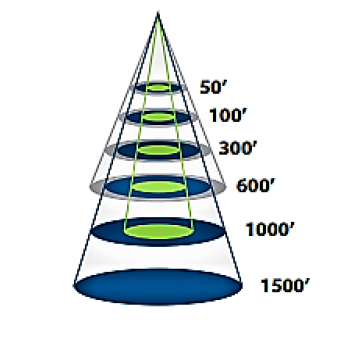

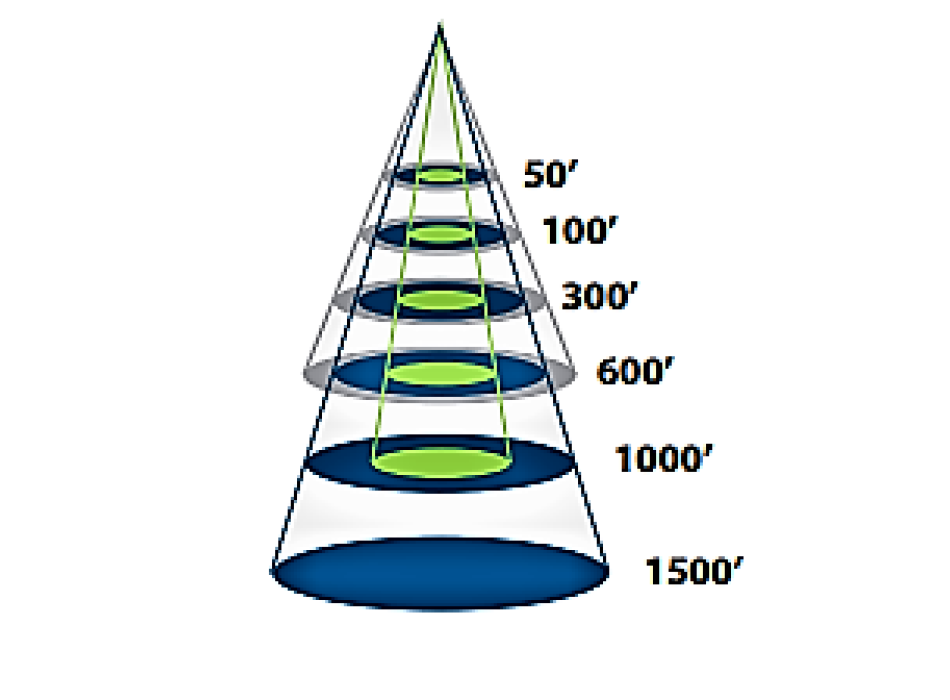

  • The wide beam width provides greater coverage for detecting fish in the upper water column
  • Bronze housing with high performance fairing for optimum performance at higher speeds
D Che profondità massime raggiunge
R 04/10/2025 Buongiorno, se abbinato alla box CP470, può raggiungere anche i circa 7/800mt in bassa frequenza. https://www.painestore.it/modulo_fishfinder_cp_470 Cordiali saluti. Luigi Bianchi
