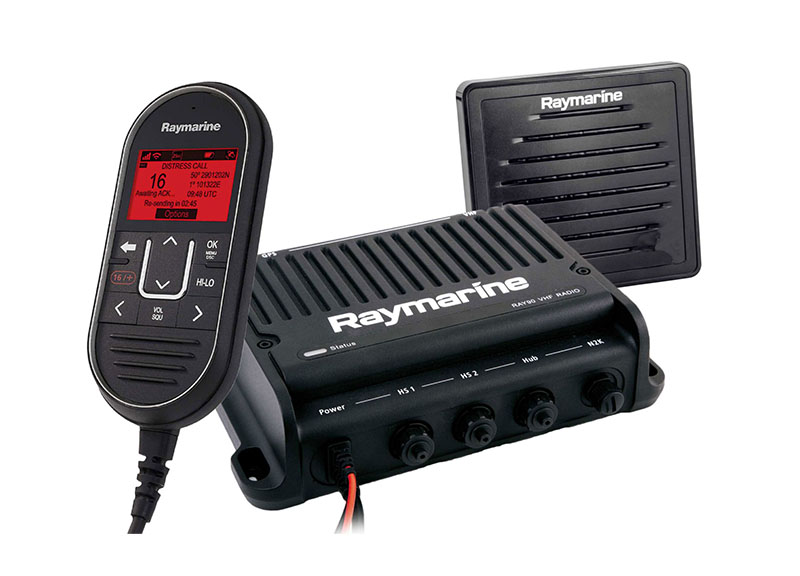

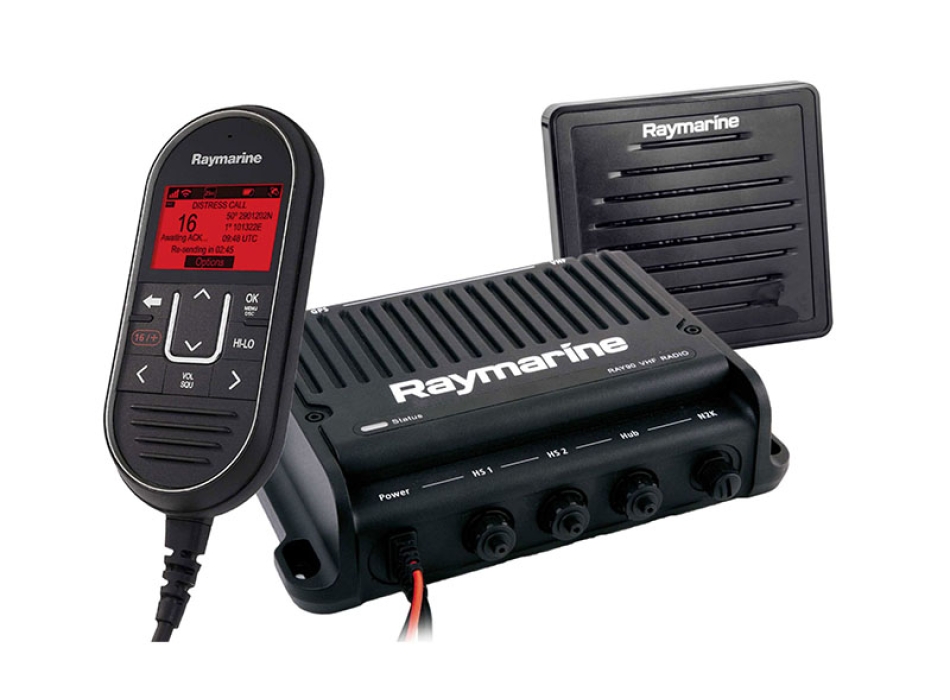

Raymarine VHF Ray 91 AIS
Built-in AIS receiver module
NEW MODULAR VHF MULTISTATION WITH AIS CLASS B RECEIVER
In addition to being a complete VHF radio system, the Ray91 also integrates a receiver with automatic identification system (AIS). The Ray91 can receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them with compatible multifunction displays, chartplotters, radars and instruments.
Main features VHF black box radio, dual station
Class B receiver with built-in automatic identification system (AIS)
Wired microphone and passive speaker included
Expandable to 2 RayMic microphones
Integrated megaphone and fog signal generator
Optional external GPS receiver and Class D selective digital call
Simple NMEA2000 and NMEA0183 networking
The Ray91 is also equipped with a receiver with integrated automatic identification system (AIS). Use the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them via NMEA2000 or NMEA0183 with compatible multifunction displays. AIS equipped vessels can be easily identified by their name, heading, speed, CPA and other voyage information.
Communication power The Ray91 features a powerful 25 watt transmitter and commercial grade electronics for long life and superior performance. Channel scan, dual-watch, tri-watch and weather alarm functions are standard. The Class D selective digital call radio and built-in GPS make it easy to configure advanced call and security features. Just enter your vessel's MMSI number during setup and you're ready to sail. The optional passive GA150 GPS antenna is required for GPS to function.
Location monitoring Use the Ray91's Position Tracking feature to keep tabs on up to 5 DSC-equipped vessels nearby. Their positions are automatically shared with the Raymarine multifunction display. Keep an eye on other vessels cruising with you, monitor vessels of interest or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.
Megaphone The Ray91's built-in megaphone will make you heard on deck and in the harbor. Plug in the optional fog horn and make your presence known with 30 watts of audio output, plus two-way talkback. When the fog thickens, the hailer can be set to automatically emit fog signals to oncoming boats and at anchor.
Waterproof and resistant The Ray91 transceiver is made of solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic microphones feature razor-sharp backlighting for easy viewing in all conditions, while large keys offer a secure grip with easy access to commonly used functions.
