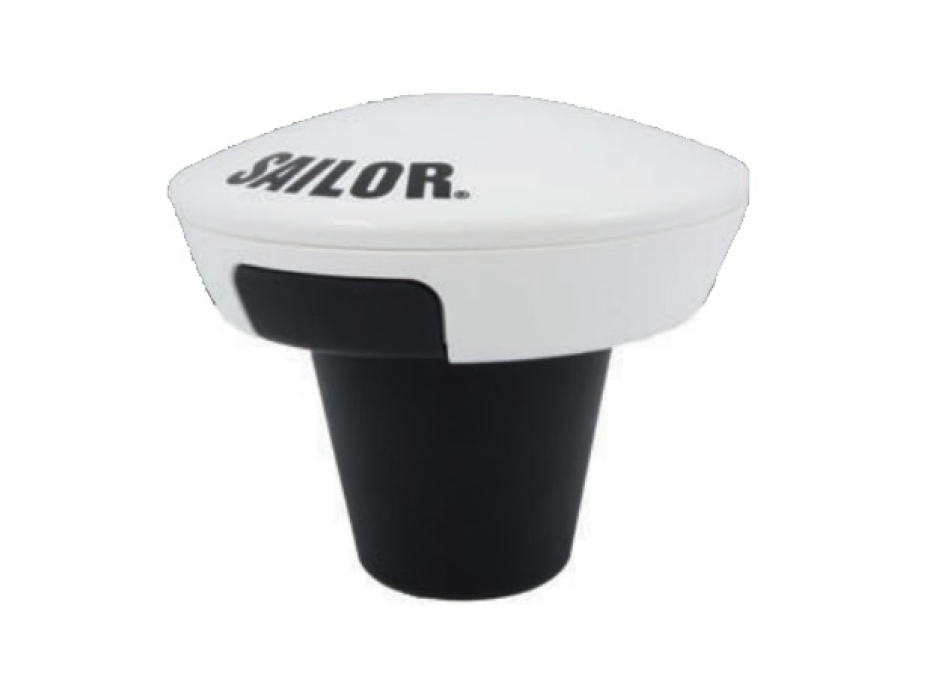

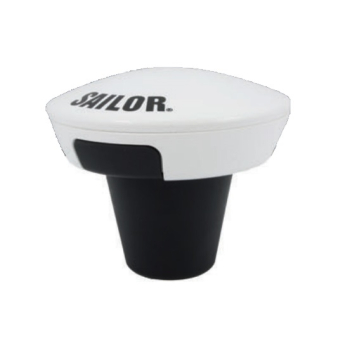

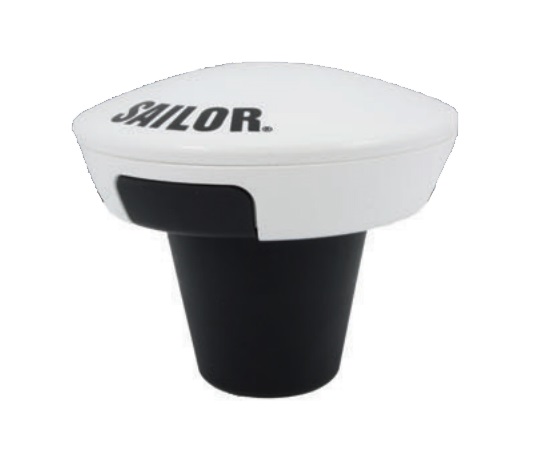

SAILOR 6285 GNSS Antenna Active

(0)
SAILOR 6285 GNSS Antenna Active
€ 590,00 € 650,00 -9%
SAILOR 6285 GNSS Antenna Active

06285A-00500 Sailor 6285 GNSS Active Antenna

The SAILOR 6285 GNSS Antenna – It is a robust and waterproof GPS / GLONASS antenna with IPx6 & IPx8 rating).

It is used as a GPS source in Sailor AIS Transponder 6282 systems



SAILOR 6285 GPS ANTENNA – ACTIVE

  • Dimensions Ø: 91 mm, H: 77.5 mm
  • Weight 0.15 kg

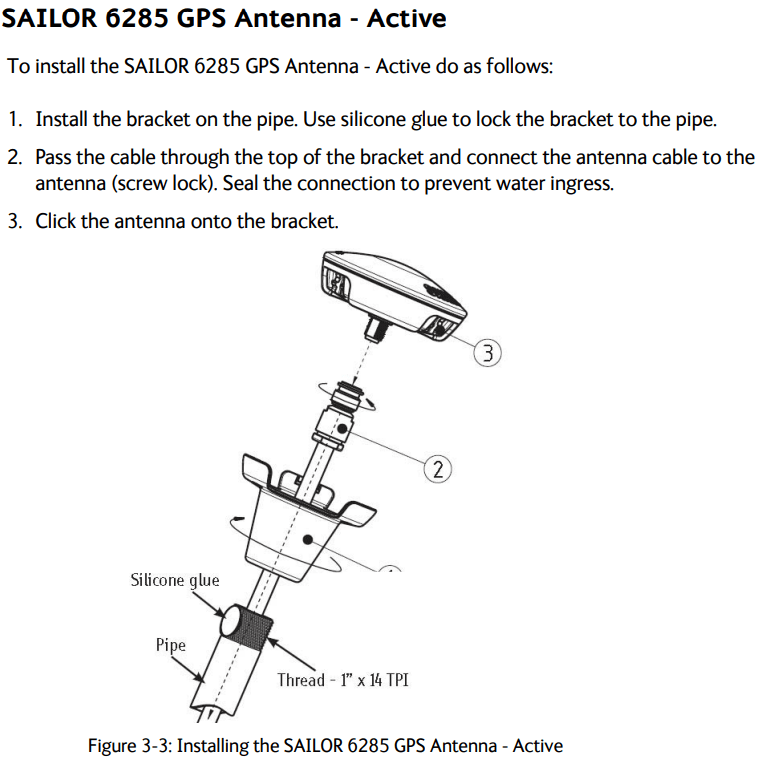

  • Mounting Bracket mount on pipe, thread 1” x 14 TPI
  • Equipment class Exposed, according to IEC 60945
  • Antenna type Active patch antenna
  • Frequency 1570 to 1608 MHz
  • Nominal Impedance 50 Ohm
  • Polarization Circular right-hand
  • Hemispherical Coverage
  • Selectivity 45 dB down at center ±25 MHz
  • Gain 28 dB
  • Supply voltage 5 ±1 VDC
  • Current consumption Approx. 30mA
  • TNC female connector
  • Cable RG214 recommended
  • Operating temperature -40°C to +55°C
  • Storage temperature -40°C to +80°C
