Shakespeare GALAXY-INFL8 Inflatable VHF Emergency Antenna

(0)
The Shakespear GALAXY INFL8 emergency VHF antenna is ready for use in an instant thanks to the integrated CO2 cartridge but can also be inflated by breath using the special mouthpiece.
€ 149,00 € 181,78 -18%
GALAXY-INFL8 INFLATABLE EMERGENCY VHF ANTENNA
With 6m cable

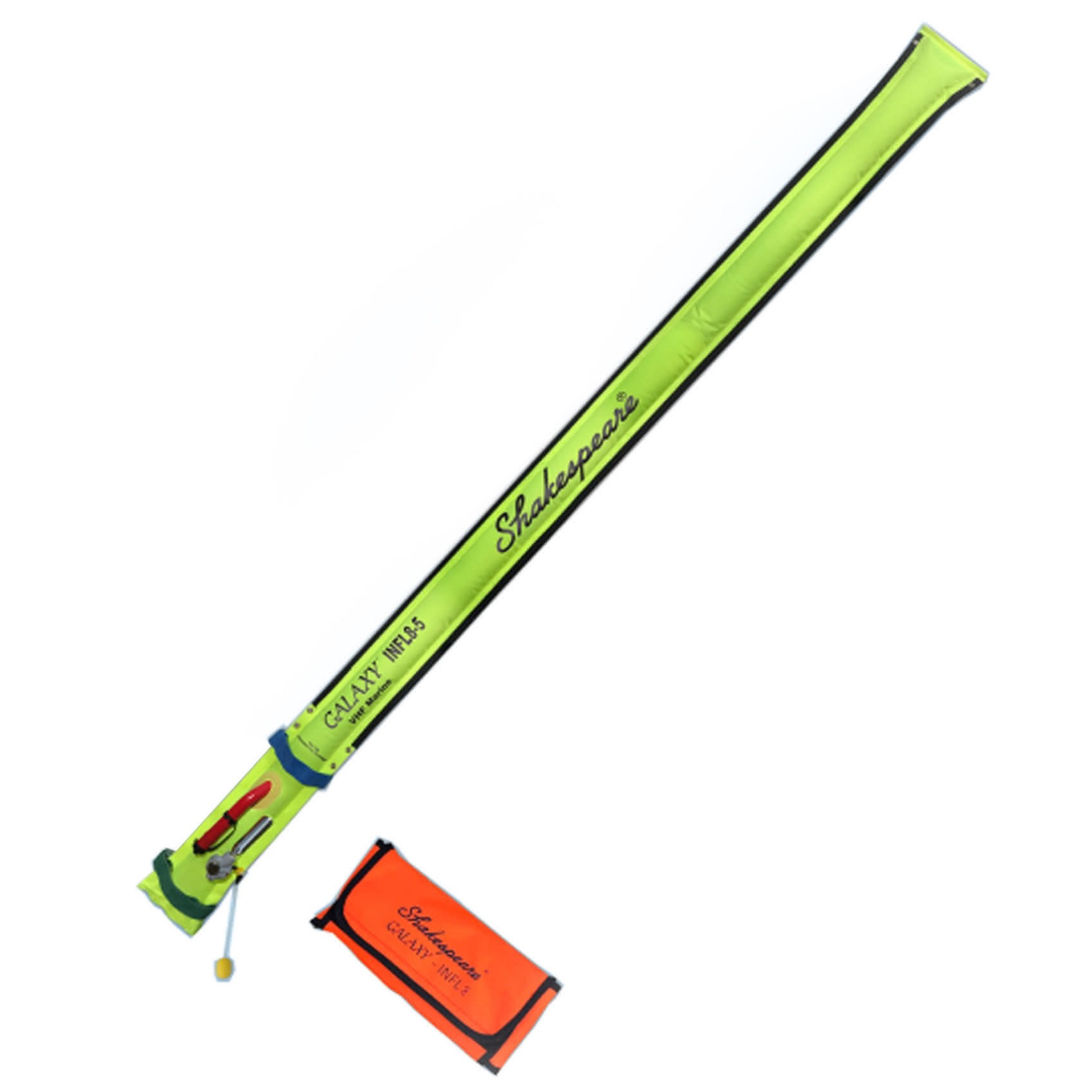

The Shakespear GALAXY INFL8 emergency VHF antenna is ready for use in an instant thanks to the integrated CO2 cartridge but can also be inflated by hand using the dedicated mouthpiece. The antenna body is 1.6 meters (5 feet) tall and transmits with 3dB gain.

It features two 600mm long Velcro straps with eyelets that offer various installation options.

Versatile, high-quality connection to a radio via the PL-259 connector mounted on the 6.3 m long RG174 cable (Ø 3 mm). Connect the Shakespear GALAXY INFL8 emergency antenna to your portable radio with an SMA antenna connector (external thread / female) using the included SMA adapter (internal thread / male). The solderless UHF connector can be used to connect the antenna to the VHF antenna cable already present on board.

Note:
Not intended for use as a personal flotation device
Despite its high visibility the antenna is not considered a visual emergency signal
Not suitable for underwater excursions and man overboard situations

Package Contents

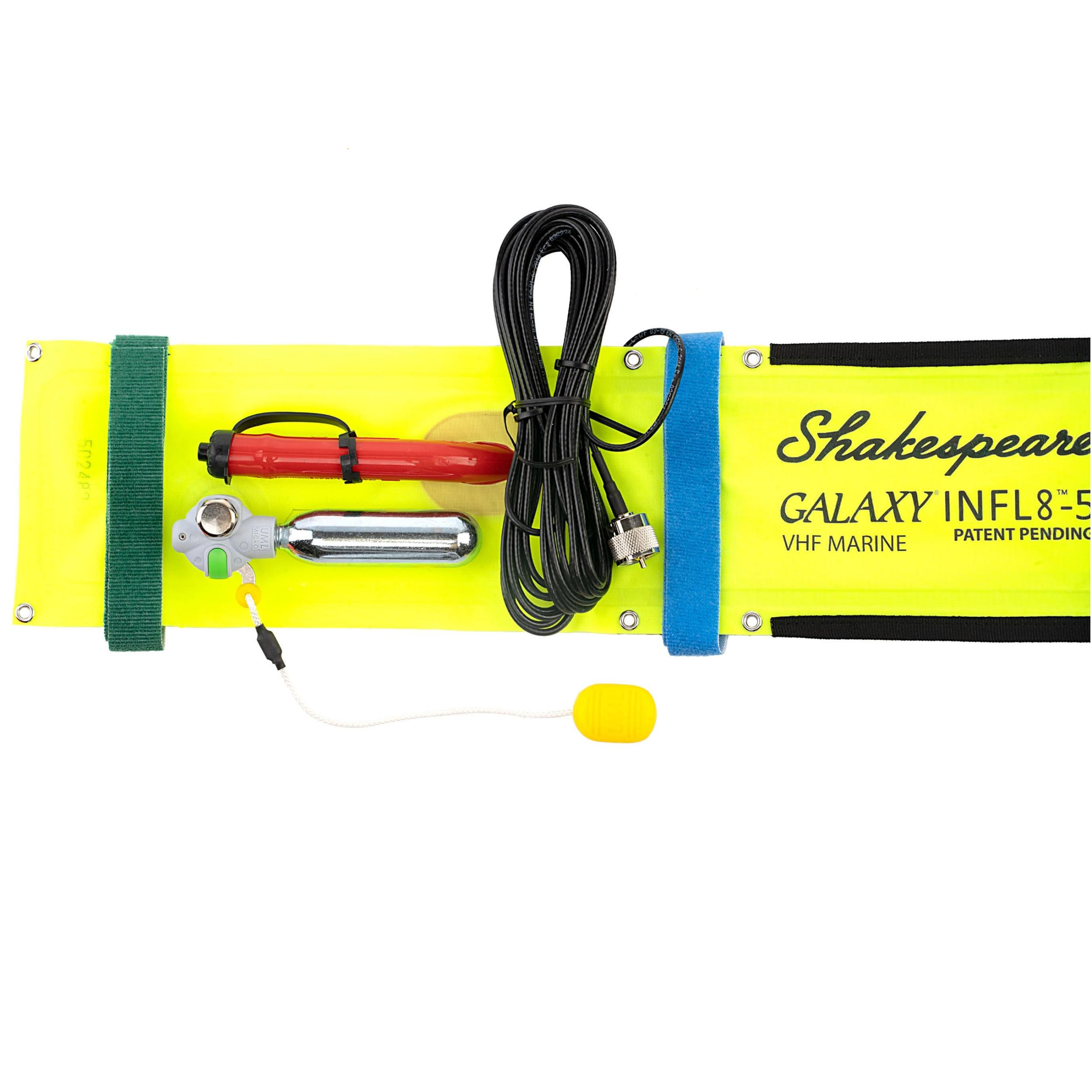

Shakespeare GALAXY INFL8 FM Antenna with 6.3m RG178 cable and PL-259 connector pre-installed
SMA (Female/Male) to PL-SO239 Socket Adapter
UHF connector to PL-SO239 socket
Mounting straps
16g CO2 cartridge (installed and ready to use)

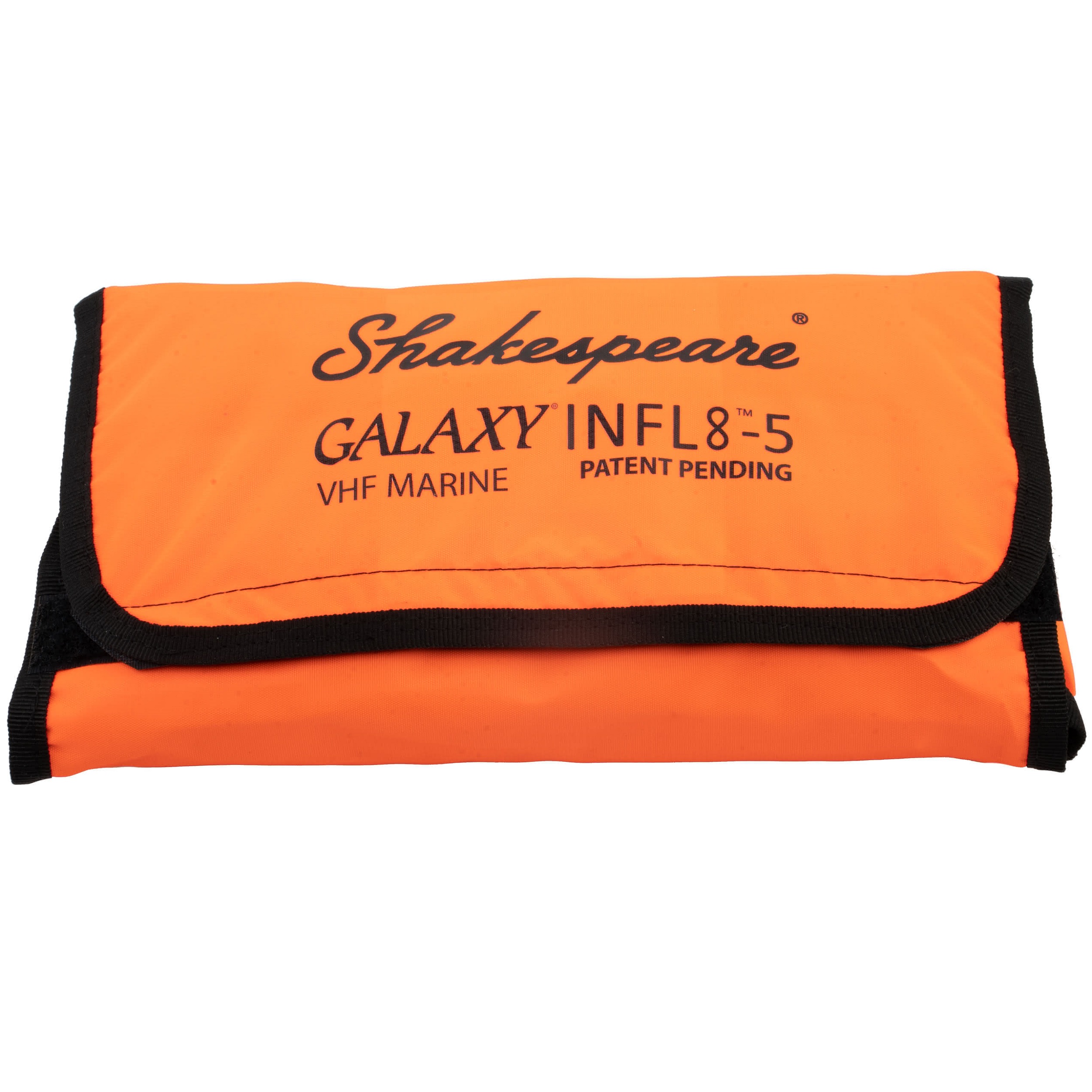

Storage case
Instructions (English)
Technical Specifications:
Antenna length: 1.6 meters (5 feet)
Frequency: Marine frequencies VHF 156-162 MHz
Gain: 3 dB
Buoyancy: > 24 hours per CO2 cartridge
Recommended CO2 cartridge: 16g
Antenna cable: 6.3 meters RG174 cable (Ø 3mm)
Connections: PL-259 plug pre-installed
From SMA (Internal Thread / Male) to PL-SO239 Socket
UHF connector to PL-SO239 socket
Impedance: 50 ohms
