Simrad Lowrance Transd. B60 12 Degree Tilt through Steel

(0)
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 599,00 € 708,82 -15%

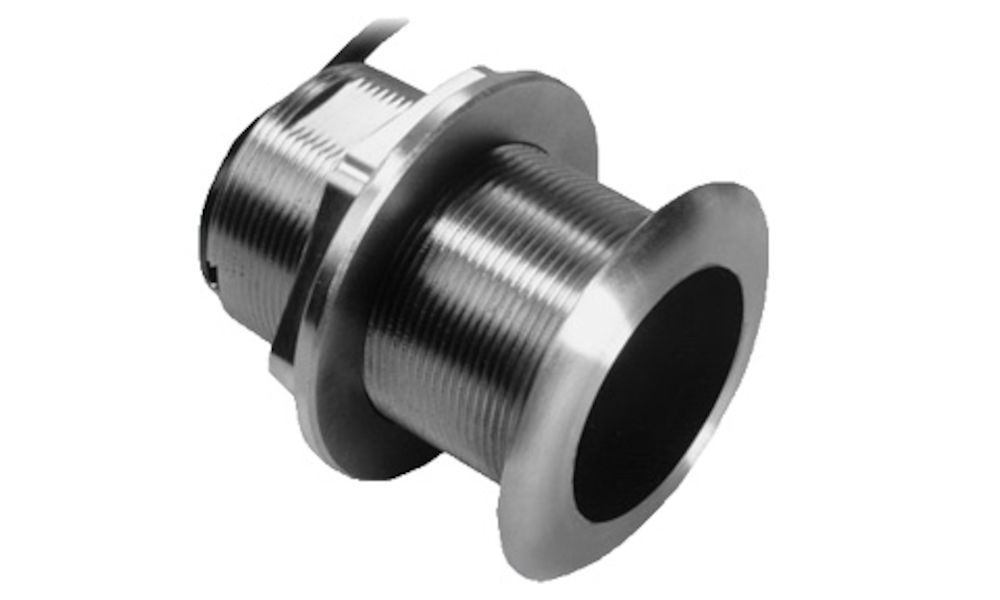

Simrad Lowrance Transducer B60 SS Through Steel 12 Degree Tilt

Through-hull transducer 12 tilt power 600 watt Depth / Temp connector X sonic 9 pin black freq. 50-200 khz.
The SS60 is a stainless steel, thru, inclined, dual frequency, depth and temperature transducer.
The ceramic element is internally tilted for hull tilt compensation, providing excellent echo returns for more accurate depth readings.

Main features

Black 9 pin sonic x connector

Depth / temperature
Double frequency
-Operates at 50kHz and 200kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Highly accurate
-Provides extremely accurate data.

Tilt 12 °
-12 ° rake is ideal for boats with hull deadrise from 8 ° to 15 °.

Low profile
-Low profile housing minimizes drag with just 5mm of extension outside the hull.

Dimensions

Dimensions (W x H x D) 84 (d) x 95 mm (3.3 x 3.75)
Weight 1.4 kg (3 lb)

Freq and depth

Frequencies 50/200 kHz
Max Depth 350m (1200 ft) depending on Sonar
D Vorrei sapere,del trasduttore in questione, in base alla profondità il cono come lavora a varie profondità e quale è la differenza tra SS60 e B150 M considerando che ho ,come strumento un Lowrance Elite ti 9 e pesco su fondali compresi tra pochi metri e massimo 150 mt le mie pesche sono : bolentino media profondità,bolentino col vivo,traina col vivo,drifting tonno,traina costiera, tecniche verticali. Grazie!
R 25-09-22 Buon pomeriggio, la differenza sostanziale è che il B60 o SS60 non sono Chirp, quindi solo freq. standard 50/200khz. I tradizionali a 50khz, offrono comunque un maggior cono rispetto al B150. A questo link può trovare le caratteristiche effettive in merito all'apertura del cono appunto: https://airmar.com/bottom-calculator.html Cordiali saluti. Luigi Bianchi
