Standard Horizon GX1850GPS VHF with GPSe NMEA2000

  • Code: AM064N303
€ 329,00 € 376,00 -13%

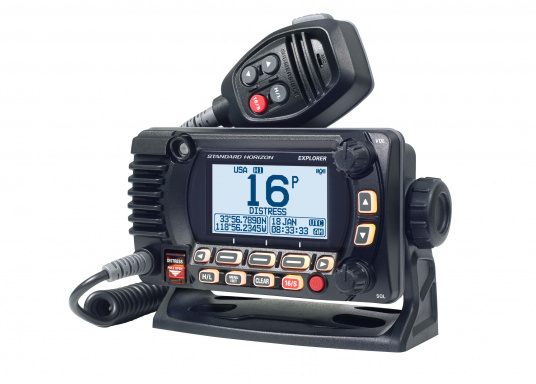

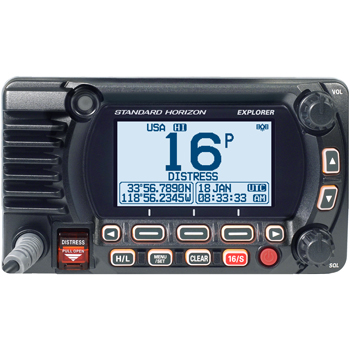

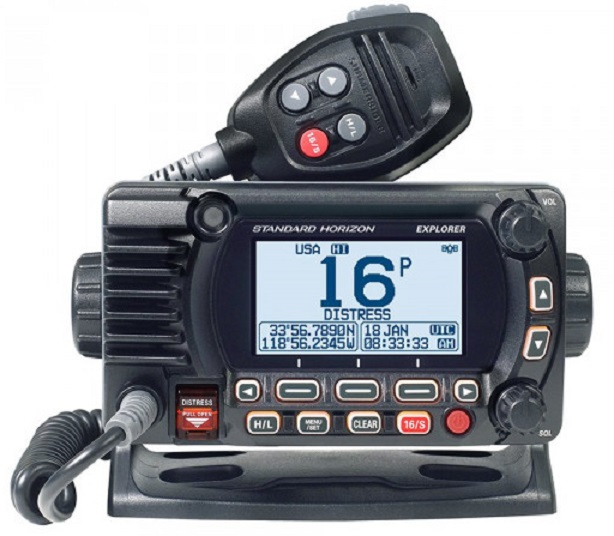

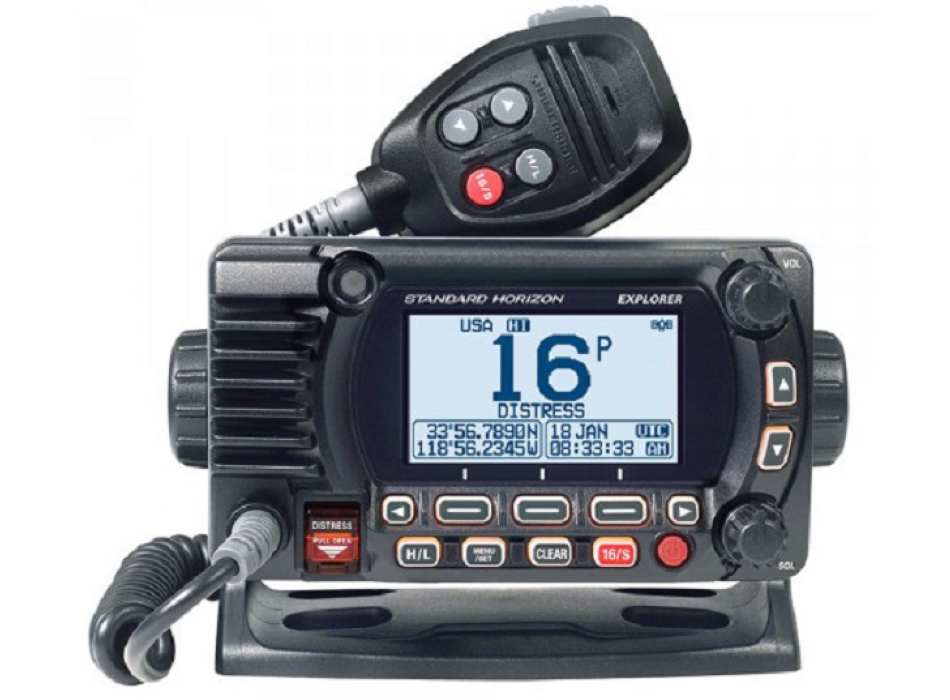

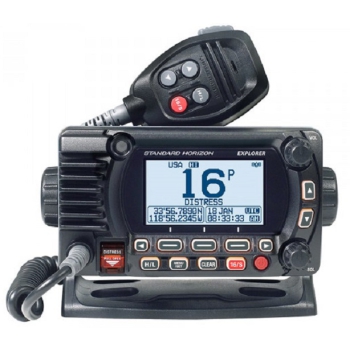

VHF Standard Horizon GX1850GPS
Main features

NMEA2000 compatible

Easy plug and play connectivity to the NMEA bus. A single plug-in interface allows the radio to instantly receive position data from a compatible GPS and easily send DSC information (position sharing data, DSC emergency information) directly to the chartplotter display.

Compatibility with the second RAM4 station
Now compatible with Standard Horizon's latest RAM4 second station microphone, model SSM-70H. All functions of the main radio can now be controlled on the second RAM4 station, this includes all radio functions, DSC functions and intercom functions between the radio and the second station.

E2O Easy to use menu system
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all menu functions and settings with a few simple steps. DSC calling and DSC programming have never been easier.

Ultra compact easy installation
Mounting a VHF radio has never been easier. Explorer Series VHFs have an ultra-thin and compact rear case, only 3.3 ”deep or half the depth of comparable VHF radios on the market. The rear case design also offers flexibility when flush mounting the radio in confined areas or bracket mounting the radio by taking up less dashboard space and allowing for more mounting options.

Technical specifications
• Meets ITU-R M.493-13 Class D DSC (Digital Selective Calling)
• Separate receiver for CH70 (receiving DSC calls)
• Ultra-slim and compact back case design (3.3 "depth, 82mm)
• Compatible with NMEA2000 (GX1850GPS / GX1850)
• NMEA 0183 connectivity
• E2O icon and menu system (easy to use).
• The Preset button stores up to 10 favorite channels
• Second station remote microphone (optional RAM4 SSM-70H)
• Intercom function between the radio and an optional second station
• Programmable Scan, Priority Scan and Multi Watch
• Automatic DSC polling of up to 6 GPS ship positions
• GPS compass, Waypoints and GPS status pages (if connected to a GPS)
• Enter, save and navigate to a waypoint using the Compass page (if connected to a GPS)
• Navigation information (LAT / LON, SOG and COG) shown on the display (if connected to a GPS)
• GM (Group Monitoring) Using the DSC Group Location Call
• MOB (Man over Board) operation.
• Selectable night mode display
• Noise canceling microphone with channel change selection, 16 / S and H / L keys
• NOAA weather channels with weather alerts
D. Buon giorno per la funzione gps ha antenna incorporata oppure necessita di antenna con cavo? NEl caso è in dotazione oppure opzionale? grazie mille
R. 31-05-23 Buon pomeriggio, il sensore GPS è incorporato nel VHF, nell'eventualità vi fossero problemi di ricezione del segnale GPS se il VHF è installato all'interno della barca, è possibile poi prevedere una piccola antenna GPS esterna. Cordiali saluti. Luigi Bianchi
D. Buongiorno, nel titolo viene riportato che l'apparecchio è con GPS ma nella descrizione per alcune funzioni più volte trovo scritto: "se connesso a un GPS" . L'apparecchio è o non è con GPS integrato? A me oltre che per la sua naturale funzione di vhf mi occorrerebbe per poterlo connettere tramite nmea 2000 alla strumentazione Suzuki mfg che necessita di GPS per dati sulla velocità; è idoneo per tale utilizzo?. Ringraziandovi anticipatamente porgo cordiali saluti.
R. 24-04-23 Buonasera, confermo, GPS incorporato come tutti i VHF che abbiamo sul nostro sito. In tutta sincerità, nella maggior parte die casi, i dati GPS provenienti da dispositivi VHF o AIS, non vengono condivisi in rete, sono utilizzati solo per il dispositivo sia VHF che AIS. Non saprei nel caso specifico del VHF in oggetto, in ogni caso consiglierei di prevedere un GPS esterno dedicato, eventualmente anche Chartplotter. Cordiali saluti. Luigi Bianchi
