Steiner Commander Thermal H35

  • Code: 050-4310
€ 2.899,00 € 3.415,00 -15%
Steiner Commander Thermal H35


The Steiner Commander has always been a guarantee of maximum safety and support at sea; The new Commander Thermal will not only meet this requirement, but expand it further. Today, as always, we promise you excellent observation performance, but also technological innovation and reliability.

Steiner's thermal imaging device offers the perfect equipment for all seafarers, enabling them to navigate safely and precisely on the high seas and in the most demanding challenges. It provides valuable assistance during daytime navigation or in complete darkness. It also promises clear visibility of illuminated and unilluminated barrels, wrecks, other boats and harbor entrances.

In summary, the Commander Thermal, together with analogue binoculars, offers the perfect complement, especially in difficult lighting and visibility conditions, early detection of dangers and search and rescue operations at sea. It is therefore a valuable addition to the sailor's equipment, improving safety and efficiency at sea.

  • Get razor-sharp thermal images thanks to the cutting-edge 640x480 thermal sensor
  • High-speed software generates the best image in all weather conditions (rain, snow, fog)
  • The high-quality OLED display with a resolution of 1280x960 improves recognition and identification
  • High-contrast images with precise contours thanks to a NETD < 35 for advanced image enhancement
  • Specially adapted buttons for ease of use combined with a very light housing
  • Waterproof and durable Makrolon polycarbonate housing for a virtually indestructible surface that withstands temperatures from -10°C to +50°C
  • Ergonomic and interchangeable eyecup for always comfortable observation
  • Continuous working time more than 8.5 hours with interchangeable batteries at hand and compatible with power banks

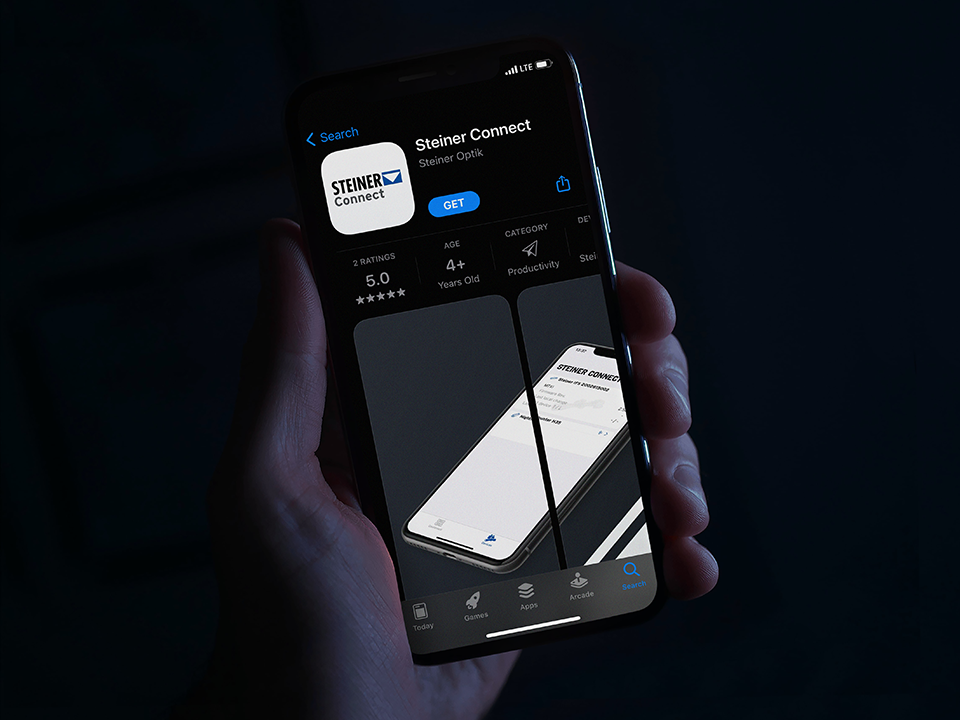

Steiner Connect

Download the Steiner Connect app from the App Store or Google Play Store on your mobile device (smartphone, tablet, etc.), among other things, you will be able to follow live streaming, conveniently view photos and videos or change device settings .

Optical characteristics

Magnification
1-8x
Focal length
35m F1.0
Field of view at 100m
5m x 9.4m
Expansion of the system
digital
Resolution (scanner)
640x 512 @ 12μm
Display
OLED
Resolution (screen)
1280x960
Frame rate
50Hz
Max. Screen Size
22 inches

Function and equipment

High performance optics
Quantum Vision
Stadiametric rangefinder
Yes
Picture-in-Picture function
Yes

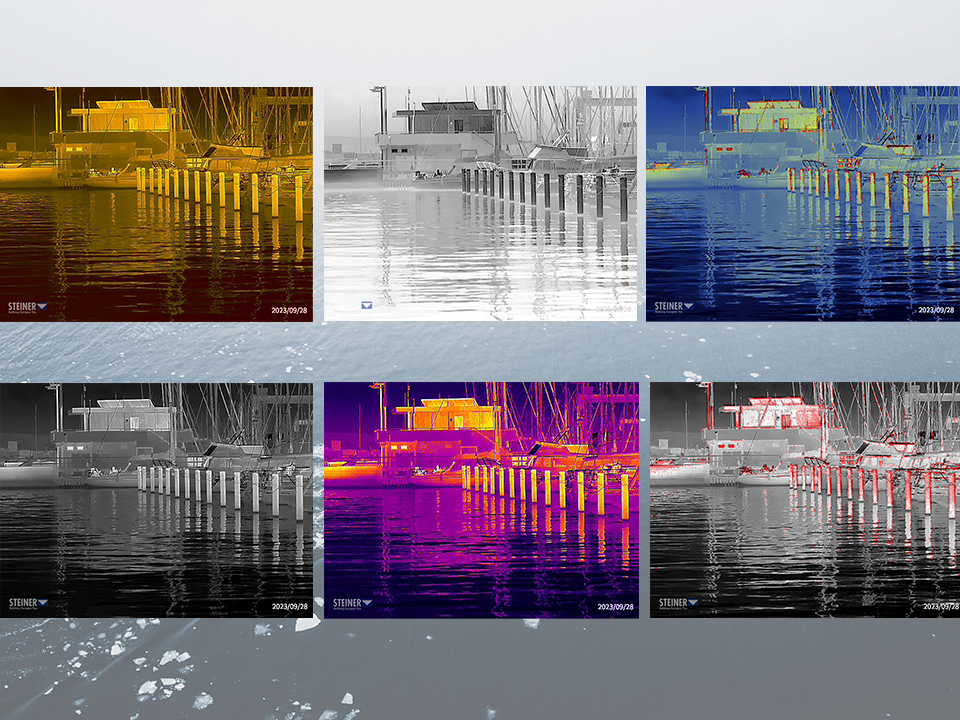

Color palette
Hot white, hot black, iron red, fire, hot, amber
Calibration
Auto/Scene/Lock
Functional area
From -10 to +50 °C
Waterproof
Waterproof
Shockproof
to 30G
Stand-By mode
Yes
Video output format
mp4 / jpg
Storage capacity
32GB
USB
TYPE C (USB 2.0 standard)
Video interface
Micro HDMI
Wifi
Steiner Connect application

General features and accessories

Length
210mm
Height
80 mm
Depth
68mm
Weight
514 g
Drums
2 x 18650 lithium ion batteries (not included). We recommend using rechargeable batteries with a length of (min 67mm - max 71mm)
Charging method
Multiple interchangeable GB/AU/EU/CN/UL connectors
Adapter
Standard USB-C network adapter 5 VDC, max, 10W
Operating time
≥ 8.5 hours
Warranty
2 years
Item number
8700000109
