TECHNICAL SPECIFICATIONS:
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, automatic encryption mode, client separation, EAP-TLS with PKCS#12 certificates, automatic reconnection disabled, 802.11w protected management frames (PMF)
Username
ESSID Stealth Mode (Hide SSID)
Wi-Fi users
Up to 100 simultaneous connections
Wireless connectivity features
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource metering (802.11k)
Wireless MAC Filter
White list, black list
Wireless QR Code Generator
Once the scan is complete, the user will automatically log in to your network without having to enter login information.
Ethereal
Ethereal
1 x RJ45 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports MDI/MDIX automatic crossover
Net
Network protocols
Protocols TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hot spot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, restrictions for individual users or groups, user management, 9 predefined customizable themes and the ability to upload and download custom hotspot themes
Traffic management
Real-time monitoring, wireless signal graphs, traffic usage history
Safety
802.1x
Port-based network access control client
Authentication
Key-based blocking of SSH, HTTPS, CLI, IP and login attempts, time-based login blocking, built-in random password generator
VLAN
Tag-based VLAN separation
DATA TO THE SERVER
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
Data to the server
Extract parameters from multiple sources and different protocols and send them all to a single server; custom LUA scripting, allowing scripts to use the router's Data to Server functionality
API
Teltonika Networks Web API Support (beta)
Expand your device's capabilities by using a set of configurable API endpoints to retrieve or modify data. For more information, see this documentation: https://developers.teltonika-networks.com
Monitoring and management
WEB UI
HTTP/HTTPS, Status, Configuration, FW Update, CLI, Troubleshooting, Multiple Event Log Servers, Firmware Update Availability Notifications, Event Log, System Log, Kernel Log
FOTA
Firmware update from server, automatic notification
SSH
SSH (version 1, version 2)
E-mail
Get email status alerts from various services
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
System Features
processor
MediaTek, Dual Core, 880 MHz, MIPS 1004Kc
RAM memory
256 MB, DDR3
FLASH Storage
16 MB, SPI NOR Flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing the current configuration
Factory reset
A full factory reset restores all system settings, including IP address, PIN, and user data to the manufacturer's default configuration.
FIRMWARE CUSTOMIZATION
Operating system
RutOS (Linux operating system based on OpenWrt)
Supported languages
Busybox Shell, Lua, C, C++
Development tools
SDK package with build environment provided
LPG customization
You can create your own custom firmware and branded web page application by changing colors, logos and other elements in our firmware to suit your or your customers' needs.
Package Manager
Package Manager is a service used to install additional software on your device
Energy

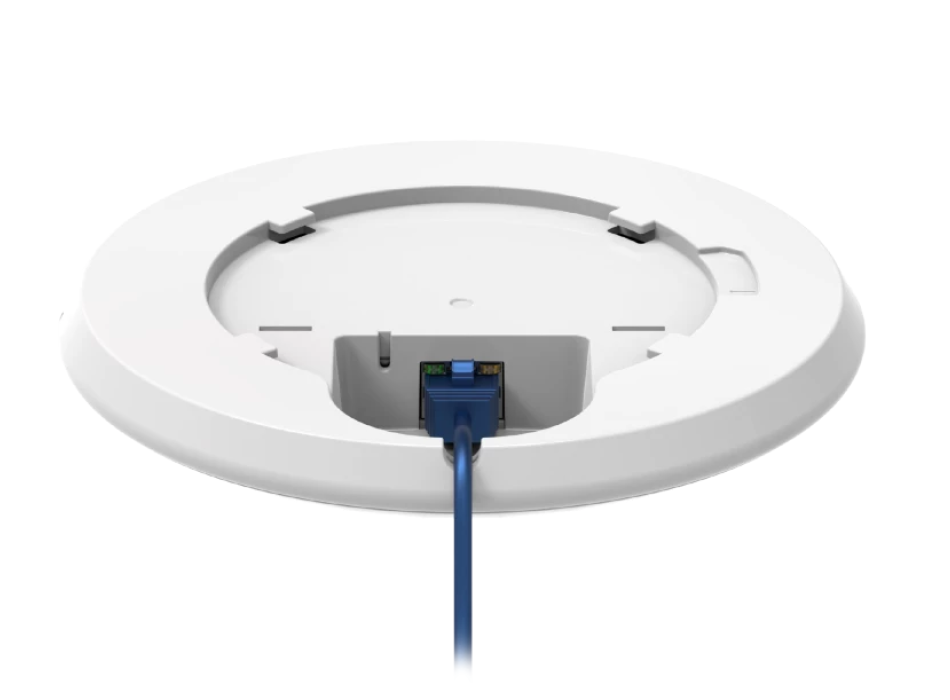

Connector
RJ45 socket
Input voltage range
44.0 – 57.0 V
PoE Standard
802.3af PoE Class 1
Energy consumption
Idle: <4W / Max: <5.5W
Physical interfaces
Ethereal
1 RJ45 port, 10/100/1000 Mbps
Status LED
1 x Power LED (can be turned off from web UI)
Antennas
2 x internal 2.4GHz Wi-Fi, 2 x internal 5GHz Wi-Fi
Antenna Specifications
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain <4.9 dBi, omnidirectional
2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
Reset
Restart button/User default reset/Factory reset
Physical specifications
Casing material
UV stabilized plastic
Dimensions
Diameter 158 mm x 30 mm
Weight
190 grams
Mounting options

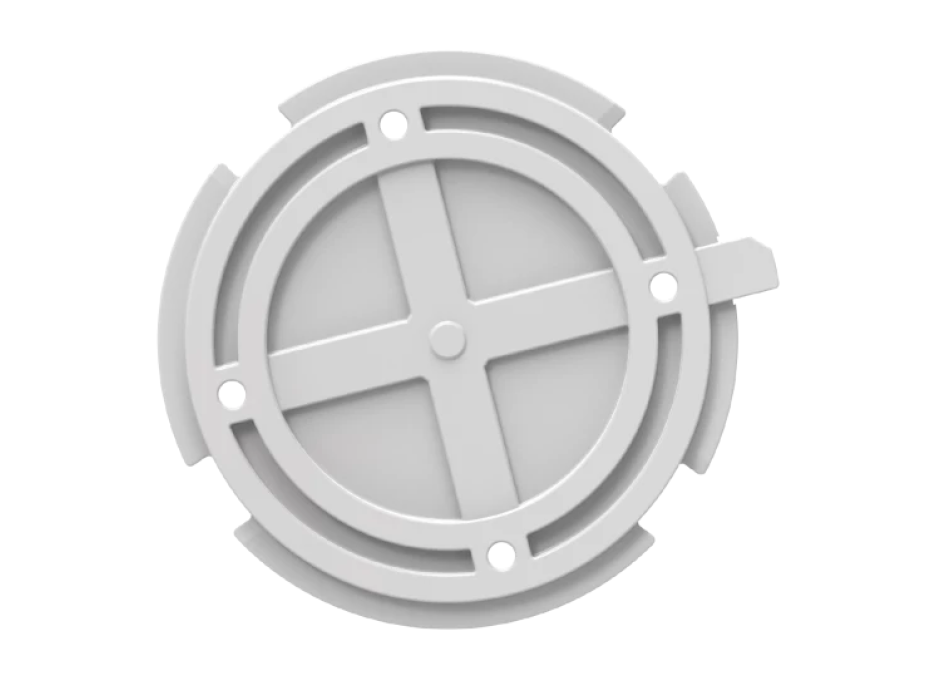

AP Mounting Bracket (for Ceiling Mounting)
Operating environment
Operating temperature
-40°C to 50°C
Operating humidity
10% to 90% non-condensing
Degree of ingress protection
IP30 rating
Regulatory and type approvals
Regulations
CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)
EMC emissions and immunity
Standard
EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 61000-3-3:2013+A1:2019 + A2:2021
EN IEC 61000-3-2:2019 + A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
ESD
EN 61000-4-2:2009
Radiated immunity
Standard EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge immunity (AC power port)
EN 61000-4-5:2014 + A1:2017
Customer Service
EN 61000-4-6:2014
IMMERSION
Standard EN IEC 61000-4-11:2020
RF
Standard
EN 300 328 V2.2.2
EN 300 893 V2.1.1
EN 300 440 V2.2.1
Safety
Standard
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM standard: AS/NZS 62368.1:2022
Italian: CEI EN 62368-1:2018 Standard
