Wireless
Wireless mode
802.11b/g/n/ac/ax (Wi-Fi 6) with data rates up to 2402 Mbps on 5 GHz and 576 Mbps on 2.4 GHz (Dual Band, MU-MIMO), 802.11r Fast Transition, Access Point (AP), Station (STA)
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, automatic encryption mode, client separation, EAP-TLS with PKCS#12 certificates, automatic reconnection disabled, 802.11w Protected Management Frames (PMF)
SSID/ESSID
SSID stealth mode and MAC address-based access control
Wi-Fi users
Up to 512 simultaneous connections
Wireless connectivity features
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource metering (802.11k)
Wireless MAC Filter
Allowed list, blocked list
Wireless QR Code Generator
Once the scan is done, the user will automatically log in to your network without having to enter login information.
Travel companion
Forward the Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
Ethernet
1 x 100/1000/2500 Mbps RJ45 port, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports MDI/MDIX auto crossover
Net
Network protocols
TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, IPsec, PPP, HTTP, TTPS
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0
Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to reliable wireless networks.
Traffic management
Real-time monitoring, wireless signal graphs, traffic usage history
Safety
Authentication
Key-based blocking of SSH, HTTPS, CLI, IP and login attempts, time-based login blocking, built-in random password generator
VLAN
Tag-based VLAN separation
Access control
Flexible access control for SSH, Web interface, CLI, and Telnet
Certificate Manager
The certificate creation tool allows you to create CA, server, client, Let's Encrypt, and SCEP certificates.
802.1x
Port-based network access control client
Data to the server
Protocol
HTTP(S), MQTT, Azure MQTT
Data to the server
Extract parameters from multiple sources and different protocols and send them all to a single server; custom LUA scripting, allowing scripts to use the router's Data to Server functionality
API
Teltonika Networks Web API Support (beta)
Expand your device's capabilities by using a set of configurable API endpoints to retrieve or modify data. For more information, see the documentation: https://developers.teltonika-networks.com
Monitoring and management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, multiple event log servers, firmware update notifications, event log, system log, kernel log
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
E-mail
Get email status alerts from various services
JSON-RPC
Management API over HTTP/HTTPS
Wi-Fi Scanner
Wi-Fi Scanner scans and collects information about wireless devices in the surrounding area
RMS
Teltonika Remote Management System (RMS)
System Features
processor
Mediatek, Dual-Core, 1.3 GHz
RAM memory
512 MB, DDR3
FLASH memory
16MB SPI NOR Flash, 512MB SPI NAND Flash
Firmware/Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update the FW without losing the current configuration
Factory reset
A full factory reset restores all system settings, including IP address, PIN, and user data to the manufacturer's default configuration.
FIRMWARE CUSTOMIZATION
Operating system
RutOS (Linux operating system based on OpenWrt)
Supported languages
Busybox Shell, Lua, C, C++
Development tools
SDK package with build environment provided
LPG customization
You can create your own custom firmware and web page application by changing colors, logos and other elements in our firmware to suit your or your customers' needs.
Energy
Connector
RJ45 socket
Input voltage range
44.0 – 57.0 V, surge protection >64.4 VDC 10us max
PoE Standard
802.3af PoE Class 3
Energy consumption
Idle: < 7 W / Max: < 11 W
Physical interfaces
Ethernet
1 RJ45 port, 100/1000/2500 Mbps
Status LED
1 x Power LED (can be turned off from web UI)
Antennas
3 internal antennas for 2.4GHz Wi-Fi and 5GHz Wi-Fi
Antenna Specifications
3x 2400 - 2500 MHz, peak gain < 4.33 dBi and 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional
Reset
Restart/Reset to user defaults/Factory reset button
Physical specifications
Casing material
UV stabilized plastic, aluminum
Dimensions (W x H x D)
Diameter 158 mm x 31.4 mm
Weight
285 grams
Mounting options

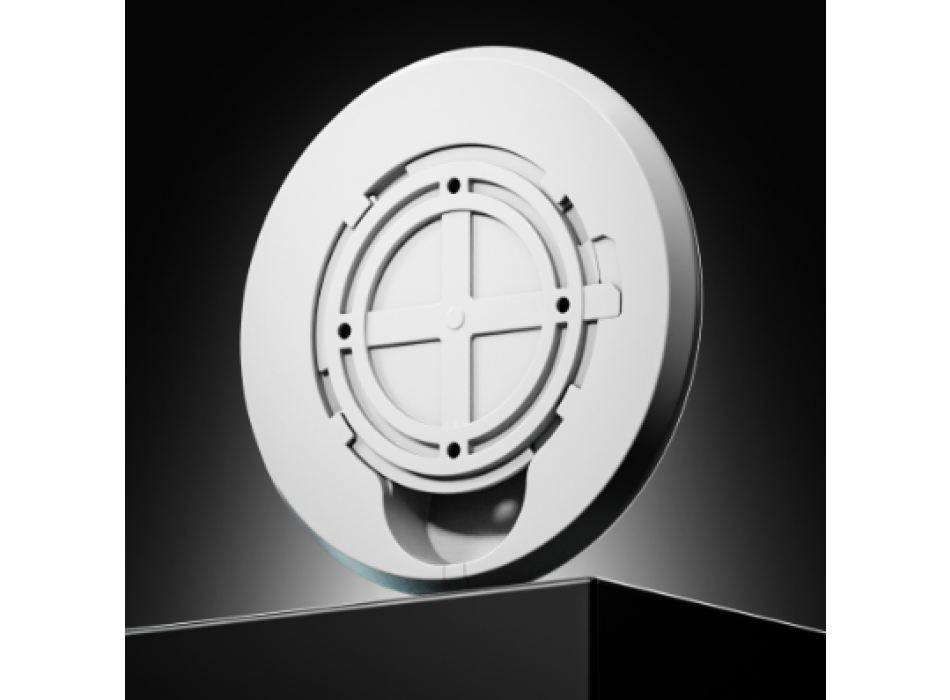

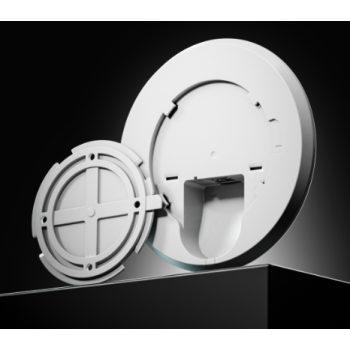

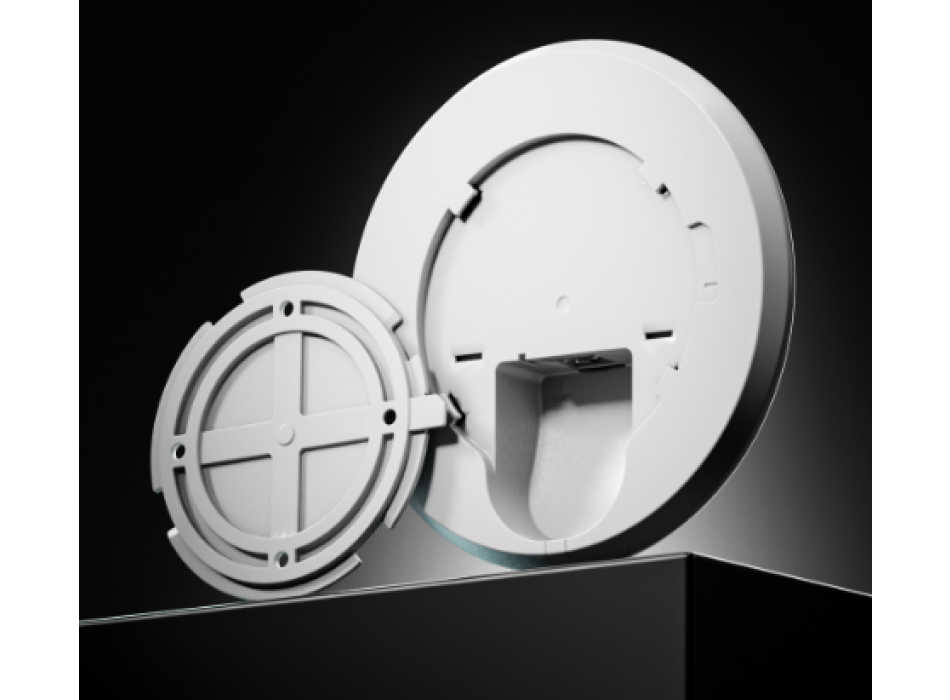

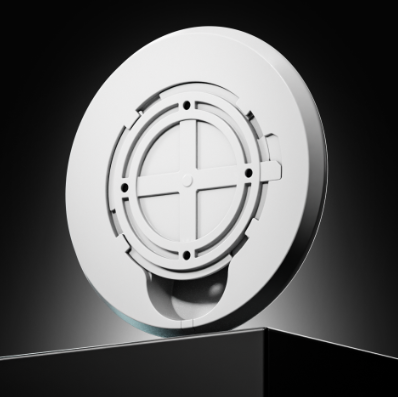

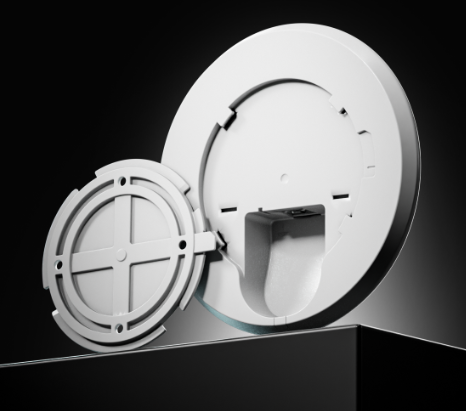

AP Mounting Bracket (for Ceiling Mounting)
Operating environment
Operating temperature
from 0°C to 50°C
Operating humidity
10% to 90% non-condensing
Degree of ingress protection
IP30
Regulatory and type approvals
Regulations
CE, UKCA, CB, EAC, UCRF, RCM, FCC, IC, WEEE
EMC emissions and immunity
Standard
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
ESD
EN 61000-4-2:2009
Radiated immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge immunity (AC mains power port)
EN 61000-4-5:2014 + A1:2017
Customer Service
EN 61000-4-6:2014
IMMERSION
EN IEC 61000-4-11:2020
RF
Standard
EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1
Safety
Standard
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN IEC 62311:2020
