TELTONIKA TSW110

(0)
L2 UNMANAGED ETHERNET SWITCH
€ 67,00 € 92,00 -27%

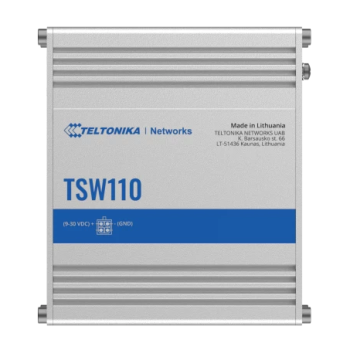

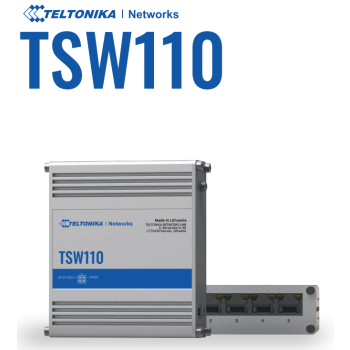

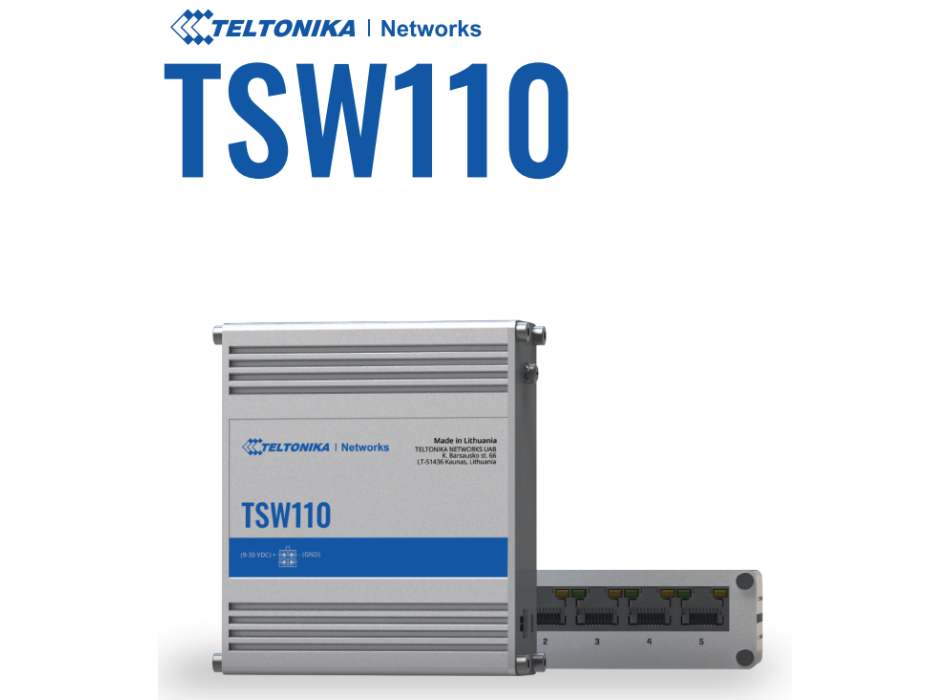

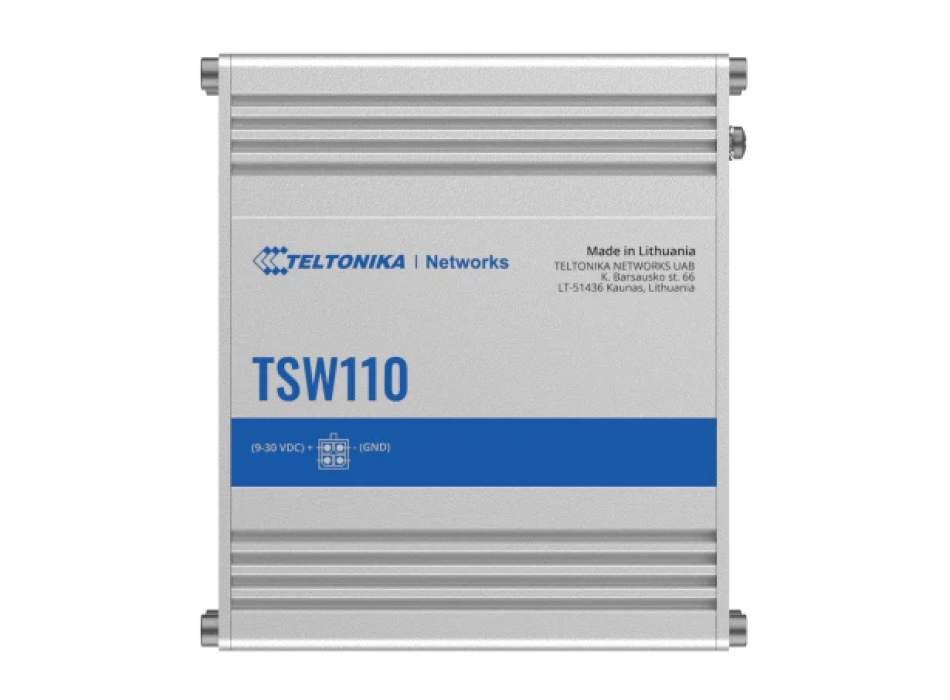

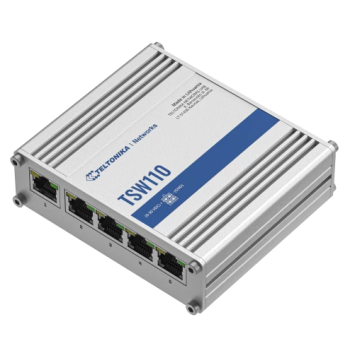

TELTONIKA TSW110

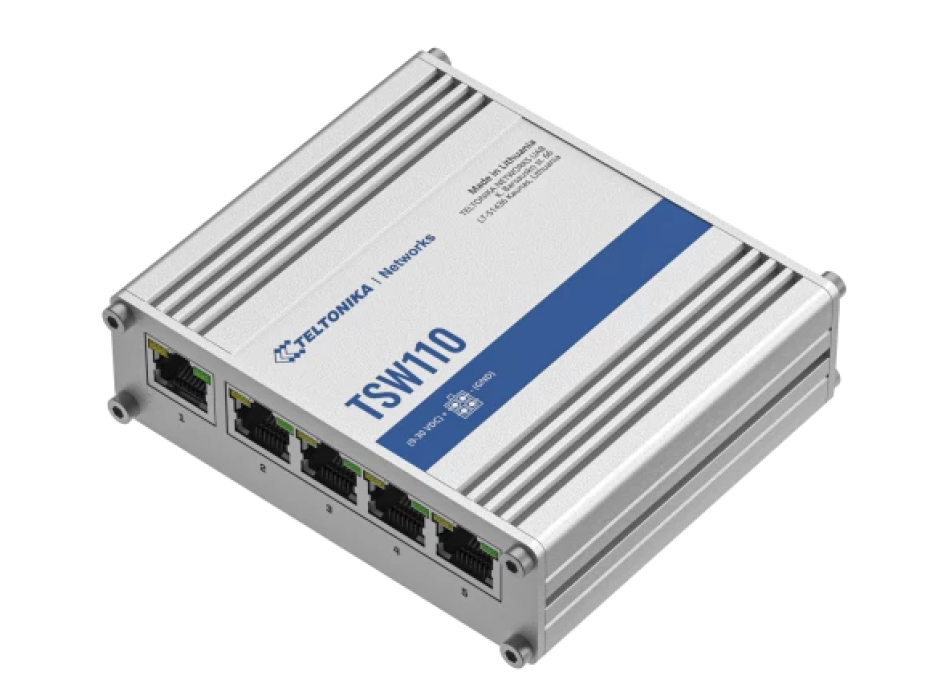

The TSW110 is an unmanaged Layer 2 Ethernet switch. This small yet robust professional device enables high-bandwidth industrial applications with a reliable data connection. It has five Gigabit Ethernet ports for connecting equipment to the network and supports wide power supply voltages (9-30V).

GIGABIT ETHERNET

5 x Gigabit Ethernet with speeds up to 1000 Mbps

DURATION

Robust aluminum housing

ASSEMBLY

DIN rail and surface mounting options

TEMPERATURE

Operating temperature -40°C to 75°C

Ethereal
  • ETH
    5 ETH ports, 10/100/1000 Mbps, supports automatic MDI/MDIX crossover
  • IEEE 802.3 series standards
    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
  • Profile
    Profinet Class A compliant (available with optional order code)
Performance Specifications
  • Bandwidth (non-blocking)
    10 Gbps
  • Packing buffer
    Size: 128 KB
  • MAC address table size
    2K entries
  • Jumbo Frame Support
    9216 bytes
Energy
  • Connector
    4-pin industrial DC power socket
  • Input voltage range
    9 – 30 VDC
  • PoE (passive)
    Power supply via ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
  • Energy consumption
    < 0.4 W/ < 1.8 W
Physical interfaces
  • Ethereal

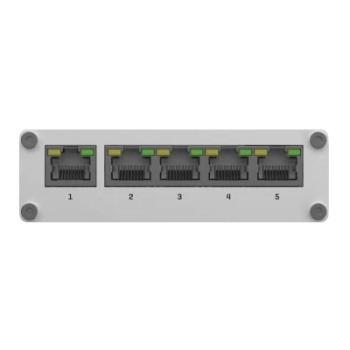

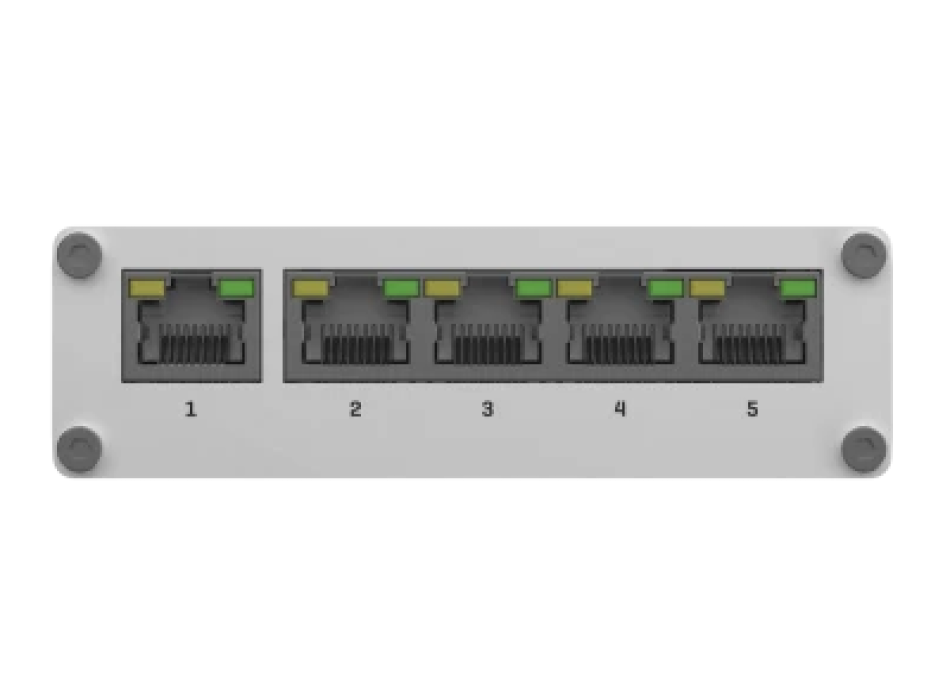

    5 RJ45 ports, 10/100/1000 Mbps
  • Status LED
    1 x Power LED, 10 x ETH Status LEDs
  • Energy

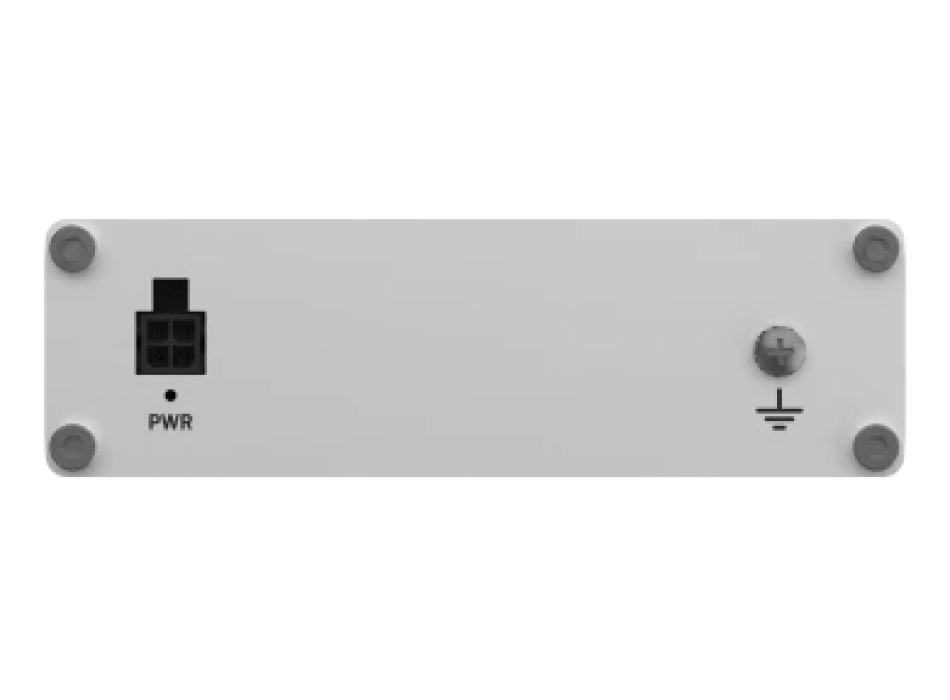

    1 x 4-pin power connector
  • Other
    1 x Grounding screw
Physical specifications
  • Casing material
    Full aluminum housing
  • Dimensions (W x H x D)
    Dimensions: 100 x 30 x 85 mm
  • Weight
    227 grams
  • Mounting options
    DIN rail, wall mount, flat surface (all require additional kit)
Operating environment
  • Operating temperature
    -40°C to 75°C
  • Operating humidity
    5% to 95% non-condensing
  • Degree of ingress protection
    IP30 rating
Regulatory and type approvals
  • Regulations
    CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB
EMC emissions and immunity
  • Standard
    EN 55032:2015 + A11:2020
    EN 61000-3-3:2013 + A1:2019
    Standard EN IEC 61000-3-2:2019
    EN 55035:2017
  • ESD
    EN 61000-4-2:2009
  • Radiated immunity
    EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
  • EFT
    EN 61000-4-4:2012
  • Surge immunity (AC power port)
    EN 61000-4-5:2014 + A1:2017
  • Customer Service
    EN 61000-4-6:2014
  • IMMERSION
    EN 61000-4-11:2004 + A1:2017
Safety
  • Standard
    IEC 62368-1:2018 standard
    EN IEC 62368-1:2020+A11:2020
