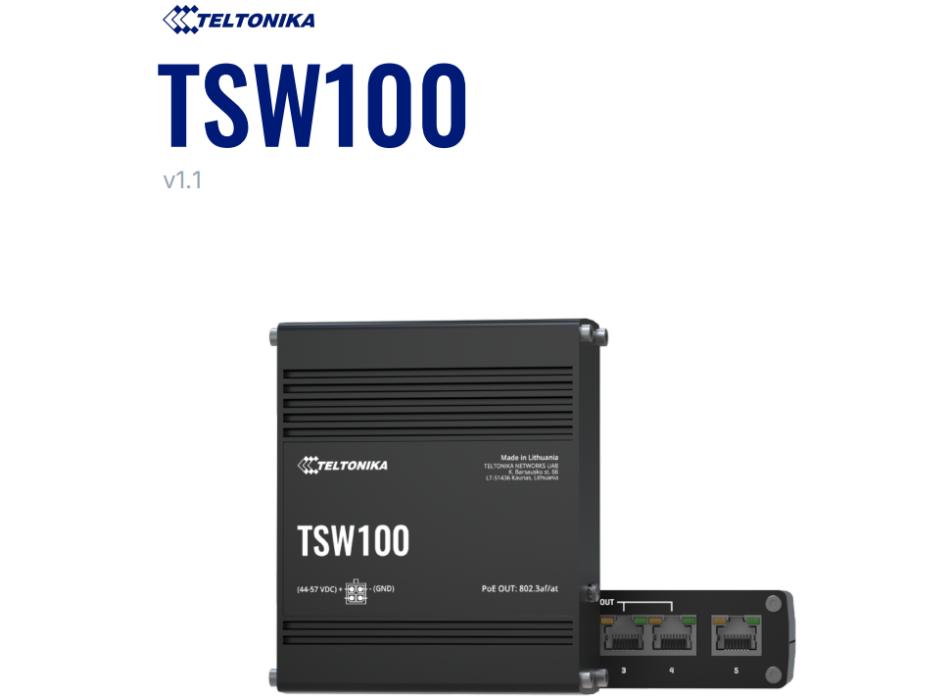

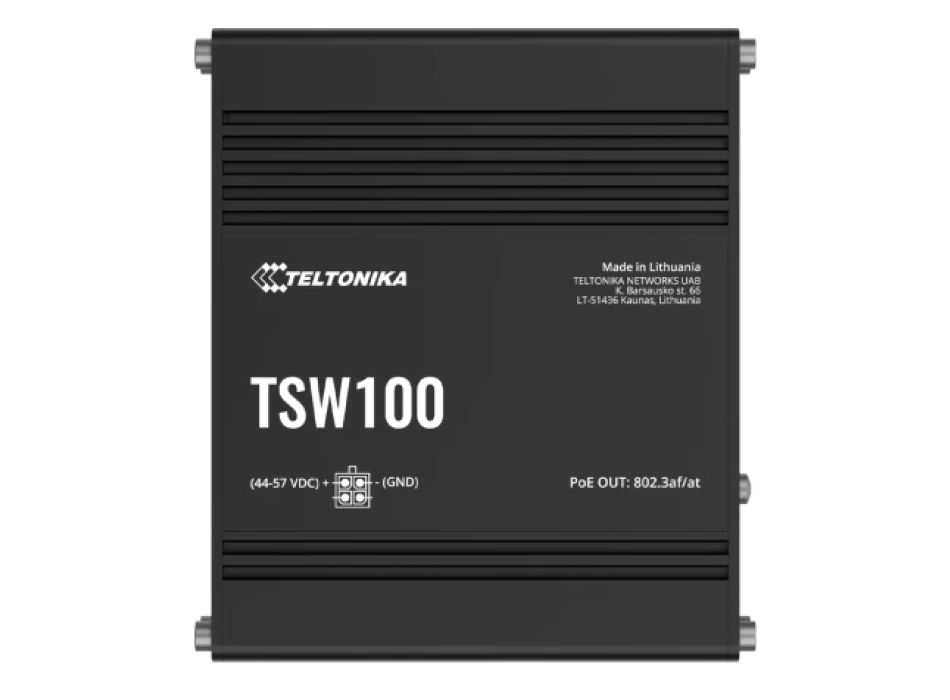

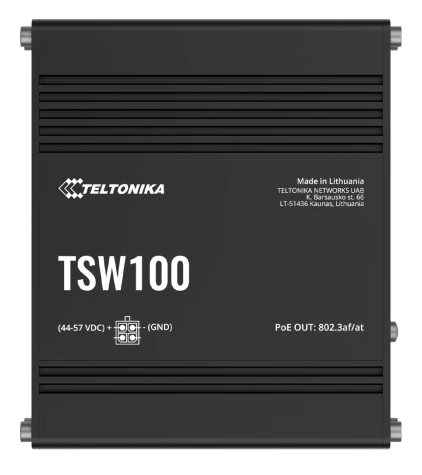

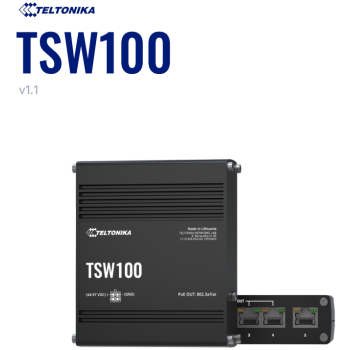

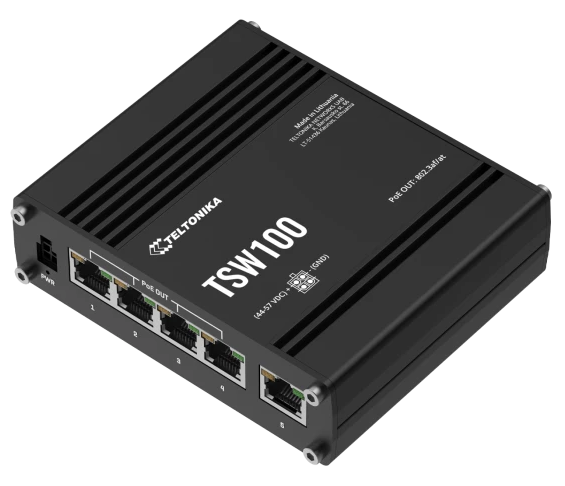

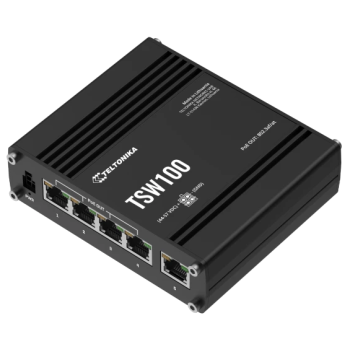

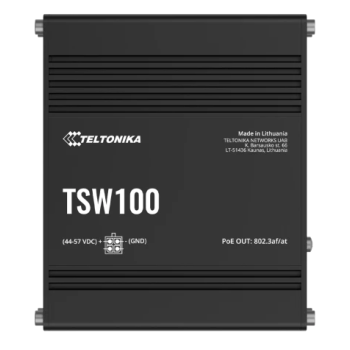

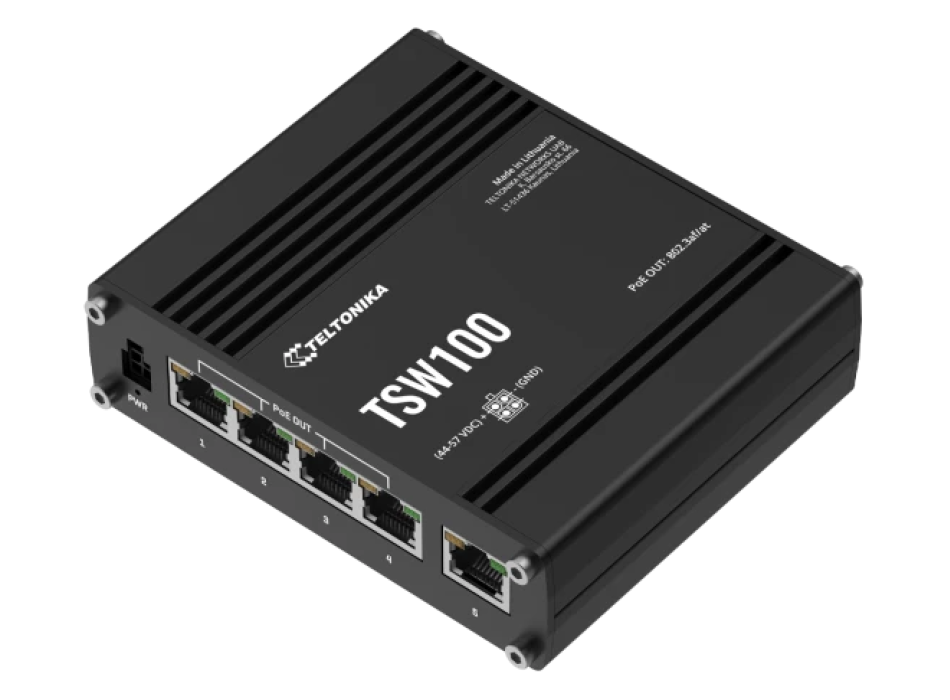

TELTONIKA TSW100

(0)
INDUSTRIAL ETHERNET POE+ SWITCH
€ 128,00 € 176,00 -27%
TSW100 is an unmanaged Gigabit Ethernet switch that supports Power-over-Ethernet. Classified as a Power Sector Equipment (PSE), it centralizes power, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide a cost-effective, high-bandwidth solution for a secure industrial Ethernet network.

Ethernet
  • ETH
    5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • IEEE 802.3 series standards
    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
  • Profinet
    Profinet Class A conformance (available with optional order code)
POE OUT
  • PoE ports
    Ports 1-4
  • PoE standards
    802.3af and 802.3at Alternative A (Order code: TSW100 * 1 ****)
    802.3af and 802.3at Alternative B (Order code: TSW100 * 0 ****)
  • PoE Max Power per Port (at PSE)
    30W
  • PoE Power Budget (at PSE)
    120W
Performance Specifications
  • Bandwidth (Non-blocking)
    10 Gbps
  • Packer buffer
    128 KB
  • MAC address table size
    2K entries
  • Jumbo frame support
    9216 bytes
Power
  • Connector
    4-pin industrial DC power socket
  • Input voltage range
    7 – 57 VDC
  • PoE-out input voltage range
    44 – 57 VDC
  • Power consumption
    Idle: 2W / Max (no PoE): 9W / PoE Max: 129W

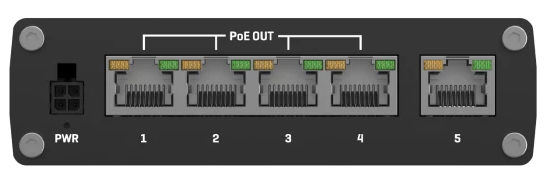

Physical Interfaces

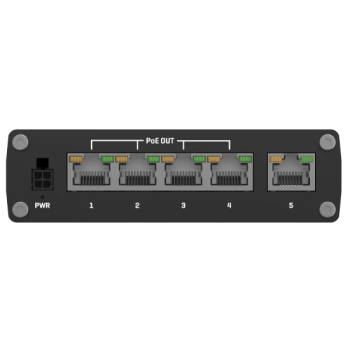

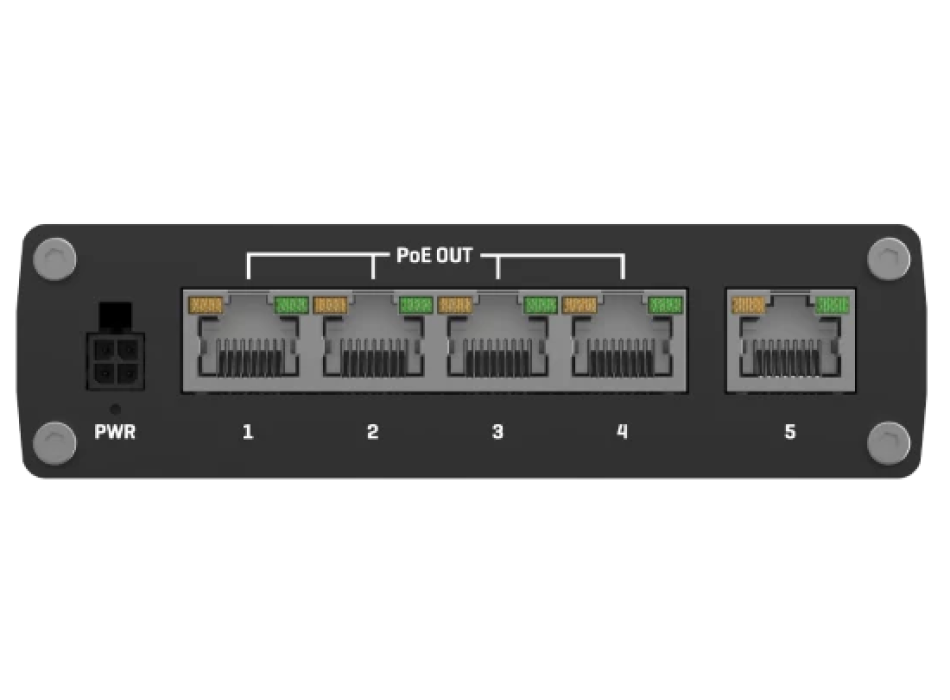

  • Ethernet
    5 x RJ45 ports, 10/100/1000 Mbps
  • Status LEDs
    1 x Power LED, 10 x ETH status LEDs
  • Power
    1 x 4-pin power connector
  • Other

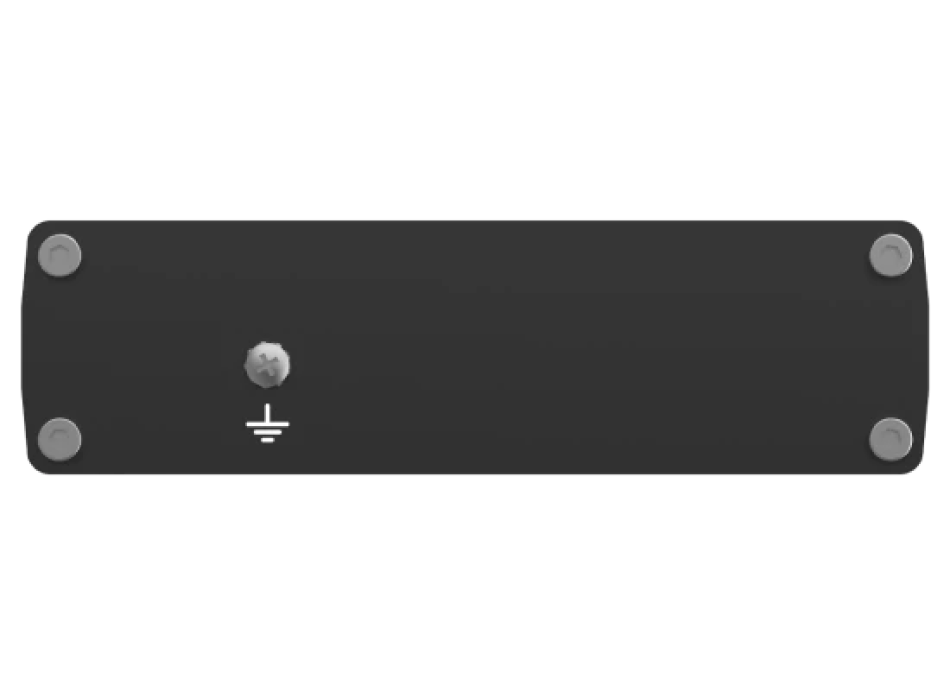

    1 x Grounding screw
Physical Specification
  • Casing material
    Full aluminum housing
  • Dimensions (W x H x D)
    115 x 32.2 x 101.2 mm
  • Weight
    350 g
  • Mounting options
    DIN rail, wall mount, flat surface (all require additional kit)
  •
Operating Environment
  • Operating temperature
    -40°C to 75°C
  • Operating humidity
    5% to 95% non-condensing
  • Ingress Protection Rating
    IP30
Regulatory & Type Approvals
  • Regulatory
    CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC Emissions & Immunity
  • Standards
    EN 55032:2015
    EN 55035:2017
    EN 301 489-1 V2.2.3
  • ESD
    EN 61000-4-2:2009
  • Radiation Immunity
    EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
  • EFT
    EN 61000-4-4:2012
  • Surge Immunity (AC Mains Power Port)
    EN 61000-4-5:2014
  • CS
    EN 61000-4-6:2014
  • DIP
    EN 61000-4-11:2004
Safety
  • Standards
    IEC 62368-1:2018
    EN IEC 62368-1:2020+A11:2020
