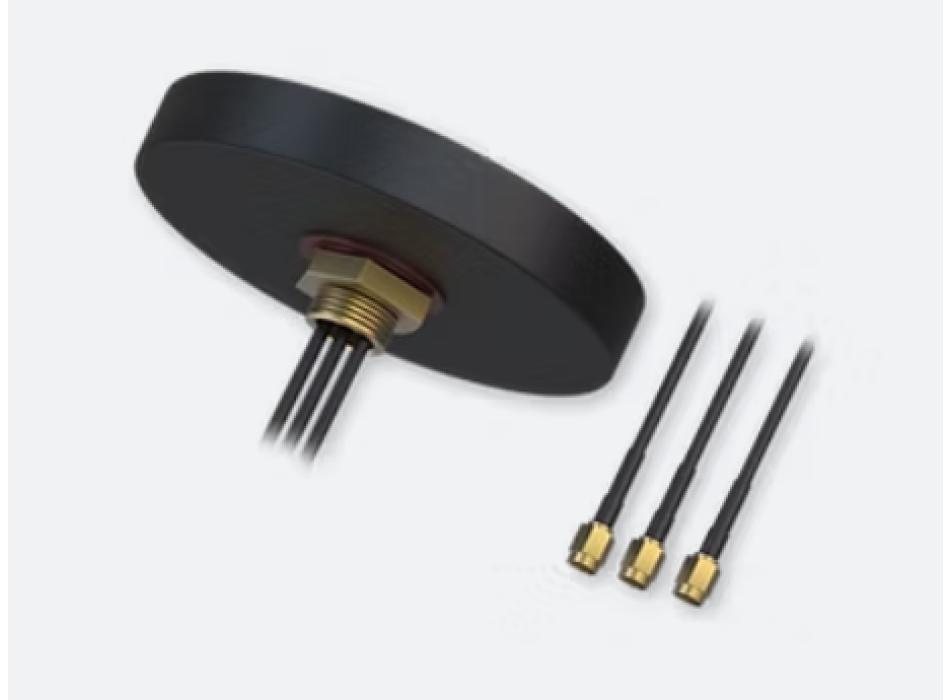

Teltonika Wifi Roof SMA Antenna

(0)
€ 32,00 € 41,48 -23%

COMBO SISO MOBILE/GNSS/WI-FI ROOF SMA ANTENNA

MECHANICAL/ENVIRONMENTAL
Mounting method

Screw


Radome ingress protection rating

IP67 (excluding cable outlet)


Radome material

ABS


Housing dimensions

Ø 80.5 x 15.2 mm


Cable

3x RG174, 3000 mm


Operating temperature

-40 ~ +85 °C


Weight

215 ± 10 g


UV resistance

✓


RoHS compliant

✓


GNSS ANTENNA
Frequency range

1575 – 1610 MHz


Polarization

RHCP


LNA Gain

28 dBi


LNA noise figure

1.5 dB


VSWR

≤ 1.5


Impedance

50 Ω


Supply voltage

2.7 – 5.0 ± 0.5 VDC


Current consumption

< 15 mA


Connector type and count

SMA Male


LTE ANTENNA
Frequency range

617 – 960, 1710 – 2690 MHz


Polarization

Linear


Radiation pattern

Omni - Directional


Gain

3.5 dBi


VSWR

≤ 1.5


Impedance

50 Ω


Connector type and count

SMA Male


WI-FI ANTENNA
Frequency range

2350 – 2500 MHz


Polarization

Linear


Radiation pattern

Omni - Directional


Gain

2.5 dBi


VSWR

≤ 1.5


Impedance

50 Ω


Connector type and count

RP-SMA Male
